TRH224W-LDPNK (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408-1008)KDH20#,211,22#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2302 2302 23211F 23211F 23917 23917 77207A 77207A 77251B 77253D 77253D 77254D 77254D 77255D 77257C 77257C 77285D 77286H 77289B 77289B 77433 77433 9046718008 9046718008 9167380820 9167380820 9613241500 9613241500 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-26B20

TRH200,21#,22#

 1
77251-26B30

KDH20#,211,22#

 1
77251-26B31

KDH20#,211,22#

 1
77253D - HOSE, FUEL
95333-08020

KDH20#,22#

 1
77253D - HOSE, FUEL
95333-08020

KDH20#,22#

 1
77254D - HOSE, FUEL
95333-08030

KDH20#,211,22#

 1
95337-08024

KDH20#,211,22#

 1
77254D - HOSE, FUEL
95333-08030

KDH20#,211,22#

 1
95337-08024

KDH20#,211,22#

 1
77255D - TUBE, FUEL RETURN
77255-26700

KDH20#,211,22#

 1
77255-26670

TRH200,21#,22#

 1
77286H - CLAMP, FUEL TUBE, NO.3
77289-26030

KDH20#,211,22#

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010

TRH200,21#,22#

 5
77289-26010

KDH20#,211,22#

 6
77289-26010

KDH20#,211,22#

 5
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010

TRH200,21#,22#

 5
77289-26010

KDH20#,211,22#

 6
77289-26010

KDH20#,211,22#

 5
77433 - HOSE, FUEL MAIN, NO.1
77433-26010

KDH20#,211,22#

 1
77433-26011

KDH20#,211,22#

 1
77433 - HOSE, FUEL MAIN, NO.1
77433-26010

KDH20#,211,22#

 1
77433-26011

KDH20#,211,22#

 1
Common parts
90467-18008
91673-80820
96132-41500
96132-51300
Linked diagrams
2202
2302

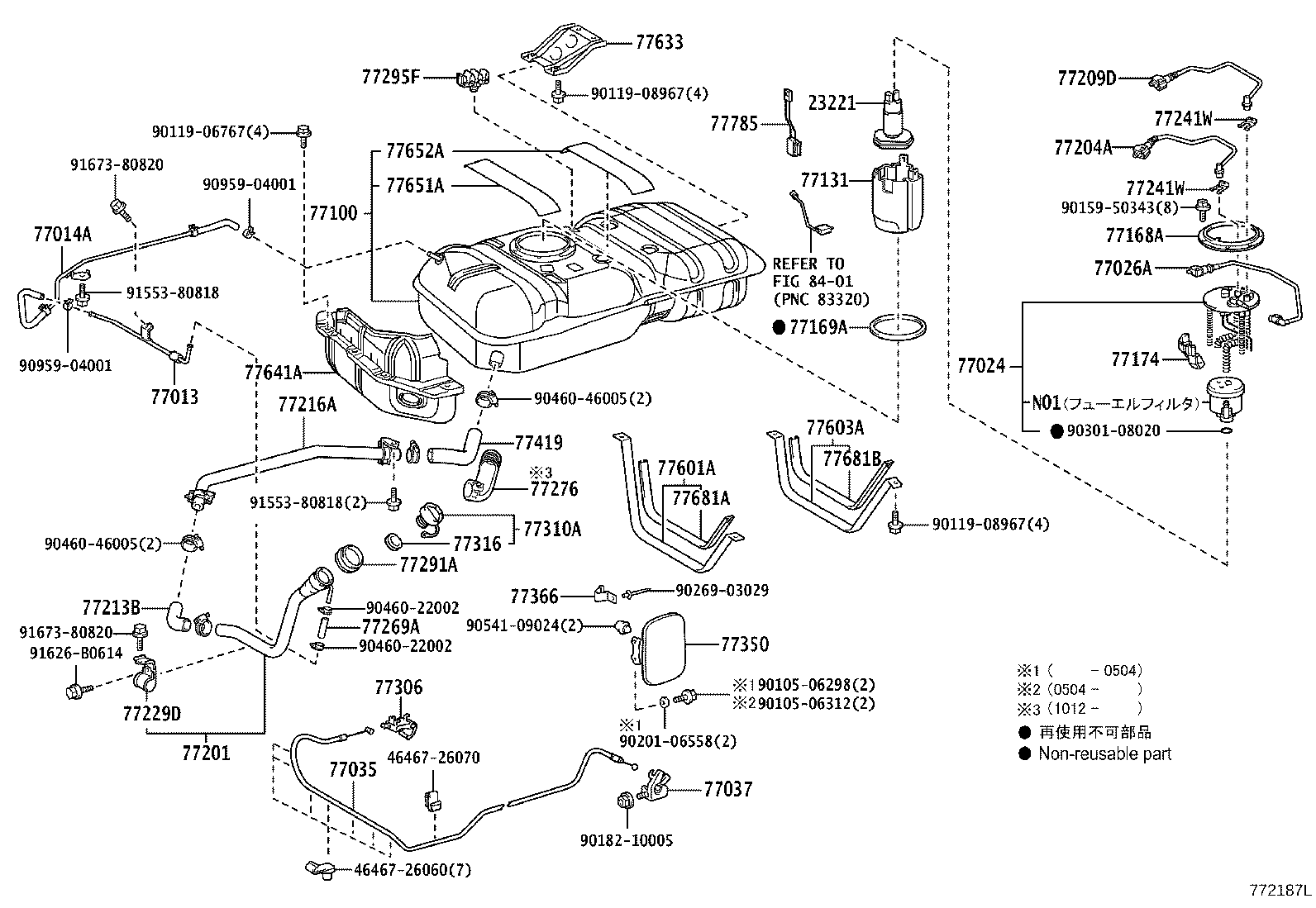

ILLUST NO. 1 OF 2(0501- )TRH22#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 23221 4646726060 4646726070 77013 77014A 77024 77026A 77035 77037 77100 77131 77168A 77169A 77174 77201 77204A 77209D 77213B 77216A 77229D 77241W 77241W 77269A 77276 77291A 77295F 77306 77310A 77316 77350 77366 77419 77601A 77603A 77633 77641A 77651A 77652A 77681A 77681B 77785 8401 9010506298 9010506312 9011906767 9011908967 9011908967 9015950343 9018210005 9020106558 9026903029 9030108020 9046022002 9046022002 9046046005 9046046005 9054109024 9095904001 9095904001 9155380818 9155380818 91626B0614 9167380820 9167380820
Part # Description Qty Price
23221 - PUMP, FUEL
23220-75041

1TRFE,2TRFE..TRH200,21#,22#

 1
23220-75040

1TRFE,2TRFE..TRH200,21#,22#

 1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-26120

KDH20#,211,22#,TRH200,21#,22#

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-26040

KDH20#,211,22#,TRH200,21#,22#

 1
77014-26041

KDH20#,211,22#,TRH200,21#,22#

 1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-26020

KDH20#,211,22#

 1
77024-26010

TRH200,21#,22#

 1
77024-26011

TRH200,21#,22#

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26080

KDH20#,211,22#

 1
77026-26070

TRH200,21#,22#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26150

KDH211,22#,TRH21#,22#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

KDH20#,211,22#,TRH200,21#,22#

 1
77100 - TANK ASSY, FUEL
77001-26691

TRH200,21#,22#

 1
77001-26692

TRH200,21#,22#

 1
77001-26701

KDH20#,211,22#

 1
77001-26700

KDH20#,211,22#

 1
77001-26690

TRH200,21#,22#

 1
77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT
77131-26112

TRH200,21#,22#

 1
77131-26111

TRH200,21#,22#

 1
77131-26110

TRH200,21#,22#

 1
77131-60140

TRH200,21#,22#

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020

KDH20#,211,22#,TRH200,21#,22#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010

TRH200,21#,22#

 1
77169-53010

TRH200,21#,22#

 1
77169-52010

KDH20#,211,22#

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-26010

TRH200,21#,22#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26240

TRH200,21#,22#

 1
77201-26250

KDH20#,211,22#

 1
77204A - TUBE, FUEL TANK RETURN
77204-26040

TRH200,21#,22#

 1
77204-26050

KDH20#,211,22#

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-26140

TRH200,21#,22#

 1
77209-26150

KDH20#,211,22#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26120

KDH20#,211,22#,TRH200,21#,22#

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77104-26010

KDH20#,211,22#,TRH200,21#,22#

 1
77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4
77229-26020

KDH20#,211,22#,TRH200,21#,22#

 1
77241W - CLIP, TUBE JOINT
77241-33011

KDH20#,211,22#

 1
77241-60320

TRH200,21#,22#

 2
77241-33011

TRH200,21#,22#

 2
77241-60320

KDH20#,211,22#

 1
77241W - CLIP, TUBE JOINT
77241-33011

KDH20#,211,22#

 1
77241-60320

TRH200,21#,22#

 2
77241-33011

TRH200,21#,22#

 2
77241-60320

KDH20#,211,22#

 1
77269A - HOSE, FUEL TANK BREATHER
77269-26010

KDH20#,211,22#,TRH200,21#,22#

 1
77276 - PROTECTOR, FUEL HOSE
77276-26090

KDH20#,211,22#,TRH200,21#,22#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-26021

KDH20#,211,22#,TRH200,21#,22#

 1
77291-26020

KDH20#,22#,TRH200,21#,22#

 1
77295F - GROMMET, FUEL HOSE
77295-26050

KDH20#,211,22#,TRH200,21#,22#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1

KDH20#,211,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 1
77310A - CAP ASSY, FUEL TANK
77300-28010

TRH200,21#,22#

 1
77300-20020

KDH20#,211,22#

 1
77300-60010

KDH20#,211,22#

 1
77300-52030

TRH200,21#,22#

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

KDH20#,211,22#,TRH200,21#,22#

 1
77316-16010

KDH20#,211,22#,TRH200,21#,22#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26030

KDH20#,211,22#,TRH200,21#,22#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-26011

KDH20#,211,22#,TRH200,21#,22#

 1
77366-26010

KDH20#,211,22#,TRH200,21#,22#

 1
77419 - HOSE, FUEL, NO.3
77419-26010

KDH20#,211,22#,TRH200,21#,22#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26100

KDH20#,211,22#,TRH200,21#,22#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77602-26030

KDH22#,TRH22#

 1
77633 - STAY, FUEL TANK
77633-26010

KDH22#,TRH22#

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-26040

KDH201..V1;KDH201..V2..5F;KDH200,205,206,211,22#,TRH200,21#,22#

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26080

KDH20#,211,22#,TRH200,21#,22#

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-26070

KDH20#,211,22#,TRH200,21#,22#

 1
77681A - SEAT, FUEL TANK BAND
77681-32060

KDH20#,211,22#,TRH200,21#,22#

 1
77681B - SEAT, FUEL TANK BAND
77616-36010

KDH22#,TRH22#

 1
77785 - HARNESS, FUEL PUMP
77785-26011

TRH200,21#,22#

 1
77785-26010

TRH200,21#,22#

 1
Common parts
46467-26060
46467-26070
90105-06298
90105-06312
90119-06767
90119-08967
90159-50343
90182-10005
90201-06558
90269-03029
90301-08020
90460-22002
90460-46005
90541-09024
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

ILLUST NO. 2 OF 2(1008- )KDH20#,211,22#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2302 2302 77207A 77207A 77251B 77251F 77251F 77255D 77257C 77257C 77285D 77286H 77289B 77433 77433 9046616004 9046616004 9046718008 9613251300 9613251300 9613741901
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-26B20

TRH200,21#,22#

 1
77251-26B30

KDH20#,211,22#

 1
77251-26B31

KDH20#,211,22#

 1
77251F - HOSE, FUEL
77259-26130

KDH20#,211,22#

 1
77251F - HOSE, FUEL
77259-26130

KDH20#,211,22#

 1
77255D - TUBE, FUEL RETURN
77255-26700

KDH20#,211,22#

 1
77255-26670

TRH200,21#,22#

 1
77286H - CLAMP, FUEL TUBE, NO.3
77289-26030

KDH20#,211,22#

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010

TRH200,21#,22#

 5
77289-26010

KDH20#,211,22#

 6
77289-26010

KDH20#,211,22#

 5
77433 - HOSE, FUEL MAIN, NO.1
77433-26010

KDH20#,211,22#

 1
77433-26011

KDH20#,211,22#

 1
77433 - HOSE, FUEL MAIN, NO.1
77433-26010

KDH20#,211,22#

 1
77433-26011

KDH20#,211,22#

 1
Common parts
90466-16004
90467-18008
96132-51300
96137-41901
Linked diagrams
2202
2302
