TRH224W-LDPNK (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH222,223,227,TRH223,224,228,229..GC,GL

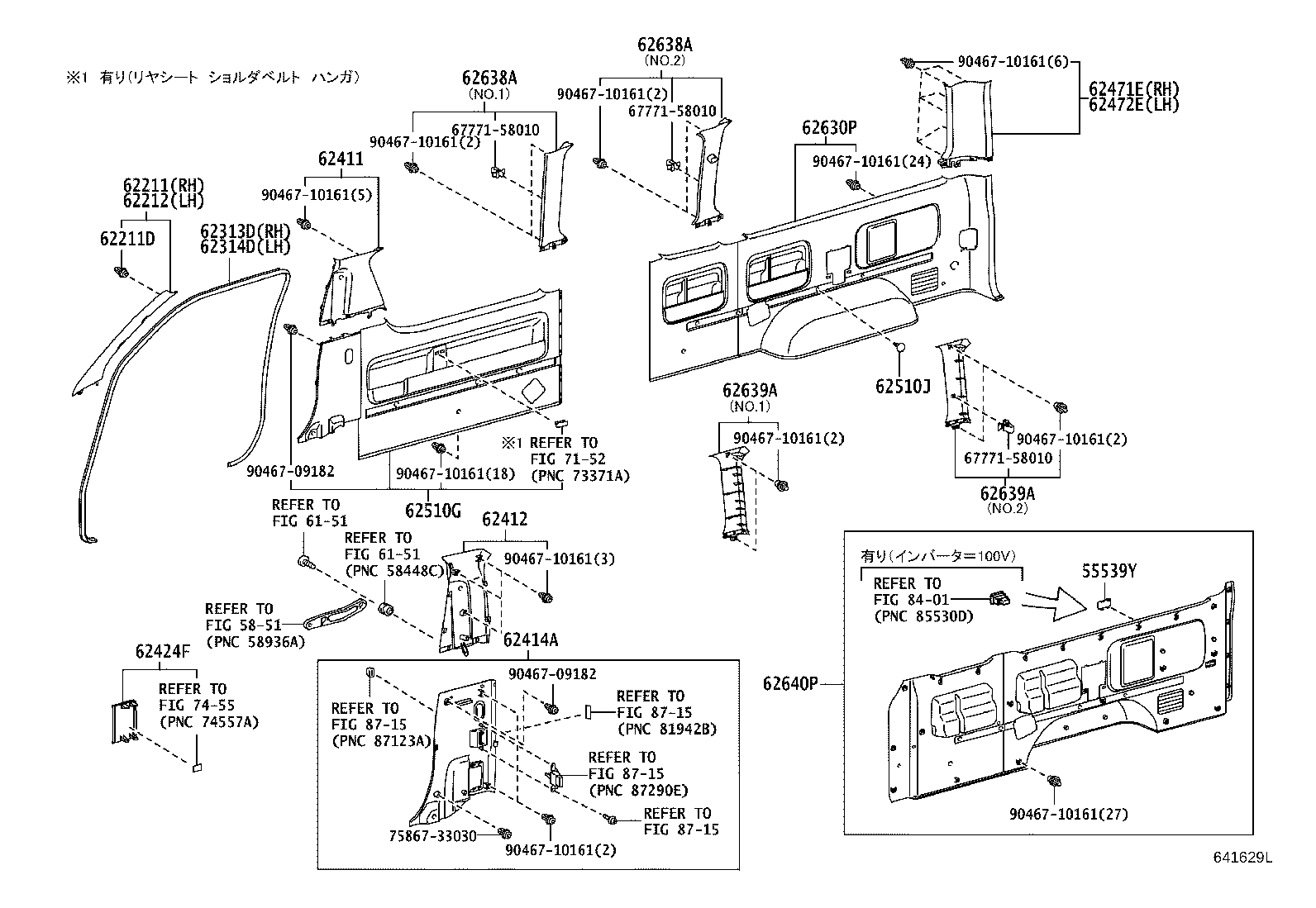

Click highlighted areas on diagram

diagram 55539Y 5851 6151 6151 62211 62211D 62212 62313D 62314D 62411 62412 62414A 62424F 62471E 62472E 62510G 62510J 62630P 62638A 62638A 62639A 62639A 62640P 6777158010 6777158010 6777158010 7152 7455 7586733030 8401 8715 8715 8715 8715 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
55539Y - COVER, SPARE SWITCH HOLE
55539-28120B4

KDH20#,TRH200..IV5;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL

GRAY,TRIM1#

 1
55539-28120B2

KDH20#,TRH200..IV5;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL

DK.GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0

TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF

LT.GRAY,TRIM1#

 1
62210-26052B0

TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF

LT.GRAY,TRIM1#

 1
62210-26051B0

TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF

LT.GRAY,TRIM1#

 1
62210-26060B0

TRH224,229..CBU

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,22#..HRF,SHRF,SMRF

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26032B0

TRH224..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF

LT.GRAY,TRIM1#

 1
62220-26030B0

TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF

LT.GRAY,TRIM1#

 1
62220-26031B0

TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,221,223,226,228..HRF,SHRF,SMRF

LT.GRAY,TRIM1#

 1
62220-26060B0

TRH224,229..CBU

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-26090

TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL

 1
62313-26010C0

KDH20#,TRH200,221,224,226,229..02S,05S,10S

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

KDH20#,TRH200,221,224,226,229..02S,05S,10S

BLACK,TRIM1#

 1
62312-26090

TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26110B0

TRH224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),LT.GRAY,TRIM1#

 1
62410-26140B0

TRH224,229..CBU

LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26120B0

TRH224,229..CBU

LT.GRAY,TRIM1#

 1
62420-26140B0

TRH224,229..CBU

LT.GRAY,TRIM1#

 1
62420-26070B0

TRH224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),LT.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26340B1

TRH223,224,228,229..CBU

GRAY,TRIM1#

 1
62414-26330B1

TRH214,219,224,229..(GC,GL)..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),GRAY,TRIM1#

 1
62414-26400B0

TRH223,224,228,229..CBU

GRAY,TRIM1#

 1
62414-26400B1

TRH214,219,229..GC,GL;KDH223,TRH223,224,228..CBU

DK.GRAY,TRIM1#

 1
62414-26330B0

TRH214,219,224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),DK.GRAY,TRIM1#

 1
62414-26400B2

TRH214,219..GL;KDH223,TRH223,224,228,229..CBU

DK.GRAY,TRIM1#

 1
62414-26330B2

TRH214,219,224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),DK.GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B0

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
62424-26030B1

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
62424-26031B0

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-26320B0

TRH224,229

ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ),LT.GRAY,TRIM1#

 1
62471-26320B0

TRH224,229

ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LT.GRAY,TRIM1#

 1
62471-26260B0

KDH20#,223,TRH200,223,228..IV5;KDH211,222,227,TRH211,216,224,229..GC,GL,SGL

LT.GRAY,TRIM1#

 1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-26290B0

TRH224,229..CBU

ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ),LT.GRAY,TRIM1#

 1
62472-26230B0

KDH211,222,227,TRH211,216,224,229..(GC,GL,SGL)..CBU

LT.GRAY,TRIM1#

 1
62472-26290B0

TRH224,229..CBU

ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LT.GRAY,TRIM1#

 1
62510G - TRIM ASSY, SIDE NO.1, RH
62510-26760B0

TRH224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1#

 1
62510-26670B2

TRH214,219,224,229..(GC,GL)..CBU

GRAY,TRIM1#

 1
62510-26760B2

TRH224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1#

 1
62510-26760B2

TRH214,219,224,229..(GC,GL)..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),DK.GRAY,TRIM1#

 1
62510-26670B4

TRH214,219,224,229..(GC,GL)..CBU

DK.GRAY,TRIM1#

 1
62510-26760B0

TRH214,219,224,229..(GC,GL)..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車),GRAY,TRIM1#

 1
62510-26670B2

TRH224,229..CBU

ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM12

 1
62510J - RETAINER, QUARTER TRIM
67771-26230B0

KDH222,223,227,TRH223,224,228,229..GC,GL

GRAY,TRIM1#

 2
67771-26230B2

KDH223,TRH223,224,228,229..GC,GL

DK.GRAY,TRIM1#

 2
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-26A50B2

TRH224,229..CBU

GRAY,TRIM1#

 1
62630-26A50B3

TRH224,229..CBU

DK.GRAY,TRIM1#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-26140B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.1

 1
62638-26150B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.2

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-26140B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.1

 1
62638-26150B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.2

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-26110B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.1

 1
62639-26070B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.2

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-26110B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.1

 1
62639-26070B0

TRH224,229..CBU

LT.GRAY,TRIM1#,NO.2

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-26A80B1

TRH224,229..CBU

GRAY,TRIM1#

 1
62640-26A70B1

TRH224,229..CBU

ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1#

 1
62640-26A70B1

TRH224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&ｲﾝﾊﾞｰﾀ−有り(100V),GRAY,TRIM1#

 1
62640-26A80B2

TRH224,229..CBU

DK.GRAY,TRIM1#

 1
62640-26A70B2

TRH224,229..CBU

ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1#

 1
62640-26A70B2

TRH224,229..CBU

ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1#

 1
Common parts
67771-58010
75867-33030
90467-09182
90467-10161
