Toyota Hiace/regiusace TRH223 OIL COOLER & TUBE (ATM)

TRH223B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1501- )TRH200,21#,22#..6FC

Click highlighted areas on diagram

AC60E,AC60F

Part #	Description	Period	Qty
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-26100	GDH201,223..IV5	12/2017 - 07/2021	1
32907-26052	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	07/2016 - 12/2999	1
32907-26051	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	01/2015 - 06/2016	1
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-26100	GDH201,223..IV5	12/2017 - 07/2021	1
32907-26052	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	07/2016 - 12/2999	1
32907-26051	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	01/2015 - 06/2016	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26361	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32921-26440	GDH201,223..IV5	12/2017 - 07/2021	1
32921D - HOSE(FOR OIL COOLER INLET)
32941-26290	GDH201,223..IV5	12/2017 - 07/2021	1
32941-26240	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH201,223..IV5	12/2013 - 07/2021	2
90301-11030	TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH201,223..IV5	12/2013 - 07/2021	2
90301-11030	TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009	GDH201,223..IV5	01/2015 - 07/2021	1
90407-16009	GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7	01/2015 - 12/2999	1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26351	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32922-26430	GDH201,223..IV5	12/2017 - 07/2021	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-26190	GDH201,223..IV5	12/2017 - 07/2021	1
32941-26250	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009	GDH201,223..IV5	01/2015 - 07/2021	1
90407-16009	GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7	01/2015 - 12/2999	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32909-25081	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32909-26180	TRH200,21#,22#..4FC,6FC	12/2013 - 12/2999	1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-34040	TRH200,21#,22#..4FC,6FC	12/2013 - 12/2999	1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-26181	GDH201,223..IV5	01/2015 - 07/2021	2
32941-26181	KDH201,223,TRH200,223,224..4FC,6FC;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7	01/2015 - 12/2999	2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-26181	GDH201,223..IV5	01/2015 - 07/2021	2
32941-26181	KDH201,223,TRH200,223,224..4FC,6FC;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7	01/2015 - 12/2999	2
Common parts
90119-08650
91611-60814
91611-G0612
91612-B1014
91651-60816

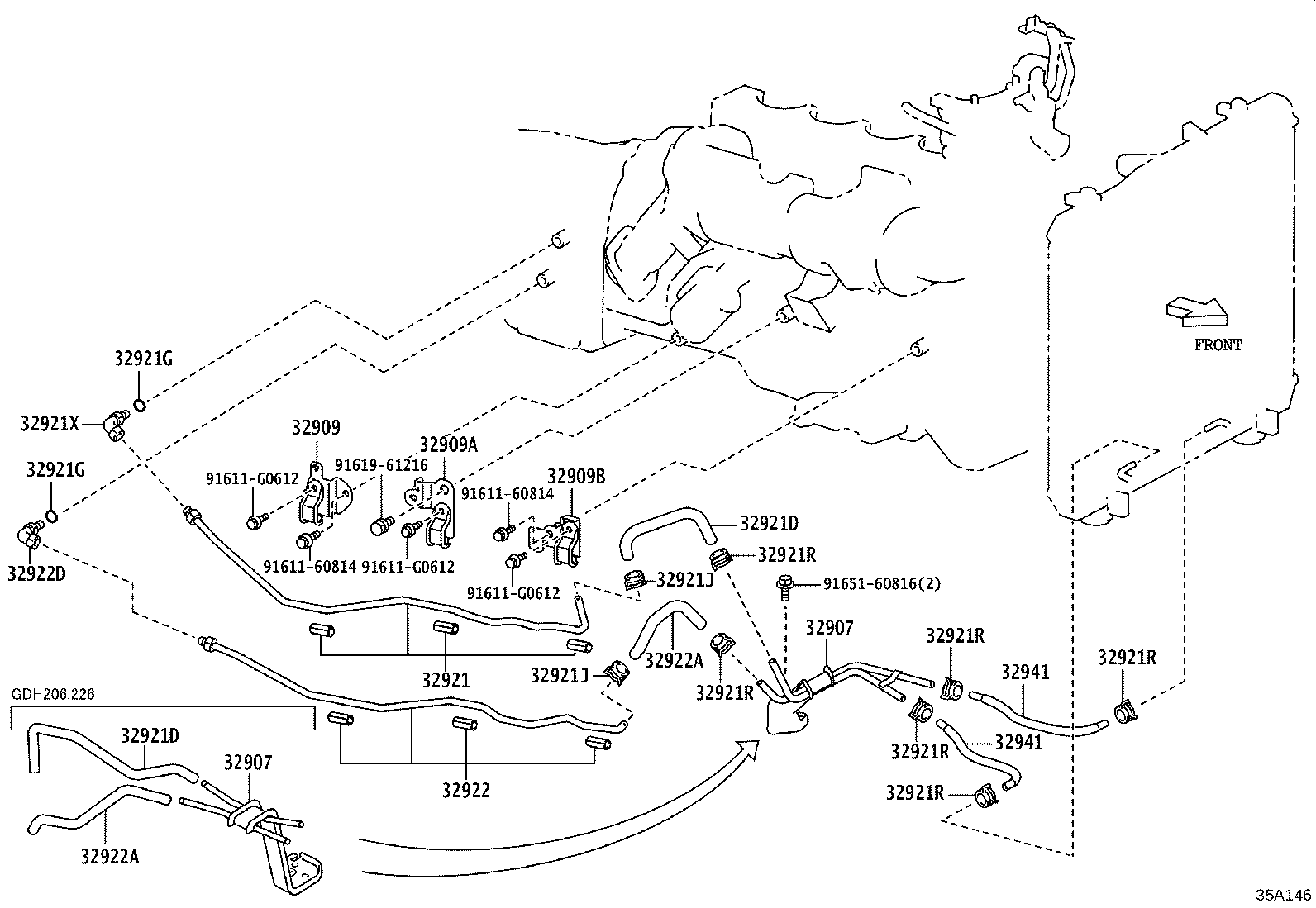

(1712- )GDH20#,211,22#

Click highlighted areas on diagram

AC60E,AC60F

Part #	Description	Period	Qty
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-26100	GDH201,223..IV5	12/2017 - 07/2021	1
32907-26052	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	07/2016 - 12/2999	1
32907-26051	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	01/2015 - 06/2016	1
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-26100	GDH201,223..IV5	12/2017 - 07/2021	1
32907-26052	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	07/2016 - 12/2999	1
32907-26051	KDH201,211,22#,TRH200,211,214,221,223,224..4FC,6FC	01/2015 - 06/2016	1
32909 - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32909-26290	GDH201,223..IV5	12/2017 - 07/2021	1
32909A - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2
32909-26300	GDH201,223..IV5	12/2017 - 07/2021	1
32909B - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.3
32909-26310	GDH201,223..IV5	12/2017 - 07/2021	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26361	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32921-26440	GDH201,223..IV5	12/2017 - 07/2021	1
32921D - HOSE(FOR OIL COOLER INLET)
32941-26290	GDH201,223..IV5	12/2017 - 07/2021	1
32941-26240	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32921D - HOSE(FOR OIL COOLER INLET)
32941-26290	GDH201,223..IV5	12/2017 - 07/2021	1
32941-26240	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH201,223..IV5	12/2013 - 07/2021	2
90301-11030	TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030	GDH201,223..IV5	12/2013 - 07/2021	2
90301-11030	TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	2
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	6
90466-16004	GDH201,223..IV5	12/2013 - 07/2021	6
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009	GDH201,223..IV5	01/2015 - 07/2021	1
90407-16009	GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7	01/2015 - 12/2999	1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26351	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32922-26430	GDH201,223..IV5	12/2017 - 07/2021	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-26190	GDH201,223..IV5	12/2017 - 07/2021	1
32941-26250	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-26190	GDH201,223..IV5	12/2017 - 07/2021	1
32941-26250	TRH200,21#,22#..6FC	01/2015 - 12/2999	1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009	GDH201,223..IV5	01/2015 - 07/2021	1
90407-16009	GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7	01/2015 - 12/2999	1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-26181	GDH201,223..IV5	01/2015 - 07/2021	2
32941-26181	KDH201,223,TRH200,223,224..4FC,6FC;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7	01/2015 - 12/2999	2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-26181	GDH201,223..IV5	01/2015 - 07/2021	2
32941-26181	KDH201,223,TRH200,223,224..4FC,6FC;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7	01/2015 - 12/2999	2
Common parts
91611-60814
91611-G0612
91619-61216
91651-60816

TRH223B-LETNK5 (2015)

(1501- )TRH200,21#,22#..6FC

(1712- )GDH20#,211,22#
