TRH223B-LEPNK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )GDH20#,211,22#,KDH20#,211,22#,TRH200,21#

Click highlighted areas on diagram

diagram 58151 58152 58153B 58156 9011908D65 9011908D65 9011908D65 9011908D65
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-26101

TRH200..4FC;KDH20#,211,TRH21#..4FC,5F;GDH221,226,KDH22#,TRH22#..02S,06S,10S,14S

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-26040

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
58153B - INSULATOR, FLOOR HEAT, NO.3
58153-26040

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-26031

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
90119-08D65

(1312- )TRH22#

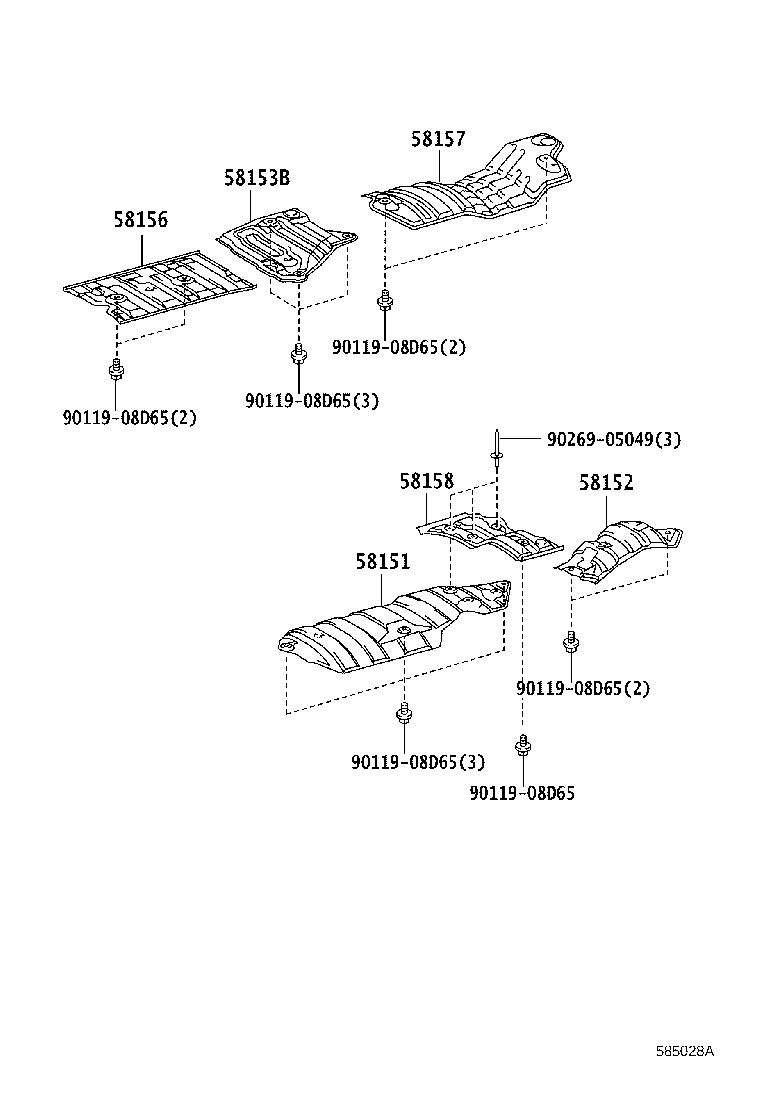

Click highlighted areas on diagram

diagram 58151 58152 58153B 58156 58157 58158 9011908D65 9011908D65 9011908D65 9011908D65 9011908D65 9011908D65 9026905049
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-26101

TRH200..4FC;KDH20#,211,TRH21#..4FC,5F;GDH221,226,KDH22#,TRH22#..02S,06S,10S,14S

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-26040

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
58153B - INSULATOR, FLOOR HEAT, NO.3
58153-26040

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-26031

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-26010

TRH22#

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-26010

TRH22#

 1
Common parts
90119-08D65
90269-05049
