TRH223B-LEPNK (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-1008)1TRFE,2TRFE

Click highlighted areas on diagram

diagram 1201 1709 17360A 17700 17700A 17705 17751 17801 17855 17855 17861 17861D 17880A 17881 17881A 17881C 17881C 17882 17882 17882A 17882A 17893 17894 17894B 17896 17896A 17971 17972 17973 22204 5252 5355 5355 5553 9009900289 9011906883 9011906953 9011906953 9048015017 9099992002 91551A0612 9163160825 9163160825 9163160825 9163160825 9167380816
Part # Description Qty Price
17360A - TUBE ASSY, AIR
17360-75080

2TRFE..TRH21#,22#

 1
17360-75050

2TRFE..TRH21#,22#

 1
17700 - CLEANER ASSY, AIR
17700-75480

1TRFE,2TRFE..TRH200,21#,22#

 1
17700-75481

1TRFE,2TRFE..TRH200,21#,22#

 1
17700-75550

1TRFE,2TRFE..TRH200,21#,22#

 1
17700-75551

1TRFE,2TRFE..TRH200,21#,22#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1TRFE,2TRFE..TRH200,21#,22#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-30140

1TRFE,2TRFE..TRH200,21#,22#

 1
17705-30100

1TRFE,2TRFE..TRH200,21#,22#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-30021

1TRFE,2TRFE..TRH200,21#,22#

 1
17750-30040

1TRFE,2TRFE..TRH200,21#,22#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54110

1TRFE,2TRFE..TRH200,21#,22#

 1
17801-30060

1TRFE,2TRFE..TRH200,21#,22#

 1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-30010

1TRFE,2TRFE..TRH200,21#,22#

 2
17855 - GASKET, AIR INLET DUCT, NO.1
17855-30010

1TRFE,2TRFE..TRH200,21#,22#

 2
17861 - CONNECTOR, INTAKE AIR
17861-75110

2TRFE..TRH21#,22#

 1
17861-75111

2TRFE..TRH21#,22#

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10800

2TRFE..TRH21#,22#

 1
17880A - CLAMP, HOSE
90460-95001

1TRFE,2TRFE..TRH200,21#,22#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-30080

1TRFE,2TRFE..TRH200,21#,22#

 1
17881-30150

1TRFE,2TRFE..TRH200,21#,22#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2TRFE..TRH21#,22#

 1
90466-78001

1TRFE,2TRFE..TRH200,21#,22#

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2TRFE..TRH21#,22#

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
90460-80006

2TRFE..TRH21#,22#

 1
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2TRFE..TRH21#,22#

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
90460-80006

2TRFE..TRH21#,22#

 1
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-75120

2TRFE..TRH21#,22#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-75120

2TRFE..TRH21#,22#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
96111-10800

2TRFE..TRH21#,22#

NO.2

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

2TRFE..TRH21#,22#..HRF,SMRF

NO.2

 1
96111-10900

2TRFE..TRH21#,22#

NO.1

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
96111-10800

2TRFE..TRH21#,22#

NO.2

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

2TRFE..TRH21#,22#..HRF,SMRF

NO.2

 1
96111-10900

2TRFE..TRH21#,22#

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-30060

1TRFE,2TRFE..TRH200,21#,22#

 1
17893-30030

1TRFE,2TRFE..TRH200,21#,22#

 1
17894 - BRACKET, RESONATOR
17894-30010

1TRFE,2TRFE..TRH200,21#,22#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10380

1TRFE,2TRFE..TRH200,21#,22#

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-75010

2TRFE..TRH21#,22#

 1
17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
90467-37005

2TRFE..TRH21#,22#

 1
17973 - INLET, COOL AIR, NO.3
17973-30010

1TRFE,2TRFE..TRH200,21#,22#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

1TRFE,2TRFE..TRH200,21#,22#

 1
Common parts
90099-00289
90119-06883
90119-06953
90480-15017
90999-92002
91551-A0612
91631-60825
91673-80816
Linked diagrams
1201
1709
5252
5355
5553

(1008- )2TRFE

Click highlighted areas on diagram

diagram 1201 17119A 17360A 17700 17705 17751 17801 17861 17861D 17881 17881A 17881C 17882 17882A 17882A 17893 17894A 17896 17896A 22204 9009900289 90105T0066 9011906953 9011906953 9099992002 9155180612 91551A0612 9163160825 9163160825 9163160825 9163160825 9163160825 9611110500 9611110690
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-30020

1TRFE,2TRFE..TRH200,21#,22#

 1
17360A - TUBE ASSY, AIR
17360-75080

2TRFE..TRH21#,22#

 1
17360-75050

2TRFE..TRH21#,22#

 1
17700 - CLEANER ASSY, AIR
17700-75480

1TRFE,2TRFE..TRH200,21#,22#

 1
17700-75481

1TRFE,2TRFE..TRH200,21#,22#

 1
17700-75550

1TRFE,2TRFE..TRH200,21#,22#

 1
17700-75551

1TRFE,2TRFE..TRH200,21#,22#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-30140

1TRFE,2TRFE..TRH200,21#,22#

 1
17705-30100

1TRFE,2TRFE..TRH200,21#,22#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-30021

1TRFE,2TRFE..TRH200,21#,22#

 1
17750-30040

1TRFE,2TRFE..TRH200,21#,22#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54110

1TRFE,2TRFE..TRH200,21#,22#

 1
17801-30060

1TRFE,2TRFE..TRH200,21#,22#

 1
17861 - CONNECTOR, INTAKE AIR
17861-75110

2TRFE..TRH21#,22#

 1
17861-75111

2TRFE..TRH21#,22#

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10800

2TRFE..TRH21#,22#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-30080

1TRFE,2TRFE..TRH200,21#,22#

 1
17881-30150

1TRFE,2TRFE..TRH200,21#,22#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2TRFE..TRH21#,22#

 1
90466-78001

1TRFE,2TRFE..TRH200,21#,22#

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2TRFE..TRH21#,22#

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
90460-80006

2TRFE..TRH21#,22#

 1
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-75120

2TRFE..TRH21#,22#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
96111-10800

2TRFE..TRH21#,22#

NO.2

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

2TRFE..TRH21#,22#..HRF,SMRF

NO.2

 1
96111-10900

2TRFE..TRH21#,22#

NO.1

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
96111-10800

2TRFE..TRH21#,22#

NO.2

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 1
96111-10800

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

1TRFE,2TRFE..TRH200,21#,22#

NO.1 & NO.2

 2
90460-80006

2TRFE..TRH21#,22#..HRF,SMRF

NO.2

 1
96111-10900

2TRFE..TRH21#,22#

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-30060

1TRFE,2TRFE..TRH200,21#,22#

 1
17893-30030

1TRFE,2TRFE..TRH200,21#,22#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-30020

1TRFE,2TRFE..TRH200,21#,22#

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-75010

2TRFE..TRH21#,22#

 1
17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
90467-37005

2TRFE..TRH21#,22#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

1TRFE,2TRFE..TRH200,21#,22#

 1
Common parts
90099-00289
90105-T0066
90119-06953
90999-92002
91551-80612
91551-A0612
91631-60825
96111-10500
96111-10690
Linked diagrams
1201

(1312-1501)2TRFE

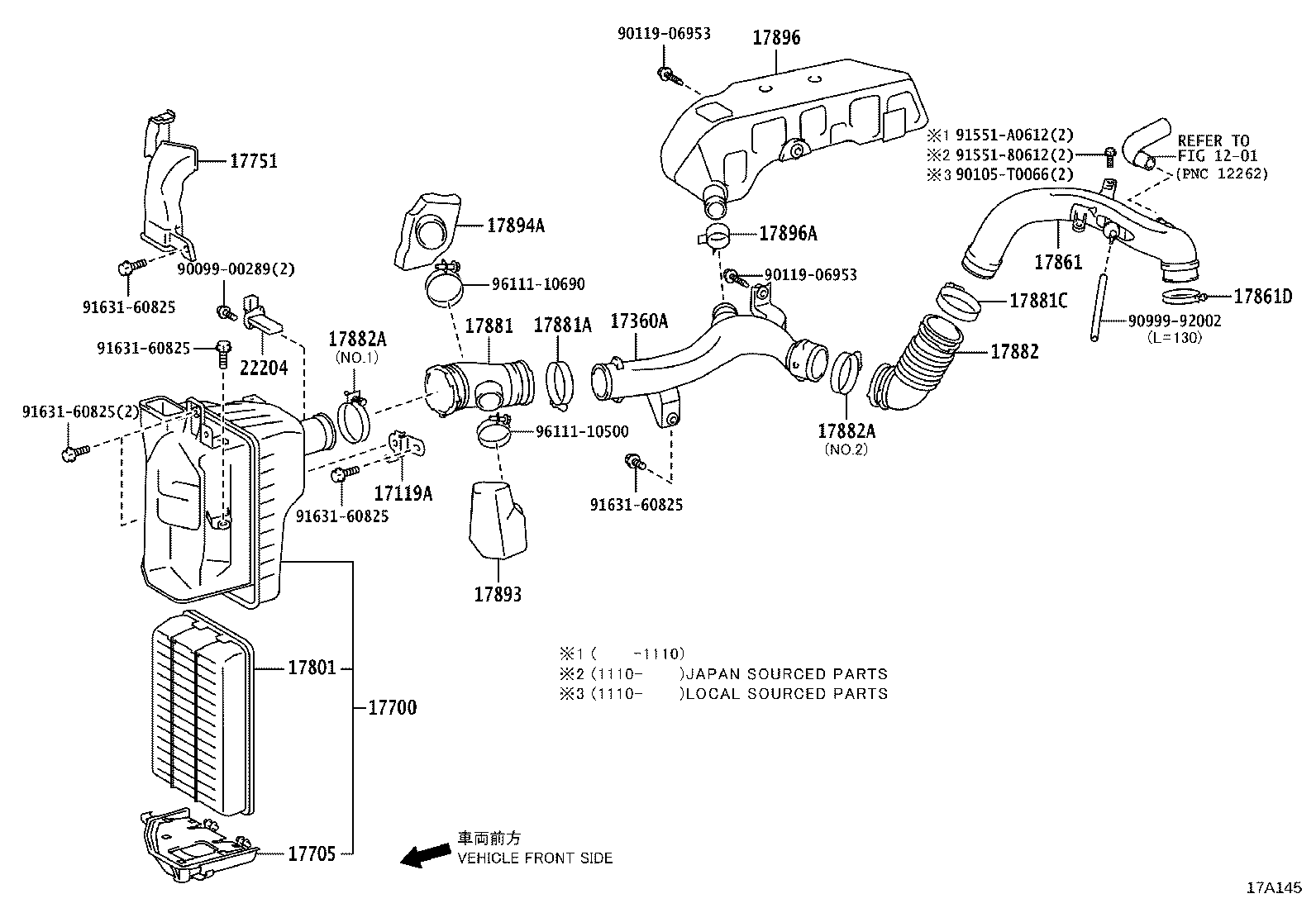

Click highlighted areas on diagram

diagram 1201 17119A 17360A 17700 17705 17751 17801 17861 17861D 17881 17881A 17881C 17882 17882A 17882A 17893 17894A 17896 17896A 2211 22204 9009900289 90105T0066 9011906953 9011906953 9099992002 9155180612 9163160825 9163160825 9163160825 9163160825 9163160825 9611110500 9611110690
Part # Description Qty Price
Common parts
90099-00289
90105-T0066
90119-06953
90999-92002
91551-80612
91631-60825
96111-10500
96111-10690
Linked diagrams
1201
2211
