TRH221K-LRTDK (2015)
Toyota Hiace/Regiusace
(1312-2005)GDH211,22#,KDH211,22#,TRH21#,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

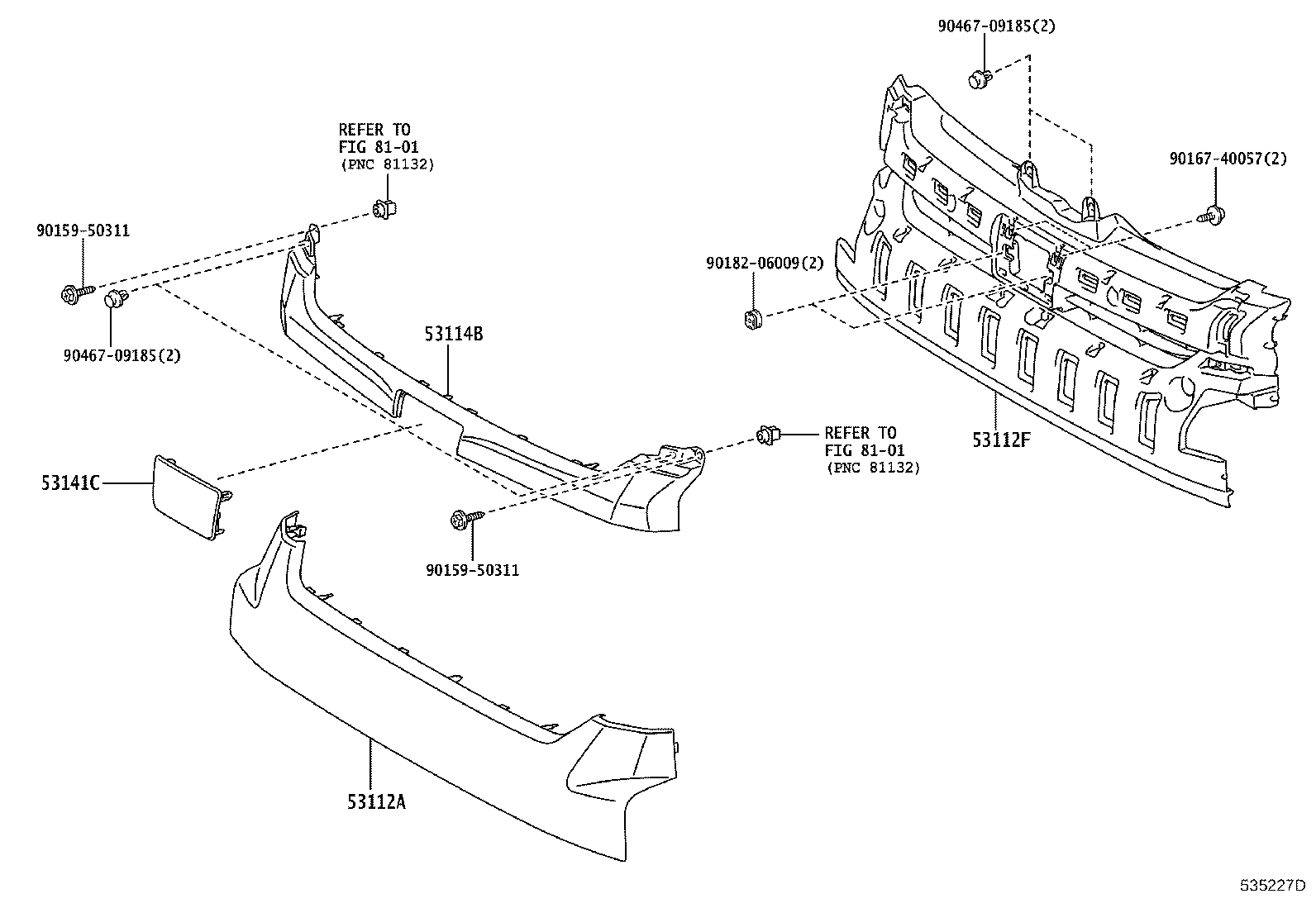

| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53111-26550 |
TRH214,219..DX;GDH22#,KDH22#,TRH221,223,224,226,228..(02S,05S,06S,14S)..(CBU,IV5) |
1 | ||
| 53111-26570 |
GDH221,226,KDH221,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26570 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26830 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU |
1 | ||
| 53111-26850 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26850 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-26100 |
TRH21#,22#..6FC..CBU |
1 | ||
| 53112-26100 |
TRH214,219..5D;TRH221,226..02S;TRH223,224,228..4FC..CBU;KDH223,TRH21#,221,226,229..4FC..(CBU,IV5);GDH223,KDH211,221,TRH223,224,228..02S,05S,06S |
1 | ||
| 53112-26100 |
TRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26100 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26140 |
TRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU |
1 | ||
| 53112-26160 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53111-26560 |
KDH221,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26540 |
TRH223,228..6FC..CBU;TRH214,219,221,226..6FC..DX..CBU |
1 | ||
| 53111-26720 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26540 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26560 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26710 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU |
1 | ||
| 53111-26840 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26820 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU |
1 | ||
| 53111-26840 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90467-09185 | ||||
| Linked diagrams | ||||
| 8101 | ||||
(1712-2005)GDH211,22#,TRH21#,22#..CBU
ｱﾘ(ﾖﾎﾞｳｱﾝｾﾞﾝﾊﾟｯｹｰｼﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53111-26550 |
TRH214,219..DX;GDH22#,KDH22#,TRH221,223,224,226,228..(02S,05S,06S,14S)..(CBU,IV5) |
1 | ||
| 53111-26570 |
GDH221,226,KDH221,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26570 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26830 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU |
1 | ||
| 53111-26850 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26850 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-26100 |
TRH21#,22#..6FC..CBU |
1 | ||
| 53112-26100 |
TRH214,219..5D;TRH221,226..02S;TRH223,224,228..4FC..CBU;KDH223,TRH21#,221,226,229..4FC..(CBU,IV5);GDH223,KDH211,221,TRH223,224,228..02S,05S,06S |
1 | ||
| 53112-26100 |
TRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26100 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26140 |
TRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU |
1 | ||
| 53112-26160 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53111-26560 |
KDH221,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26540 |
TRH223,228..6FC..CBU;TRH214,219,221,226..6FC..DX..CBU |
1 | ||
| 53111-26720 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26540 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26560 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26710 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU |
1 | ||
| 53111-26840 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26820 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU |
1 | ||
| 53111-26840 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-26080 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU |
1 | ||
| 53141-26090 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53141-26110 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 53142-26030 |
GDH20#,221,226,TRH200,221,226..(05S,06S,09S)..6FC..DX GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53142-26030 |
GDH206,TRH200..6FC;GDH201,211,221,226,TRH211,216,221,226..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90182-06009 | ||||
| 90467-09185 | ||||
| Linked diagrams | ||||
| 8101 | ||||
(2005- )GDH211,22#,TRH21#,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53111-26550 |
TRH214,219..DX;GDH22#,KDH22#,TRH221,223,224,226,228..(02S,05S,06S,14S)..(CBU,IV5) |
1 | ||
| 53111-26570 |
GDH221,226,KDH221,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26570 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26830 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU |
1 | ||
| 53111-26850 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26850 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-26100 |
TRH21#,22#..6FC..CBU |
1 | ||
| 53112-26100 |
TRH214,219..5D;TRH221,226..02S;TRH223,224,228..4FC..CBU;KDH223,TRH21#,221,226,229..4FC..(CBU,IV5);GDH223,KDH211,221,TRH223,224,228..02S,05S,06S |
1 | ||
| 53112-26100 |
TRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26100 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26140 |
TRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU |
1 | ||
| 53112-26160 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53111-26560 |
KDH221,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26540 |
TRH223,228..6FC..CBU;TRH214,219,221,226..6FC..DX..CBU |
1 | ||
| 53111-26720 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26540 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26560 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26710 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU |
1 | ||
| 53111-26840 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26820 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU |
1 | ||
| 53111-26840 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-26080 |
TRH214,219..DX;GDH22#,TRH221,223,226,228..CBU |
1 | ||
| 53141-26090 |
GDH221,226,TRH221,226..CBU GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53141-26110 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 53142-26030 |
GDH20#,221,226,TRH200,221,226..(05S,06S,09S)..6FC..DX GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53142-26030 |
GDH206,TRH200..6FC;GDH201,211,221,226,TRH211,216,221,226..CBU 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90182-06009 | ||||
| 90467-09185 | ||||
| Linked diagrams | ||||
| 8101 | ||||
