8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

TRH221K-LRPDK (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Dec 2013

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0501-0709)KDH220,225 ; (0501- )TRH221,226 ;(0709- )TRH200..V1..HRF..5D ; (0

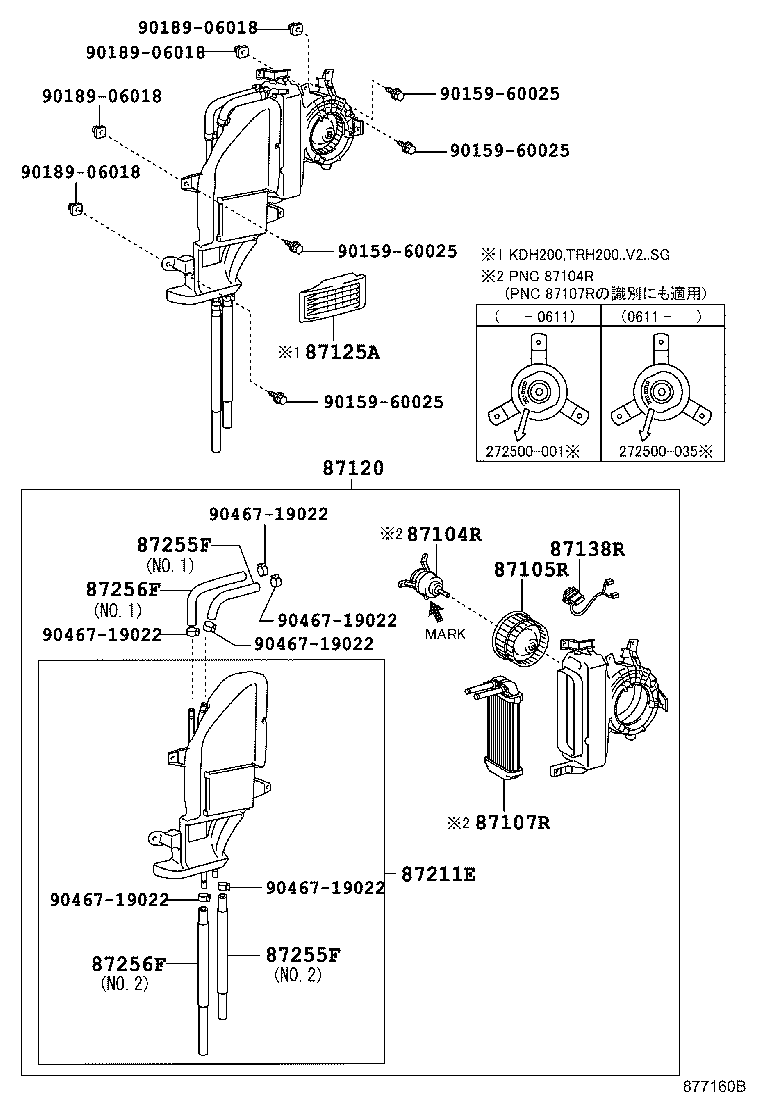

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-26020	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−035※	11/2006 - 05/2012	1
87104-26020	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−035※	11/2006 - 05/2012	1
87104-26020	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87104-26020	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87104-95J06	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−001※	08/2004 - 11/2006	1
87104-95J06	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−001※	08/2004 - 11/2006	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-26020	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87105-26020	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-26310	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87107-26310	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87107-26310	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	11/2006 - 05/2012	1
87107-26310	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	11/2006 - 05/2012	1
87107-26130	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	08/2004 - 11/2006	1
87107-26130	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	08/2004 - 11/2006	1
87120 - HEATER ASSY, REAR
87110-26410	KDH220,221,225,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2005 - 05/2012	1
87110-26410	KDH220,221,225,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2005 - 05/2012	1
87110-26550	KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87110-26550	KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-26170	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87138-26170	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87211E - DUCT, AIR
87202-26030	KDH220,221,225,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2005 - 05/2012	1
87202-26030	KDH220,221,225,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2005 - 05/2012	1
87202-26060	KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87202-26060	KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)
87245-26A50	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A50	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A30	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87245-26A30	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)
87245-26A50	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A50	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A30	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87245-26A30	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)
87245-26A60	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A60	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A40	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87245-26A40	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)
87245-26A60	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A60	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A40	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87245-26A40	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
Common parts
90159-60025
90189-06018
90467-19022

(0408- )TRH214,219..DX ; (0501-0709)KDH222,227..CBU ; (0501- )TRH224,229 ; (0

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-26020	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−035※	11/2006 - 05/2012	1
87104-26020	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−035※	11/2006 - 05/2012	1
87104-26020	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87104-26020	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87104-95J06	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−001※	08/2004 - 11/2006	1
87104-95J06	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ﾏｰｸ=272500−001※	08/2004 - 11/2006	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-26310	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87107-26310	KDH20#,221,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87107-26310	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	11/2006 - 05/2012	1
87107-26310	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	11/2006 - 05/2012	1
87107-26130	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	08/2004 - 11/2006	1
87107-26130	KDH20#,220,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),ｲﾗｽﾄ参照	08/2004 - 11/2006	1
87120 - HEATER ASSY, REAR
87110-26410	KDH220,221,225,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2005 - 05/2012	1
87110-26410	KDH220,221,225,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2005 - 05/2012	1
87110-26550	KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87110-26550	KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2012 - 12/2013	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-26170	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87138-26170	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87255F - HOSE, REAR HEATER WATER INLET, F(FOR HEATER UNIT)
87245-26A50	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A50	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A30	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87245-26A30	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87256F - HOSE, REAR HEATER WATER OUTLET, F (FOR HEATER UNIT)
87245-26A60	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A60	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.2	08/2004 - 12/2013	1
87245-26A40	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
87245-26A40	KDH20#,220,221,225,TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),NO.1	08/2004 - 12/2013	1
Common parts
90159-60038
90189-06084
90467-19022
