Toyota Hiace/regiusace TRH219 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B20	KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B80	TRH21#,22#	12/2013 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180	TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S *H,L=220	12/2013 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200,21#,22#..4FC,6FC	12/2013 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30	KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B90	TRH21#,22#	12/2013 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220	TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S *H,L=220	12/2013 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200,21#,22#..4FC,6FC	12/2013 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26440	KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87248B - PIPE, HEATER WATER INLET, B
87248-26500	TRH21#,223,224,228,229	12/2013 - 12/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450	KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510	TRH21#,223,224,228,229	12/2013 - 12/2017	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

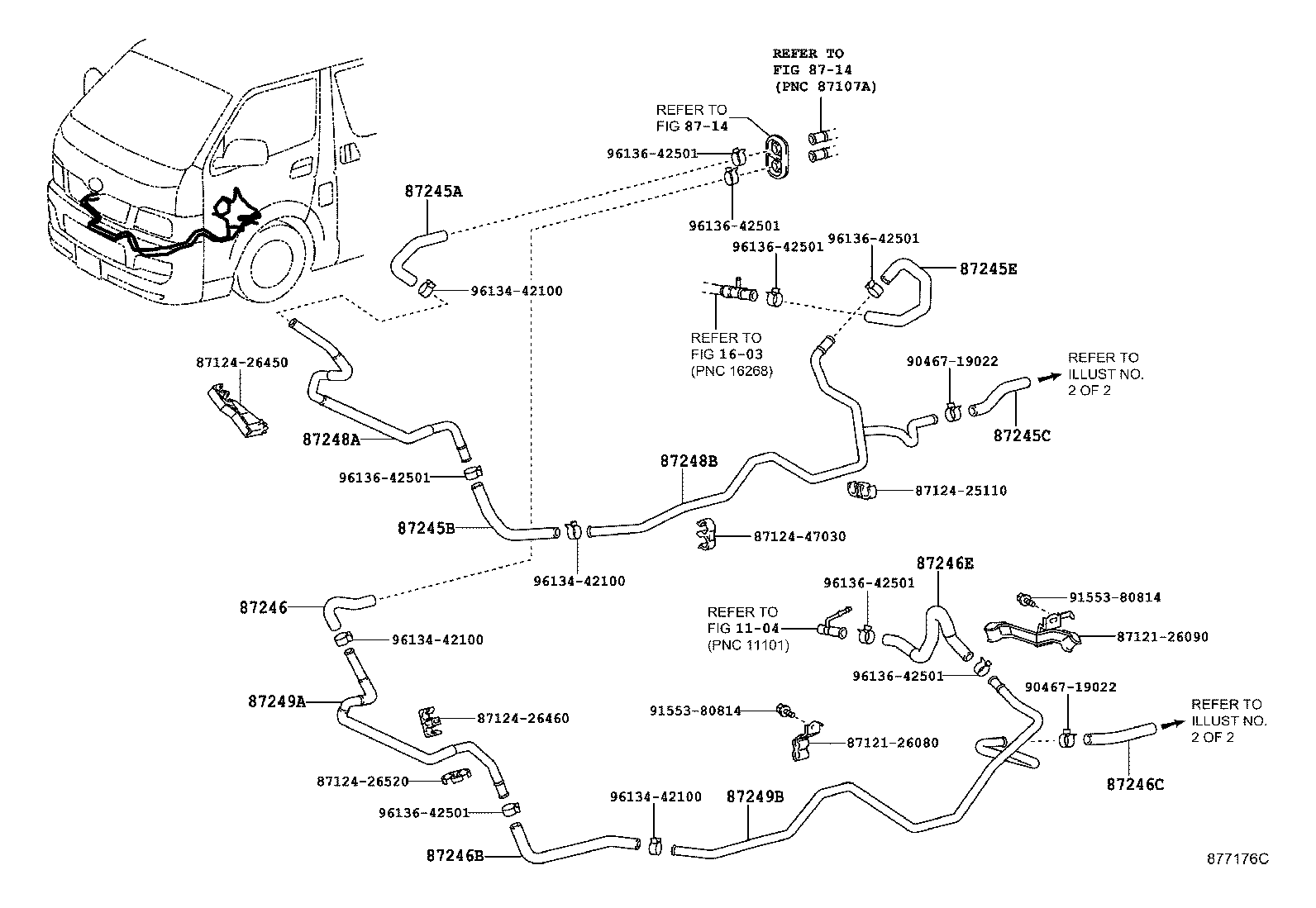

TRH219W-JDPDK (2013)

ILLUST NO. 1 OF 2(0408- )TRH214,219..DX ; (0501- )TRH22# ;(0709- )TRH21#..GL,SGL

(1312-1712)TRH21#,22#..4FC ; (1501-1712)TRH21#,22#
