TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )2TRFE..TRH211,216,22# ; (1312- )2TRFE..TRH214,219..4D ; (1712- )2T

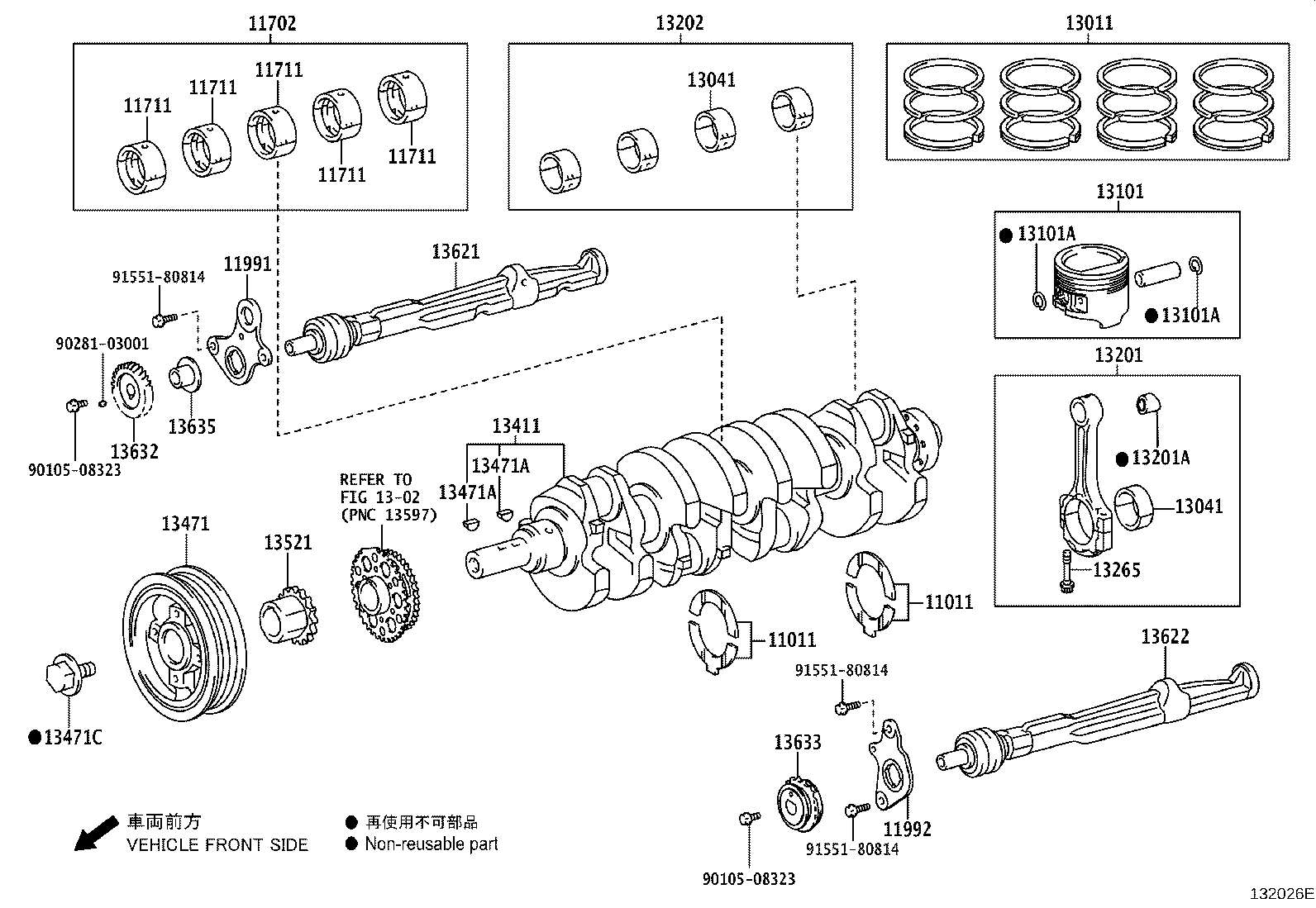

Click highlighted areas on diagram

diagram 11011 11011 11702 11711 11711 11711 11711 11711 11991 11992 13011 1302 13041 13041 13101 13101A 13101A 13201 13201A 13202 13265 13411 13471 13471A 13471A 13471C 13521 13621 13622 13632 13633 13635 9010508323 9010508323 9028103001 9155180814 9155180814 9155180814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75020

1TRFE,2TRFE..TRH200,21#,22#

STD

 2
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75020

1TRFE,2TRFE..TRH200,21#,22#

STD

 2
11702 - BEARING SET, CRANKSHAFT
11704-75031

1TRFE,2TRFE..TRH200,21#,22#

U/S 0.25

 1
11704-75032

1TRFE,2TRFE..TRH200,21#,22#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-7503103

1TRFE,2TRFE..TRH200,21#,22#

MARK3,修理書参照

 5
11701-7503204

1TRFE,2TRFE..TRH200,21#,22#

MARK 4,修理書参照

 5
11701-7503101

1TRFE,2TRFE..TRH200,21#,22#

MARK1,修理書参照

 5
11701-7503102

1TRFE,2TRFE..TRH200,21#,22#

MARK2,修理書参照

 5
11701-7503201

1TRFE,2TRFE..TRH200,21#,22#

MARK 1,修理書参照

 5
11701-7503205

1TRFE,2TRFE..TRH200,21#,22#

MARK 5,修理書参照

 5
11701-7503203

1TRFE,2TRFE..TRH200,21#,22#

MARK 3,修理書参照

 5
11701-7503202

1TRFE,2TRFE..TRH200,21#,22#

MARK 2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-7503103

1TRFE,2TRFE..TRH200,21#,22#

MARK3,修理書参照

 5
11701-7503204

1TRFE,2TRFE..TRH200,21#,22#

MARK 4,修理書参照

 5
11701-7503101

1TRFE,2TRFE..TRH200,21#,22#

MARK1,修理書参照

 5
11701-7503102

1TRFE,2TRFE..TRH200,21#,22#

MARK2,修理書参照

 5
11701-7503201

1TRFE,2TRFE..TRH200,21#,22#

MARK 1,修理書参照

 5
11701-7503205

1TRFE,2TRFE..TRH200,21#,22#

MARK 5,修理書参照

 5
11701-7503203

1TRFE,2TRFE..TRH200,21#,22#

MARK 3,修理書参照

 5
11701-7503202

1TRFE,2TRFE..TRH200,21#,22#

MARK 2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-7503103

1TRFE,2TRFE..TRH200,21#,22#

MARK3,修理書参照

 5
11701-7503204

1TRFE,2TRFE..TRH200,21#,22#

MARK 4,修理書参照

 5
11701-7503101

1TRFE,2TRFE..TRH200,21#,22#

MARK1,修理書参照

 5
11701-7503102

1TRFE,2TRFE..TRH200,21#,22#

MARK2,修理書参照

 5
11701-7503201

1TRFE,2TRFE..TRH200,21#,22#

MARK 1,修理書参照

 5
11701-7503205

1TRFE,2TRFE..TRH200,21#,22#

MARK 5,修理書参照

 5
11701-7503203

1TRFE,2TRFE..TRH200,21#,22#

MARK 3,修理書参照

 5
11701-7503202

1TRFE,2TRFE..TRH200,21#,22#

MARK 2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-7503103

1TRFE,2TRFE..TRH200,21#,22#

MARK3,修理書参照

 5
11701-7503204

1TRFE,2TRFE..TRH200,21#,22#

MARK 4,修理書参照

 5
11701-7503101

1TRFE,2TRFE..TRH200,21#,22#

MARK1,修理書参照

 5
11701-7503102

1TRFE,2TRFE..TRH200,21#,22#

MARK2,修理書参照

 5
11701-7503201

1TRFE,2TRFE..TRH200,21#,22#

MARK 1,修理書参照

 5
11701-7503205

1TRFE,2TRFE..TRH200,21#,22#

MARK 5,修理書参照

 5
11701-7503203

1TRFE,2TRFE..TRH200,21#,22#

MARK 3,修理書参照

 5
11701-7503202

1TRFE,2TRFE..TRH200,21#,22#

MARK 2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-7503103

1TRFE,2TRFE..TRH200,21#,22#

MARK3,修理書参照

 5
11701-7503204

1TRFE,2TRFE..TRH200,21#,22#

MARK 4,修理書参照

 5
11701-7503101

1TRFE,2TRFE..TRH200,21#,22#

MARK1,修理書参照

 5
11701-7503102

1TRFE,2TRFE..TRH200,21#,22#

MARK2,修理書参照

 5
11701-7503201

1TRFE,2TRFE..TRH200,21#,22#

MARK 1,修理書参照

 5
11701-7503205

1TRFE,2TRFE..TRH200,21#,22#

MARK 5,修理書参照

 5
11701-7503203

1TRFE,2TRFE..TRH200,21#,22#

MARK 3,修理書参照

 5
11701-7503202

1TRFE,2TRFE..TRH200,21#,22#

MARK 2,修理書参照

 5
11991 - WASHER, BALANCESHAFT THRUST
11991-75010

2TRFE..TRH21#,22#

 1
11992 - WASHER, BALANCESHAFT THRUST, NO.2
11992-75010

2TRFE..TRH21#,22#

 1
13011 - RING SET, PISTON
13011-75110

2TRFE..TRH21#,22#

STD

 1
13013-75110

2TRFE..TRH21#,22#

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-7505004

1TRFE,2TRFE..TRH200,21#,22#

MARK4,修理書参照

 4
13041-7505006

1TRFE,2TRFE..TRH200,21#,22#

MARK6,修理書参照

 4
13041-7505005

1TRFE,2TRFE..TRH200,21#,22#

MARK5,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-7505004

1TRFE,2TRFE..TRH200,21#,22#

MARK4,修理書参照

 4
13041-7505006

1TRFE,2TRFE..TRH200,21#,22#

MARK6,修理書参照

 4
13041-7505005

1TRFE,2TRFE..TRH200,21#,22#

MARK5,修理書参照

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-75130

2TRFE..TRH21#,22#

O/S 0.50

 4
13101-75130

2TRFE..TRH21#,22#

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-79615

2TRFE..TRH21#,22#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73144

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 4
13202 - BEARING SET, CONNECTING ROD
13204-75050

1TRFE,2TRFE..TRH200,21#,22#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-28010

1TRFE,2TRFE..TRH200,21#,22#

 8
13411 - CRANKSHAFT
13401-75040

2TRFE..TRH21#,22#

 1
13471 - PULLEY, CRANKSHAFT
13408-75050

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16041

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-75020

2TRFE..TRH21#,22#

 1
13521-75021

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
13621 - BALANCESHAFT, NO.1
13621-75020

2TRFE..TRH21#,22#

 1
13622 - BALANCESHAFT, NO.2
13622-75020

2TRFE..TRH21#,22#

 1
13632 - GEAR, BALANCESHAFT DRIVEN, NO.1
13632-75010

2TRFE..TRH21#,22#

 1
13633 - GEAR, BALANCESHAFT DRIVEN, NO.2
13633-75010

2TRFE..TRH21#,22#

 1
13635 - SPACER, BALANCESHAFT THRUST
13635-75010

2TRFE..TRH21#,22#

 1
Common parts
90105-08323
90281-03001
91551-80814
Linked diagrams
1302
