TRH219W-JDPDK (2004)
Toyota Hiace/Regiusace
(0408- )03S,06S,09S,10S,15S..DX
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A50B2 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71071-26A80B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-26040B3 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71027-26041B4 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26010 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71110-26011 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH21# 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ) |
2 | ||
| 90467-08188 |
TRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL |
4 | ||
| 90467-08186C0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL BLACK |
4 | ||
| 90467-08186C0 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ),BLACK |
2 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH224,229..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
TRH221,226..SHRF;TRH200..V1..HRF..5D;KDH201,206,211,221,223,TRH21# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71861-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71867-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875-26020B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 右側ｼｰﾄ |
1 | ||
| 72249-26020 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 左側ｼｰﾄ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 72525-26080B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0408- )KDH222,223,227,TRH214,219,223,228..DX
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26800B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71072-26801B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26741B6 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71027-26040B3 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71027-26041B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26030 |
TRH214,219..DX |
1 | ||
| 71120-26031 |
TRH214,219..DX |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH21# 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ) |
2 | ||
| 90467-08188 |
TRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL |
4 | ||
| 90467-08186C0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL BLACK |
4 | ||
| 90467-08186C0 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ),BLACK |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-26050 |
TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
TRH214,219..DX |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-26010 |
TRH214,219,221,226..SHRF,SMRF;KDH201,206,211,223,TRH211,216..GL,SGL |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71862-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71868-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71875-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71875-26020B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71876-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71876-26030B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 右側ｼｰﾄ |
1 | ||
| 72249-26020 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 左側ｼｰﾄ |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26020B0 |
TRH221,226..02S;TRH224,229..IV5;TRH200..V1..HRF..5D;KDH201,206,221,223,TRH214,219;KDH200,205,211,222,227,TRH200,211,216,223,228..GL,SGL GRAY,TRIM1# |
1 | ||
| 72526-26020B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| 90950-06060 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0408- )02S ; (0408- )KDH201,206,211,223,TRH200,21#,223,224,228,229..GC,GL,SG
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26800B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71072-26801B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26741B6 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26800B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71072-26801B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26741B6 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71027-26040B3 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71027-26041B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26030 |
TRH214,219..DX |
1 | ||
| 71120-26031 |
TRH214,219..DX |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH21# 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ) |
2 | ||
| 90467-08188 |
TRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL |
4 | ||
| 90467-08186C0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL BLACK |
4 | ||
| 90467-08186C0 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ),BLACK |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-26050 |
TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
TRH214,219..DX |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-26010 |
TRH214,219,221,226..SHRF,SMRF;KDH201,206,211,223,TRH211,216..GL,SGL |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71862-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71868-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71875-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71875-26020B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71876-26010B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1# |
1 | ||
| 71876-26030B1 |
TRH214,219,221,226..02S,10S;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 右側ｼｰﾄ |
1 | ||
| 72249-26020 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 左側ｼｰﾄ |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26020B0 |
TRH221,226..02S;TRH224,229..IV5;TRH200..V1..HRF..5D;KDH201,206,221,223,TRH214,219;KDH200,205,211,222,227,TRH200,211,216,223,228..GL,SGL GRAY,TRIM1# |
1 | ||
| 72526-26020B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(0408-1205)TRH214,219,224,229..CBU ; (0408-1205)KDH222,223,227,TRH223,228..GL..CBU

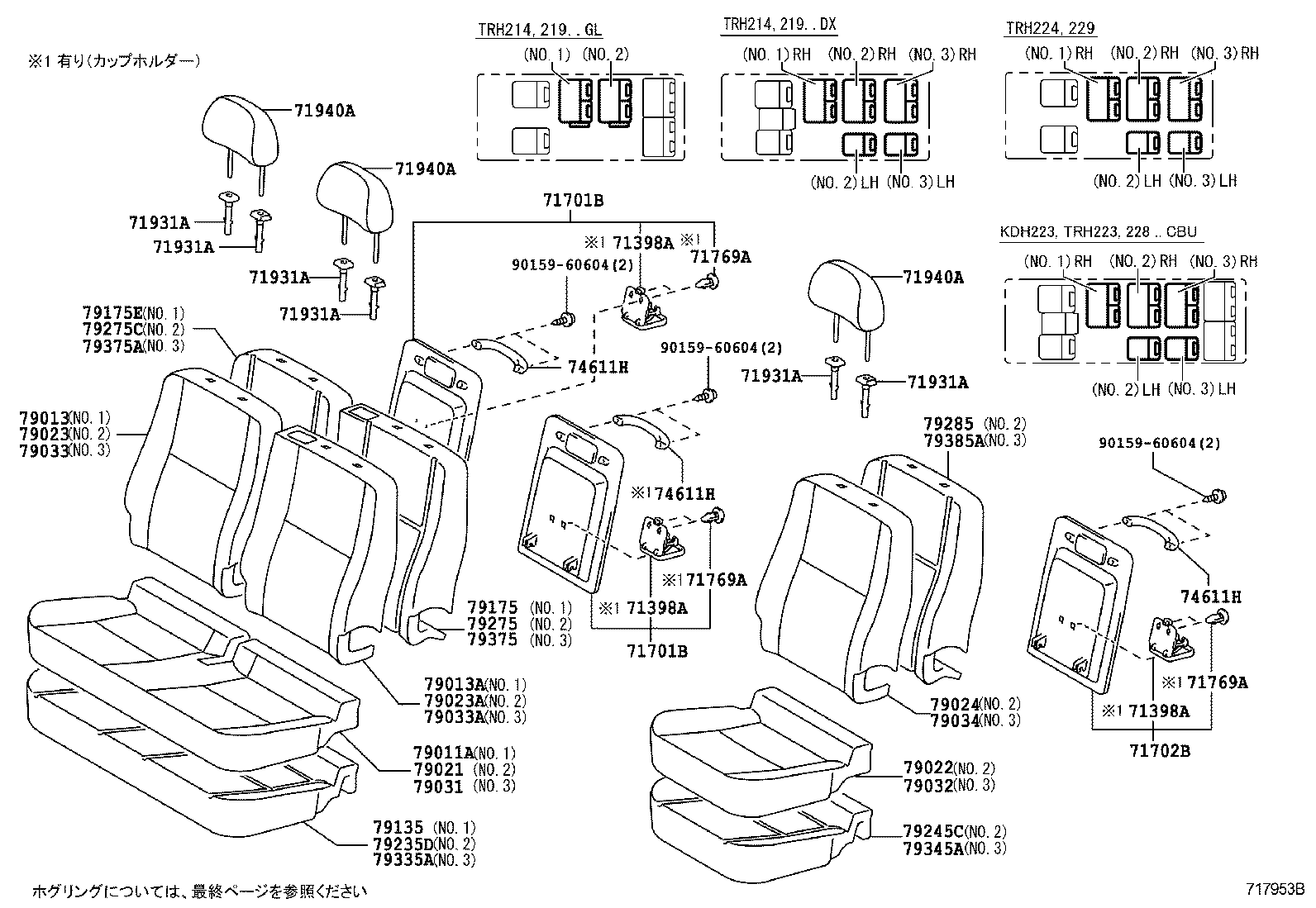

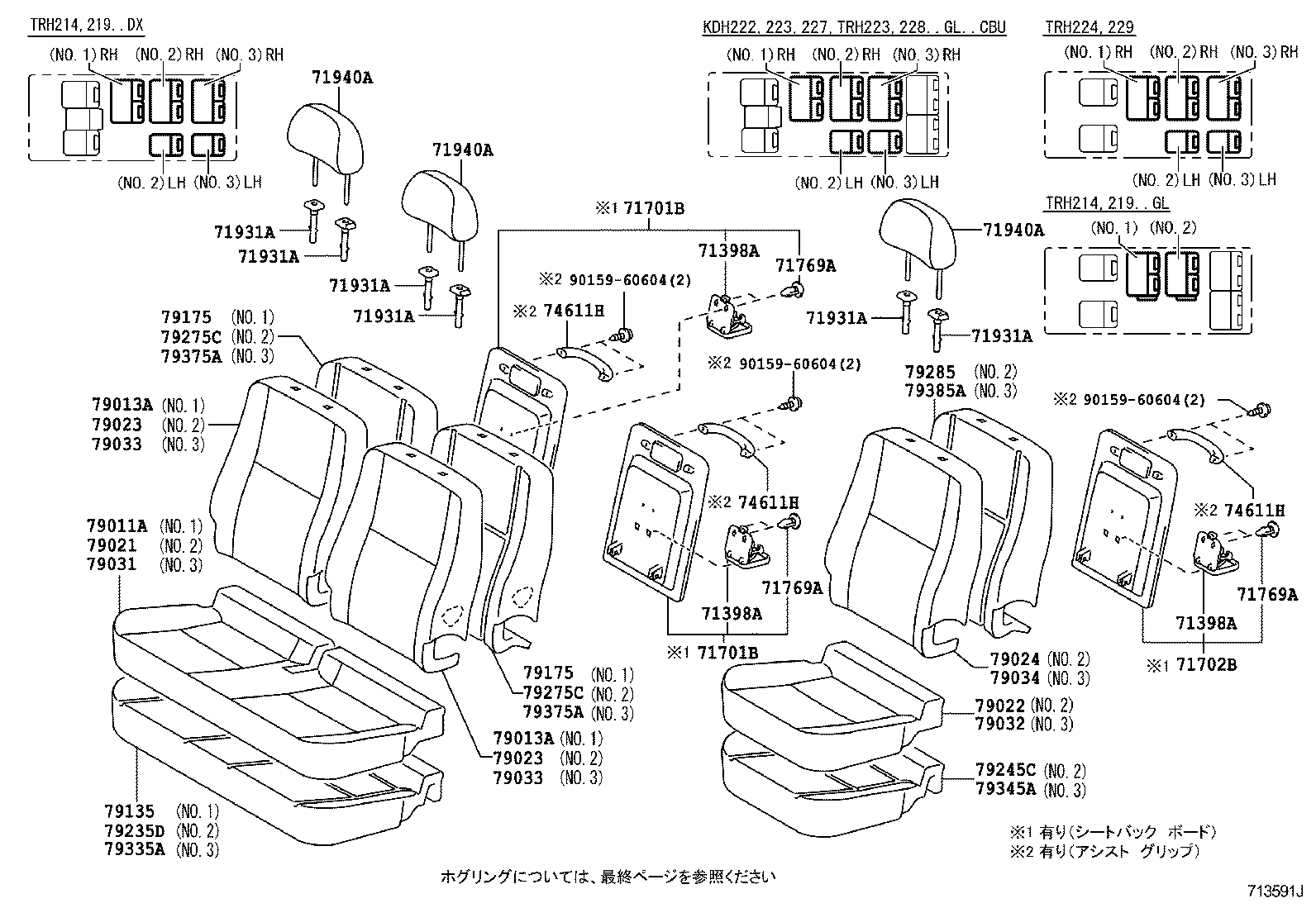

ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
5 | ||
| 71398-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
5 | ||
| 71398-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
5 | ||
| 71398-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219,224,229..CBU DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219 GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
4 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219,224,229..CBU DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219 GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
4 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71701-26031B0 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71701-26030B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
10 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
10 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
10 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26370B0 |
TRH214,219..DX GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
8 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26370B0 |
TRH214,219..DX GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
8 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26370B0 |
TRH214,219..DX GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
8 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26A91B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26A91B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-26180B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79012-26180B1 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79012-26180B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79012-26180B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79012-26180B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79012-26181B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26180B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79012-26181B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26181B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-26600B1 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79021-26600B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26600B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26601B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26601B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26601B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-26160B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79012-26160B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79012-26160B1 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79012-26161B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26161B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26161B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-26C10B2 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-26C10B2 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-26C10B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79235-26050 |
TRH214,219..DX;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26300 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26300 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235-26050 |
TRH214,219..DX;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79136-26070 |
TRH214,219..DX |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235-26050 |
TRH214,219..DX;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79136-26070 |
TRH214,219..DX |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| Common parts | ||||
| 90159-60604 | ||||

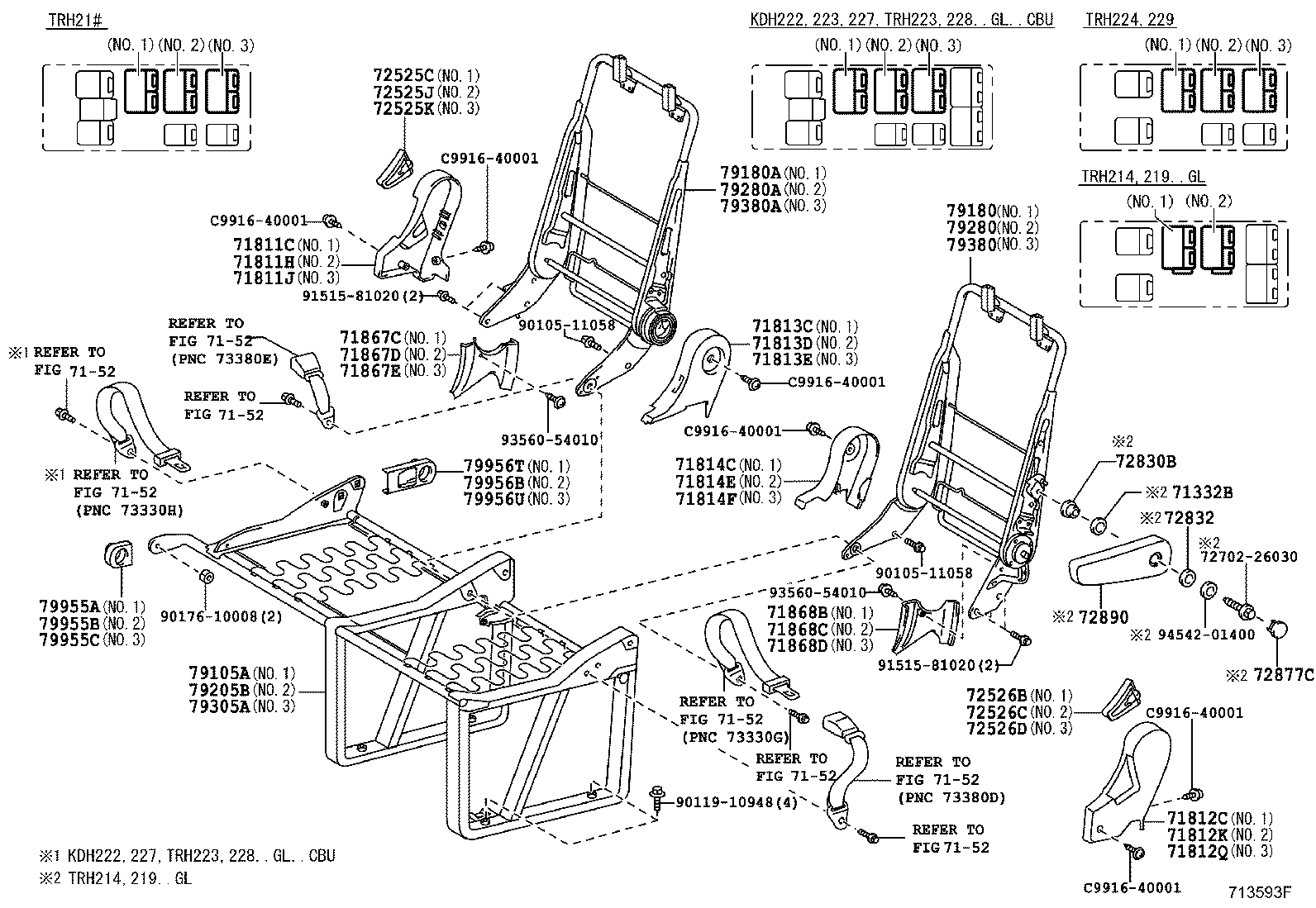

ILLUST NO. 2 OF 2(0408-1205)TRH214,219,224,229..CBU ; (0408-1205)KDH222,223,227,TRH223,228..GL..CBU
ﾘﾔ NO.1 & NO.2 & NO.3 ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX;KDH223,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812Q - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX;KDH223,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71813D - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71813E - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814C - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
KDH223,TRH214,219,223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814E - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
KDH223,TRH214,219,223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814F - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867D - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867E - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868B - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868D - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525K - HANDLE, RECLINING ADJUSTER RELEASE, NO.5 RH | ||||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72526-26040B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79205-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205-26230 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79205-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79290-26010 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26020 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79290-26010 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-26210 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26010 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26020 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79280-26080 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79205-26210 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79380 - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79290-26010 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26010 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26020 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
KDH222,223,227,TRH214,219,223,224,228,229..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79955B - COVER, NO.2 SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967-26010 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH214,219,224,229..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79955C - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
TRH214,219..DX;KDH222,227,TRH224,229..CBU;KDH223,TRH223,228..GL..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79968-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
KDH222,227,TRH214,219..CBU;KDH223,TRH223,228..GL..CBU |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
KDH222,223,227,TRH214,219,223,228..CBU |
1 | ||
| 79956U - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
TRH214,219..DX;KDH222,227..CBU;KDH223,TRH223,228..GL..CBU |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| Common parts | ||||
| 72702-26030 | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| 94542-01400 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0408- )TRH214,219,224,229..DX,GC..CBU ; (0408- )KDH222,223,227,TRH223,228..G
ﾘﾔ NO.2 & NO.3 ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26280B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26281B0 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
1 | ||
| 71811-26280B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26281B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26281B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71811L - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26281B0 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
1 | ||
| 71811-26280B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26281B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26280B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26281B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812-26250B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26250B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26250B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26250B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867F - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71867G - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868E - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868F - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-26090B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-26090B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-26240 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79106-26240 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79106-26240 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79190-26150 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79190-26150 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79190-26150 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79106-26230 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79106-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79106-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79190-26150 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79190-26150 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79190-26150 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967-26010 |
TRH214,219..DX;KDH222,223,227,TRH223,224,228,229..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| C6359-90200 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| C6359-90200 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 72345-44110 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 72345-44110 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| C6359-90200 |
TRH214,219..DX;KDH222,223,227,TRH223,224,228,229..CBU |
1 | ||
| 72345-44110 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
TRH214,219..DX;KDH222,223,227,TRH223,224,228,229..CBU |
1 | ||
| 79968-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79968-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
TRH214,219..DX;KDH222,223,227,TRH223,224,228,229..CBU |
1 | ||
| Common parts | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(1205- )KDH223,TRH214,219,223,224,228,229..CBU
ﾘﾔ NO.1 & NO.2 ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
5 | ||
| 71398-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
5 | ||
| 71398-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
5 | ||
| 71398-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 66990-28040 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
5 | ||
| 71398-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219,224,229..CBU DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219 GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
4 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
4 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219,224,229..CBU DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B0 |
TRH214,219 GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
4 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71701-26031B0 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71701-26030B0 |
TRH21#,224,229..CBU GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71701-26030B0 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
10 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
10 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX GRAY,TRIM1# |
10 | ||
| 90467-10132B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
10 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71931-42020B8 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ無し),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
8 | ||
| 71931-42020B4 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B4 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-42020B8 |
TRH21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
8 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26370B0 |
TRH214,219..DX GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
8 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26370B0 |
TRH214,219..DX GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
8 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26370B0 |
TRH214,219..DX GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26370B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
8 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH214,219,224,229..(DX,GC)..CBU GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
5 | ||
| 74611-20030P2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26A91B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26500B1 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26500B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-26180B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79012-26180B1 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79012-26180B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79012-26180B1 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79012-26180B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79012-26181B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26180B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79012-26181B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26181B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26B11B5 |
KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-26A91B5 |
KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79013-26B10B3 |
TRH21# GRAY,TRIM1# |
1 | ||
| 79013-26B10B3 |
TRH21# 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B10B4 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79013-26B10B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-26600B1 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79021-26600B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79021-26600B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79021-26601B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26601B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26601B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-26160B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79012-26160B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79012-26160B1 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79012-26161B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26161B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26161B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-26C10B2 |
TRH214,219..DX GRAY,TRIM1# |
2 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
2 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79013-26D70B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26D70B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26D70B0 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-26C10B2 |
TRH214,219..DX GRAY,TRIM1# |
1 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 79013-26C10B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79235-26050 |
TRH214,219..DX;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26300 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235-26050 |
TRH214,219..DX;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79136-26070 |
TRH214,219..DX |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79175-26300 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26300 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235-26050 |
TRH214,219..DX;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79136-26070 |
TRH214,219..DX |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26300 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26300 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
2 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79175-26280 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26280 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| Common parts | ||||
| 90159-60604 | ||||
ILLUST NO. 2 OF 2(1205- )KDH223,TRH214,219,223,224,228,229..CBU
ﾘﾔ NO.1 & NO.2 ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71811-26240B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX;KDH223,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812Q - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX;KDH223,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71812-26230B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71813D - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71813E - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71813-26020B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814C - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
KDH223,TRH214,219,223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814E - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
KDH223,TRH214,219,223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814F - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26020B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71814-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867D - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867E - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868B - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868D - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525K - HANDLE, RECLINING ADJUSTER RELEASE, NO.5 RH | ||||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-26040B1 |
TRH214,219,224,229..CBU;KDH223,TRH223,228..GL..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72526-26040B1 |
KDH223,TRH223,228..GL..CBU;TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し,DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B0 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79205-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205-26230 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79205-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79290-26010 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26020 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79290-26010 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-26210 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26010 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26020 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79280-26080 |
TRH214,219,224,229..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79205-26210 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79380 - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79290-26010 |
TRH214,219..DX;KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26010 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26020 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26020 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219,224,229..(DX,GC)..CBU;KDH222,223,227,TRH223,228..GL..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
KDH222,223,227,TRH214,219,223,224,228,229..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79955B - COVER, NO.2 SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967-26010 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH214,219,224,229..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79955C - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
TRH214,219..DX;KDH222,227,TRH224,229..CBU;KDH223,TRH223,228..GL..CBU |
1 | ||
| 79967-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79968-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
KDH222,227,TRH214,219..CBU;KDH223,TRH223,228..GL..CBU |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
KDH222,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
KDH222,223,227,TRH214,219,223,228..CBU |
1 | ||
| 79956U - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
TRH214,219..DX;KDH222,227..CBU;KDH223,TRH223,228..GL..CBU |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79968-26010 |
KDH222,227,TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−無し |
1 | ||
| Common parts | ||||
| 72702-26030 | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| 93568-55014 | ||||
| 94542-01400 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0408- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(0408- )02S ; (0408- )KDH201,206,211,223,TRH200,21#,223,224,228,229..GC,GL,SG
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A50B2 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71071-26A80B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A50B2 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71071-26A80B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-26040B3 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71027-26041B4 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26010 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71110-26011 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH21# 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ) |
2 | ||
| 90467-08188 |
TRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL |
4 | ||
| 90467-08186C0 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL BLACK |
4 | ||
| 90467-08186C0 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ),BLACK |
2 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH224,229..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
TRH221,226..SHRF;TRH200..V1..HRF..5D;KDH201,206,211,221,223,TRH21# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71861-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71867-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875-26020B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 右側ｼｰﾄ |
1 | ||
| 72249-26020 |
TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 左側ｼｰﾄ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 72525-26080B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
