Toyota Hiace/regiusace TRH219 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
TRH219W-JDPDK (2013)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

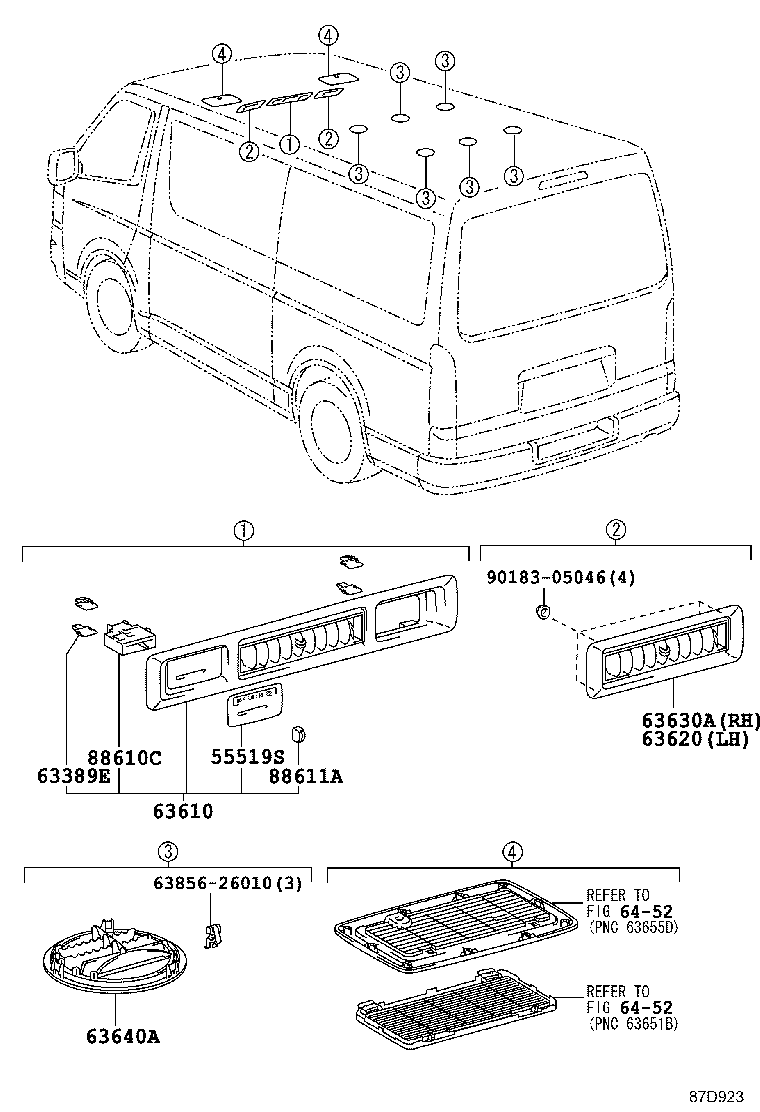

(1312- )KDH223,TRH214,219,223,224,228,229..02S,10S..4FC ; (1501- )TRH224..IV5

Click highlighted areas on diagram

ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲｯﾁ & ｴｱｱｳﾄﾚｯﾄﾚｼﾞｽﾀ

Part #	Description	Period	Qty
55519S - LABEL, REAR COOLER CONTROL INFORMATION
63697-26100	GDH20#,KDH20#,TRH200..IV5;GDH20#,211,223,KDH20#,211,223,TRH200,21#,22#..(02S,05S,10S,14S)..(CBU,IV5,IV6)	12/2013 - 08/2018	1
63697-26100	GDH20#,KDH20#,TRH200..IV5;GDH20#,211,223,KDH20#,211,223,TRH200,21#,22#..(02S,05S,10S,14S)..(CBU,IV5,IV6)	12/2013 - 08/2018	1
63389E - RETAINER, AIR OUTLET REGISTER
63389-26010	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	4
63389-26010	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	4
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26090B0	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63610-26090B0	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63620-26080B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63620-26080B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63630A - REGISTER ASSY, AIR DUCT, NO.3
63610-26110B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63610-26110B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63640A - REGISTER ASSY, AIR OUTLET, NO.4
63610-26080B0	TRH214,219..DX 幼児ﾊﾞｽ,LT.GRAY,TRIM1#	12/2013 - 12/2999	3
63610-26080B0	TRH214,219..DX 幼児ﾊﾞｽ,LT.GRAY,TRIM1#	12/2013 - 12/2999	3
63610-26080B0	KDH223,TRH214,219,223,224,228,229..02S,10S LT.GRAY,TRIM1#	12/2013 - 12/2999	6
63610-26080B0	KDH223,TRH214,219,223,224,228,229..02S,10S LT.GRAY,TRIM1#	12/2013 - 12/2999	6
88610C - SWITCH ASSY, COOLER CONTROL
88610-26090	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	1
88610-26090	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	1
88611A - KNOB, COOLER CONTROL SWITCH
88611-28020B4	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
88611-28020B4	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
Common parts
63856-26010
90183-05046
Linked diagrams
6452

(1312- )KDH20#,211,221,TRH200,21#,22#..SG..4FC,5F..CBU,IV5,IV6 ; (1501- )TRH2

Click highlighted areas on diagram

ﾘﾔｸｰﾗｺﾝﾄﾛｰﾙｽｲｯﾁ & ｴｱｱｳﾄﾚｯﾄﾚｼﾞｽﾀ

Part #	Description	Period	Qty
55519S - LABEL, REAR COOLER CONTROL INFORMATION
63697-26100	GDH20#,KDH20#,TRH200..IV5;GDH20#,211,223,KDH20#,211,223,TRH200,21#,22#..(02S,05S,10S,14S)..(CBU,IV5,IV6)	12/2013 - 08/2018	1
63697-26100	GDH20#,KDH20#,TRH200..IV5;GDH20#,211,223,KDH20#,211,223,TRH200,21#,22#..(02S,05S,10S,14S)..(CBU,IV5,IV6)	12/2013 - 08/2018	1
63389E - RETAINER, AIR OUTLET REGISTER
63389-26010	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	4
63389-26010	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	4
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26090B0	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63610-26090B0	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63620-26080B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63620-26080B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63630A - REGISTER ASSY, AIR DUCT, NO.3
63610-26110B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
63610-26110B0	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
88610C - SWITCH ASSY, COOLER CONTROL
88610-26090	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	1
88610-26090	GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6)	12/2013 - 12/2999	1
88611A - KNOB, COOLER CONTROL SWITCH
88611-28020B4	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
88611-28020B4	TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)..(CBU,IV5,IV6) LT.GRAY,TRIM1#	12/2013 - 12/2999	1
Common parts
90183-05046
Linked diagrams
6452

(1312- )4FC,5F ; (1501- )TRH223,224,228..IV5 ; (1501- )TRH200,214,219,221,

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋｰﾀｺﾝﾄﾛｰﾙ

Part #	Description	Period	Qty
55905A - KNOB, HEATER CONTROL
55901-26170	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55901-26170	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55905B - KNOB, HEATER CONTROL, NO.2
55902-26140	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55902-26140	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55905C - KNOB, HEATER CONTROL, NO.3
55903-26010	TRH200,223,224,228..IV5;TRH200,214,219,221,223,226,228..(06S,09S,10S,14S)..(4FC,6FC)..DX	12/2013 - 12/2999	1
55903-26010	TRH200,223,224,228..IV5;TRH200,214,219,221,223,226,228..(06S,09S,10S,14S)..(4FC,6FC)..DX	12/2013 - 12/2999	1
55903-26060	TRH200,223,224,228..IV5;TRH200,214,219,221,223,226,228..(06S,09S,10S,14S)..(4FC,6FC)..DX 寒冷地仕様	12/2013 - 12/2999	1
55903-26060	TRH200,223,224,228..IV5;TRH200,214,219,221,223,226,228..(06S,09S,10S,14S)..(4FC,6FC)..DX 寒冷地仕様	12/2013 - 12/2999	1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-26070	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55906-26070	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-26140	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55908-26140	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-26120	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55909-26120	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
55910B - BULB, HEATER CONTROL
84999-10530	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	3
84999-10530	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	3
55910B - BULB, HEATER CONTROL
84999-10530	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	3
84999-10530	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	3
55910B - BULB, HEATER CONTROL
84999-10530	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	3
84999-10530	GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	3
Linked diagrams
5551
8401

(1312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｴｱﾀﾞｸﾄ

Part #	Description	Period	Qty
55850A - CONNECTOR ASSY, INSTRUMENT PANEL REGISTER, CENTER
55850-26020	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87201A - DUCT SUB-ASSY, AIR
87201-26040	KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87201A - DUCT SUB-ASSY, AIR
87201-26040	KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87211 - DUCT, AIR, NO.1
87211-26090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87211A - DUCT, AIR, NO.2
87211-26190	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
87211B - DUCT, AIR, NO.3
87211-26130	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
Common parts
90159-60383
90159-T0005
90467-07215
Linked diagrams
8714

(1312- )4FC,5F ; (1501- )TRH214,219..4D ;(1501- )TRH200..V1..SP..6FC ; (1

Click highlighted areas on diagram

ﾘﾔﾋｰﾀｺﾝﾄﾛｰﾙ

Part #	Description	Period	Qty
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-26150	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S)	12/2013 - 12/2999	1
81942-26150	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S)	12/2013 - 12/2999	1
87123A - KNOB, HEATER CONTROL
88611-28020B8	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
88611-28020B8	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
87290E - SWITCH ASSY, HEATER
87290-26010	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S)	12/2013 - 12/2999	1
87290-26010	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S)	12/2013 - 12/2999	1
88601A - SWITCH SUB-ASSY, COOLER CONTROL
88610-26090	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S)	12/2013 - 12/2999	1
88610-26090	GDH20#,211,223,KDH20#,211,TRH200,21#,229..05S,10S,14S;GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S)	12/2013 - 12/2999	1
Common parts
93568-55012

(1312- )4FC,5F ; (1501- )TRH214,219..4D ;(1501- )TRH200,211,216,22#..6FC

Click highlighted areas on diagram

ｾﾝｻ (ｸｰﾗｻｰﾐｽﾀ)

Part #	Description	Period	Qty
88625C - THERMISTOR, COOLER
88790-22131	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 01/2017	1
88790-22131	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 01/2017	1
88625C - THERMISTOR, COOLER
88790-22131	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 01/2017	1
88790-22131	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 01/2017	1
Linked diagrams
8401

TRH219W-JDPDK (2013)

(1312- )KDH223,TRH214,219,223,224,228,229..02S,10S..4FC ; (1501- )TRH224..IV5

(1312- )KDH20#,211,221,TRH200,21#,22#..SG..4FC,5F..CBU,IV5,IV6 ; (1501- )TRH2

(1312- )4FC,5F ; (1501- )TRH223,224,228..IV5 ; (1501- )TRH200,214,219,221,

(1312- )

(1312- )4FC,5F ; (1501- )TRH214,219..4D ;(1501- )TRH200..V1..SP..6FC ; (1

(1312- )4FC,5F ; (1501- )TRH214,219..4D ;(1501- )TRH200,211,216,22#..6FC
