TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace

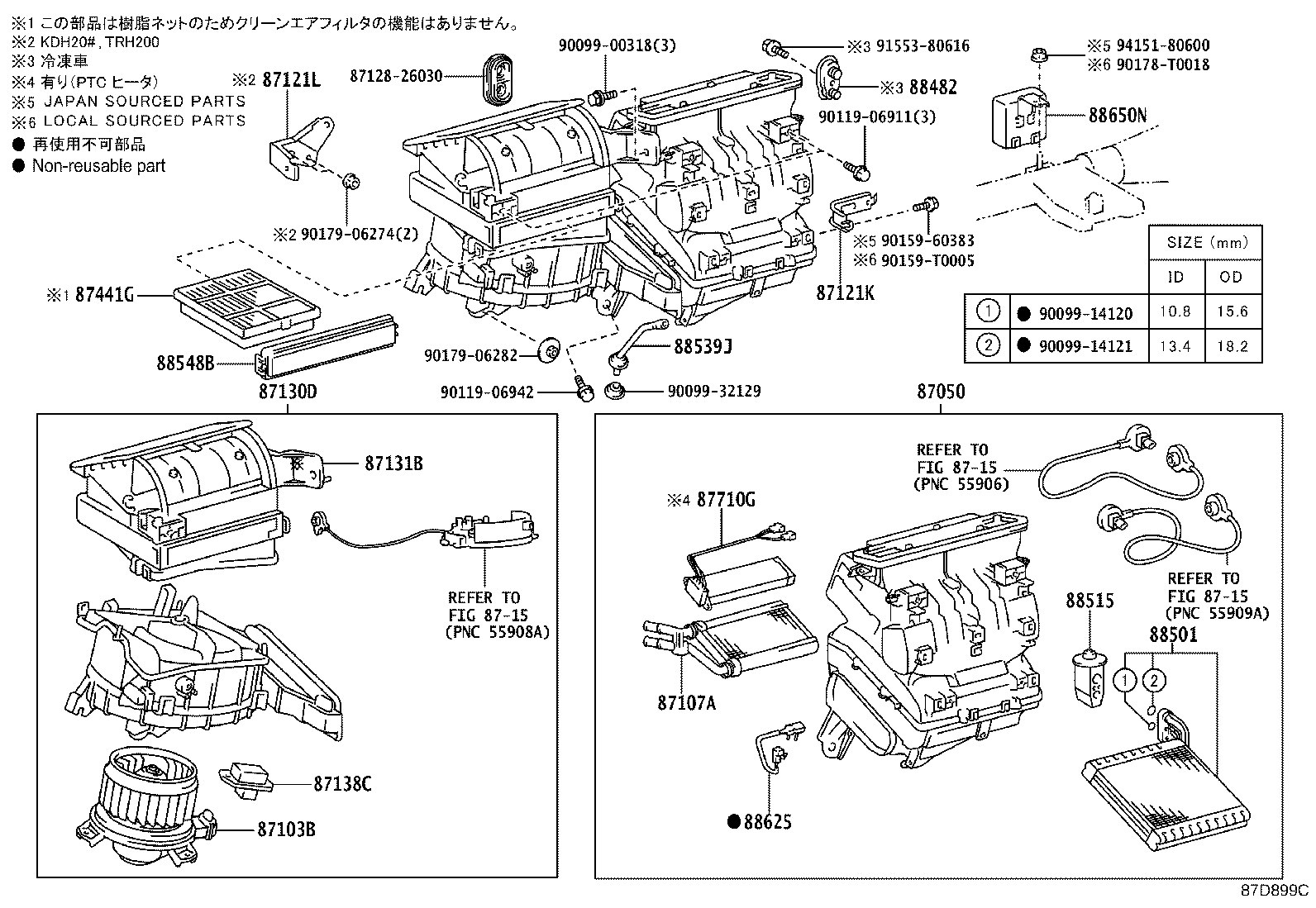

ILLUST NO. 1 OF 2(1312- )TRH214,219..4FC..DX ; (1312- )KDH20#,22#,TRH200,22#..4FC,5F..DX,GC,GL
ﾌﾛﾝﾄ---ﾏﾆｭｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-26210 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 87050-26210 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 87050-26180 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..(4FC,6FC)..DX..(CBU,IV5) |
1 | ||
| 87050-26180 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..(4FC,6FC)..DX..(CBU,IV5) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-26062 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87103-26062 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-26210 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87107-26210 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-26200 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87121-26200 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-26210 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..(4FC,6FC)..DX..(CBU,IV5) |
1 | ||
| 87130-26210 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..(4FC,6FC)..DX..(CBU,IV5) |
1 | ||
| 87130-26230 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 87130-26230 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 87131B - CASE, HEATER BLOWER | ||||
| 87131-26010 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87131-26010 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26150 |
GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) |
1 | ||
| 87138-26150 |
GDH201..DX..CBU;KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC);GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) |
1 | ||
| 87441G - FILTER, HEATER AIR | ||||
| 87441-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｲﾗｽﾄ参照 |
1 | ||
| 87441-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｲﾗｽﾄ参照 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-42030 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 87710-42030 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-72020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88501-72020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26100 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88515-26100 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-26480 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88539-26480 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-26070 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88548-26070 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88625-26090 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-26610 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 88650-26610 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 88650-26600 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) |
1 | ||
| 88650-26600 |
TRH223,224,228..IV5;TRH200,214,219,221,223,226,228..DX..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 87128-26030 | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90119-06911 | ||||
| 90119-06942 | ||||
| 90159-60383 | ||||
| 90159-T0005 | ||||
| 90178-T0018 | ||||
| 90179-06274 | ||||
| 90179-06282 | ||||
| 91553-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8715 | ||||
