TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )TRH214,219..DX ; (1312- )02S,03S,05S,06S,09S,14S..DX,GC,GL

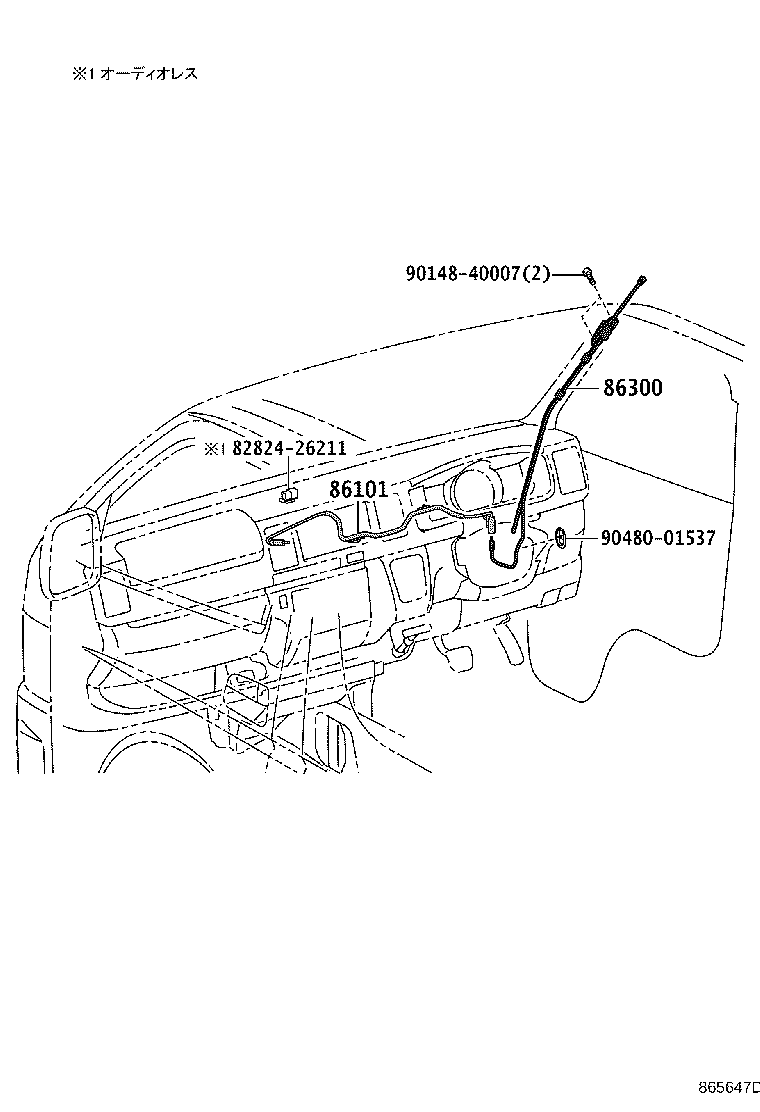

Click highlighted areas on diagram

ﾋﾟﾗｰｱﾝﾃﾅ

diagram 8282426211 86101 86300 9014840007 9048001537
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-26300

TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5)

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-26130

GDH201,223..(DX,GL)..CBU;TRH200,214,219..(4FC,6FC)..DX;GDH206,221,226,KDH20#,22#,TRH221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)

 1
Common parts
82824-26211
90148-40007
90480-01537
