TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF10(0408- )TRH200,21#,22#
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(0408- )TRH200,21#,22#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 90179-06274 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||
ILLUST NO. 3 OF10(0408- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF10(0408- )
ﾘﾔ ﾄﾞｱ & ﾊﾞｯｸ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06923 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 7 OF10(0408- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26150 | ||||
| 82712-26290 | ||||
| 82712-26320 | ||||
| 82712-26391 | ||||
| 82715-26A10 | ||||
| 82715-26A20 | ||||
| 82715-26A30 | ||||
| 82715-26B50 | ||||
| 82715-26B60 | ||||
| 82715-26D70 | ||||
| 82715-26D80 | ||||
| 82715-26D90 | ||||
| 82715-26E10 | ||||
| 82715-26E11 | ||||
| 82715-26E20 | ||||
| 82715-26G00 | ||||
| 82715-26G01 | ||||
| 82715-26G30 | ||||
| 82715-26G40 | ||||
| 82715-26G50 | ||||
| 82729-26341 | ||||
| 90119-08C20 | ||||
| 90159-50327 | ||||
| 91511-B0614 | ||||
| 91552-81018 | ||||
| 91553-80812 | ||||
| 91553-80814 | ||||
| 91553-80818 | ||||
| 91673-80820 | ||||
ILLUST NO. 8 OF10(0408- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-25850 | ||||
| 82715-25A30 | ||||
| 82715-26A00 | ||||
| 82715-26A40 | ||||
| 82715-26A50 | ||||
| 82715-26B40 | ||||
| 82715-26B70 | ||||
| 82715-26B90 | ||||
| 82715-26C10 | ||||
| 82715-26C50 | ||||
| 82715-26C70 | ||||
| 82715-26C80 | ||||
| 82715-26D40 | ||||
| 82715-26E30 | ||||
| 82715-26E40 | ||||
| 82715-26E70 | ||||
| 82715-26E80 | ||||
| 82715-26E90 | ||||
| 82715-26F10 | ||||
| 82715-26F50 | ||||
| 82715-26G10 | ||||
| 82715-26G80 | ||||
| 82715-26G81 | ||||
| 82715-28430 | ||||
| 82715-89119 | ||||
| 90119-06375 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91553-80810 | ||||
| 91611-B0610 | ||||
| 91671-A0612 | ||||
| 91673-80612 | ||||
ILLUST NO. 9 OF10(0408- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-48450 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
| 90980-11395 | ||||
| 90980-11918 | ||||
ILLUST NO.10 OF10(0408- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11246 | ||||
| 90980-11909 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12391 | ||||
| 90980-12404 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12790 | ||||
ILLUST NO. 4 OF10(0408- )
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 1 OF 9(1312-1712)TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26E45 |
TRH224..CBU;TRH21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82111-26E85 |
TRH223,228..CBU;TRH214,219,221,226..(02S,10S)..DX..(CBU,IV6) *POSD(左側)&*ECS(左側) |
1 | ||
| 82111-26R02 |
TRH21#,22#..(02S,05S,10S,14S)..(CBU,IV6,IV7) ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-26Y80 |
TRH223,228..CBU;TRH214,219,221,226..(02S,10S)..DX..(CBU,IV6) *POSD(左側)&*ECS(左側)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26680 |
TRH21#,22# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26220 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26461 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-26100 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26530 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91551-80608 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(1312- )TRH200,21#,22#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26B93 |
TRH216,219,226,228,229 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26151 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-26190 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26480 |
KDH211,22#,TRH21#,22#..4FC |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26800 |
TRH200,21#,22# ﾀｲﾌﾟ A |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26800 |
TRH200,21#,22# ﾀｲﾌﾟ A |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26490 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26D30 |
TRH21#,22#;KDH20#,211,22#,TRH200..4FC,5F |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26L10 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26L30 |
TRH200..4FC;KDH20#,211,22#,TRH21#,22#..4FC,5F |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26F50 |
TRH200,21#,22# ﾀｲﾌﾟ A |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26F50 |
TRH200,21#,22# ﾀｲﾌﾟ A |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26C20 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 8281AC - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26E50 |
TRH200,21#,22# |
1 | ||
| 8281AL - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B90 |
KDH211,22#,TRH21#,22#..4FC |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||

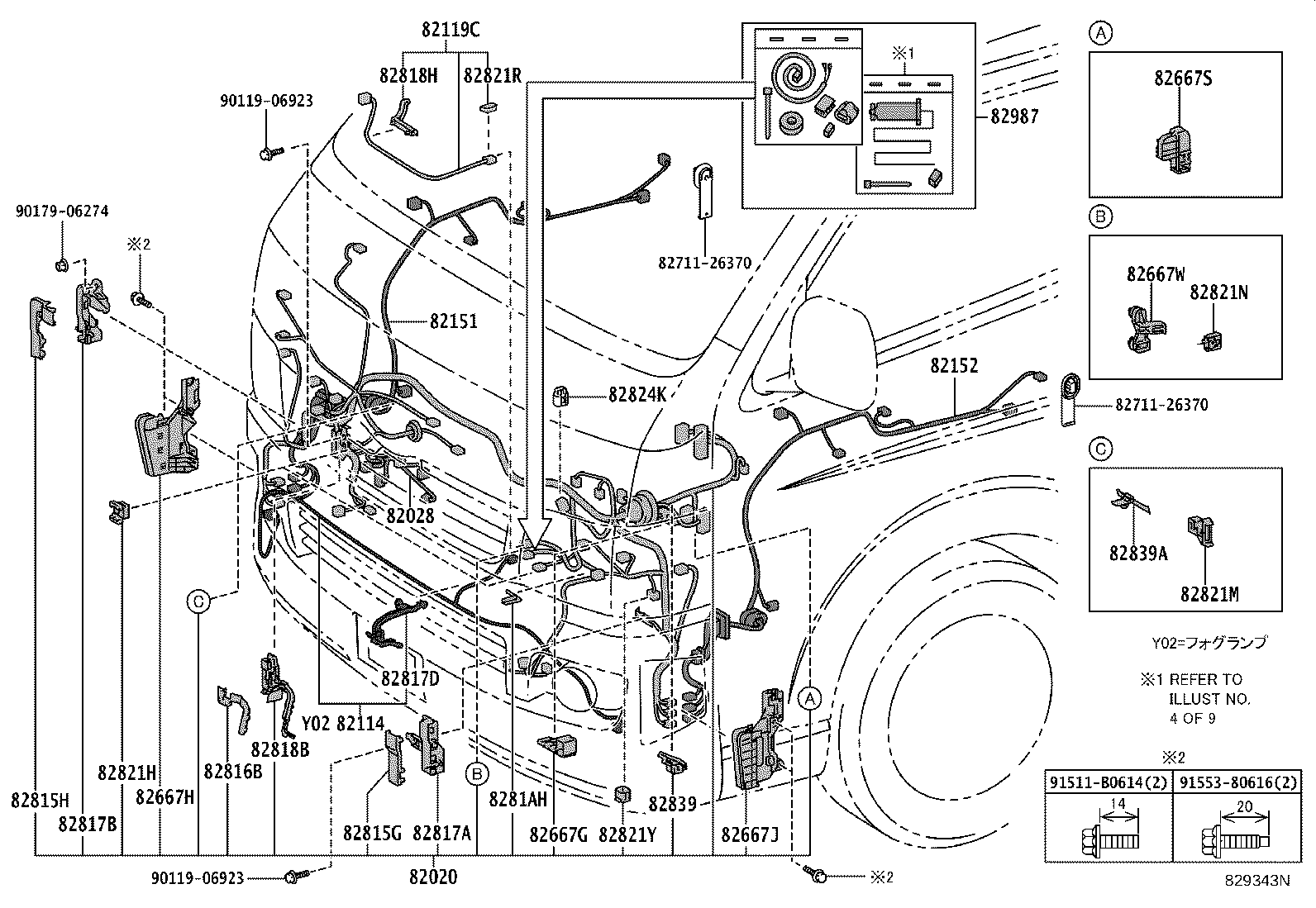

ILLUST NO. 5 OF 9(1312-2005)TRH219..4D ; (1312-2005)KDH20#,211,22#,TRH200,211,214,216,22#
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26396 |
TRH21#,22# |
1 | ||
| 82020-26692 |
TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26093 |
TRH214,219..DX;GDH22#,KDH22#,TRH22#..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26541 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26502 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26312 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26322 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26620 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26360 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26J20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-35040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-26080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
ILLUST NO. 6 OF 9(1312- )
ﾘﾔ ﾄﾞｱ & ﾊﾞｯｸ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82054-26012 |
TRH214,219..DX;TRH221,226..4FC..IV6;GDH223,KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 82156 - WIRE, SLIDE DOOR | ||||
| 82156-26012 |
TRH214,219..DX;TRH221,226..4FC..IV6;GDH223,KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 82158A - WIRE, STEP PANEL, LH | ||||
| 82158-26023 |
TRH214,219..DX;TRH221,226..4FC..IV6;GDH223,KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26352 |
TRH214,219..DX |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26571 |
TRH214,219..DX |
1 | ||
| 82185-26531 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82185-26591 |
TRH214,219..DX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82185-26462 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26110 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 左側 |
1 | ||
| 82186-26100 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 右側 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26110 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 左側 |
1 | ||
| 82186-26100 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 右側 |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26260 |
KDH211,TRH21# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-26440 |
TRH214,219..DX;TRH221,226..4FC..IV6;GDH223,KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26400 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-26830 |
TRH214,219..DX;TRH221,226..4FC..IV6;GDH223,KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 4 OF 9(1312- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26D30 |
KDH223,TRH214,219,223,228..DX |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-26065 |
TRH214,219..DX;KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 82142-26283 |
TRH214,219..DX;KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側)&ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 82142-26283 |
TRH214,219..DX;KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側)&ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 82142-26460 |
TRH214,219..DX;KDH22#,TRH221,223,226,228..CBU,IV5 |
1 | ||
| 82142-26480 |
TRH214,219..DX;KDH22#,TRH221,223,226,228..CBU,IV5 ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 82142-26480 |
TRH214,219..DX;KDH22#,TRH221,223,226,228..CBU,IV5 ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-26022 |
GDH221,226,TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 82143-26022 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-26030 |
TRH21#,22# 寒冷地仕様 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-26350 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-26180 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F;GDH20#,22#..(DX,SGL)..(CBU,IV6) NO.1 |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-60C10 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-26060 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-26851 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-33520 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-26220 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-26200 |
KDH20#,TRH200..SGL;GDH206,KDH223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 9(1312- )KDH20#,211,TRH200,21#..4FC,5F ; (1501- )TRH214,219..4D ; (1501- )T
ﾌﾛｱ,ﾙｰﾌ,ﾄﾗﾝｸﾊﾟﾈﾙ & ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-26703 |
TRH214,219 |
1 | ||
| 82164-26703 |
TRH214,219 |
1 | ||
| 82164-26860 |
TRH214,219 ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車) |
1 | ||
| 82164-26860 |
TRH214,219 ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車) |
1 | ||
| 82164-26860 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 82164-26860 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-26461 |
TRH214,219 |
1 | ||
| 82165-26461 |
TRH214,219 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-26041 |
TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 82168-26041 |
TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26E01 |
TRH214,219..DX |
1 | ||
| 82171-26E01 |
TRH214,219..DX |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-26211 |
GDH211,KDH211,TRH21# |
1 | ||
| 82173-26211 |
GDH211,KDH211,TRH21# |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-26170 |
TRH214,219..DX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82174-26170 |
TRH214,219..DX ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26122 |
TRH200..4FC..CBU;TRH200..6FC..SGL;GDH20#,211,KDH211,TRH211,216..SGL;KDH20#,TRH214,219..(4FC,5F)..(DX,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26122 |
TRH200..4FC..CBU;TRH200..6FC..SGL;GDH20#,211,KDH211,TRH211,216..SGL;KDH20#,TRH214,219..(4FC,5F)..(DX,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26102 |
TRH200..4FC..CBU;TRH200..6FC..SGL;GDH20#,211,KDH211,TRH211,216..SGL;KDH20#,TRH214,219..(4FC,5F)..(DX,SGL)..CBU |
1 | ||
| 82183-26102 |
TRH200..4FC..CBU;TRH200..6FC..SGL;GDH20#,211,KDH211,TRH211,216..SGL;KDH20#,TRH214,219..(4FC,5F)..(DX,SGL)..CBU |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-26022 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 82413-26022 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-26370 |
GDH201..HRF..CBU;TRH200..HRF..(4FC,6FC);GDH206,211,KDH20#,211,TRH21#..HRF,SMRF |
1 | ||
| 82666-26370 |
GDH201..HRF..CBU;TRH200..HRF..(4FC,6FC);GDH206,211,KDH20#,211,TRH21#..HRF,SMRF |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-26410 |
GDH211,KDH211,TRH21#,221,226..(02S,05S,10S)..(CBU,IV7) |
1 | ||
| 82666-26410 |
GDH211,KDH211,TRH21#,221,226..(02S,05S,10S)..(CBU,IV7) |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-26390 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82666-26390 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-26450 |
TRH200..4FC..IV5;GDH20#,TRH200..4D..(4FC,6FC)..CBU;GDH22#,KDH20#,22#,TRH214,219,221,223,226,228..4D..DX |
1 | ||
| 82666-26450 |
TRH200..4FC..IV5;GDH20#,TRH200..4D..(4FC,6FC)..CBU;GDH22#,KDH20#,22#,TRH214,219,221,223,226,228..4D..DX |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-26450 |
TRH200..4FC..IV5;GDH20#,TRH200..4D..(4FC,6FC)..CBU;GDH22#,KDH20#,22#,TRH214,219,221,223,226,228..4D..DX |
1 | ||
| 82666-26450 |
TRH200..4FC..IV5;GDH20#,TRH200..4D..(4FC,6FC)..CBU;GDH22#,KDH20#,22#,TRH214,219,221,223,226,228..4D..DX |
1 | ||
| 8281AD - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26E60 |
TRH200,21#,22# |
1 | ||
| 82817-26E60 |
TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90959-01501 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8714 | ||||
ILLUST NO. 9 OF 9(1312- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-48450 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11095 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11314 | ||||
| 90980-11395 | ||||
| 90980-11436 | ||||
| 90980-11659 | ||||
| 90980-11918 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
ILLUST NO. 9 OF 9(1312- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11909 | ||||
| 90980-12020 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12404 | ||||
| 90980-12416 | ||||
| 90980-12460 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12790 | ||||
ILLUST NO. 5 OF 9(1312-2005)TRH21#,22#
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26396 |
TRH21#,22# |
1 | ||
| 82020-26692 |
TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26093 |
TRH214,219..DX;GDH22#,KDH22#,TRH22#..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26541 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26502 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26312 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26322 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26620 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26360 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26J20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-35040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-26080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
ILLUST NO. 1 OF 9(1312- )TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26432 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26420 |
TRH200..4FC;KDH201..V1..HRF..5F;GDH206,TRH223,224,228;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26511 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-26501 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-26650 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26750 |
TRH214,219..5D;TRH200,21#,22#..4FC |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26L40 |
GDH206;TRH214,219..5D;KDH201..V1..HRF..5F;TRH200,21#,22#..4FC;GDH201,211,22#..CBU,IV6 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26C41 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26E11 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26C81 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26C31 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-95J00 |
TRH214,219..5D;KDH201..V1..HRF..5F;TRH200,21#,22#..4FC |
2 | ||
| 82819L - PROTECTOR, WIRING HARNESS, NO.27 | ||||
| 82817-26F60 |
TRH214,219..5D;TRH200,21#,22#..4FC |
1 | ||
| 8281AA - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B01 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F |
1 | ||
| 8281AB - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B40 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F |
1 | ||
| 8281AJ - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12860 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
