TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace

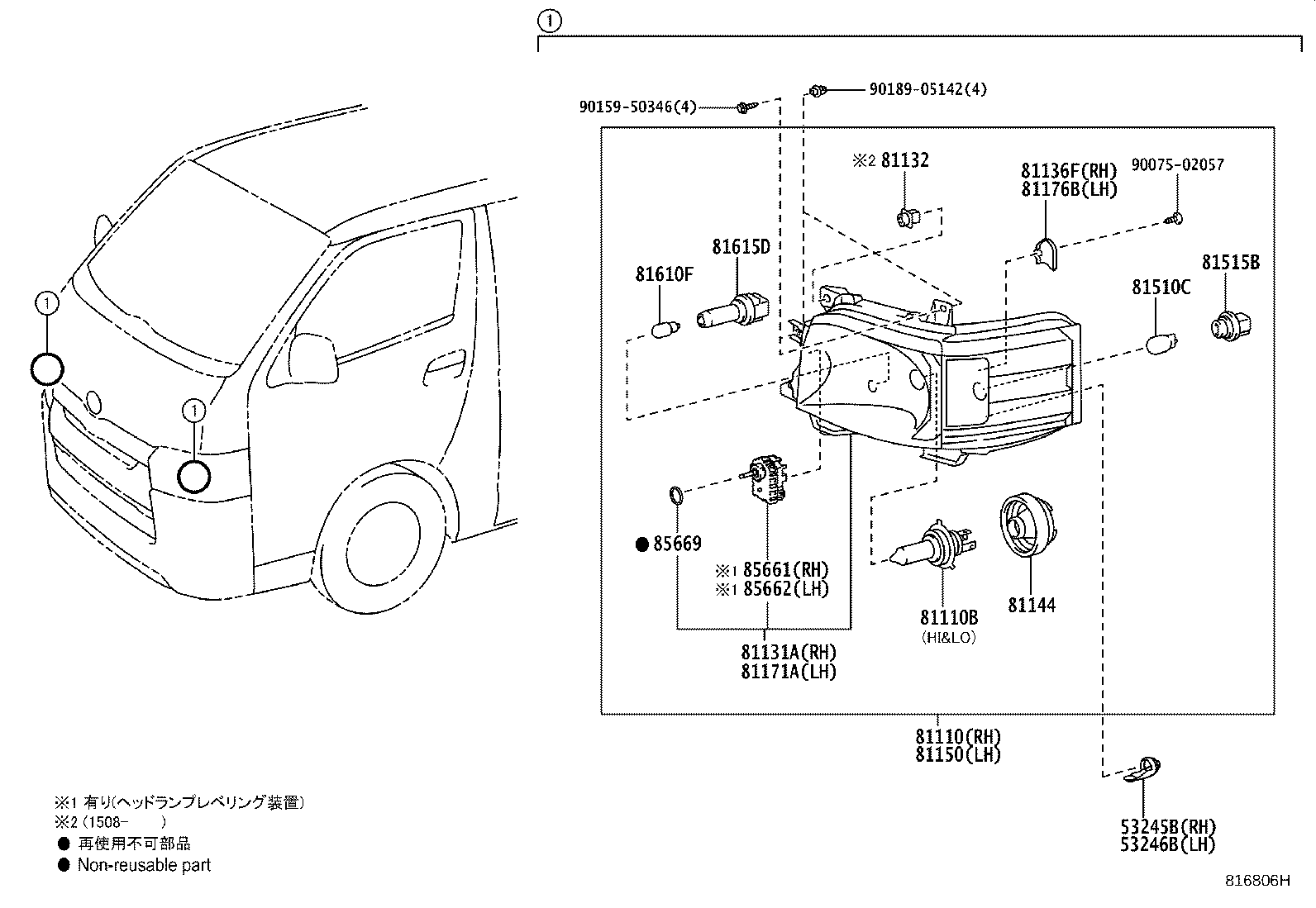

(1312- )TRH214,219..4D ; (1312- )GDH20#,211,22#,KDH20#,211,22#,TRH200,211,216
ﾊﾛｹﾞﾝ ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53245B - BRACKET, HEADLAMP, RH | ||||
| 53245-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53246B - BRACKET, HEADLAMP, LH | ||||
| 53246-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81110-26720 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-26720 |
KDH211,22#,TRH21#,22# 現車にPNC81132装着無しの場合 |
1 | ||
| 81145-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81136F - COVER, HEADLAMP, NO.2 RH | ||||
| 81136-26710 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
2 | ||
| 90075-65006 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81150-26720 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-26720 |
KDH211,22#,TRH21#,22# 現車にPNC81132装着無しの場合 |
1 | ||
| 81185-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81176B - COVER, HEADLAMP, NO.2 LH | ||||
| 81176-26710 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85661-12020 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85661-12010 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| Common parts | ||||
| 90075-02057 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||

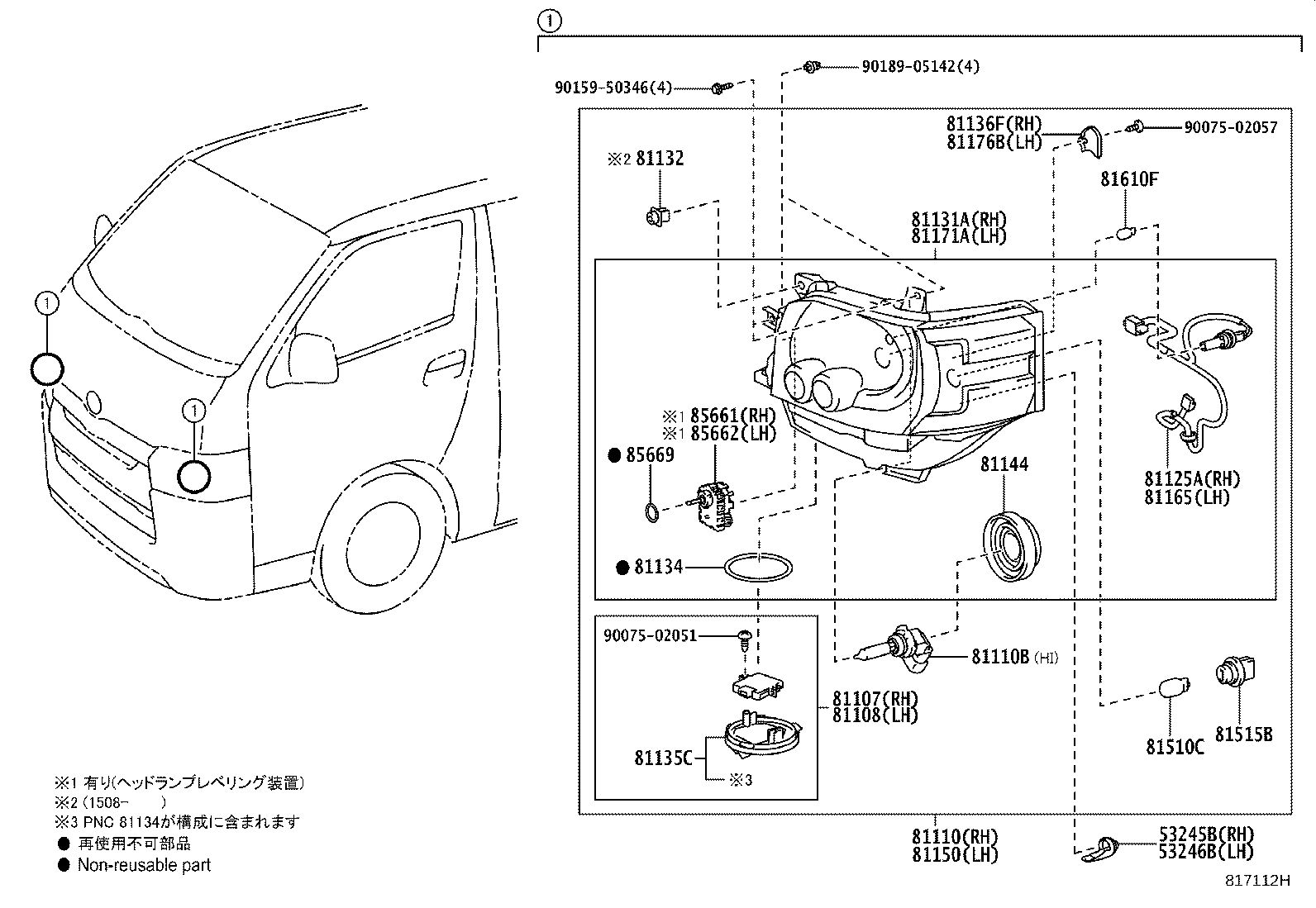

(1405- )GDH20#,211,22#,KDH211,221,TRH21#,221,226,229
LEDﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53245B - BRACKET, HEADLAMP, RH | ||||
| 53245-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53245-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53246B - BRACKET, HEADLAMP, LH | ||||
| 53246-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53246-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-60G20 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81107-60G20 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-60G20 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81107-60G20 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81110-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81110-26720 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110-26720 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13058 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 90981-13046 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-26830 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81125-26830 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-26720 |
KDH211,22#,TRH21#,22# 現車にPNC81132装着無しの場合 |
1 | ||
| 81130-26720 |
KDH211,22#,TRH21#,22# 現車にPNC81132装着無しの場合 |
1 | ||
| 81145-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81145-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-23002 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-60G20 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81135-60G20 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81136F - COVER, HEADLAMP, NO.2 RH | ||||
| 81136-26710 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81136-26710 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
2 | ||
| 90075-65002 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
2 | ||
| 90075-65006 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 90075-65006 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81150-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81150-26720 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26720 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-26830 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81125-26830 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-26720 |
KDH211,22#,TRH21#,22# 現車にPNC81132装着無しの場合 |
1 | ||
| 81170-26720 |
KDH211,22#,TRH21#,22# 現車にPNC81132装着無しの場合 |
1 | ||
| 81185-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81185-26840 |
KDH211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81176B - COVER, HEADLAMP, NO.2 LH | ||||
| 81176-26710 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81176-26710 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 90075-60028 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11069 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 12V 5W |
2 | ||
| 90981-11069 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85661-12010 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85661-12020 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85661-12020 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85661-12020 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85661-12010 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85661-12010 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 90075-99120 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02057 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
