TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace
(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71292-26010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

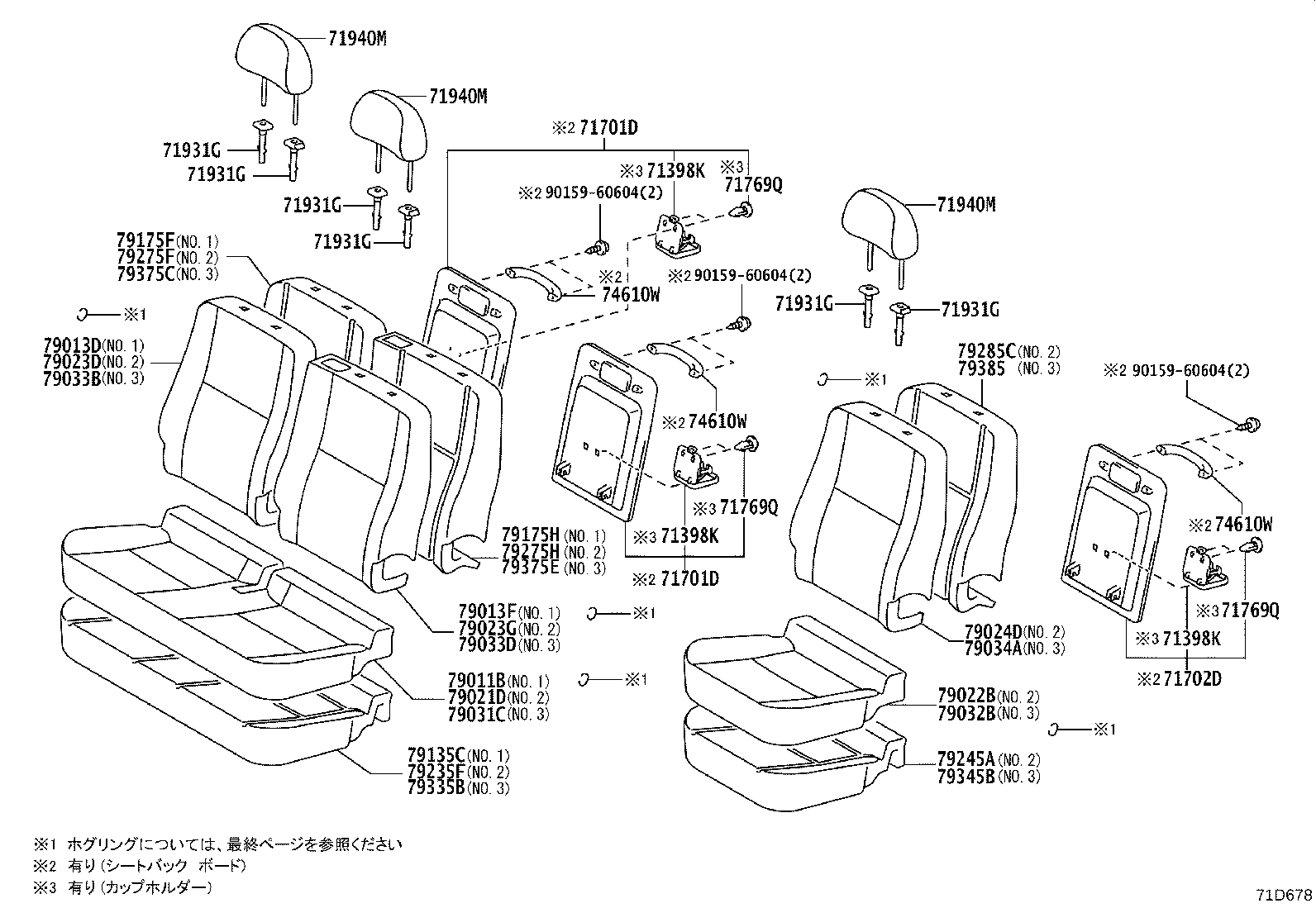

(1312- )GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU
ﾘﾔ ｼｰﾄ(ｶﾊﾞｰ&ﾊﾟｯﾄﾞ, 1ﾆﾝｶﾞｹ & 2ﾆﾝｶﾞｹ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398K - CUP HOLDER, REAR SEAT BACK | ||||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398K - CUP HOLDER, REAR SEAT BACK | ||||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71398K - CUP HOLDER, REAR SEAT BACK | ||||
| 71398-26040B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 71398-26040B2 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 71701D - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71701-26031B1 |
TRH214,219..4D;TRH224,229..4FC..CBU DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
4 | ||
| 71701D - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71701-26031B1 |
TRH214,219..4D;TRH224,229..4FC..CBU DK.GRAY,TRIM1# |
4 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
4 | ||
| 71702D - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71701-26031B1 |
TRH214,219..DX;TRH224,229..4FC..CBU DK.GRAY,TRIM1# |
1 | ||
| 71701-26031B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71769Q - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 71769Q - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 71769Q - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B0 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
10 | ||
| 90467-10132B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
10 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-42020B4 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219,224,229..4D..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
8 | ||
| 71930-52030B0 |
TRH214,219..DX ﾛｯｸ付(ﾎﾞﾀﾝ有り),幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
8 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-26371B1 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
8 | ||
| 71940-26371B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
8 | ||
| 74610W - GRIP ASSY, ASSIST | ||||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 74610W - GRIP ASSY, ASSIST | ||||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 74610W - GRIP ASSY, ASSIST | ||||
| 74611-20030B9 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
5 | ||
| 74611-20030B9 |
TRH214,219,224,229..(DX,GC)..CBU DK.GRAY,TRIM1# |
5 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26B11B5 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013F - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26A91B5 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-26501B3 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26501B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-26182B3 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26182B3 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79023G - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-26A91B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26A91B5 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26B11B5 |
GDH223,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26B11B5 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79031C - COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-26602B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-26602B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79032B - COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-26162B2 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79012-26162B2 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79033B - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79033D - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79013-26D70B0 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26D70B0 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-26C11B4 |
TRH214,219..DX BLUISH GRAY,TRIM1# |
1 | ||
| 79013-26C11B4 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),BLUISH GRAY,TRIM1# |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235-26050 |
TRH214,219..DX;GDH223,KDH223,TRH223,228..CBU |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26280 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175H - PAD, NO.1 SEAT BACK | ||||
| 79175-26300 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235F - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79235-26050 |
TRH214,219..DX;GDH223,KDH223,TRH223,228..CBU |
1 | ||
| 79245A - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79136-26070 |
TRH214,219..DX |
1 | ||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79275F - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79275H - PAD, NO.2 SEAT BACK | ||||
| 79175-26300 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79285C - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26280 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79335B - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH214,219..DX;GDH223,KDH223,TRH223,228..CBU |
1 | ||
| 79235-26050 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79345B - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79136-26070 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79136-26070 |
TRH214,219..DX |
1 | ||
| 79375C - PAD, NO.3 SEAT BACK, RH | ||||
| 79175-26280 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79375E - PAD, NO.3 SEAT BACK | ||||
| 79175-26300 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79175-26300 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79385 - PAD, NO.3 SEAT BACK, LH | ||||
| 79175-26280 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79175-26280 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| Common parts | ||||
| 90159-60604 | ||||

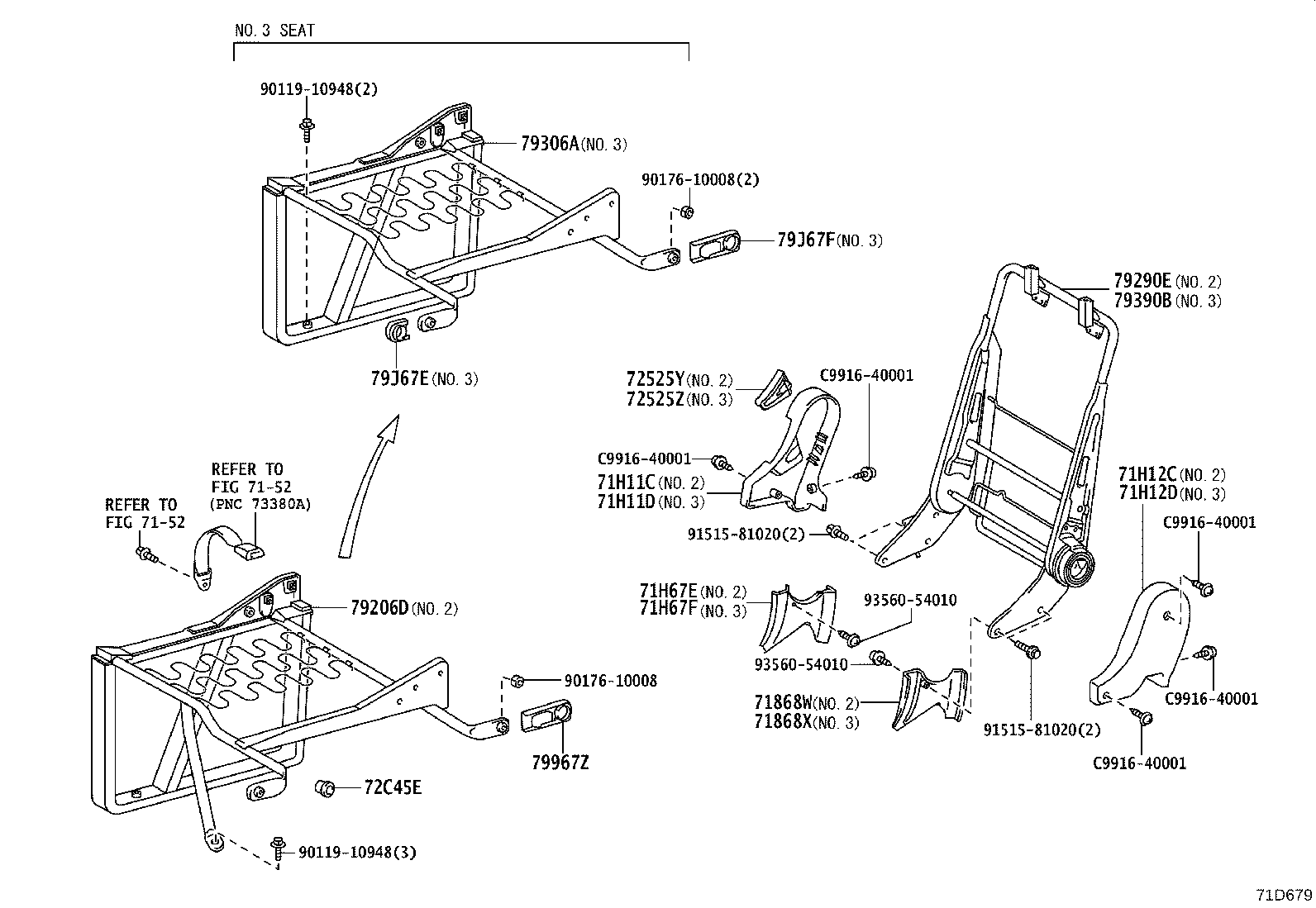

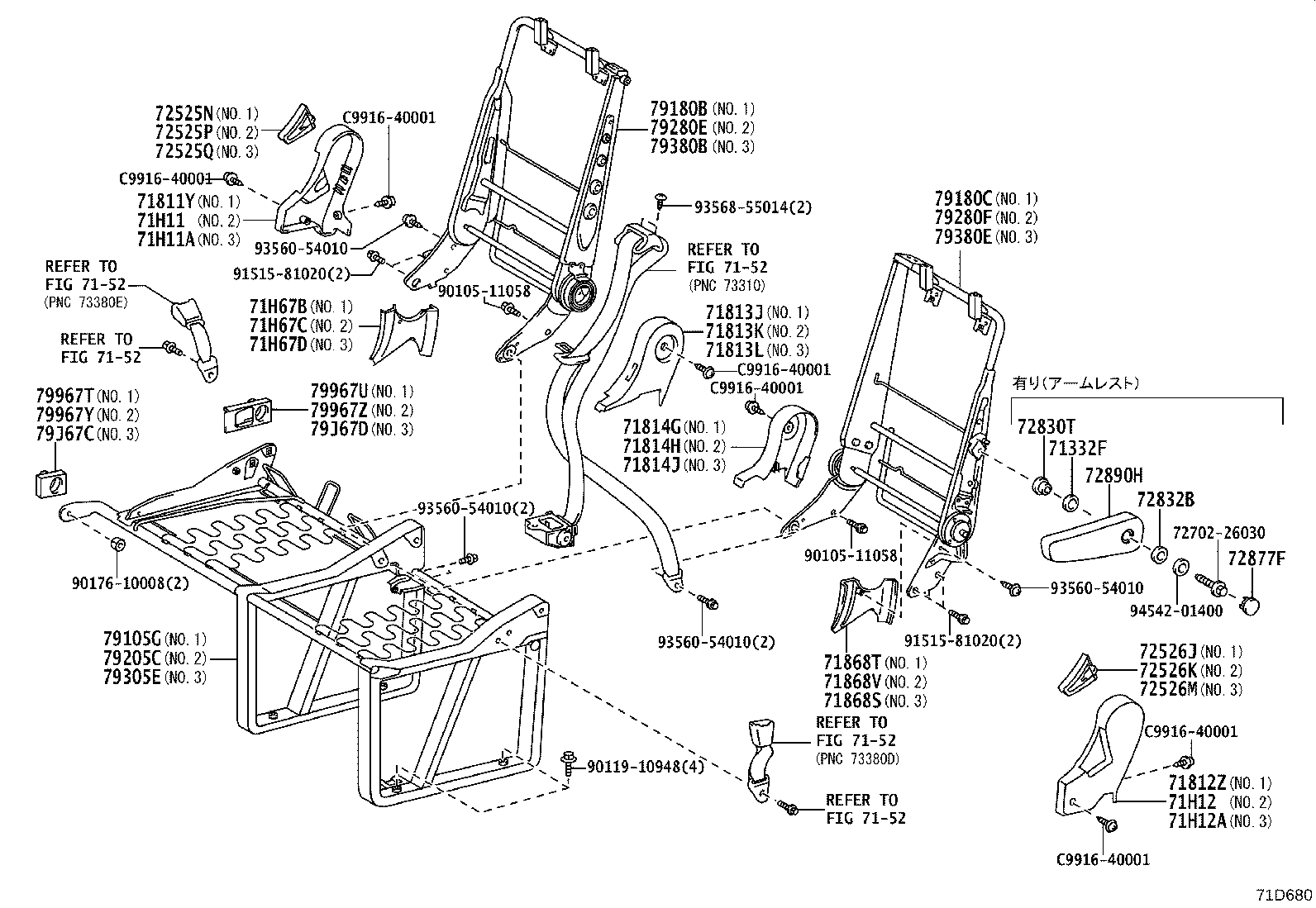

(1312- )GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU
ﾘﾔ ｼｰﾄ(ﾌﾚｰﾑ, 1ﾆﾝｶﾞｹｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71868W - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868X - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H11C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26281B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H11D - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26281B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71811-26281B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71H12C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H12D - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26250B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H67E - SHIELD,REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H67F - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525Y - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525Z - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-26090B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72C45E - CAP, SEAT STAND FRAME | ||||
| 72345-44110 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 72345-44110 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79206D - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-26240 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79106-26240 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79290E - SPRING ASSY, NO.2 SEAT BACK LH | ||||
| 79190-26150 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79190-26150 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79306A - LEG SUB-ASSY, NO.3 SEAT, LH | ||||
| 79106-26230 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79106-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79390B - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79190-26150 |
TRH214,219,224,229..(DX,GC)..CBU |
1 | ||
| 79190-26150 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967Z - COVER, REAR NO.2 SEAT LEG SIDE, NO.2 | ||||
| 79968-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
2 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79J67E - COVER, REAR NO.3 SEAT LEG SIDE, NO.3 | ||||
| 79967-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79J67F - COVER, REAR NO.3 SEAT LEG SIDE, NO.4 | ||||
| 79968-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| Common parts | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1312- )GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU
ﾘﾔ ｼｰﾄ(ﾌﾚｰﾑ, 2ﾆﾝｶﾞｹｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811Y - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812Z - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26231B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813J - SHIELD, REAR SEAT BACK, RH | ||||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813K - SHIELD, REAR SEAT BACK, RH | ||||
| 71813-26020B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813L - SHIELD, REAR SEAT BACK, RH | ||||
| 71813-26020B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71813-26020B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814G - SHIELD, REAR SEAT BACK, LH | ||||
| 71814-26040B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814H - SHIELD, REAR SEAT BACK, LH | ||||
| 71814-26040B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71814J - SHIELD, REAR SEAT BACK, LH | ||||
| 71814-26040B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71814-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868S - SHIELD, NO.3 SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868T - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX;TRH214,219..4FC..GL;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71868V - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B1 |
TRH214,219..DX;TRH214,219..4FC..GL;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71868-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H11 - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H11A - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71811-26240B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H12 - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71H12A - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26231B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71812-26231B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H67B - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H67C - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 71H67D - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 71867-26060B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
KDH223,TRH223,228..GL..CBU;GDH223,TRH214,219,224,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090B1 |
KDH223,TRH223,228..GL..CBU;GDH223,TRH214,219,224,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72525Q - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-26090B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26040B1 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 72526M - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26040B1 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79205-26230 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79205-26230 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79180B - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-26080 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79180C - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79290-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79205C - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-26210 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280E - SPRING ASSY, NO.2 SEAT BACK RH | ||||
| 79280-26080 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280F - SPRING ASSY, NO.2 SEAT BACK RH | ||||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79305E - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79205-26210 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79205-26210 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79380B - SPRING ASSY, REAR SEAT BACK, RH | ||||
| 79280-26080 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79280-26080 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79380E - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79290-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79290-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79967T - COVER, REAR NO.1 SEAT LEG SIDE, NO.1 | ||||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967-26010 |
TRH223,228..4FC..GL..CBU;KDH223,TRH214,219..4D..CBU;GDH223,TRH223,224,228,229..(DX,GC)..CBU |
1 | ||
| 79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2 | ||||
| 79968-26010 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967Y - COVER, REAR NO.2 SEAT LEG SIDE, NO.1 | ||||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967-26010 |
TRH223,228..4FC..GL..CBU;KDH223,TRH214,219..4D..CBU;GDH223,TRH223,224,228,229..(DX,GC)..CBU |
1 | ||
| 79967Z - COVER, REAR NO.2 SEAT LEG SIDE, NO.2 | ||||
| 79968-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
2 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
2 | ||
| 79J67C - COVER, REAR NO.3 SEAT LEG SIDE, NO.1 | ||||
| 79967-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 79967-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79J67D - COVER, REAR NO.3 SEAT LEG SIDE, NO.2 | ||||
| 79968-26010 |
TRH214,219..DX;GDH223,KDH223,TRH223,224,228,229..CBU |
1 | ||
| 79968-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| Common parts | ||||
| 72702-26030 | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| 93568-55014 | ||||
| 94542-01400 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
