TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace
(1312- )
ｼｰﾄｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1312- )KDH20#,22#,TRH200,214,219,221,223,226,228..DX..CBU,IV5
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-26A80B0 |
GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1# |
1 | ||
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-26A80B0 |
GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71027-26041B4 |
GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26011 |
TRH200..(4FC,6FC)..DX;KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-26170 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-26270 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ) |
1 | ||
| 71551-26270 |
GDH22#..DX..CBU;TRH214,219..4FC..DX |
2 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-26010 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ) |
1 | ||
| 71848-26010 |
TRH214,219..5D;KDH20#,211,TRH200,21#..(05S,10S)..4FC..(DX,SGL) |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-26010B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-26020B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-26010B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-26030B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-26010B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 72249A - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 72249-26020 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 90467-08186C0 |
KDH20#,211,223,TRH200,21#,22#..02S,05S,10S,14S BLACK |
4 | ||
| 90467-08186C0 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ),BLACK |
2 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

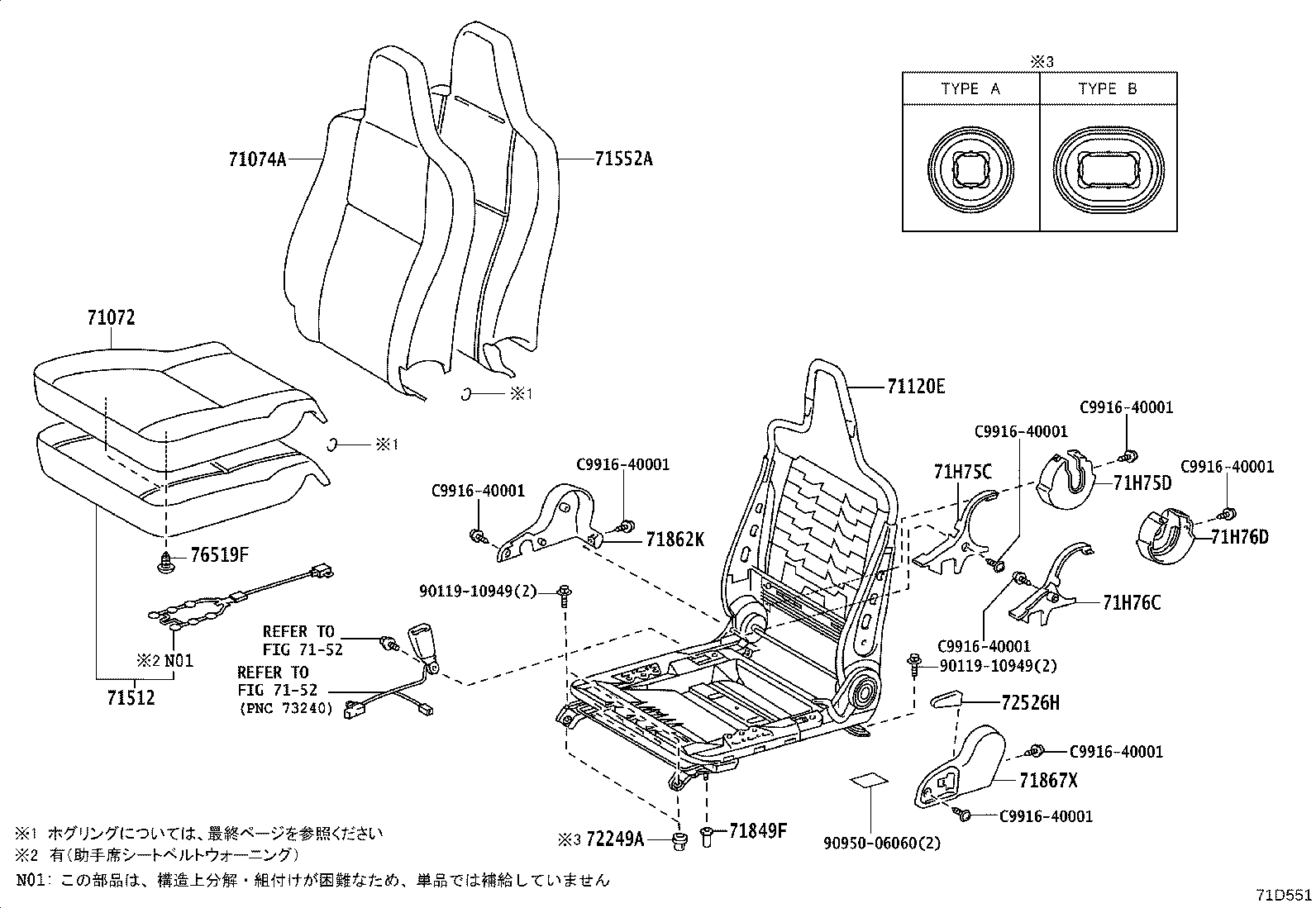

(1312- )GDH22#,KDH223,TRH214,219,223,228..DX..CBU
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-26741B6 |
GDH22#,KDH223,TRH214,219,223,228..DX BLUISH GRAY,TRIM1# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71027-26041B4 |
GDH22#,KDH223,TRH214,219,223,228..DX..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26031 |
GDH22#,KDH223,TRH214,219,223,228..DX..CBU |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71052-26050 |
GDH221,226,TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71867X - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-26010B1 |
KDH223,TRH223,224,228;GDH211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-26020B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F | ||||
| 71875-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-26030B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 72249A - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 72249-26020 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26020B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 90467-08186C0 |
KDH20#,211,223,TRH200,21#,22#..02S,05S,10S,14S BLACK |
4 | ||
| 90467-08186C0 |
TRH214,219..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側のみ),BLACK |
2 | ||
| Common parts | ||||
| 90119-10949 | ||||
| 90950-06060 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
