TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace
(0408- )TRH214,219

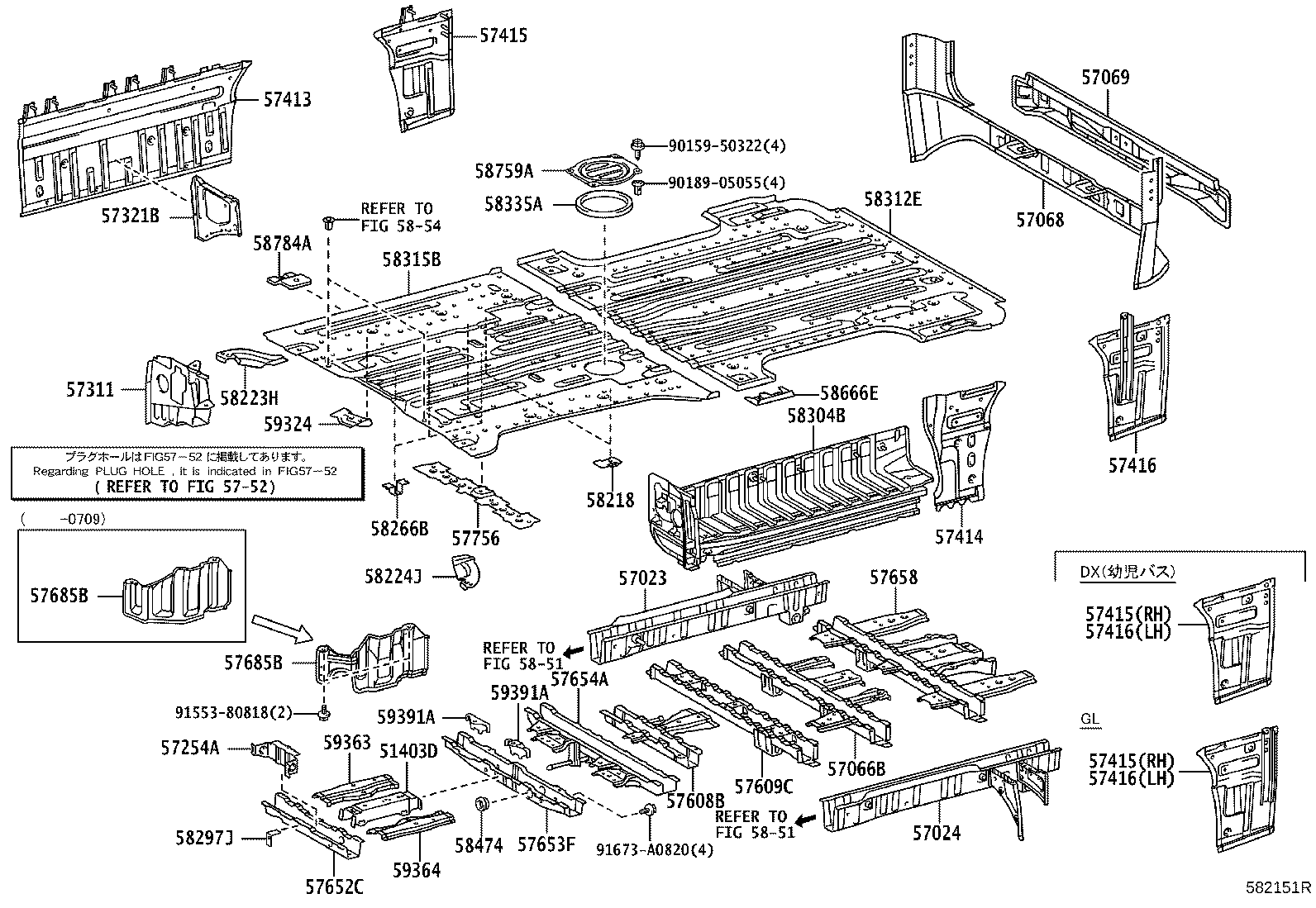

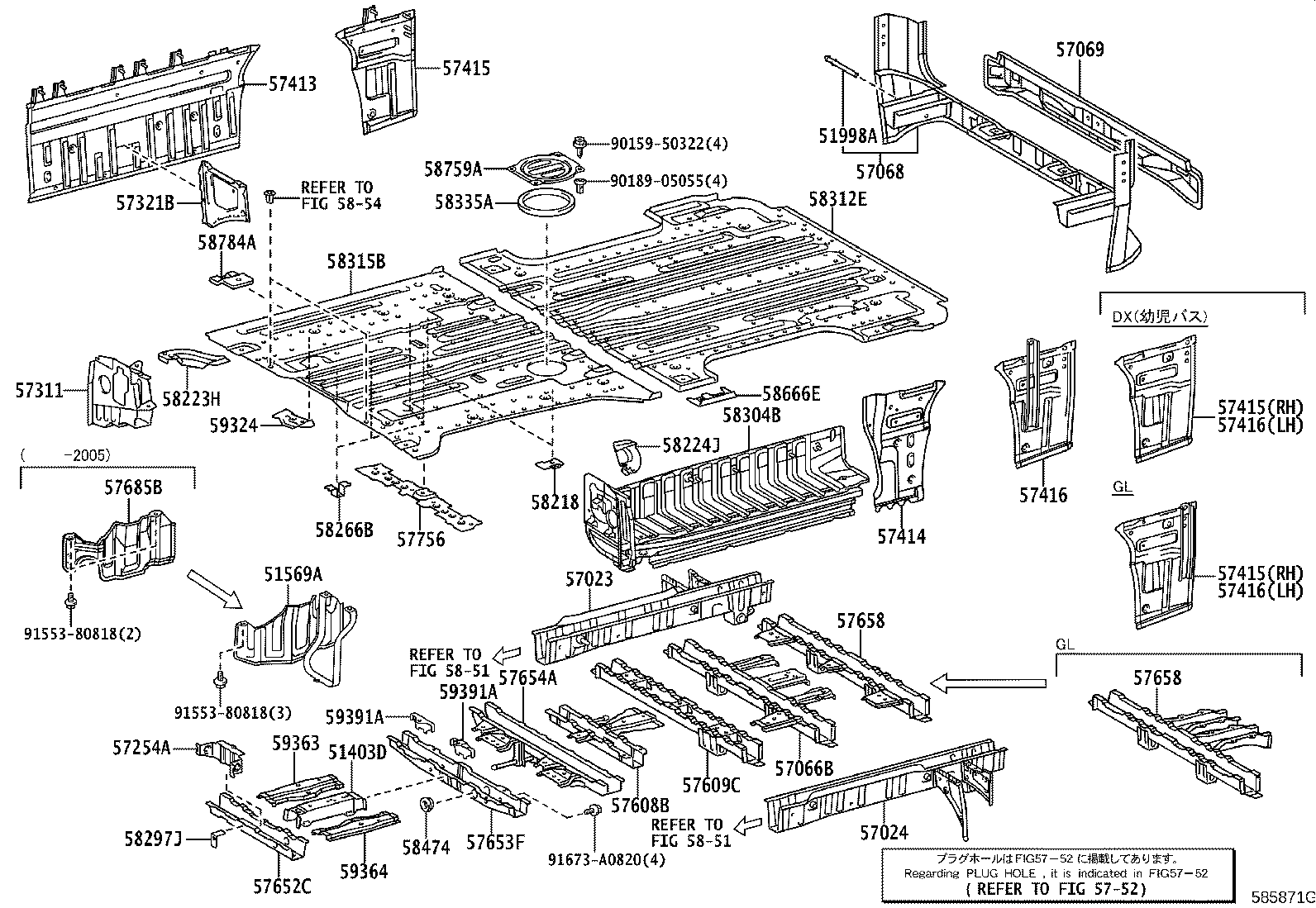

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
(1312- )TRH214,219..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51431-26172 |
TRH216,219,226,228,229 |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26640 |
TRH200..V2..(4FC,6FC);GDH221,226,TRH221,226..IV6;GDH201,KDH201,TRH214,219,224,229..(V2,WG)..(DX,GC)..CBU |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26640 |
TRH200..V2..(4FC,6FC);GDH221,226,TRH221,226..IV6;GDH201,KDH201,TRH214,219,224,229..(V2,WG)..(DX,GC)..CBU |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26182 |
TRH214,219..DX |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26290 |
GDH221,226,KDH221,TRH214,219,221,226..DX |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26150 |
TRH214,219 |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-26090 |
TRH200..4FC..IV5;TRH200..HRF..4D..(4FC,6FC)..CBU;GDH206,KDH206,223,TRH223,224,228..4D..(02S,06S,09S,10S,14S);GDH201,22#,KDH201,221,TRH219,221,226,229..(HRF,SMRF)..4D..(CBU,IV6,IV7) |
1 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57321-26010 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26A00 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 57405-2F020 |
TRH214,219..DX |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26520 |
TRH214,219..DX |
1 | ||
| 57414-26510 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26180 |
TRH214,219..DX |
1 | ||
| 57415-26210 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26180 |
TRH214,219..DX |
1 | ||
| 57415-26210 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26180 |
TRH214,219..DX |
1 | ||
| 57415-26210 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26160 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 57048-26160 |
TRH214,219..DX |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26160 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 57048-26160 |
TRH214,219..DX |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26160 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 57048-26160 |
TRH214,219..DX |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26382 |
TRH214,219..4D |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26232 |
TRH214,219..4D;GDH211,KDH211,TRH211,216 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26130 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26141 |
TRH214,219,22# |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26621 |
GDH223,KDH223,TRH214,219..4D..CBU |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26191 |
TRH214,219..DX |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26191 |
TRH214,219..DX |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26040 |
TRH21#,22# ﾌﾛﾝﾄ |
1 | ||
| 57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER | ||||
| 57756-26020 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH200,21#,221,226,229..(4FC,6FC)..(CBU,IV6,IV7) |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26470 |
TRH224..CBU;TRH200,214,219,223,228,229..(HRF,SMRF)..4D..(02S,03S,10S,14S) |
1 | ||
| 58304-26540 |
TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 58304-26510 |
TRH214,219..DX;TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 58304-26A70 |
TRH214,219..DX ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&*ECS(左側) |
1 | ||
| 58304-26A80 |
TRH214,219..DX ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&*POSD(左側)&*ECS(左側) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26051 |
TRH214,219..DX |
1 | ||
| 58312-26052 |
TRH214,219..DX |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26530 |
TRH214,219..DX;KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 58315-26540 |
TRH214,219..DX;KDH223,TRH223,228..CBU |
1 | ||
| 58315-26520 |
TRH214,219..DX ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&*ECS(左側) |
1 | ||
| 58315-26760 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 58315-26521 |
TRH214,219..DX ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)&*ECS(左側) |
1 | ||
| 58315-26761 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 58315-26541 |
TRH214,219..DX;GDH223,KDH223,TRH223,228..CBU |
1 | ||
| 58315-26531 |
TRH214,219..DX;GDH223,KDH223,TRH223,228..CBU *POSD(左側)&*ECS(左側) |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58784A - SUPPORT, TOOL BAG | ||||
| 58784-26020 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 59324 - BASE, SUB FLOOR LEG, NO.2 | ||||
| 59324-26030 |
GDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-26190 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU |
1 | ||
| 59364 - RETAINER, REAR SEAT, NO.1 D | ||||
| 59364-26090 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列) |
1 | ||
| 59391A - RETAINER, REAR FLOOR, NO.1 | ||||
| 58317-26100 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU ｾﾝﾀ |
1 | ||
| 59391-26010 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 右側 |
1 | ||
| 59391A - RETAINER, REAR FLOOR, NO.1 | ||||
| 58317-26100 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU ｾﾝﾀ |
1 | ||
| 59391-26010 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 右側 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
