TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

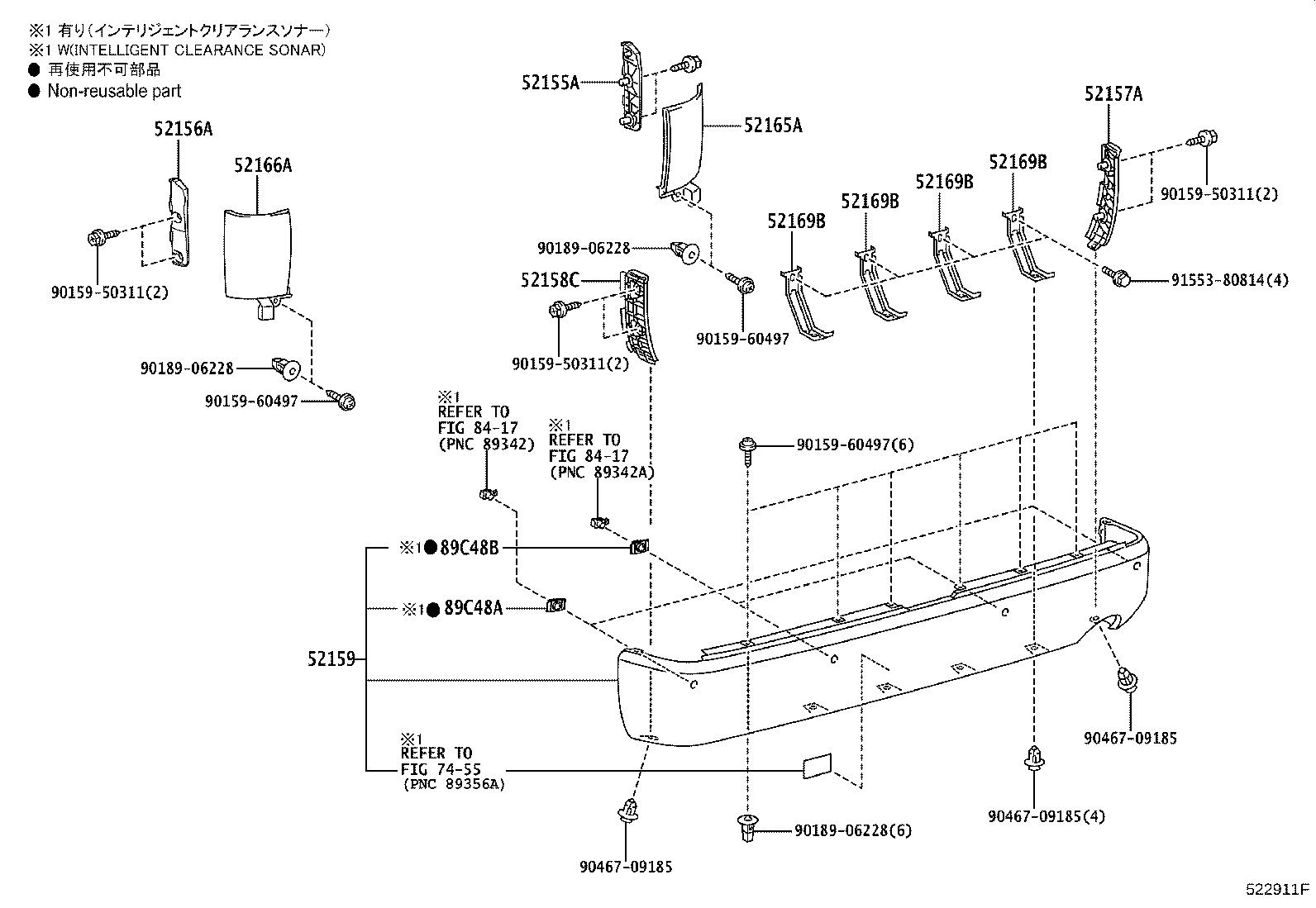

Click highlighted areas on diagram

ﾅｼ(ｽﾃｯﾌﾟ)

diagram 52155A 52156A 52157A 52158C 52159 52165A 52166A 52169B 52169B 52169B 52169B 9015950311 9015950311 9015950311 9015950311 9015960497 9015960497 9015960497 9018906228 9018906228 9018906228 9046709185 9046709185 9046709185 9155380814
Part # Description Qty Price
Common parts
90159-50311
90159-60497
90189-06228
90467-09185
91553-80814

(0408- )

Click highlighted areas on diagram

ｱﾘ(ｽﾃｯﾌﾟ)

diagram 52155A 52156A 52157A 52158C 52159 52165A 52166A 52169B 52169B 52169B 52169B 52302 5235826030 5235826050 9015950311 9015950311 9015950311 9015950311 9015960497 9015960497 9015960497 9015960497 9015960497 9015960497 9018906228 9018906228 9018906228 9018906228 9018906228 9018906228 9046709185 9046709185 9046709185 9155380814 9155380814
Part # Description Qty Price
Common parts
52358-26030
52358-26050
90159-50311
90159-60497
90189-06228
90467-09185
91553-80814

(1312- )02S,10S,14S..CBU,IV6,IV7

Click highlighted areas on diagram

ﾅｼ(ｽﾃｯﾌﾟ)

diagram 52155A 52156A 52157A 52158C 52159 52165A 52166A 52169B 52169B 52169B 52169B 7455 8417 8417 89C48A 89C48B 9015950311 9015950311 9015950311 9015960497 9015960497 9015960497 9018906228 9018906228 9018906228 9046709185 9046709185 9046709185 9155380814
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-26150

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-26010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-26010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-26010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
52159 - COVER, REAR BUMPER
52159-26530

TRH214,219..DX;GDH223,KDH223,TRH223,228..CBU

塗装不要

 1
52165A - COVER, REAR BUMPER, UPR RH
52165-26030B0

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6

SILVER M.M.,1E7

 1
52165-26030F1

TRH200..6FC..SGL;TRH200..(4FC,6FC)..DX..CBU;KDH20#,TRH214,219..DX..CBU;GDH20#,22#,KDH22#,TRH221,223,226,228..CBU

LT.YELLOW,599

 1
52165-26030J0

TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH21#,22#..CBU,IV6

DK.BLUE M.M.,8P4

 1
52165-26040A0

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

WHITE,058

 1
52166A - COVER, REAR BUMPER, UPR LH
52166-26030B0

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6

SILVER M.M.,1E7

 1
52166-26030F1

TRH200..6FC..SGL;TRH200..(4FC,6FC)..DX..CBU;KDH20#,TRH214,219..DX..CBU;GDH20#,22#,KDH22#,TRH221,223,226,228..CBU

LT.YELLOW,599

 1
52166-26030J0

TRH200..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,22#,TRH21#,22#..CBU,IV6

DK.BLUE M.M.,8P4

 1
52166-26040A0

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

WHITE,058

 1
52169B - BRACKET, REAR BUMPER, CENTER
58385-26070

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
52169B - BRACKET, REAR BUMPER, CENTER
58385-26070

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
52169B - BRACKET, REAR BUMPER, CENTER
58385-26070

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
52169B - BRACKET, REAR BUMPER, CENTER
58385-26070

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
Common parts
90159-50311
90159-60497
90189-06228
90467-09185
91553-80814
Linked diagrams
7455
8417
