TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )TRH214,219

Click highlighted areas on diagram

4-ﾘｰﾌ

diagram 48210 48210C 48210C 48211 48212 48213 48214 48220 48247 48248B 48252 48252 48252 48252 48252 48252 48252A 48252A 48252A 48252B 48256 48284 48375
Part # Description Qty Price

ILLUST NO. 1 OF 2(0408- )KDH222,223,227,TRH200,214,219,223,224,228,229 ; (1008- )TRH211

Click highlighted areas on diagram

diagram 04483 48046 48046A 48046A 48047 48210A 48210A 48341A 48341B 48375 48530 48530C 48530E 48530F 48530H 48540 9010514169 9010514170 9010514170 9011908A89 9011910355 9011912088 9038714011 9167380820 9415121401 9415121401 9415121401 9462251400
Part # Description Qty Price
Common parts
90105-14169
90105-14170
90119-08A89
90119-10355
90119-12088
90387-14011
91673-80820
94151-21401
94622-51400

ILLUST NO. 1 OF 2(1312-2006)GDH223,KDH223,TRH200,211,214,219,223,224,228,229

Click highlighted areas on diagram

diagram 04483 48046 48046A 48046A 48047 48210A 48210A 48341A 48341B 48375 48530 48530C 48530E 48530F 48530H 48540 9010514169 9010514170 9010514170 9011908A89 9011910355 9011912088 9038714011 9167380820 9415121401 9415121401 9415121401 9415121441 9415121441 9462251400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-26150

GDH223,KDH223,TRH200,211,214,219,223,224,228,229

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26130

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14001

KDH223,TRH223,224,228;GDH206,223,KDH20#,TRH200,214,219,229..(HRF,SMRF)..(03S,10S,14S)

長さ=170

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-14001

KDH223,TRH223,224,228;GDH206,223,KDH20#,TRH200,214,219,229..(HRF,SMRF)..(03S,10S,14S)

長さ=170

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26130

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-26230

TRH214,219,224,229..CBU

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-26230

TRH214,219,224,229..CBU

 1
48375 - DAMPER, LEAF SPRING DYNAMIC
48375-26060

KDH201,TRH200,214,219..(HRF,SMRF)..(03S,10S)

 2
48375-26080

KDH223,TRH223,224,228;GDH223,TRH200,211,214,219,229..(03S,05S,06S,09S,10S,14S)..(4FC,6FC)

NO.2

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80736

GDH223,KDH223,TRH214,219,223,224,228,229..CBU

ﾏｰｸ 48531−26860

 1
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03011

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90385-16009

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
48530H - BUSH, REAR SHOCK ABSORBER
90385-19006

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80736

GDH223,KDH223,TRH214,219,223,224,228,229..CBU

ﾏｰｸ 48531−26860

 1
Common parts
90105-14169
90105-14170
90119-08A89
90119-10355
90119-12088
90387-14011
91673-80820
94151-21401
94151-21441
94622-51400

ILLUST NO. 2 OF 2(1312- )TRH214,219

Click highlighted areas on diagram

4ﾘｰﾌ

diagram 48210 48210C 48210C 48211 48212 48213 48214 48220 48247 48248B 48252B 48252C 48252C 48252C 48252C 48252C 48252C 48253 48253 48253 48256 48284 48375
Part # Description Qty Price

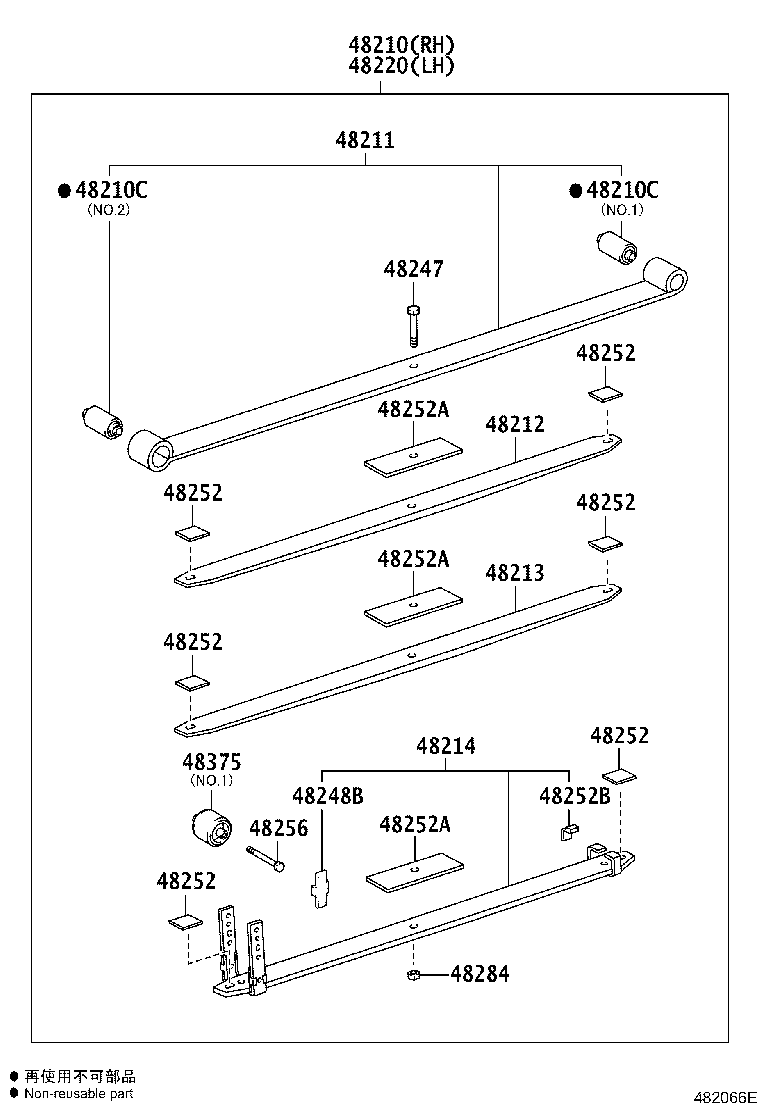

48210 - SPRING ASSY, REAR RH
48210-26A71

TRH214,219

4枚ﾘｰﾌ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14037

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

NO.2

 2
90389-14007

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

NO.1

 2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14037

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

NO.2

 2
90389-14007

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

NO.1

 2
48211 - LEAF, REAR SPRING, NO.1
48201-26A71

TRH214,219

 2
48212 - LEAF, REAR SPRING, NO.2
48212-26A71

TRH214,219

 2
48213 - LEAF, REAR SPRING, NO.3
48213-26A71

TRH214,219

 2
48214 - LEAF, REAR SPRING, NO.4
48202-26A71

TRH214,219

 2
48220 - SPRING ASSY, REAR LH
48210-26A71

TRH214,219

4枚ﾘｰﾌ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-26A00

GDH206,KDH20#,223,TRH200,214,219,223,224,228,229..(HRF,SMRF)..(02S,03S,10S)

 2
48248B - SPACER, REAR SPRING, NO.3
48248-26A00

GDH206,KDH20#,223,TRH200,214,219,223,224,228,229..(HRF,SMRF)..(02S,03S,10S)

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37380

GDH206,KDH20#,223,TRH200,214,219,223,224,228,229..(HRF,SMRF)..(02S,03S,10S)

 4
48252C - SILENCER, REAR SPRING, NO.2
48252-26A00

TRH214,219,224,229..CBU

 12
48252C - SILENCER, REAR SPRING, NO.2
48252-26A00

TRH214,219,224,229..CBU

 12
48252C - SILENCER, REAR SPRING, NO.2
48252-26A00

TRH214,219,224,229..CBU

 12
48252C - SILENCER, REAR SPRING, NO.2
48252-26A00

TRH214,219,224,229..CBU

 12
48252C - SILENCER, REAR SPRING, NO.2
48252-26A00

TRH214,219,224,229..CBU

 12
48252C - SILENCER, REAR SPRING, NO.2
48252-26A00

TRH214,219,224,229..CBU

 12
48253 - SPACER, REAR SPRING, NO.1
48253-26A00

TRH214,219,224,229..CBU

 6
48253 - SPACER, REAR SPRING, NO.1
48253-26A00

TRH214,219,224,229..CBU

 6
48253 - SPACER, REAR SPRING, NO.1
48253-26A00

TRH214,219,224,229..CBU

 6
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-26A00

GDH206,KDH20#,223,TRH200,214,219,223,224,228,229..(HRF,SMRF)..(02S,03S,10S)

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-26A30

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
48375 - DAMPER, LEAF SPRING DYNAMIC
48375-26060

KDH201,TRH200,214,219..(HRF,SMRF)..(03S,10S)

 2
48375-26080

KDH223,TRH223,224,228;GDH223,TRH200,211,214,219,229..(03S,05S,06S,09S,10S,14S)..(4FC,6FC)

NO.2

 2
