TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0408- )

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47318 47319 47321 47321D 47322 47322B 47323 47325 47326 47327 47328 47329 47351B 47371A 47900 47934 9011908B11 9046108729 9046400872 9046400873 9046808040 9046808040 9046808040 9046907012 9046907019 9046907020 9048001621 9094901A25 9094901D14 9094901D15 9094901D16 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90469-07020
90480-01621
90949-01A25
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702

ILLUST NO. 2 OF 3(0408- )

Click highlighted areas on diagram

diagram 44510 44546A 44546A 44591 44598A 9009905278 9009905278 9009905278 9009905278 9167380820 9167380820 9167380820
Part # Description Qty Price
Common parts
90099-05278
91673-80820

ILLUST NO. 3 OF 3(0408- )

Click highlighted areas on diagram

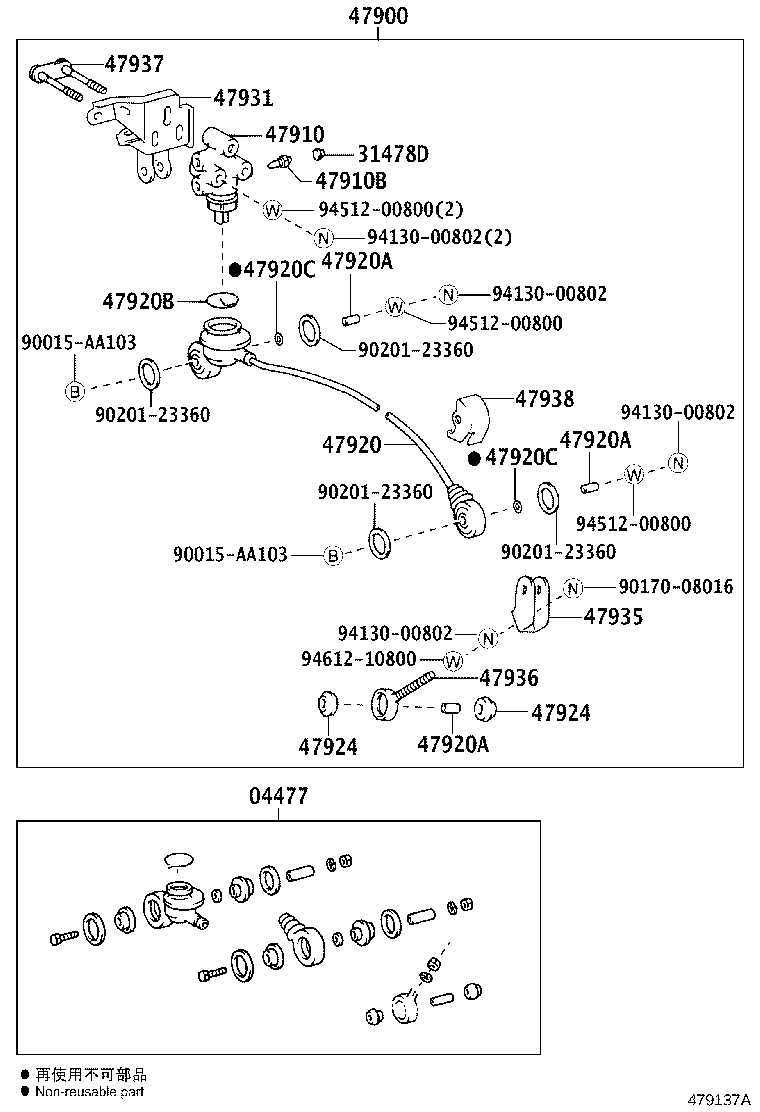

diagram 04477 31478D 47900 47910 47910B 47920 47920A 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 47938 90015AA103 90015AA103 9017008016 9020123360 9020123360 9020123360 9020123360 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
Common parts
90015-AA103
90170-08016
90201-23360
94130-00802
94512-00800
94612-10800

ILLUST NO. 3 OF 3(1312- )TRH214,219,221,226..4D ; (1312- )GDH20#,211,221,226,KDH20#,211,22#,TR

Click highlighted areas on diagram

diagram 04477 31478D 47900 47910 47910B 47920 47920A 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47935 47936 47937 47938 90015AA103 90015AA103 9017008016 9020123360 9020123360 9020123360 9020123360 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26090

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26550

TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5)

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26550

TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5)

 1
47910B - PLUG, BLEEDER
47547-27030

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26550

TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5)

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 3
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 3
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 2
47924 - BUSH, LOAD SENSING VALVE
47924-35010

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 2
47924 - BUSH, LOAD SENSING VALVE
47924-35010

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26510

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35050

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26020

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET
47938-26010

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
Common parts
90015-AA103
90170-08016
90201-23360
94130-00802
94512-00800
94612-10800

ILLUST NO. 1 OF 3(1312-1501)

Click highlighted areas on diagram

diagram 4702 47311 47311B 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47316 47316A 47317 47318 47319 47321 47321D 47322 47322B 47323 47324 47325 47326 47327 47328 47351B 47371A 47900 47934 9011908B11 9046108729 9046400872 9046400873 9046808040 9046808040 9046808040 9046907012 9046907019 9046907020 9048001621 9094901A25 9094901D14 9094901D15 9094901D16 9155380818 9155380818 9155380818 9155380818 91611B0816 91611B0816 91611B0816 9167380820 9415180800
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26A10

KDH211,22#,TRH21#,22#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10305

KDH20#,211,22#,TRH200,21#,22#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26320

KDH20#,211,22#,TRH200,21#,22#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D96

KDH206,TRH216,219,226,228,229

左側

 1
90947-02D95

KDH206,TRH216,219,226,228,229

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D96

KDH206,TRH216,219,226,228,229

左側

 1
90947-02D95

KDH206,TRH216,219,226,228,229

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KDH20#,211,22#,TRH200,21#,22#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

KDH20#,211,22#,TRH200,21#,22#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26370

KDH20#,211,22#,TRH200,21#,22#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26320

TRH216,219,226,228,229

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26470

KDH20#,211,22#,TRH200,21#,22#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02F56

KDH20#,211,22#,TRH200,21#,22#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-26350

KDH206,TRH216,219,226,228,229

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-26280

KDH20#,211,22#,TRH200,21#,22#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-26350

KDH20#,211,TRH200,21#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26760

KDH211,22#,TRH21#,22#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KDH20#,211,22#,TRH200,21#,22#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26420

KDH20#,211,22#,TRH200,21#,22#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10307

KDH20#,211,22#,TRH200,21#,22#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26410

KDH20#,211,22#,TRH200,21#,22#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26550

KDH20#,211,22#,TRH200,21#,22#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26410

KDH211,22#,TRH21#,22#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26480

KDH211,22#,TRH21#,22#

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26330

KDH211,22#,TRH21#,22#

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-26150

KDH20#,211,TRH200,21#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-26210

TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-26200

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 4
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26550

TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5)

 1
47934 - BRACKET, LOAD SENSING
47934-26110

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
90119-08B11
90461-08729
90464-00872
90464-00873
90468-08040
90469-07012
90469-07019
90469-07020
90480-01621
90949-01A25
90949-01D14
90949-01D15
90949-01D16
91553-80818
91611-B0816
91673-80820
94151-80800
Linked diagrams
4702
