TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

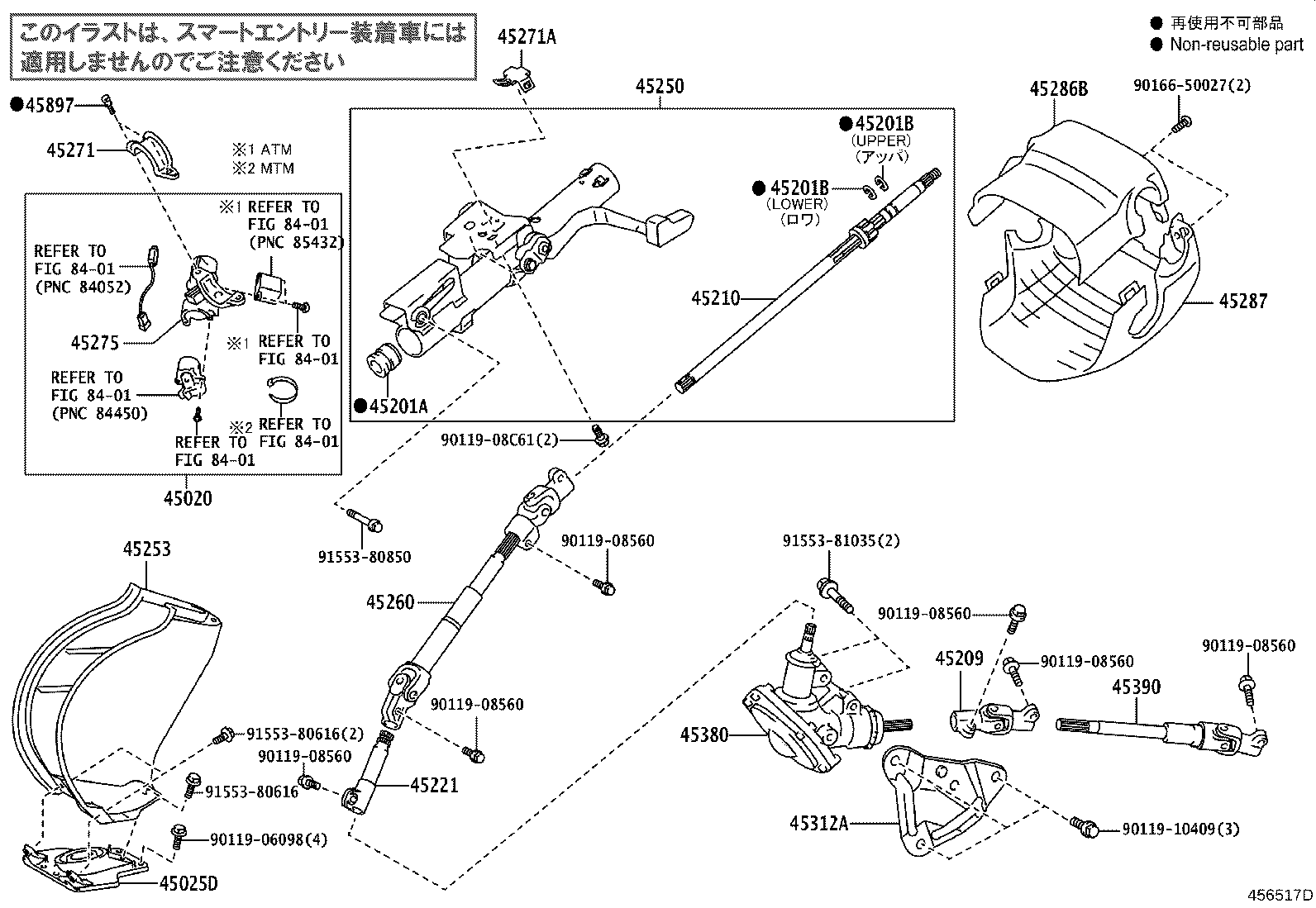

ILLUST NO. 1 OF 2(0408- )

Click highlighted areas on diagram

diagram 45020 45025D 45201A 45201B 45201B 45209 45210 45221 45250 45253 45260 45271 45271A 45275 45286B 45287 45312A 45380 45390 45897 8401 8401 8401 8401 8401 9011906098 9011908560 9011908560 9011908560 9011908560 9011908560 9011908560 9011908C61 9011910409 9016650027 91511B0614 91511B0614 9155380850 9155381035
Part # Description Qty Price
Common parts
90119-06098
90119-08560
90119-08C61
90119-10409
90166-50027
91511-B0614
91553-80850
91553-81035
Linked diagrams
8401

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(1312- )TRH214,219..4D ; (1312- )KDH20#,211,22#,TRH200,211,216,22# ; (1712-

Click highlighted areas on diagram

diagram 45020 45025D 45201A 45201B 45201B 45209 45210 45221 45250 45253 45260 45271 45271A 45275 45286B 45287 45312A 45380 45390 45897 8401 8401 8401 8401 8401 8401 9011906098 9011908560 9011908560 9011908560 9011908560 9011908560 9011908560 9011908C61 9011910409 9016650027 9155380616 9155380616 9155380850 9155381035
Part # Description Qty Price
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-58010

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-26080

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-28010

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

厚さ=1.20,上側

 1
90520-17042

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

厚さ=1.20,下側

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

厚さ=1.20,上側

 1
90520-17042

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

厚さ=1.20,下側

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-26050

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-27110

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 1
45221 - SHAFT, STEERING INTERMEDIATE
45297-26021

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45250 - COLUMN ASSY, STEERING
45250-2F430

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 1
45253 - COVER, STEERING COLUMN HOLE
45253-26150

KDH20#,211,22#,TRH200,21#,22#

 1
45253-26151

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-26110

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 1
45271A - CLAMP, STEERING COLUMN, UPPER NO.2
45271-52010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-58010

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 1
45286B - COVER, STEERING COLUMN, UPR
45286-26400B0

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-26350B0

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

DK.GRAY,TRIM1#

 1
45312A - BRACKET, STEERING BEVEL GEAR HOUSING
45312-26190

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
45380 - GEAR ASSY, STEERING BEVEL
45380-26030

GDH206,226,KDH206,TRH216,219,226,228,229

 1
45390 - SHAFT ASSY, STEERING TORQUE
45390-26210

GDH206,226,KDH206,TRH216,219,226,228,229

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX

 2
Common parts
90119-06098
90119-08560
90119-08C61
90119-10409
90166-50027
91553-80616
91553-80850
91553-81035
Linked diagrams
8401
