TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDH205,206,225,227,TRH216,219,226,228,229

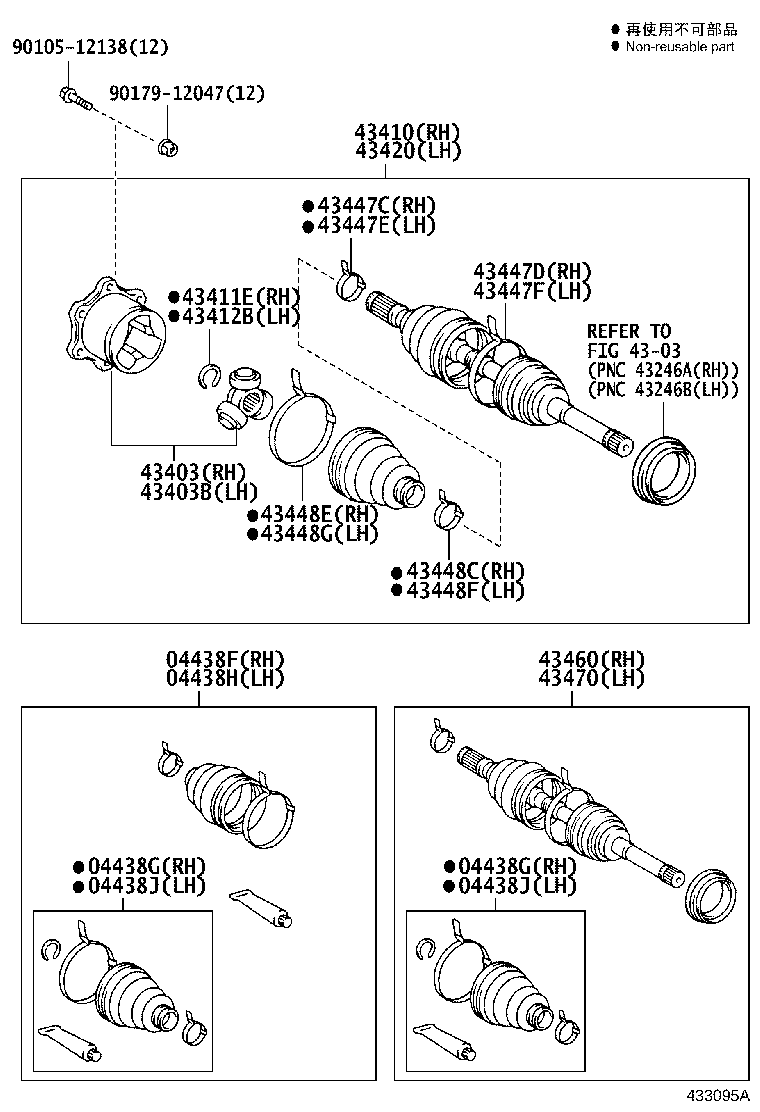

Click highlighted areas on diagram

diagram 04438F 04438G 04438G 04438H 04438J 04438J 4303 43403 43403B 43410 43411E 43412B 43420 43447C 43447D 43447E 43447F 43448C 43448E 43448F 43448G 43460 43470 9010512138 9017912047
Part # Description Qty Price
Common parts
90105-12138
90179-12047
Linked diagrams
4303

(1312- )GDH206,226,KDH206,TRH216,219,226,228,229

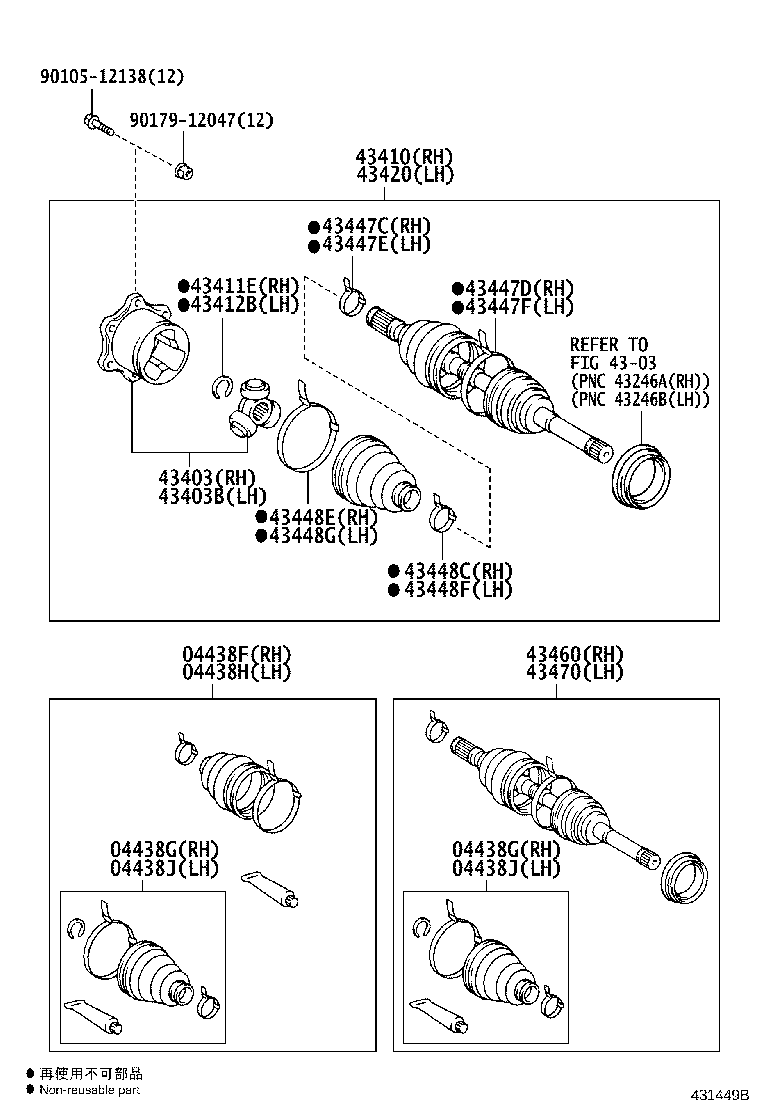

Click highlighted areas on diagram

diagram 04438F 04438G 04438G 04438H 04438J 04438J 4303 43403 43403B 43410 43411E 43412B 43420 43447C 43447D 43447E 43447F 43448C 43448E 43448F 43448G 43460 43470 9010512138 9017912047
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-25021

KDH206,TRH216,219,226,228,229

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-25011

KDH206,TRH216,219,226,228,229

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-25011

KDH206,TRH216,219,226,228,229

 1
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-25021

KDH206,TRH216,219,226,228,229

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-25011

KDH206,TRH216,219,226,228,229

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-25011

KDH206,TRH216,219,226,228,229

 1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-26010

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-26010

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-26092

GDH226,TRH216,219,226,228,229

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-29028

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-29028

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-26092

GDH226,TRH216,219,226,228,229

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-60110

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90949-01A50

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-60110

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01A50

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01221

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01222

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01221

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01222

GDH206,226,KDH206,TRH216,219,226,228,229

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29726

TRH216,219,226,228,229

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-29726

TRH216,219,226,228,229

 1
Common parts
90105-12138
90179-12047
Linked diagrams
4303
