TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace

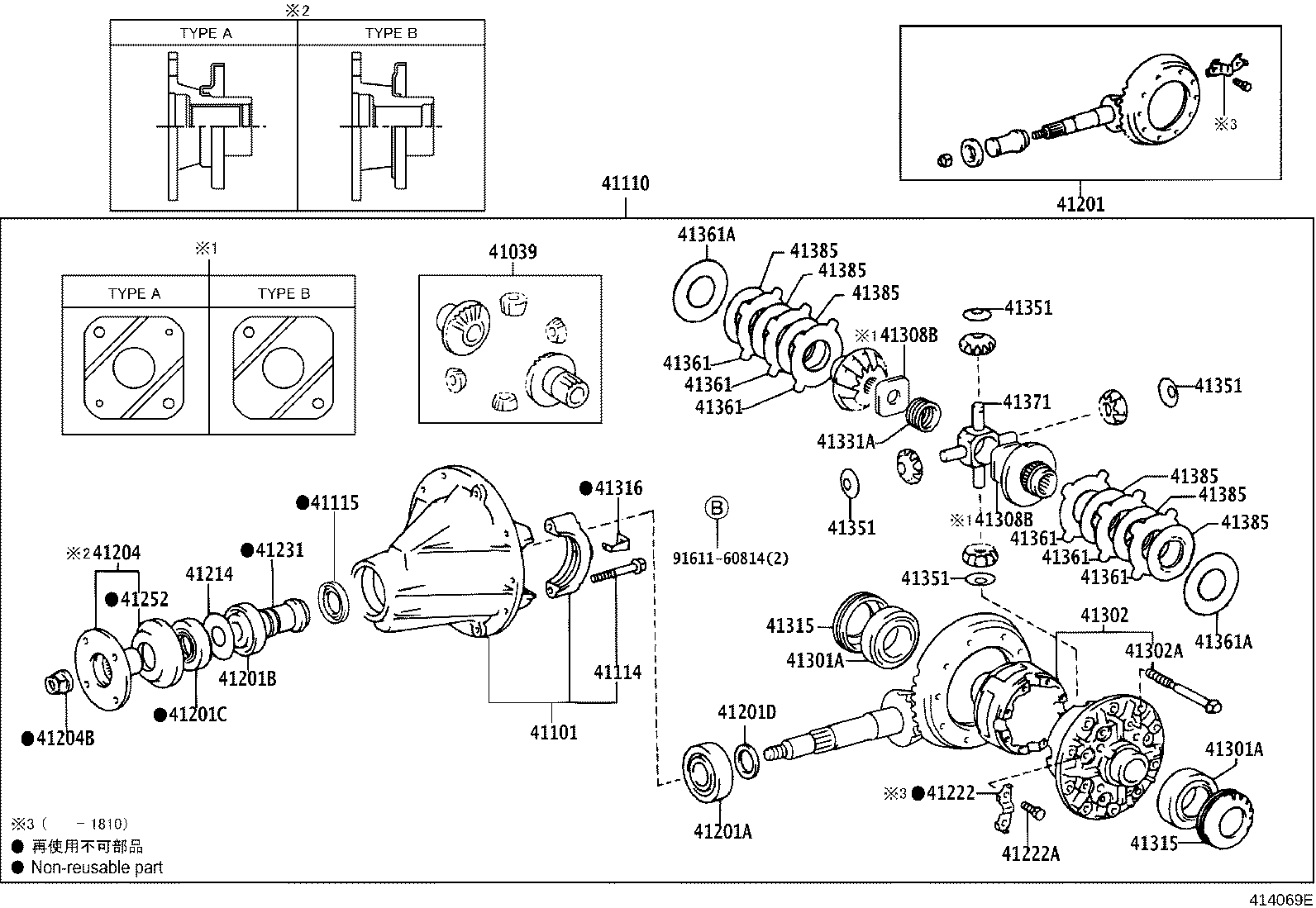

ILLUST NO. 1 OF 3(0408- )KDH205,206,225,227,TRH216,219,226,228,229
W(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||

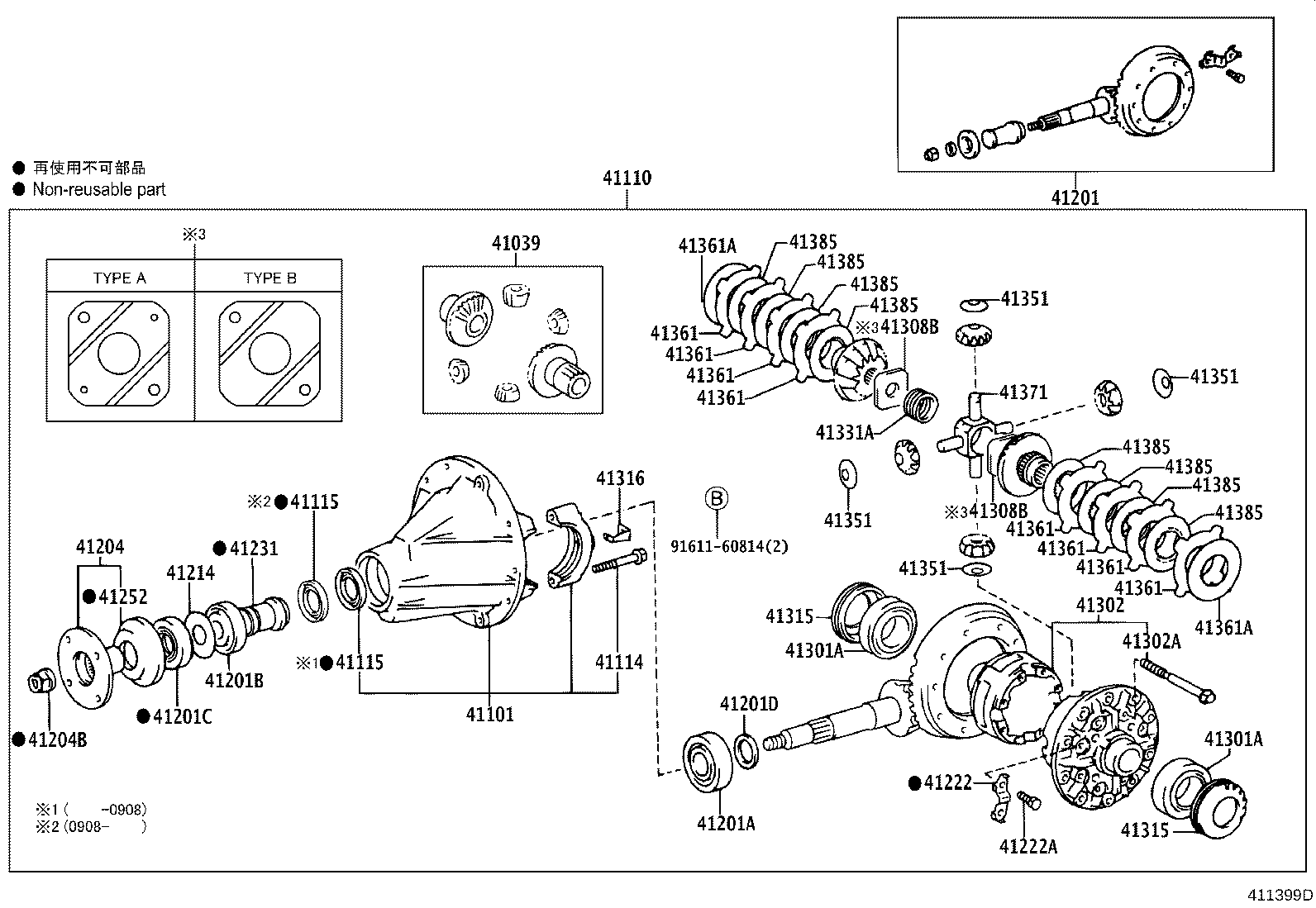

ILLUST NO. 2 OF 3(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||
ILLUST NO. 2 OF 2(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-26270 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08329 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾈｼﾞ部長さ=17 & 12,長さ=37 |
6 | ||
| 90116-08233 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾈｼﾞ部長さ=14 & 14,長さ=42 |
2 | ||
| 90116-08406 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾈｼﾞ部長さ=14 & 24,長さ=52 |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-22010 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-26531 |
GDH226,TRH216,219,226,228,229 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60120 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||
ILLUST NO. 1 OF 2(1312- )TRH219,226..4D ; (1312- )GDH206,226,KDH206,TRH216,228,229..CBU,IV5
ｱﾘ(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34070 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35171 |
TRH200..5F;KDH20#,211,22#,TRH21#,22#..4FC,5F |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D041 |
TRH216,219,226,228,229 *FGR=43:10=4.300,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300C有り(LSD) |
1 | ||
| 41110-26441 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80747 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30105 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),PNC 4120PC=TYPE A |
1 | ||
| 90311-41009 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.70 |
1 | ||
| 90201-35501 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.82 |
1 | ||
| 90201-35498 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.73 |
1 | ||
| 90201-35504 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.91 |
1 | ||
| 90201-35505 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.94 |
1 | ||
| 90201-35503 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.88 |
1 | ||
| 90201-35500 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.79 |
1 | ||
| 90201-35499 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.76 |
1 | ||
| 90201-35517 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35507 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.00 |
1 | ||
| 90201-35511 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.12 |
1 | ||
| 90201-35508 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.03 |
1 | ||
| 90201-35515 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35502 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.85 |
1 | ||
| 90201-35518 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35512 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.15 |
1 | ||
| 90201-35506 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.97 |
1 | ||
| 90201-35509 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.06 |
1 | ||
| 90201-35510 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.09 |
1 | ||
| 90201-35513 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.18 |
1 | ||
| 90201-35516 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35514 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.21 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35082 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41252-35041 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35040 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41311-60060 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10570 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
8 | ||
| 41308B - RETAINER SUB-ASSY, SPRING | ||||
| 41388-35020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),TYPE B:ｲ宴Xﾄ参照 |
1 | ||
| 41308-35010 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),TYPE A:ｲ宴Xﾄ参照 |
1 | ||
| 41308B - RETAINER SUB-ASSY, SPRING | ||||
| 41388-35020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),TYPE B:ｲ宴Xﾄ参照 |
1 | ||
| 41308-35010 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),TYPE A:ｲ宴Xﾄ参照 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-65003 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50002 |
TRH216,219,226,228,229 厚さ=0.20,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50004 |
TRH216,219,226,228,229 厚さ=0.30,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50005 |
TRH216,219,226,228,229 厚さ=0.35,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50003 |
TRH216,219,226,228,229 厚さ=0.25,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50001 |
TRH216,219,226,228,229 厚さ=0.15,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50002 |
TRH216,219,226,228,229 厚さ=0.20,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50004 |
TRH216,219,226,228,229 厚さ=0.30,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50005 |
TRH216,219,226,228,229 厚さ=0.35,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50003 |
TRH216,219,226,228,229 厚さ=0.25,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 90564-50001 |
TRH216,219,226,228,229 厚さ=0.15,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41306-35040 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(1312- )GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35171 |
TRH200..5F;KDH20#,211,22#,TRH21#,22#..4FC,5F |
1 | ||
| 41101-35171 |
TRH200..5F;KDH20#,211,22#,TRH21#,22#..4FC,5F |
1 | ||
| 41101-35171 |
TRH200..5F;KDH20#,211,22#,TRH21#,22#..4FC,5F |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D041 |
TRH216,219,226,228,229 *FGR=43:10=4.300,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300C有り(LSD) |
1 | ||
| 41110-3D041 |
TRH216,219,226,228,229 *FGR=43:10=4.300,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300C有り(LSD) |
1 | ||
| 41110-3D041 |
TRH216,219,226,228,229 *FGR=43:10=4.300,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300C有り(LSD) |
1 | ||
| 41110-26441 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41110-26441 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41110-26441 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 90105-12053 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 90105-12053 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41115-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41115-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80747 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41201-80747 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41201-80747 |
TRH200..V2..5F;TRH21#,22#..4FC *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90366-35087 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90366-35087 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30105 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90366-30105 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90366-30105 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-41009 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),PNC 4120PC=TYPE A |
1 | ||
| 90311-41009 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),PNC 4120PC=TYPE A |
1 | ||
| 90311-41009 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD),PNC 4120PC=TYPE A |
1 | ||
| 90311-41009 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 90311-41009 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 90311-41009 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.70 |
1 | ||
| 90201-35497 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.70 |
1 | ||
| 90201-35497 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.70 |
1 | ||
| 90201-35501 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.82 |
1 | ||
| 90201-35501 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.82 |
1 | ||
| 90201-35501 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.82 |
1 | ||
| 90201-35498 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.73 |
1 | ||
| 90201-35498 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.73 |
1 | ||
| 90201-35498 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.73 |
1 | ||
| 90201-35504 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.91 |
1 | ||
| 90201-35504 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.91 |
1 | ||
| 90201-35504 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.91 |
1 | ||
| 90201-35505 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.94 |
1 | ||
| 90201-35505 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.94 |
1 | ||
| 90201-35505 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.94 |
1 | ||
| 90201-35503 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.88 |
1 | ||
| 90201-35503 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.88 |
1 | ||
| 90201-35503 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.88 |
1 | ||
| 90201-35500 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.79 |
1 | ||
| 90201-35500 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.79 |
1 | ||
| 90201-35500 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.79 |
1 | ||
| 90201-35499 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.76 |
1 | ||
| 90201-35499 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.76 |
1 | ||
| 90201-35499 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.76 |
1 | ||
| 90201-35517 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35517 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35517 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35507 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.00 |
1 | ||
| 90201-35507 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.00 |
1 | ||
| 90201-35507 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.00 |
1 | ||
| 90201-35511 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.12 |
1 | ||
| 90201-35511 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.12 |
1 | ||
| 90201-35511 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.12 |
1 | ||
| 90201-35508 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.03 |
1 | ||
| 90201-35508 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.03 |
1 | ||
| 90201-35508 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.03 |
1 | ||
| 90201-35515 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35515 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35515 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35502 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.85 |
1 | ||
| 90201-35502 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.85 |
1 | ||
| 90201-35502 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.85 |
1 | ||
| 90201-35518 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35518 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35518 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35512 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.15 |
1 | ||
| 90201-35512 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.15 |
1 | ||
| 90201-35512 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.15 |
1 | ||
| 90201-35506 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.97 |
1 | ||
| 90201-35506 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.97 |
1 | ||
| 90201-35506 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=1.97 |
1 | ||
| 90201-35509 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.06 |
1 | ||
| 90201-35509 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.06 |
1 | ||
| 90201-35509 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.06 |
1 | ||
| 90201-35510 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.09 |
1 | ||
| 90201-35510 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.09 |
1 | ||
| 90201-35510 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.09 |
1 | ||
| 90201-35513 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.18 |
1 | ||
| 90201-35513 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.18 |
1 | ||
| 90201-35513 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.18 |
1 | ||
| 90201-35516 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35516 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35516 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35514 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.21 |
1 | ||
| 90201-35514 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.21 |
1 | ||
| 90201-35514 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=47,厚さ=2.21 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35082 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 41204-35082 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 41204-35082 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=39.5 |
1 | ||
| 90177-22003 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=39.5 |
1 | ||
| 90177-22003 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 外径=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41214-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41214-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
5 | ||
| 41222-35020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
5 | ||
| 41222-35020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 90101-11353 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 90101-11353 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41231-24010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41231-24010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35041 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41252-35041 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41252-35041 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41252-35041 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41252-35041 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41252-35041 |
KDH201,TRH224..(V2,WG)..4FC..CBU;KDH201,TRH224..(V1,WG)..(02S,03S,05S,06S,09S);KDH206,211,22#,TRH200,21#,221,223,226,228,229..4FC,5F PNC 41204=TYPE A |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 90366-50007 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35040 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41302-35040 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41302-35040 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
1 | ||
| 41311-60060 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
1 | ||
| 41311-60060 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
1 | ||
| 41311-60060 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41315-35020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41316-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41316-35010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41331-35011 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41331-35011 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41331-35011 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41331-35011 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41341-35020 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41341-35020 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41341-35020 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41341-35020 |
KDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
1 | ||
| 41342-39610 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
1 | ||
| 41342-39610 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
1 | ||
| 90250-06085 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
1 | ||
| 90250-06085 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30060 |
TRH216,219,226,228,229 ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
4 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41351-30052 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35161 |
TRH216,219,226,228,229 厚さ=1.8,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有り(LSD) |
6 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41361-35291 |
TRH216,219,226,228,229 厚さ=1.70,ﾏｰｸ N,ﾘﾔ ﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,有りiLSD) |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41363-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.8 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41361-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.6 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| 41362-40021 |
TRH200..V2..5F;TRH200,21#,22#..4FC,6FC 厚さ=1.7 |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
