TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace
(0408- )KDH20#,211,TRH200,21#
ﾘﾔ
| Part # | Description | Qty | Price |
|---|
(0408- )KDH205,206,225,227,TRH216,219,226,228,229
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price |
|---|
(1312- )TRH219..4D ; (1312- )KDH206,TRH216,226,228,229 ; (1712- )GDH206,22
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

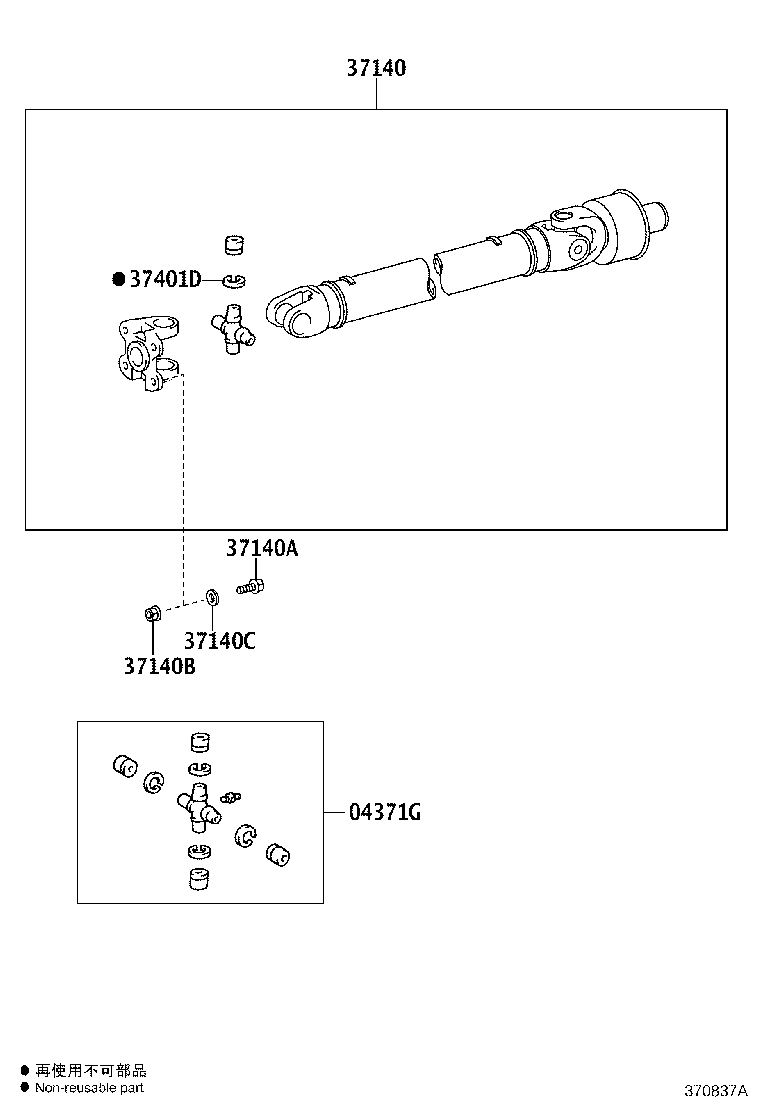

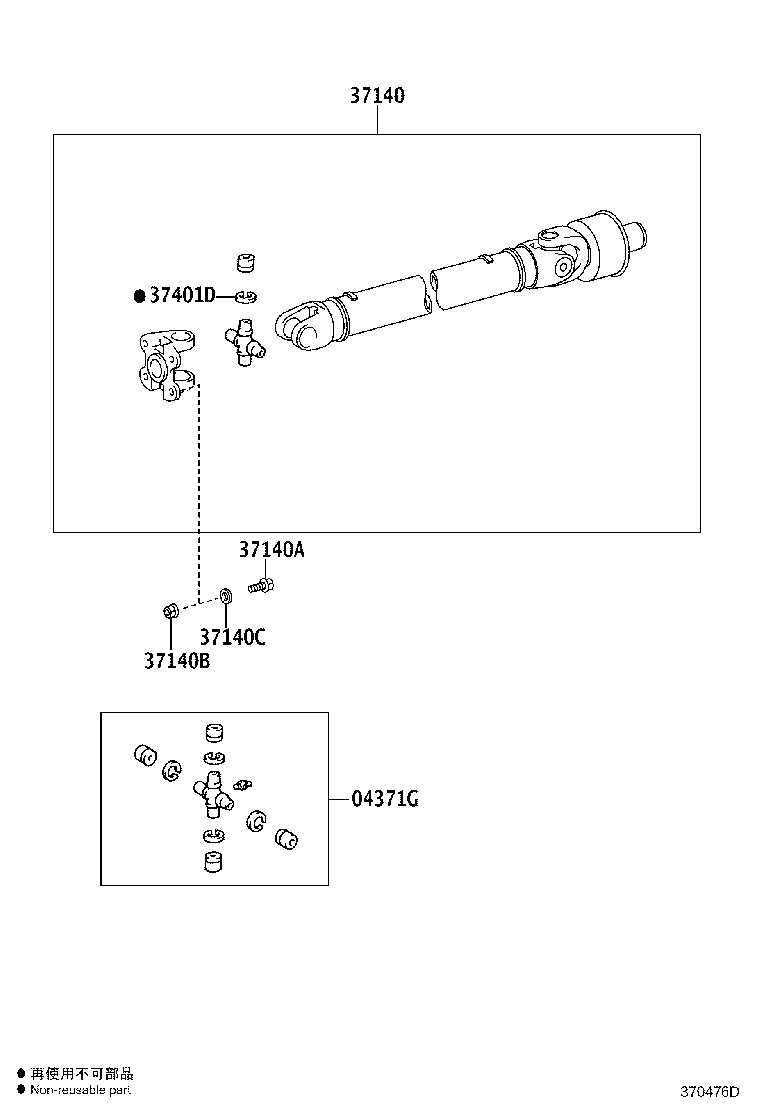

| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-27011 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-26160 |
KDH206,TRH216,219,226,228,229..4FC |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10466 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-10007 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
4 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90560-10102 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
4 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-25046 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.43,ﾏｰｸ 8 |
8 | ||
| 90520-25040 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.31,ﾏｰｸ 2 |
8 | ||
| 90520-25041 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.33,ﾏｰｸ無 |
8 | ||
| 90520-25048 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.47,ﾏｰｸ 10 |
8 | ||
| 90520-25044 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.39,ﾏｰｸ 6 |
8 | ||
| 90520-25039 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.29,ﾏｰｸ 1 |
8 | ||
| 90520-25047 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.45,ﾏｰｸ 9 |
8 | ||
| 90520-25049 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.49,ﾏｰｸ A |
8 | ||
| 90520-25052 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.55,ﾏｰｸ D |
8 | ||
| 90520-25042 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.35,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-25051 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.53,ﾏｰｸ C |
8 | ||
| 90520-25043 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.37,ﾌﾞﾙｰ |
8 | ||
| 90520-25056 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.23,ﾏｰｸ F |
8 | ||
| 90520-25053 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.57,ﾏｰｸ E |
8 | ||
| 90520-25050 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.51,ﾏｰｸ B |
8 | ||
| 90520-25054 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.19,ﾏｰｸ D |
8 | ||
| 90520-25058 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.27,ﾏｰｸ H |
8 | ||
| 90520-25045 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.41,ﾏｰｸ 7 |
8 | ||
| 90520-25055 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.21,ﾏｰｸ E |
8 | ||
| 90520-25057 |
GDH206,226,KDH206,TRH216,219,226,228,229 厚さ=2.25,ﾏｰｸ G |
8 | ||
(1312- )TRH214,219..4D ; (1312- )KDH20#,211,TRH200,211,216 ; (1712- )GDH20
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-60100 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-26A30 |
KDH206,TRH216,219..4FC |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10466 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 *10−1.00PX29−15 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90178-10007 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90560-10102 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-25039 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.29,ﾏｰｸ 1 |
8 | ||
| 90520-25040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.31,ﾏｰｸ 2 |
8 | ||
| 90520-25044 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.39,ﾏｰｸ 6 |
8 | ||
| 90520-25050 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.51,ﾏｰｸ B |
8 | ||
| 90520-25045 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.41,ﾏｰｸ 7 |
8 | ||
| 90520-25042 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.35,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-25055 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.21,ﾏｰｸ E |
8 | ||
| 90520-25047 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.45,ﾏｰｸ 9 |
8 | ||
| 90520-25049 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.49,ﾏｰｸ A |
8 | ||
| 90520-25051 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.53,ﾏｰｸ C |
8 | ||
| 90520-25041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.33,ﾏｰｸ無 |
8 | ||
| 90520-25058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.27,ﾏｰｸ H |
8 | ||
| 90520-25052 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.55,ﾏｰｸ D |
8 | ||
| 90520-25054 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.19,ﾏｰｸ D |
8 | ||
| 90520-25046 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.43,ﾏｰｸ 8 |
8 | ||
| 90520-25057 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.25,ﾏｰｸ G |
8 | ||
| 90520-25048 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.47,ﾏｰｸ 10 |
8 | ||
| 90520-25056 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.23,ﾏｰｸ F |
8 | ||
| 90520-25043 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.37,ﾌﾞﾙｰ |
8 | ||
| 90520-25053 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=2.57,ﾏｰｸ E |
8 | ||
