TRH219W-JDPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1TRFE,2TRFE

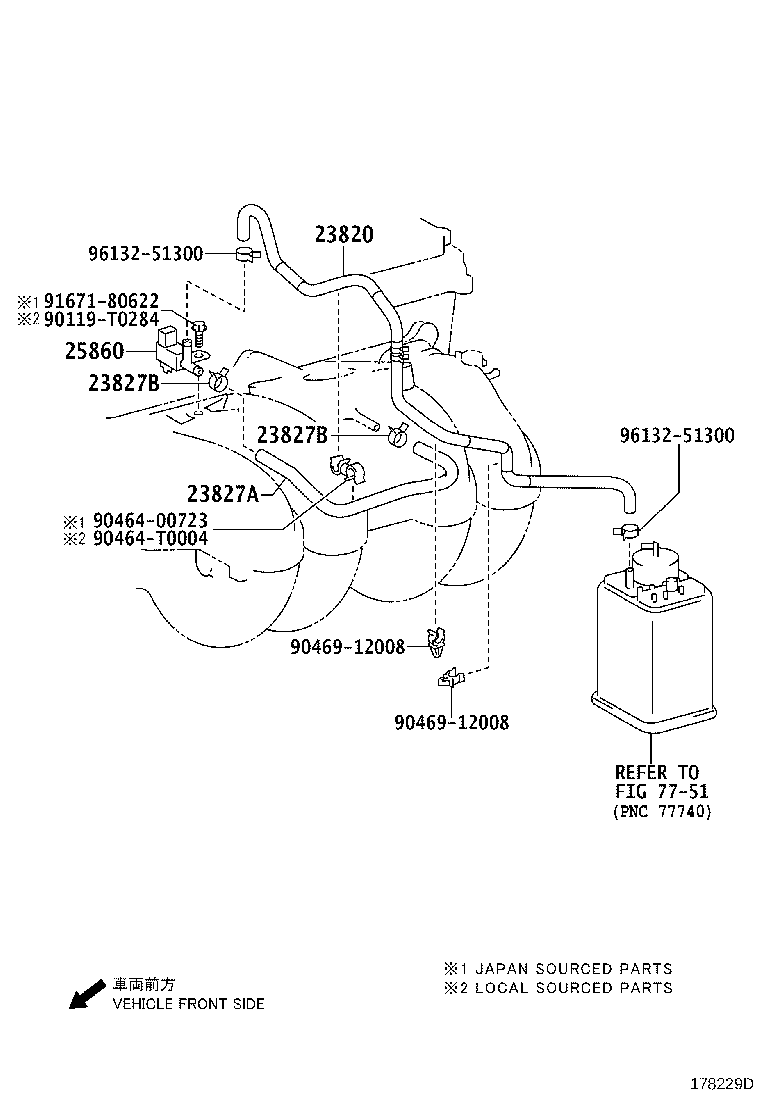

Click highlighted areas on diagram

diagram 23820 23827A 23827B 23827B 25860 7751 90119T0284 9046400723 90464T0004 9046912008 9046912008 9167180622 9613251300 9613251300
Part # Description Qty Price
Common parts
90119-T0284
90464-00723
90464-T0004
90469-12008
91671-80622
96132-51300
Linked diagrams
7751

(1312- )2TRFE..TRH214,219..4D ; (1312- )1TRFE,2TRFE..TRH200,211,216,22# ; (17

Click highlighted areas on diagram

diagram 23820 23827A 23827B 23827B 25860 7751 90119T0284 9046400723 90464T0004 9046912008 9046912008 9167180622 9613251300 9613251300
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-75130

2TRFE..TRH21#,22#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-75280

1TRFE,2TRFE..TRH200,21#,22#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12275

1TRFE,2TRFE..TRH200,21#,22#

 1
90910-12280

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
Common parts
90119-T0284
90464-00723
90464-T0004
90469-12008
91671-80622
96132-51300
Linked diagrams
7751
