TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace

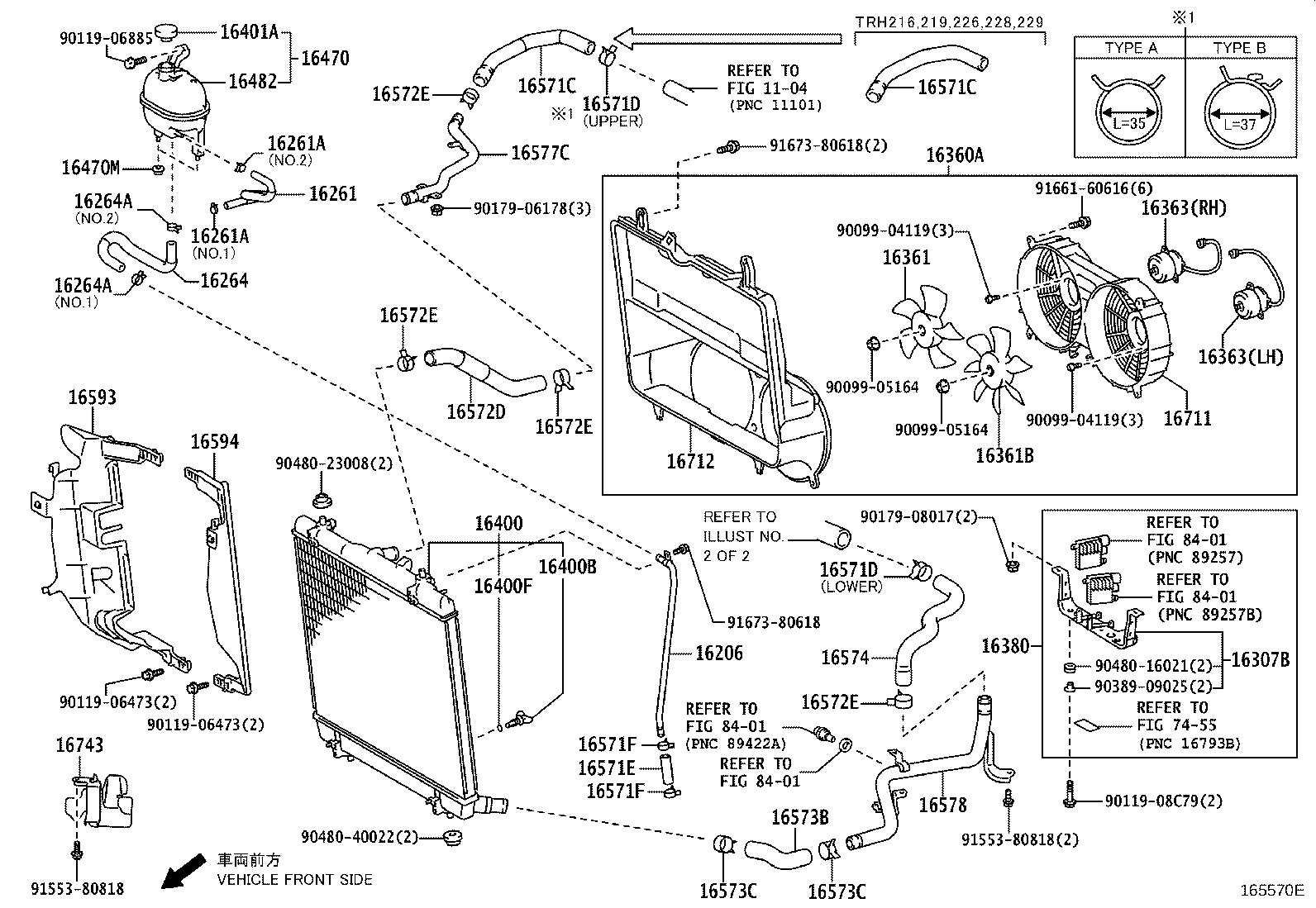

ILLUST NO. 1 OF 2(1312-2005)2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75250 |
2TRFE..TRH21#,22# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41501 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41501 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75190 |
2TRFE..TRH21#,22# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH200,21#,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1TRFE,2TRFE..TRH200,21#,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75021 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75032 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
1TRFE,2TRFE..TRH200,21#,22# 右側 |
1 | ||
| 16363-75030 |
1TRFE,2TRFE..TRH200,21#,22# 左側 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
1TRFE,2TRFE..TRH200,21#,22# 右側 |
1 | ||
| 16363-75030 |
1TRFE,2TRFE..TRH200,21#,22# 左側 |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75023 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75610 |
1TRFE,2TRFE..TRH200,21#,22#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-37010 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75122 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1TRFE,2TRFE..TRH200,21#,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75270 |
2TRFE..TRH216,219,226,228,229 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-75270 |
2TRFE..TRH216,219,226,228,229 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
1TRFE,2TRFE..TRH200,21#,22# 下側 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC ｱｯﾊﾟ､ﾀｲﾌﾟ A |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54301 |
1TRFE,2TRFE..TRH200,21#,22# 下側 |
1 | ||
| 90467-37005 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC ｱｯﾊﾟ､ﾀｲﾌﾟ A |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
4 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
4 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-75090 |
2TRFE..TRH21#,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-75050 |
2TRFE..TRH21#,22# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-75040 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-75011 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75012 |
2TRFE..TRH21#,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75011 |
2TRFE..TRH21#,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 16743 - PROTECTOR, FAN SHROUD | ||||
| 16743-75010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90389-09025 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7455 | ||||
| 8401 | ||||
