TRH219W-JDPDK (2013)
Toyota Hiace/Regiusace

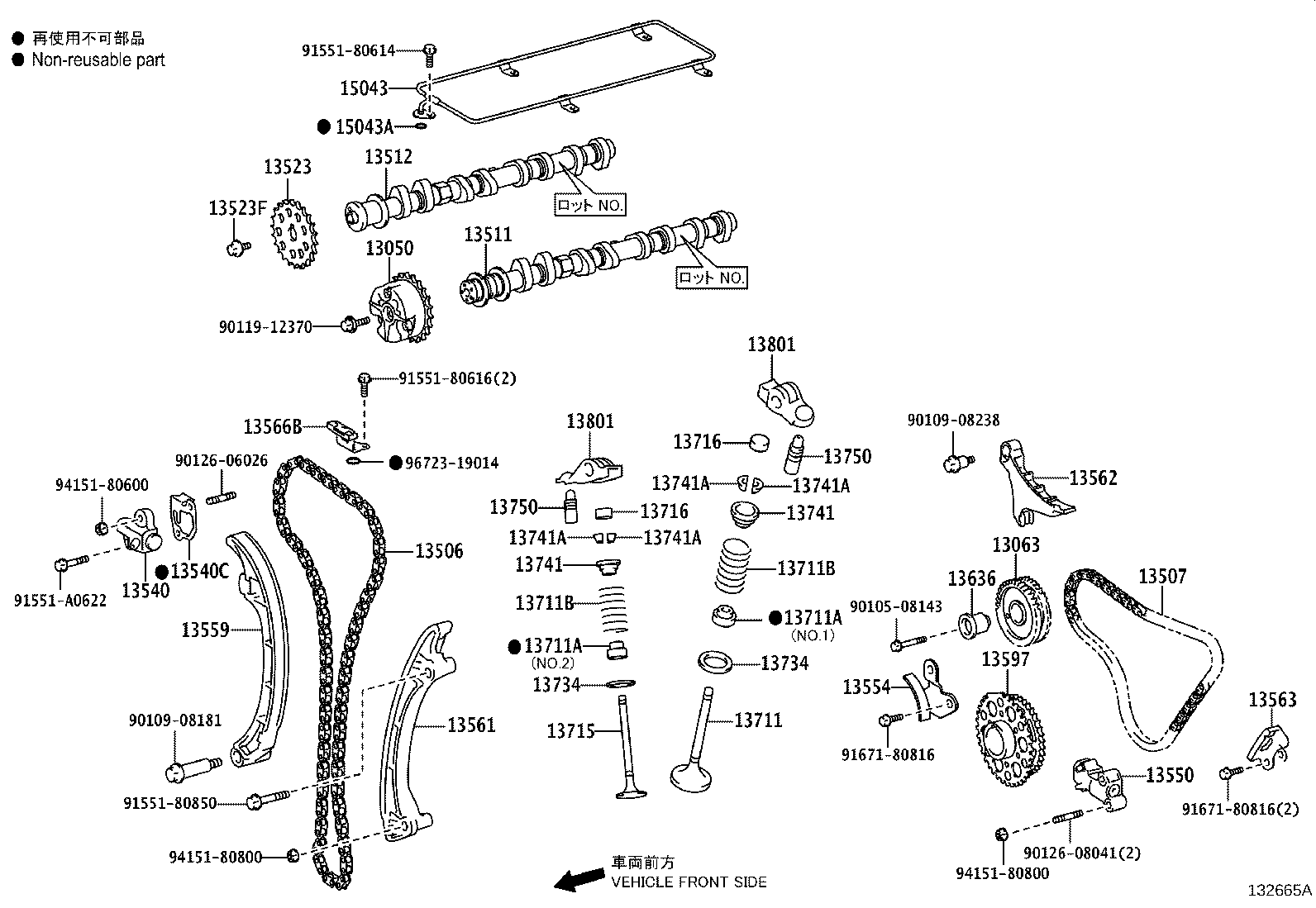

(0408- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08143 | ||||
| 90109-08181 | ||||
| 90109-08238 | ||||
| 90119-12370 | ||||
| 90126-06026 | ||||
| 90126-08041 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91551-80850 | ||||
| 91551-A0622 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96723-19014 | ||||

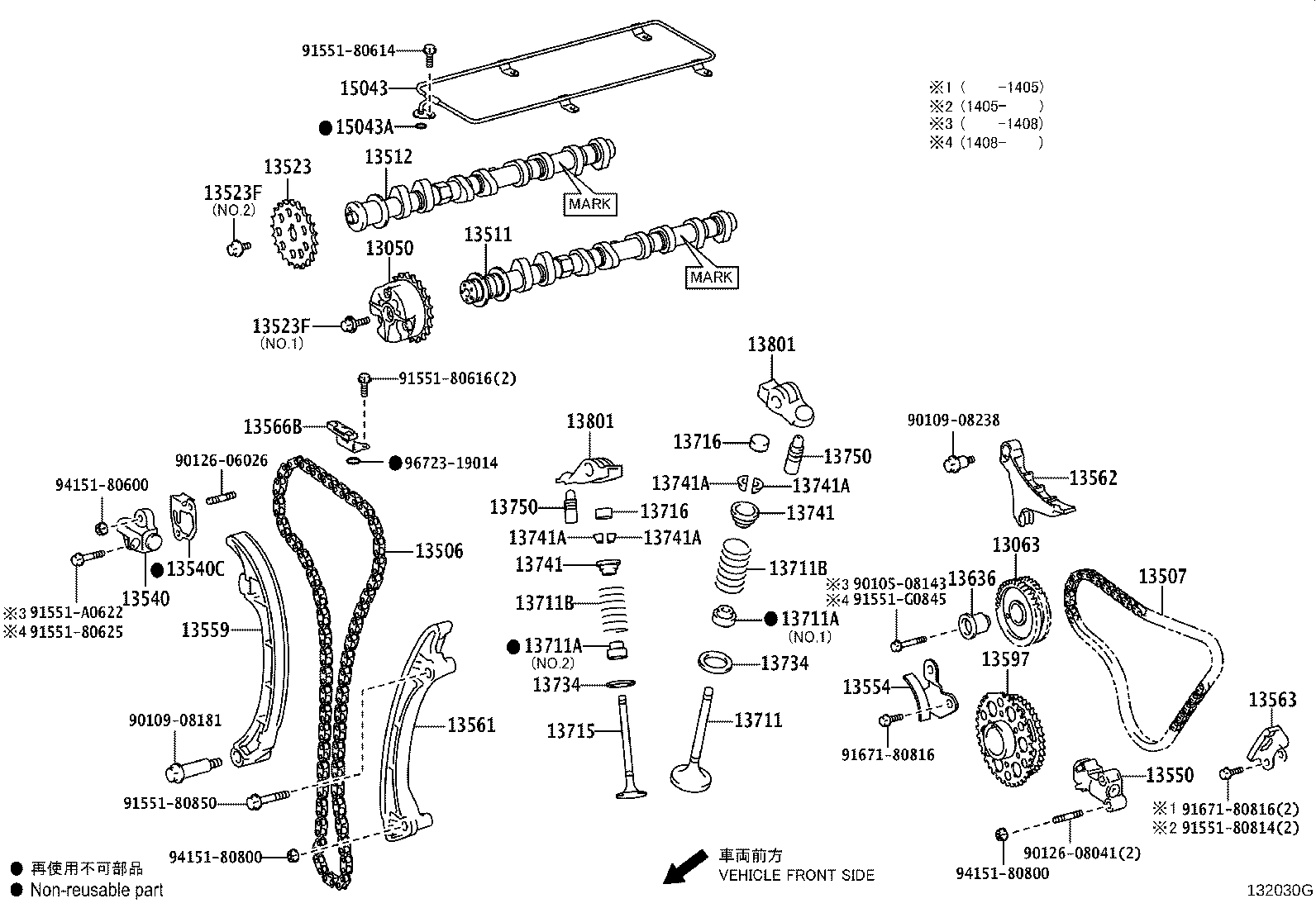

(1312-1501)2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-75030 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 13063 - GEAR SUB-ASSY, BALANCESHAFT DRIVE | ||||
| 13063-75011 |
2TRFE..TRH21#,22# |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-75050 |
2TRFE..TRH21#,22# |
1 | ||
| 13506-75070 |
2TRFE..TRH21#,22# |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-75030 |
2TRFE..TRH21#,22# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-75060 |
1TRFE,2TRFE..TRH200,21#,22# ﾏｰｸ無し |
1 | ||
| 13501-75070 |
1TRFE,2TRFE..TRH200,21#,22# ﾏｰｸ有り |
1 | ||
| 13501-75071 |
2TRFE..TRH21#,22#;1TRFE..TRH200..4FC ﾏｰｸ有り |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-75050 |
1TRFE,2TRFE..TRH200,21#,22# ﾏｰｸ無し |
1 | ||
| 13502-75060 |
1TRFE,2TRFE..TRH200,21#,22# ﾏｰｸ有り |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-75030 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90119-12370 |
1TRFE,2TRFE..TRH200,21#,22# NO.1 |
1 | ||
| 90105-12149 |
1TRFE,2TRFE..TRH200,21#,22# NO.2 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90119-12370 |
1TRFE,2TRFE..TRH200,21#,22# NO.1 |
1 | ||
| 90105-12149 |
1TRFE,2TRFE..TRH200,21#,22# NO.2 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-75030 |
2TRFE..TRH21#,22# |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-75030 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 13552-75020 |
2TRFE..TRH21#,22# |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-75010 |
2TRFE..TRH21#,22# |
1 | ||
| 13554 - DAMPER, CHAIN VIBRATION, NO.4 | ||||
| 13554-75020 |
2TRFE..TRH21#,22# |
1 | ||
| 13554-75021 |
2TRFE..TRH21#,22# |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-75040 |
2TRFE..TRH21#,22# |
1 | ||
| 13559-75060 |
2TRFE..TRH21#,22# |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-75060 |
2TRFE..TRH21#,22# |
1 | ||
| 13561-75040 |
2TRFE..TRH21#,22# |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-75010 |
2TRFE..TRH21#,22# |
1 | ||
| 13563 - DAMPER, CHAIN VIBRATION, NO.3 | ||||
| 13563-75020 |
2TRFE..TRH21#,22# |
1 | ||
| 13563-75021 |
2TRFE..TRH21#,22# |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-75010 |
2TRFE..TRH21#,22# |
1 | ||
| 13566-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 13597 - SPROCKET, CRANKSHAFT TIMING, NO.2 | ||||
| 13597-75020 |
2TRFE..TRH21#,22# |
1 | ||
| 13636 - SHAFT, BALANCESHAFT DRIVE GEAR | ||||
| 13636-75010 |
2TRFE..TRH21#,22# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-75110 |
2TRFE..TRH21#,22# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02112 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.2 |
8 | ||
| 90913-02101 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02112 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.2 |
8 | ||
| 90913-02101 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-30032 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 90501-32055 |
2TRFE..TRH21#,22# ﾍﾟｲﾝﾄ無し |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-30032 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 90501-32055 |
2TRFE..TRH21#,22# ﾍﾟｲﾝﾄ無し |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-75140 |
2TRFE..TRH21#,22# |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1TRFE,2TRFE..TRH200,21#,22# |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
1TRFE,2TRFE..TRH200,21#,22# |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13750-75020 |
1TRFE,2TRFE..TRH200,21#,22# |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-21010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13750-75020 |
1TRFE,2TRFE..TRH200,21#,22# |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
1TRFE,2TRFE..TRH200,21#,22# |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
1TRFE,2TRFE..TRH200,21#,22# |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
16 | ||
| 15043 - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY | ||||
| 15043-75010 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 15043A - RING, O(FOR CAMSHAFT OIL DELIVERY PIPE) | ||||
| 96723-19011 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90105-08143 | ||||
| 90109-08181 | ||||
| 90109-08238 | ||||
| 90126-06026 | ||||
| 90126-08041 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80814 | ||||
| 91551-80850 | ||||
| 91551-A0622 | ||||
| 91551-G0845 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96723-19014 | ||||
