TRH216K-KRPEK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )GDH20#,211,KDH20#,211,TRH200,21#,224,229..GC,GL,SGL..CBU

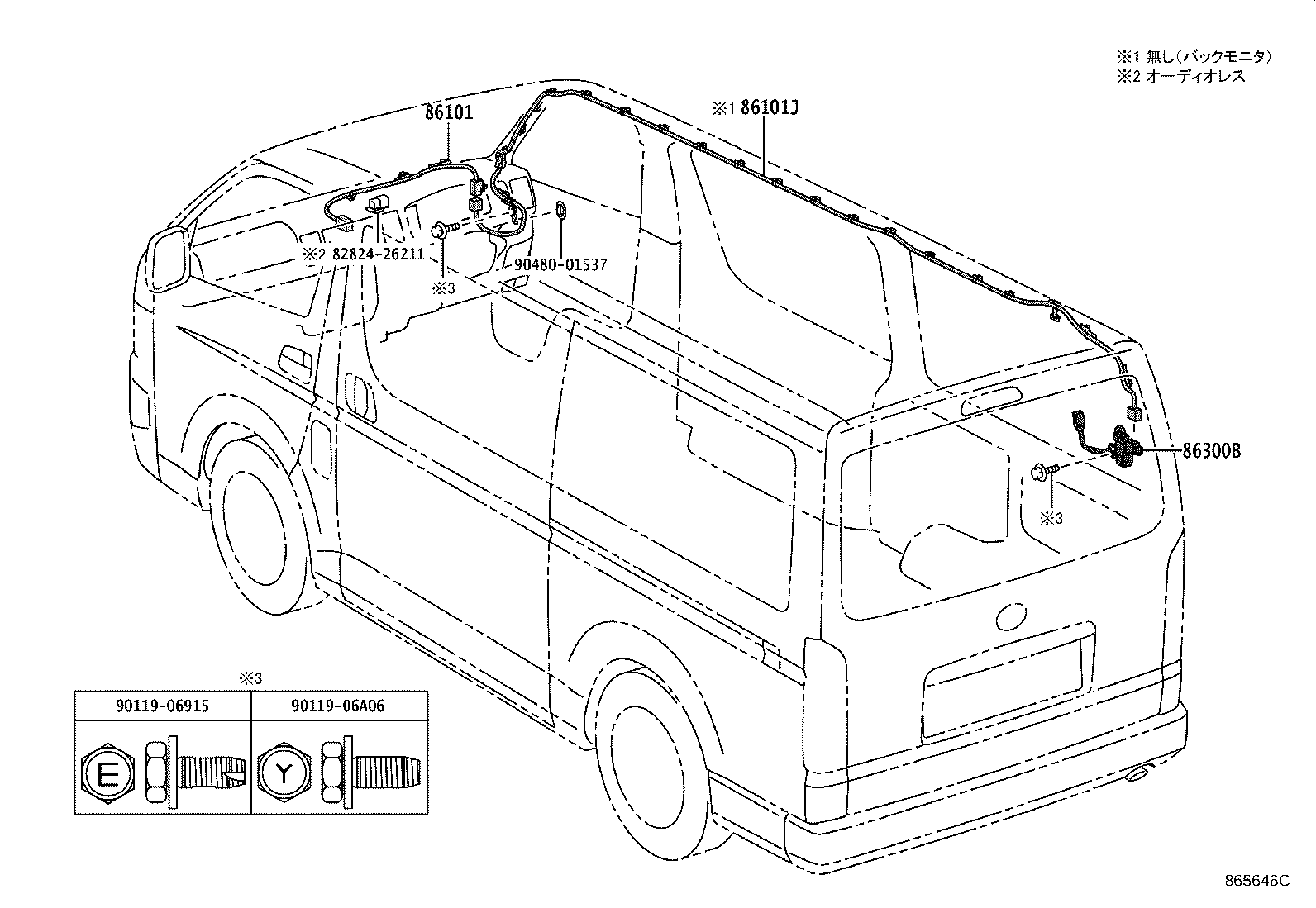

Click highlighted areas on diagram

ｶﾞﾗｽｱﾝﾃﾅ

diagram 8282426211 86101 86101J 86300B 9011906915 9011906A06 9048001537
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-26320

KDH20#,211,TRH200,21#..GL,SGL

 1
86101-26350

GDH20#,211,KDH20#,211,TRH200,21#..GL,SGL

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-26160

TRH200,21#,224,229..(GC,GL,SGL)..CBU

 1
Common parts
82824-26211
90119-06915
90119-06A06
90480-01537

(1312- )TRH214,219..DX ; (1312- )02S,03S,05S,06S,09S,14S..DX,GC,GL

Click highlighted areas on diagram

ﾋﾟﾗｰｱﾝﾃﾅ

diagram 8282426211 86101 86300 9014840007 9048001537
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-26320

KDH20#,211,TRH200,21#..GL,SGL

 1
86101-26350

GDH20#,211,KDH20#,211,TRH200,21#..GL,SGL

 1
Common parts
82824-26211
90148-40007
90480-01537
