TRH216K-KRPEK (2013)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 7(1312- )TRH200,21#,22#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
TRH200,21#,22#..4FC,6FC YAZAKI |
1 | ||
| 83530-28020 |
TRH200,21#,22#..4FC,6FC DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
KDH206,TRH21#,22#..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-26140 |
TRH200,21#,22# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-26050 |
TRH200,21#,22# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25030 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| Common parts | ||||
| 82715-26E60 | ||||
| 82715-26F30 | ||||
| 82715-26J80 | ||||
| 90105-T0004 | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91619-61216 | ||||
| 91651-40628 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||

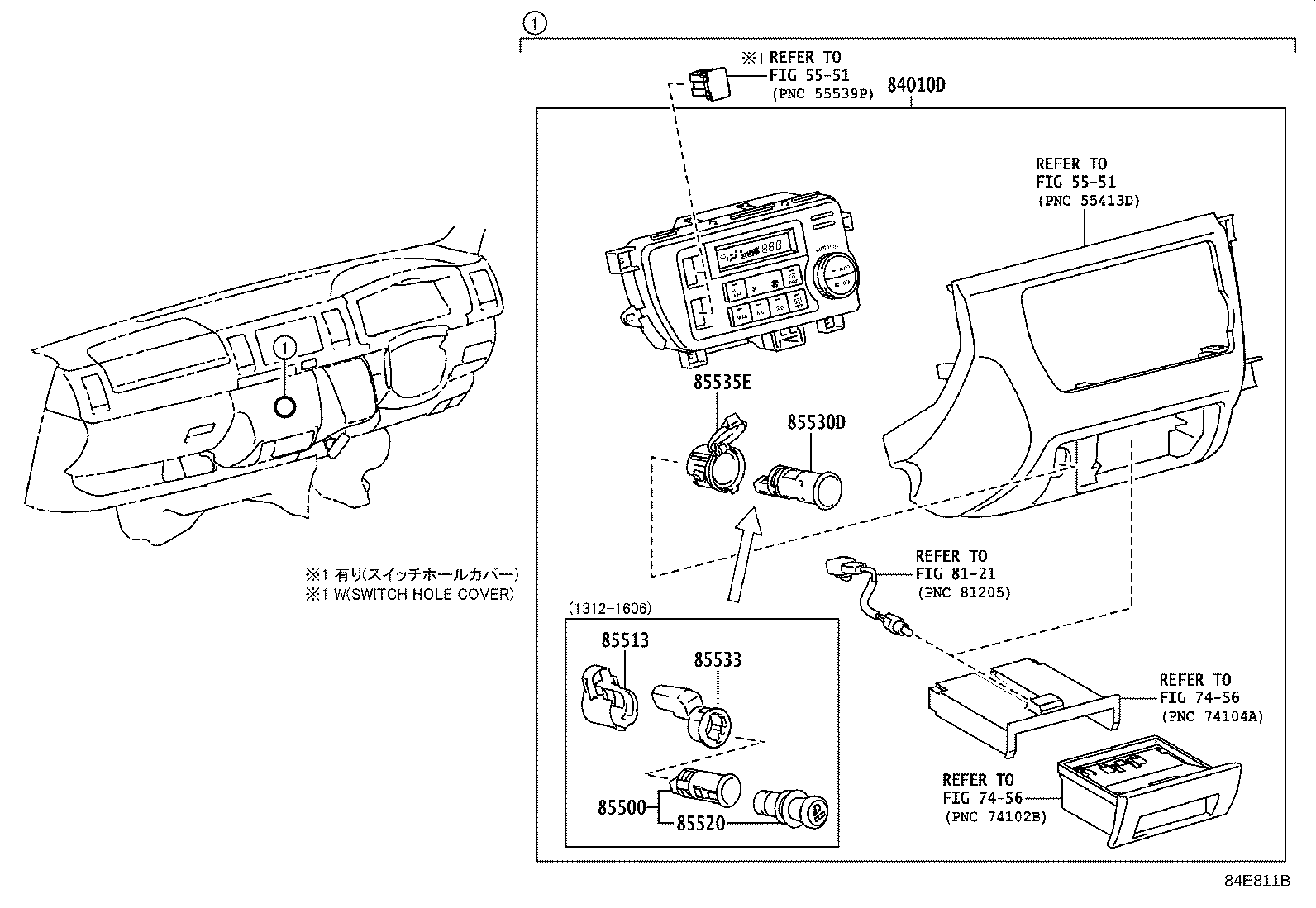

ILLUST NO. 5 OF 7(1312- )GC,GL,SGL..CBU ; (1312- )GDH221,226,TRH221,226..02S
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-26050B0 |
TRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU DK.GRAY,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7456 | ||||
| 8121 | ||||
ILLUST NO. 5 OF 7(1312-1712)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60070 |
KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU;KDH206,211,22#,TRH21#,22#..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-60070 |
KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU;KDH206,211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 84152-60070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 84152-60071 |
TRH214,219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84152-60071 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,22#,KDH206,211,22#,TRH211,216,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26130 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01099 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 14V 0.84W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84963-26020 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84930M - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84963-58010 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84963-58011 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-28010 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84962-28011 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28080B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY |
1 | ||
| 85530-28080B0 |
TRH224..IV5;GDH201..DX..CBU;TRH224..4FC..CBU;TRH200,223,228..4FC..(GL,SGL);KDH20#,211,223,TRH211,216,229..4FC,5F;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-33032 |
KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 7 OF 7(1312- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28010 |
2TRFE..TRH21#,22# |
1 | ||
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-75020 |
1TRFE,2TRFE..TRH200,21#,22# |
1 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26010 |
TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D |
2 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26010 |
TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D |
2 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-26450 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26140 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 84261-26160 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL 右側 |
1 | ||
| 84261-26140 |
KDH20#,TRH200..IV5;KDH201,TRH200..V2..03S;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);KDH20#,211,223,TRH200,21#,223,228,229..(02S,05S,10S)..(GC,GL,SGL) 左側 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26140 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 84261-26160 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL 右側 |
1 | ||
| 84261-26140 |
KDH20#,TRH200..IV5;KDH201,TRH200..V2..03S;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);KDH20#,211,223,TRH200,21#,223,228,229..(02S,05S,10S)..(GC,GL,SGL) 左側 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26120 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 84262-26120 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26120 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
2 | ||
| 84262-26120 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84535C - SWITCH, DOOR LOCK, RH | ||||
| 84535-26230 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 84535-26240 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84535C - SWITCH, DOOR LOCK, RH | ||||
| 84535-26230 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 84535-26240 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84535D - SWITCH, DOOR LOCK, LH | ||||
| 84535-26210 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84535-26220 |
TRH214,219..4D..GL;GDH206,KDH20#,TRH200..IV5;GDH201,KDH201,TRH200..V2..03S;GDH221,226,TRH224..(02S,10S)..(CBU,IV6);GDH20#,211,KDH20#,211,223,TRH200,211,216,221,223,226,228,229..02S,05S,10S |
1 | ||
| 84535D - SWITCH, DOOR LOCK, LH | ||||
| 84535-26210 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84535-26220 |
TRH214,219..4D..GL;GDH206,KDH20#,TRH200..IV5;GDH201,KDH201,TRH200..V2..03S;GDH221,226,TRH224..(02S,10S)..(CBU,IV6);GDH20#,211,KDH20#,211,223,TRH200,211,216,221,223,226,228,229..02S,05S,10S |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26220 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84931D - SWITCH, SLIDE DOOR CONTROL | ||||
| 84931-26151 |
KDH20#,TRH200..SGL;GDH20#,211,KDH211,TRH21#..5D 右側 |
1 | ||
| 84931-26151 |
KDH20#,TRH200..SGL;GDH20#,211,22#,KDH211,223,TRH21#,223,224,228,229 左側 |
1 | ||
| 84931D - SWITCH, SLIDE DOOR CONTROL | ||||
| 84931-26151 |
KDH20#,TRH200..SGL;GDH20#,211,KDH211,TRH21#..5D 右側 |
1 | ||
| 84931-26151 |
KDH20#,TRH200..SGL;GDH20#,211,22#,KDH211,223,TRH21#,223,224,228,229 左側 |
1 | ||
| 84931G - SWITCH, SLIDE DOOR CONTROL, RH | ||||
| 84931-26160 |
TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84931H - SWITCH, SLIDE DOOR CONTROL, LH | ||||
| 84931-26160 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-44030B2 |
GDH20#,211,KDH20#,211,TRH200,211,216,224,229..(GC,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 85918B - RELAY, DOOR CONTROL, RH | ||||
| 85918-26171 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 85918C - RELAY, DOOR CONTROL, LH | ||||
| 85918-26171 |
TRH214,219..4D..GL;GDH206,KDH20#,TRH200..IV5;GDH201,KDH201,TRH200..V2..03S;GDH221,226,TRH224..(02S,10S)..(CBU,IV6);GDH20#,211,KDH20#,211,223,TRH200,211,216,221,223,226,228,229..02S,05S,10S |
1 | ||
| 85971A - RELAY, DOOR OPENING | ||||
| 85971-26020 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85971A - RELAY, DOOR OPENING | ||||
| 85971-26020 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-26131 |
KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-26131 |
KDH20#,TRH200..IV5;KDH201,TRH200..V2..03S;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);KDH20#,211,223,TRH200,21#,223,228,229..(02S,05S,10S)..(GC,GL,SGL) |
1 | ||
| 85976 - RELAY, BACK DOOR CLOSER | ||||
| 85976-26060 |
KDH201,TRH200..V2..03S;KDH20#,TRH200,221,226..IV5,IV7;KDH20#,211,223,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-26141 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 85980-26160 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),右側 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-26141 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),左側 |
1 | ||
| 85980-26160 |
KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),右側 |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-26081 |
TRH224..IV5;GDH201..DX..CBU;TRH224..4FC..CBU;TRH200,223,228..4FC..(GL,SGL);KDH20#,211,223,TRH211,216,229..4FC,5F;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90119-06A06 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90189-06018 | ||||
| 91551-80610 | ||||
| 91631-B0614 | ||||
| 91673-80820 | ||||
| 93590-16014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 6758 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 7(1312-1712)KDH211,221,TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
TRH200,21#,22#..4FC |
1 | ||
| 89257B - COMPUTER, COOLING FAN, NO.2 | ||||
| 89257-26020 |
TRH200,21#,22#..4FC |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 4 OF 7(1312-1711)KDH20#,211,22# ; (1312-1712)TRH200,21#,22#
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26261 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26520 |
KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU;KDH206,211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82662-26510 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26162 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 85903-52020 |
TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
KDH20#,211,221,TRH200,211,216,221,226 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02025 |
KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU;KDH206,211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-04010 |
KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU;KDH206,211,22#,TRH21#,22#..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GDH223..GL..CBU;GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
TRH219..4D;TRH200,211,214,216,22#..4FC,6FC 寒冷地仕様 |
3 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30010 |
TRH221,226..02S;KDH223,TRH223,228..GL..CBU;KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-26040 |
TRH214,219..4D;GDH201,KDH201..V1..SP;GDH201,KDH201..SG..CBU;TRH200..V1..SP..(4FC,6FC);TRH200..SG..(4FC,6FC)..CBU;GDH206,211,221,226,KDH206,211,221,TRH211,216,221,224,226,229..CBU,IV6,IV7 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 6 OF 7(1312- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 84052-12070 |
TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33220 |
KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-26230 |
TRH214,219..4D..GL;GDH20#,211,KDH20#,211,TRH200,211,216,221,226..02S,05S |
1 | ||
| 84140-26220 |
GDH20#,211,KDH20#,211,TRH200,211,216,221,226..02S,05S ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-33230 |
KDH20#,211,TRH200,21#..GL,SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-26020 |
TRH214,219..5D;KDH20#,211,223,TRH200,21#,223,224,228,229..4FC..(GC,GL,SGL)..CBU ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−有り(ｵｰﾃﾞｨｵｽｲｯﾁ&ｵｰﾅﾒﾝﾄ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33100 |
KDH20#,211,TRH200,211,216..SGL;TRH214,219,223,224,228,229..4FC..(GC,GL)..CBU ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−有り(ｵｰﾃﾞｨｵｽｲｯﾁ&ｵｰﾅﾒﾝﾄ) |
1 | ||
| 84306-12160 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33100 |
KDH20#,211,TRH200,211,216..SGL;TRH214,219,223,224,228,229..4FC..(GC,GL)..CBU ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−有り(ｵｰﾃﾞｨｵｽｲｯﾁ&ｵｰﾅﾒﾝﾄ) |
1 | ||
| 84306-12160 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| 84450-12200 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-26680 |
GDH223..GL..CBU;GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-58010 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 85432-58010 |
TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 3 OF 7(1312-1712)KDH211,221,TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
KDH20#,211,TRH200,211,216..SGL 40A,ﾒｽ端子,緑,*POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝv−LED |
1 | ||
| 90982-08294 |
KDH20#,211,TRH200,211,216..SGL 40A,ﾒｽ端子,緑,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*P`S&ﾊﾞｯｸﾄﾞｱ))&*POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08294 |
KDH20#,211,TRH200,211,216..SGL 40A,ﾒｽ端子,緑,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*P`S&ﾊﾞｯｸﾄﾞｱ))&*POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝv−LED |
1 | ||
| 90982-08294 |
KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU 40A,ﾒｽ端子,緑,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*P`S&ﾊﾞｯｸﾄﾞｱ))&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90982-08294 |
KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU 40A,ﾒｽ端子,緑,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*P`S&ﾊﾞｯｸﾄﾞｱ)) |
1 | ||
| 90982-08294 |
KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU;KDH206,211,22#,TRH21#,22#..CBU,IV6,IV7 40A,ﾒｽ端子,緑,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90982-08294 |
TRH200,211,216..4FC..SGL 40A,ﾒｽ端子,緑,*POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08303 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08301 |
GDH221,226,KDH22#,TRH224..02S,06S,14S;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,TRH21#,221,223,226,228,229..4FC,5F 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08304 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08305 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08308 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26510 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-26110 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26350 |
TRH200,21#,22# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26293 |
TRH200,21#,22# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26312 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-26320 |
TRH21#,22#;TRH200..4FC;TRH200..6FC..SGL;TRH200..6FC..IV5;TRH200..V2..03S..6FC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26141 |
TRH200,21#,22#..4FC NO.1 |
1 | ||
| 82663-26131 |
TRH200,21#,22#..4FC NO.2 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26141 |
TRH200,21#,22#..4FC NO.1 |
1 | ||
| 82663-26131 |
TRH200,21#,22#..4FC NO.2 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-26150 |
TRH200,21#,22# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26060 |
TRH200,21#,22# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26031 |
TRH200,21#,22# |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82741-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82744 - BLOCK, ENGINE ROOM RELAY, NO.4 | ||||
| 82741-26040 |
TRH200,21#,22# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-T2001 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F (L) |
1 | ||
| 90987-02027 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02027 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F (J) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
GDH221,226,TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU MARK 90987−02025 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F (J) |
1 | ||
| 90987-T2002 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2002 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F (L) |
1 | ||
| 90987-02025 |
TRH200,21#,22#..4FC;KDH201..V1..HRF..5F (J) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
TRH219..4D;TRH200,211,214,216,22#..4FC,6FC 寒冷地仕様 |
3 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (J) |
1 | ||
| 90987-T2003 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (L) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91551-80608 | ||||
| 91553-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
