Toyota Hiace/regiusace TRH216 LOCK CYLINDER SET

TRH216K-KRPEK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )GDH20#..5D..03S ; (1312- )KDH223,TRH214,219,223,228..4D ; (1312- )

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-26603	KDH20#,211,TRH200,211,216..5D ﾀｲﾌﾟ C	12/2013 - 06/2016	1
69005-26700	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ),TYPE N	12/2013 - 06/2016	1
69005-26710	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ),ﾀｲﾌﾟ E	12/2013 - 06/2016	1
69005-26700	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ)),sYPE N	12/2013 - 06/2016	1
69503A - KEY, BLANK
69515-52180	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 08/2021	1
69515-52180	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-26030	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-26030	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 06/2016	1
69530 - CYLINDER ASSY, SLIDE DOOR LOCK, RH
69530-26041	TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D	12/2013 - 12/2999	1
69540 - CYLINDER ASSY, SLIDE DOOR LOCK, LH
69540-26061	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-26060	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-33120	GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-32090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 左側	12/2013 - 12/2999	1
69759-32100	TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D 右側	12/2013 - 12/2999	1
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-32090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 左側	12/2013 - 12/2999	1
69759-32100	TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D 右側	12/2013 - 12/2999	1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-26750	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89070-26750	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89070-26830	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89070-26750	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-26750	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89070-26750	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89070-26830	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89070-26750	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-26750	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89070-26750	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89070-26830	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89070-26750	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12290	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89071-28330	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89071-12290	TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D	12/2013 - 12/2017	1
89071-12290	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12290	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89071-28330	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89071-12290	TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D	12/2013 - 12/2017	1
89071-12290	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12290	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89071-28330	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89071-12290	TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D	12/2013 - 12/2017	1
89071-12290	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-42400	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89072-42400	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89072-42400	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89072-26290	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-42400	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89072-42400	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89072-42400	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89072-26290	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-42400	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89072-42400	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89072-42400	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89072-26290	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
8907A - SWITCH SET, TRANSMITTER
8907A-28060	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
8907A-52010	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
8907A-52010	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
8907A-52010	TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D	12/2013 - 12/2017	1
8907A - SWITCH SET, TRANSMITTER
8907A-28060	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
8907A-52010	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
8907A-52010	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
8907A-52010	TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D	12/2013 - 12/2017	1
8907A - SWITCH SET, TRANSMITTER
8907A-28060	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
8907A-52010	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
8907A-52010	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
8907A-52010	TRH224..CBU;TRH200..5D..4FC;KDH20#,211,22#,TRH211,216..4FC,5F;TRH200,214,219,221,223,226,228,229..4D	12/2013 - 12/2017	1
89745A - BATTERY, TRANSMITTER
89745-48030	TRH214,219..4D..GL;TRH200,211,216..4FC..SGL;GDH20#,211,223,KDH20#,211,223,TRH223,224,228,229..(GC,GL,SGL)..CBU CR2016,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 10/2020	1
89745-48030	TRH200,214,219..4D;TRH200,211,216..5D..4FC;GDH20#,211,22#,KDH20#,211,22#,TRH22# CR2016	12/2013 - 12/2020	1
89745-48030	TRH200,211,216..4FC..SGL;GDH20#,211,KDH20#,211..SGL CR2016,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89745A - BATTERY, TRANSMITTER
89745-48030	TRH214,219..4D..GL;TRH200,211,216..4FC..SGL;GDH20#,211,223,KDH20#,211,223,TRH223,224,228,229..(GC,GL,SGL)..CBU CR2016,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 10/2020	1
89745-48030	TRH200,214,219..4D;TRH200,211,216..5D..4FC;GDH20#,211,22#,KDH20#,211,22#,TRH22# CR2016	12/2013 - 12/2020	1
89745-48030	TRH200,211,216..4FC..SGL;GDH20#,211,KDH20#,211..SGL CR2016,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89745A - BATTERY, TRANSMITTER
89745-48030	TRH214,219..4D..GL;TRH200,211,216..4FC..SGL;GDH20#,211,223,KDH20#,211,223,TRH223,224,228,229..(GC,GL,SGL)..CBU CR2016,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 10/2020	1
89745-48030	TRH200,214,219..4D;TRH200,211,216..5D..4FC;GDH20#,211,22#,KDH20#,211,22#,TRH22# CR2016	12/2013 - 12/2020	1
89745-48030	TRH200,211,216..4FC..SGL;GDH20#,211,KDH20#,211..SGL CR2016,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89751A - COVER, TRANSMITTER HOUSING
89751-42090	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89751-42090	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89751-42090	TRH200..5D..4FC;TRH200,214,219,22#..4D;KDH20#,211,22#,TRH211,216..4FC,5F	12/2013 - 12/2017	1
89751A - COVER, TRANSMITTER HOUSING
89751-42090	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89751-42090	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89751-42090	TRH200..5D..4FC;TRH200,214,219,22#..4D;KDH20#,211,22#,TRH211,216..4FC,5F	12/2013 - 12/2017	1
89751A - COVER, TRANSMITTER HOUSING
89751-42090	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 11/2017	1
89751-42090	TRH214,219,223,224,228,229..(GC,GL)..CBU;KDH20#,211,223,TRH200,211,216..4FC..(GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89751-42090	TRH200..5D..4FC;TRH200,214,219,22#..4D;KDH20#,211,22#,TRH211,216..4FC,5F	12/2013 - 12/2017	1
89752A - CASE, TRANSMITTER HOUSING
89752-42050	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89752-42050	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89752-42020	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89752-42050	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89752A - CASE, TRANSMITTER HOUSING
89752-42050	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89752-42050	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89752-42020	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89752-42050	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89752A - CASE, TRANSMITTER HOUSING
89752-42050	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 10/2020	1
89752-42050	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 10/2020	1
89752-42020	GDH20#,211,KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89752-42050	GDH201..DX..CBU;TRH223,228..IV5;KDH20#,211,223,TRH211,216,229..4FC,5F;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX	12/2013 - 12/2999	1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26040	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 12/2017	1
89785-26040	KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-42040	KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU ﾌﾞﾗﾝｸｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 12/2017	1
89786-42040	KDH20#,211,22#,TRH200,21#,22# ﾌﾞﾗﾝｸｷｰ	12/2013 - 12/2017	1

(1312- )GC,GL,SGL..CBU

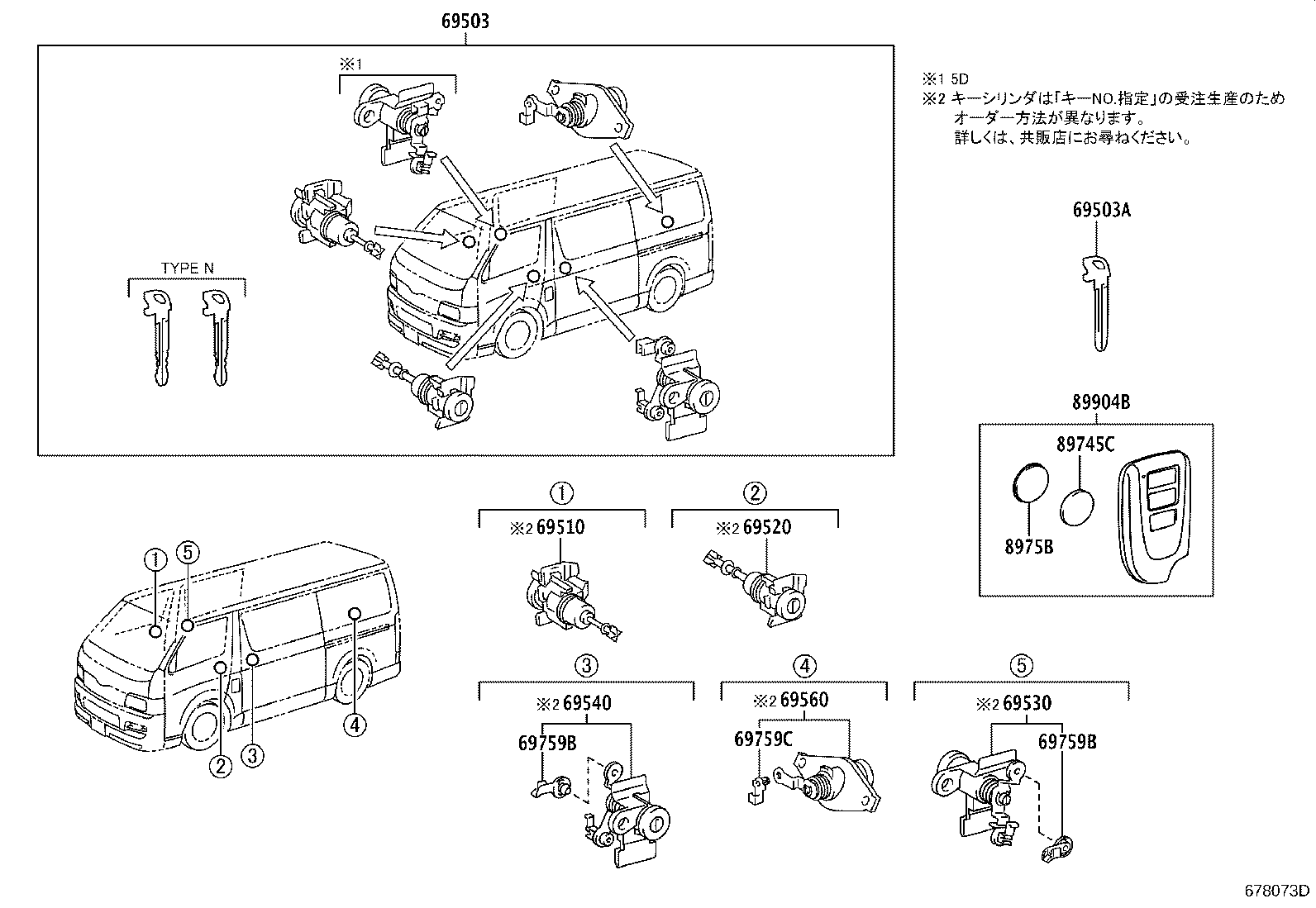

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-26603	KDH20#,211,TRH200,211,216..5D ﾀｲﾌﾟ C	12/2013 - 06/2016	1
69005-26700	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ),TYPE N	12/2013 - 06/2016	1
69005-26710	KDH20#,211,TRH200,211,216..SGL POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ),ﾀｲﾌﾟ E	12/2013 - 06/2016	1
69005-26700	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ)),sYPE N	12/2013 - 06/2016	1
69503A - KEY, BLANK
69515-52180	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 08/2021	1
69515-52180	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾏｽﾀｰｷｰ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-26030	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-26030	KDH20#,211,22#,TRH200,21#,22#	12/2013 - 06/2016	1
69530 - CYLINDER ASSY, SLIDE DOOR LOCK, RH
69530-26041	TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D	12/2013 - 12/2999	1
69540 - CYLINDER ASSY, SLIDE DOOR LOCK, LH
69540-26061	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-26060	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-32090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 左側	12/2013 - 12/2999	1
69759-32100	TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D 右側	12/2013 - 12/2999	1
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-32090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 左側	12/2013 - 12/2999	1
69759-32100	TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D 右側	12/2013 - 12/2999	1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24090	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
89745C - BATTERY, TRANSMITTER
89745-50020	GDH20#,211,KDH20#,211,TRH200,211,216..SGL CR2032,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	1
89745-50020	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU CR2032,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞbｸﾄﾞｱ))	12/2013 - 08/2021	1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-52010	TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 08/2021	2
8975B-52010	GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 08/2021	2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-26030	KDH20#,211,TRH200,211,216..SGL ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))&POSD(両側)&ECS(両側&ﾊﾞｯｸﾄﾞｱ)	12/2013 - 12/2017	2
89904-26010	KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(DRS&PAS&ﾊﾞｯｸﾄﾞｱ))	12/2013 - 12/2017	2

TRH216K-KRPEK (2013)

(1312- )GDH20#..5D..03S ; (1312- )KDH223,TRH214,219,223,228..4D ; (1312- )

(1312- )GC,GL,SGL..CBU
