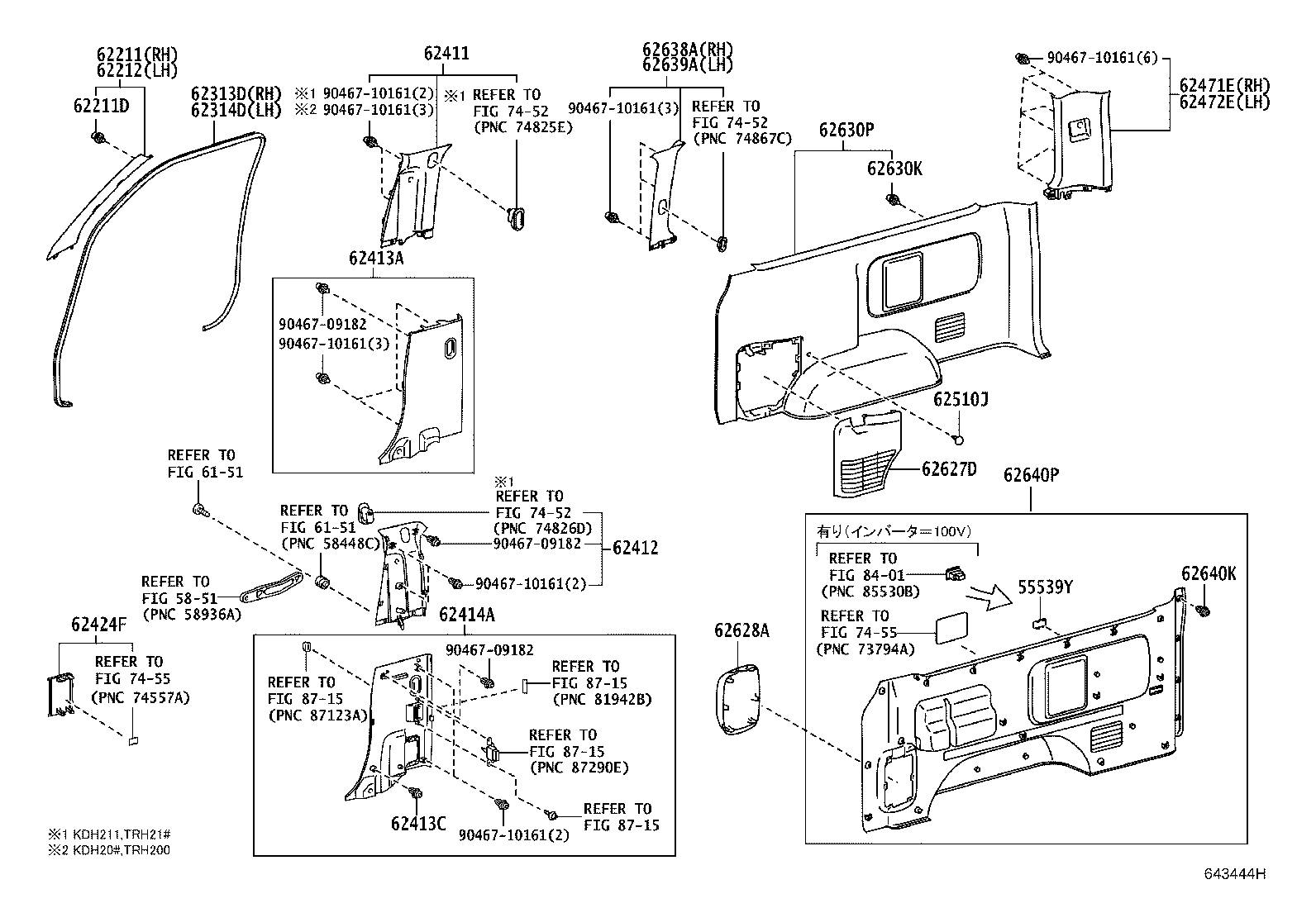

TRH216K-KRPEK (2013)
Toyota Hiace/Regiusace
(1312- )SGL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-28120B2 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
GDH223..GL..CBU;TRH224..4FC..CBU;TRH214,219,223,228..GL;KDH20#,223,TRH200,211,216,229..4FC..(GC,GL,SGL);GDH206,KDH20#,211,TRH200,224..(HRF,SMRF)..(02S,03S,05S) DK.GRAY,TRIM1# |
1 | ||
| 55539-28120B2 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26052B0 |
GDH206,KDH20#..HRF;TRH200..HRF..(4FC,6FC);GDH20#,KDH20#,223,TRH200,223,224,228..02S,05S,14S;GDH201,211,22#,KDH211,221,TRH21#,221,226..(HRF,SMRF)..(CBU,IV6,IV7) LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,22#..HRF,SMRF |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26032B0 |
GDH206,KDH20#..HRF;TRH200..HRF..(4FC,6FC);GDH20#,KDH20#,223,TRH200,223,224,228..02S,05S,14S;GDH201,211,22#,KDH211,221,TRH21#,221,226..(HRF,SMRF)..(CBU,IV6,IV7) LT.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62311-26090 |
GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62312-26090 |
GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,TRH200,21#,224,229..GC,GL,SGL |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26100B1 |
GDH211,KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26100B1 |
GDH211,KDH211,TRH211,216 LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26220B0 |
TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 75867-33030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26330B2 |
TRH200..IV5;KDH223,TRH200,211,216,223,224,228..02S,05S DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26031B0 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 62471E - GARNISH, ROOF SIDE, INNER UPPER RH | ||||
| 62471-26320B0 |
GDH206,211,KDH20#,211,223,TRH200,211,216,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S) LT.GRAY,TRIM1# |
1 | ||
| 62472E - GARNISH, ROOF SIDE, INNER UPPER LH | ||||
| 62472-26230B0 |
GDH211,KDH211,TRH211,216,224,229..CBU LT.GRAY,TRIM1# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-26230B2 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,KDH20#,211,TRH200,21#..GL,SGL DK.GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 67771-26230B2 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62627D - COVER, SIDE TRIM, RH | ||||
| 62627-26040B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62627-26040B0 |
GDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL) DK.GRAY,TRIM1# |
1 | ||
| 62627-26040B0 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62628A - COVER, SIDE TRIM, LH | ||||
| 62628-26010B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62628-26010B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62628-26010B0 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
18 | ||
| 90467-10161 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V) |
18 | ||
| 90467-10161 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2 |
18 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-26D70B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62630-26D70B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26160B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26130B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL LT.GRAY,TRIM1# |
1 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
TRH214,219..4D..GL;GDH206,KDH20#,TRH200..IV5;GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
21 | ||
| 90467-10161 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2 |
21 | ||
| 90467-10161 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V) |
21 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26E80B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ﾓﾃﾞﾘｽﾀ TYPE2&ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E70B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
TRH200,211..4FC..SGL;GDH20#,211,KDH20#,211,TRH216..SGL ﾓﾃﾞﾘｽﾀ TYPE2,DK.GRAY,TRIM1# |
1 | ||
| 62640-26E80B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7452 | ||||
| 7455 | ||||
| 8401 | ||||
| 8715 | ||||
