TRH216K-KRPEK (2013)
Toyota Hiace/Regiusace
(1312- )SGL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

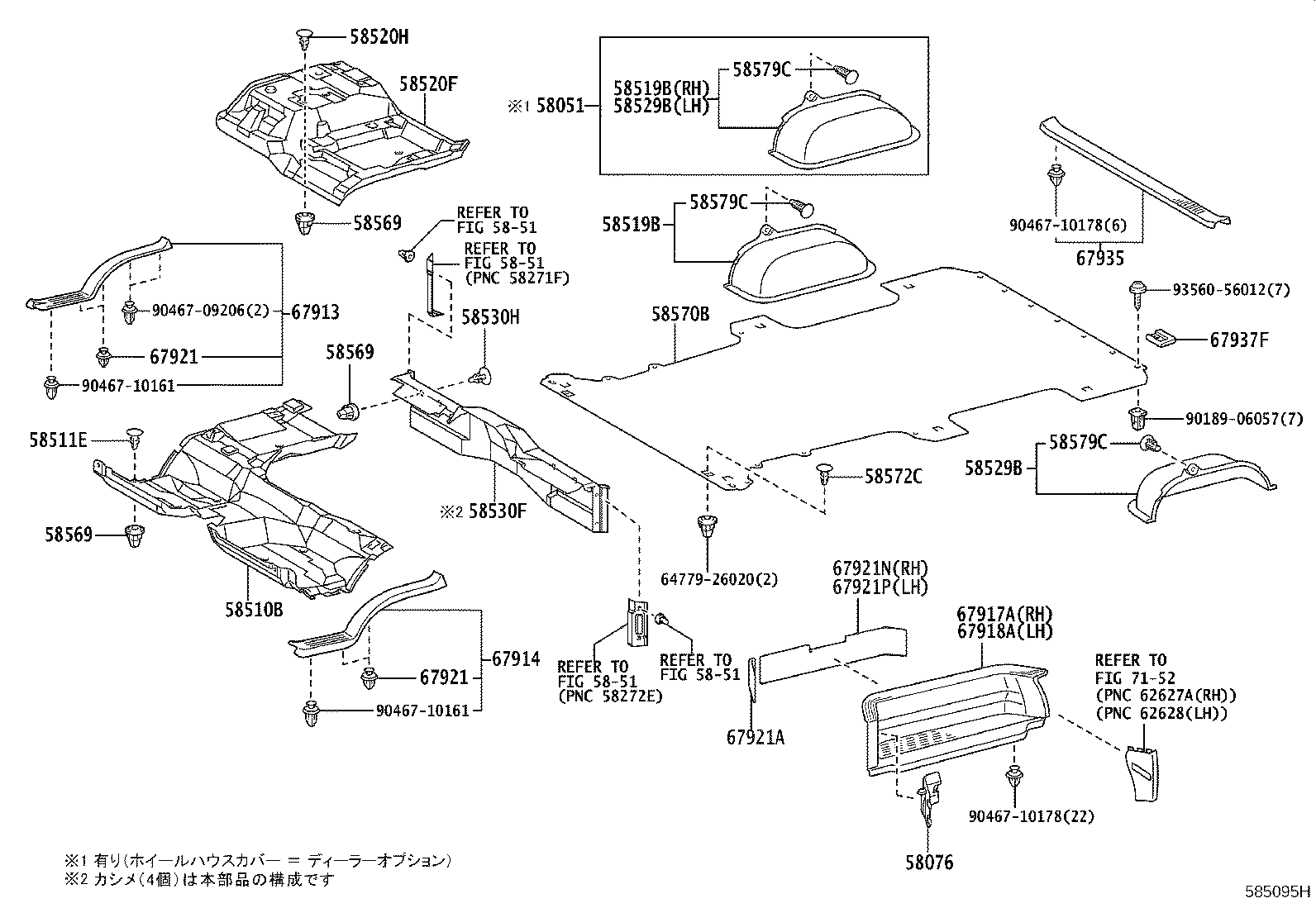

| 58076 - COVER SUB-ASSY, JACK BOX HOLE | ||||
| 58076-26010B1 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1#,左側 |
1 | ||
| 58076-26020B1 |
GDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL) DK.GRAY,TRIM1#,右側 |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26F40B0 |
TRH221,226..02S;TRH21#,223,224,228,229..GC,GL,SGL DK. GREY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B1 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
10 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26421B1 |
KDH211,223,TRH21#,223,228,229..GC,GL,SGL;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7) DK. GREY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B1 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
2 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26D61B1 |
KDH211,TRH211,216 DK. GREY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B1 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
9 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26D21B1 |
GDH211,KDH211,TRH211,216 DK. GREY,TRIM1# |
1 | ||
| 58517-26N60B0 |
GDH211,KDH211,TRH211,216 *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),DK. GREY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B1 |
TRH214,219..4D;GDH20#,211,22#,KDH20#,211,22#,TRH200,211,216,22#..SG..CBU DK.GRAY,TRIM1# |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26082B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26062B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26080B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 67917-26090B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26170B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL DK.GRAY,TRIM1# |
1 | ||
| 67918-26190B0 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26182B2 |
GDH223..GL..CBU;GDH211,KDH211,223,TRH21#,223,224,228,229..GC,GL,SGL DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 7152 | ||||
