TRH216K-KRPEK (2013)
Toyota Hiace/Regiusace
(1312- )TRH219..5D ; (1312- )GDH211,KDH211,TRH211,214,216..GL,SGL

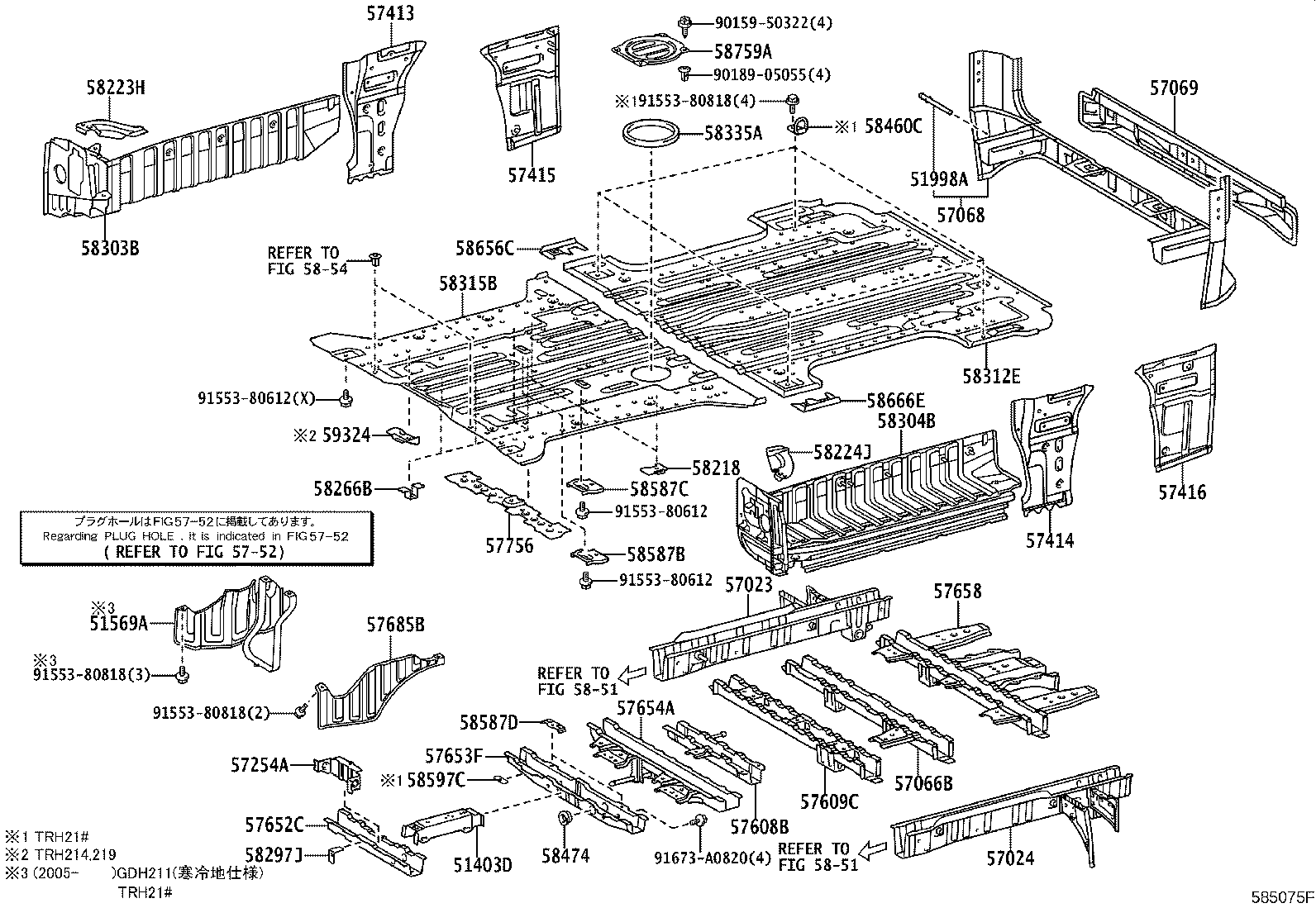

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51431-26172 |
TRH216,219,226,228,229 |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26650 |
GDH201..V1..CBU;TRH200..V1..(4FC,6FC);GDH206,211,221,226,KDH20#,211,22#,TRH211,216,221,223,224,226,228..(COM,V1,WG)..(02S,03S,05S,06S,09S)..(CBU,IV5) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26660 |
TRH200..V1..(4FC,6FC)..CBU;GDH20#,211,221,226,KDH20#,211,221,TRH211,216,221,226..V1..CBU |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26162 |
GDH211,221,226,KDH211,22#,TRH211,216,22#..02S,05S,06S,10S |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26300 |
GDH211,KDH211,TRH211,216,224,229..CBU |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26170 |
GDH211,221,226,KDH211,22#,TRH211,216,221,223,224,226,228..(02S,05S,06S)..(CBU,IV5) |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26B10 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26530 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-26220 |
GDH20#,211,KDH20#,211,TRH200,211,216,224,229..(GC,SGL)..CBU |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26170 |
GDH20#,211,KDH20#,211,TRH200,211,216,224,229..(GC,SGL)..CBU |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26372 |
GDH211,KDH211,TRH211,216 |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26232 |
TRH214,219..4D;GDH211,KDH211,TRH211,216 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26130 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26171 |
TRH211,216 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26671 |
TRH214,219..5D;GDH211,221,226,KDH211,221,TRH211,216 |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26281 |
GDH211,221,226,KDH211,221,TRH211,216,221,226 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26040 |
TRH21#,22# ﾌﾛﾝﾄ |
1 | ||
| 57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER | ||||
| 57756-26030 |
GDH211,KDH211,TRH211,216 |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH200,21#,221,226,229..(4FC,6FC)..(CBU,IV6,IV7) |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-26240 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL |
1 | ||
| 58303-26630 |
GDH20#,211,KDH20#,211,TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26440 |
TRH200,211,216,221,226..(02S,05S)..(CBU,IV6) |
1 | ||
| 58304-26500 |
TRH200,211,216..SGL *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26430 |
KDH211,TRH211,216 |
1 | ||
| 58312-26431 |
GDH211,KDH211,TRH211,216 |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26880 |
KDH211,TRH211,216 |
1 | ||
| 58315-26C60 |
KDH211,TRH211,216 *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 58315-26881 |
GDH211,KDH211,TRH211,216 |
1 | ||
| 58315-26C61 |
GDH211,KDH211,TRH211,216 *POSD(両側)&*ECS(両側&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH20#,211,221,226,KDH20#,211,221,TRH211,216,221,226..05S,06S,09S |
4 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58587B - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH | ||||
| 58587-26060 |
TRH214,219..5D;GDH206,KDH20#,TRH200..IV5;TRH200..V1..(05S,06S)..(4FC,6FC);GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,221,223,224,226,228..(COM,V1,WG)..(02S,05S,06S)..(CBU,IV5) |
1 | ||
| 58587C - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 LH | ||||
| 58587-26080 |
TRH214,219..5D;TRH200..V1..(05S,06S)..(4FC,6FC);GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,221,223,224,226,228..(COM,V1,WG)..(02S,05S,06S)..(CBU,IV5) |
1 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
TRH214,219..5D;GDH206,KDH20#,TRH200..IV5;GDH201,KDH201,TRH200..V2..03S;TRH200..(05S,06S,09S)..(4FC,6FC);GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,221,223,224,226,228..(02S,05S,06S,09S)..(CBU,IV5) |
2 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26030 |
TRH200..(05S,09S)..(4FC,6FC);GDH20#,211,KDH20#,211,TRH211,216..05S,09S |
2 | ||
| 58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-26020 |
TRH200..5D..(4FC,6FC);GDH20#,211,KDH20#,211,TRH21#..5D |
1 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
