TRH216K-KRPEK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1411)1TRFE..5F ; (1312-1501)1TRFE,2TRFE..4FC

Click highlighted areas on diagram

diagram 1106 15100B 15104 15104E 15131 15133 15134 15147 9017908087 9155180616 9155180825
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90301-19021

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15104 - STRAINER SUB-ASSY, OIL
15104-75111

1TRFE..TRH200..V2..HRF..5F;1TRFE,2TRFE..TRH200,21#,22#..4FC

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-08052

1TRFE..TRH200..V2..HRF..5F;1TRFE,2TRFE..TRH200,21#,22#..4FC

長さ=29

 2
15131 - VALVE, OIL PUMP RELIEF
15131-46040

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15147 - GASKET, OIL STRAINER
15147-75030

1TRFE..TRH200..V2..HRF..5F;1TRFE,2TRFE..TRH200,21#,22#..4FC

 1
Common parts
90179-08087
91551-80616
91551-80825
Linked diagrams
1106

(1411- )2TRFE..TRH214,219..4D..6FC ; (1411-)1TRFE,2TRFE..TRH200,211,216,22#.

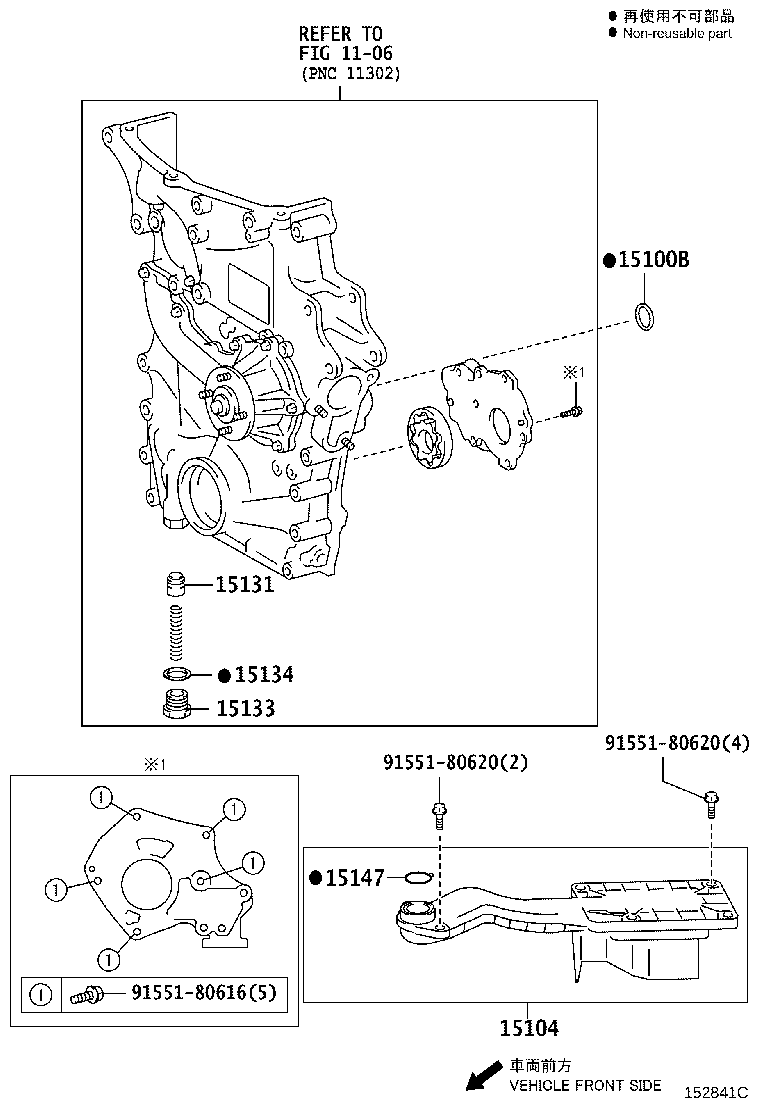

Click highlighted areas on diagram

diagram 1106 15100B 15104 15131 15133 15134 15147 9155180616 9155180620 9155180620
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90301-19021

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15104 - STRAINER SUB-ASSY, OIL
15104-75111

1TRFE..TRH200..V2..HRF..5F;1TRFE,2TRFE..TRH200,21#,22#..4FC

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46040

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15147 - GASKET, OIL STRAINER
15147-75030

1TRFE..TRH200..V2..HRF..5F;1TRFE,2TRFE..TRH200,21#,22#..4FC

 1
Common parts
91551-80616
91551-80620
Linked diagrams
1106
