TRH216K-KRPEK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )2TRFE..TRH211,216,22# ; (1312- )2TRFE..TRH214,219..4D ; (1712- )2T

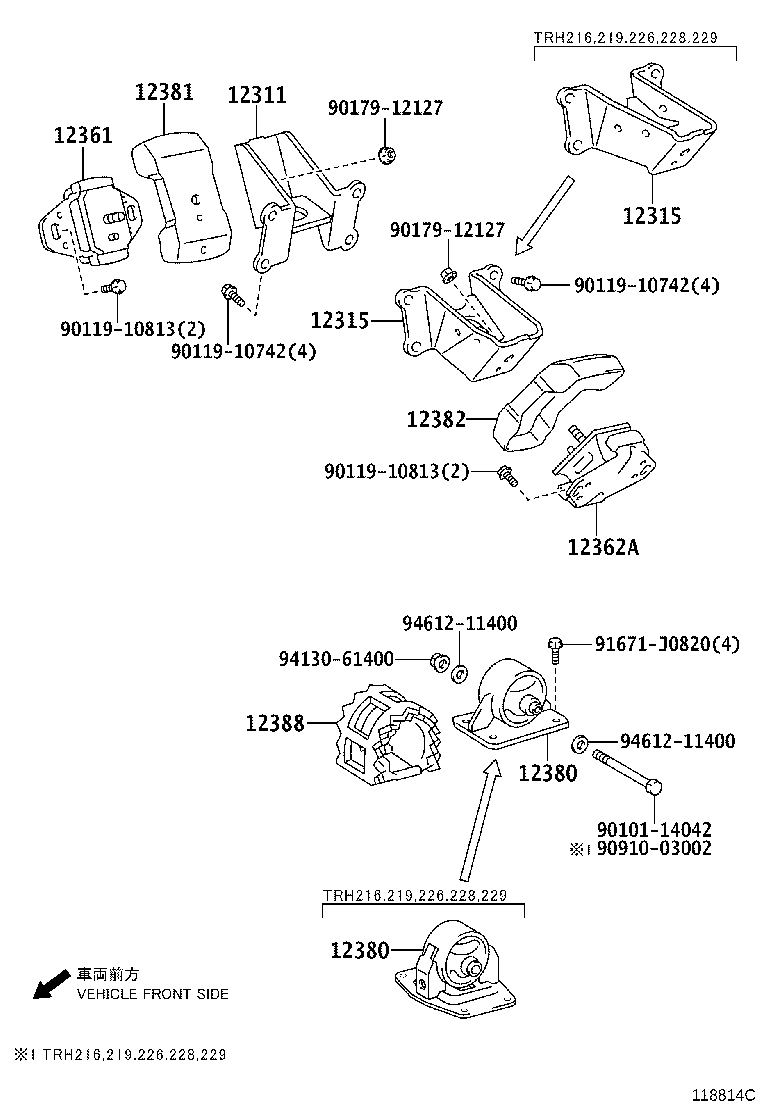

Click highlighted areas on diagram

diagram 12311 12315 12315 12361 12362A 12380 12380 12381 12382 12388 9010114042 9011910742 9011910742 9011910813 9011910813 9017912127 9017912127 9091003002 91671J0820 9413061400 9461211400 9461211400
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75101

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75120

2TRFE..TRH216,219,226,228,229

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75120

2TRFE..TRH216,219,226,228,229

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75100

2TRFE..TRH21#,22#

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12361-75080

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-30020

2TRFE..TRH216,219,226,228,229

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-30020

2TRFE..TRH216,219,226,228,229

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-75080

2TRFE..TRH21#,22#

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12381-75091

2TRFE..TRH21#,22#

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
Common parts
90101-14042
90119-10742
90119-10813
90179-12127
90910-03002
91671-J0820
94130-61400
94612-11400
