TRH214W-JDTDK (2015)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 2(1312-1712)KDH20#,TRH200,214,219..4D
ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26141 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26110 |
KDH20#,211,TRH200,21# |
1 | ||
| 61312-26120 |
TRH214,219..DX *POSD(左側)&*ECS(左側) |
1 | ||
| 61302-26650 |
TRH214,219..DX *POSD(左側)&*ECS(左側) |
1 | ||
| 61302-26640 |
TRH214,219..4D;GDH206,TRH200..6FC;GDH201,211,TRH211,216..CBU |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-26270 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||

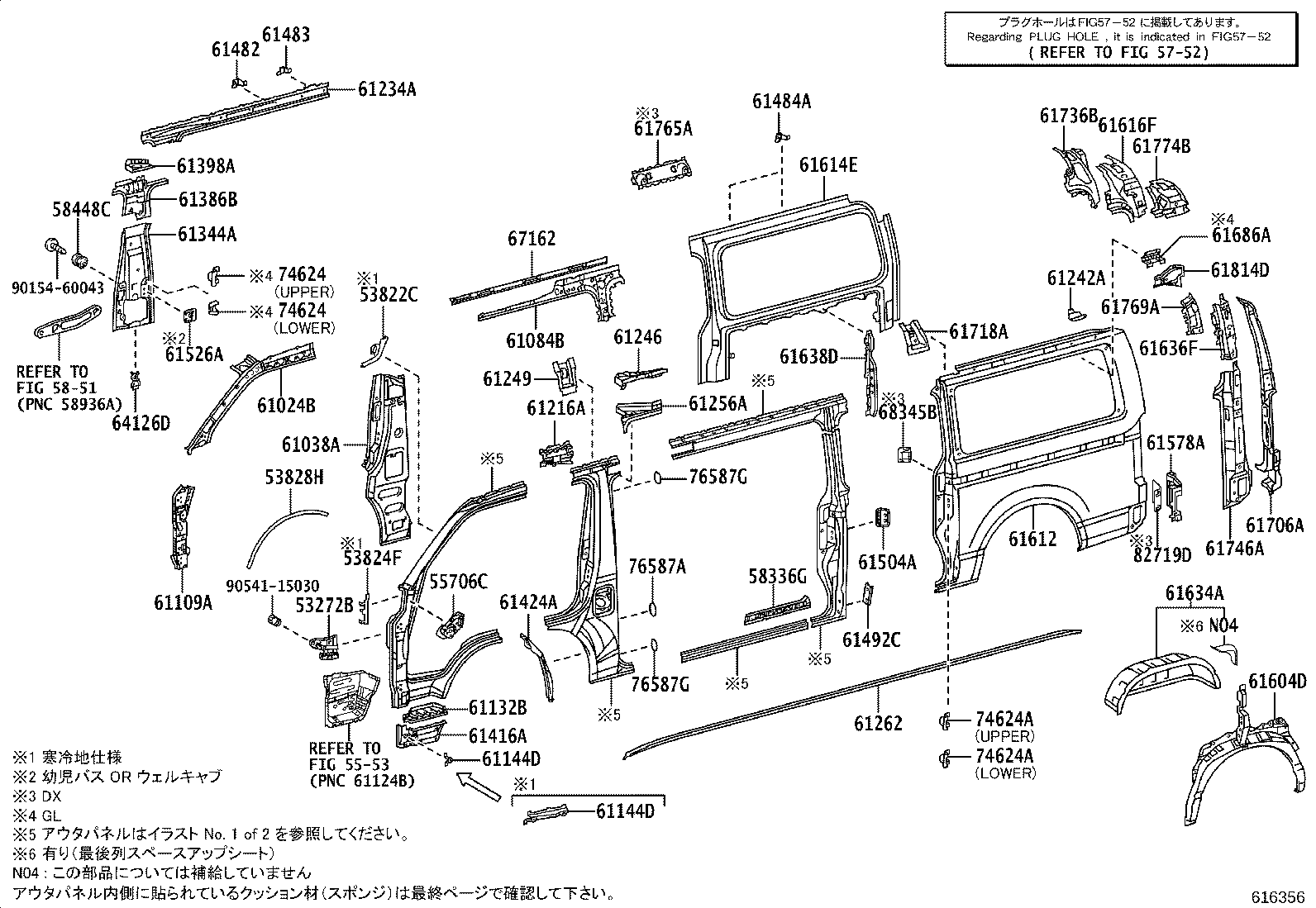

ILLUST NO. 2 OF 2(1312-1712)TRH214,219
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53822C - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53822-26021 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53824F - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-26011 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
GDH201..DX..CBU;TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..03S,05S,06S,09S,14S;GDH206,221,226,KDH22#,TRH200,214,219,22#..(4FC,6FC)..(DX,GC,GL) LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26140 |
GDH211,KDH211,TRH21# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
KDH20#,TRH200..IV5;KDH20#..05S,06S,09S;GDH206,KDH223,TRH223,224,228;TRH200..(05S,06S,09S)..(4FC,6FC);GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26060 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26121 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26011 |
TRH214,219..DX;GDH22#,KDH223,TRH221,223,226,228..(02S,14S)..(CBU,IV6) 寒冷地仕様&*POSD(左側)&*ECS(左側) |
1 | ||
| 61144-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144-26011 |
TRH214,219..6FC..DX;GDH20#,22#,TRH200,221,223,226,228..(5F,6FC)..(DX,GL)..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26011 |
TRH214,219..DX;GDH22#,KDH223,TRH221,223,226,228..(02S,14S)..(CBU,IV6) 寒冷地仕様&*POSD(左側)&*ECS(左側) |
1 | ||
| 61144-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144-26011 |
TRH214,219..6FC..DX;GDH20#,22#,TRH200,221,223,226,228..(5F,6FC)..(DX,GL)..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26370 |
TRH214,219..4D |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26030 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61249-26020 |
GDH211,KDH211,TRH21# |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26021 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26310 |
GDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL);GDH206,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S)..DX |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26060 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2 | ||||
| 61481-26070 |
GDH206,KDH20#,TRH200,214,219,221,226..(HRF,SMRF)..4D..(02S,03S,10S)..(CBU,IV5,IV7) |
1 | ||
| 61483 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.3 | ||||
| 61481-26060 |
GDH206,KDH20#,TRH200..IV5;GDH20#,211,KDH20#,211,TRH200,21#..05S,10S |
1 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26080 |
TRH214,219..4D |
4 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61526A - RETAINER, SEPARATOR BAR BRACKET, LH | ||||
| 61526-26050 |
TRH214,219,224,229..4D..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車) |
1 | ||
| 61526-26050 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｻｲﾄﾞｶﾞﾗｽ(右側)−固定式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 61072-26140 |
KDH223,TRH223,224,228..02S,14S;GDH206,223,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S,14S) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61620-26090 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 61620-26110 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&幼児ﾊﾞｽ&寒冷地仕様 |
1 | ||
| 61620-26040 |
TRH214,219..DX |
1 | ||
| 61620-26150 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61620-26110 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&幼児ﾊﾞｽ&寒冷地仕様 |
1 | ||
| 61620-26150 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26520 |
TRH219..4D;GDH201..SG..CBU;TRH200..SG..(4FC,6FC);GDH206,211,KDH20#,211,TRH211,214,216..SG |
1 | ||
| 61612-26590 |
GDH206,KDH20#..SG..DX;TRH200..SG..(4FC,6FC)..DX;GDH201,TRH214,219..SG..DX..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61612-26590 |
GDH206,KDH20#..SG..DX;TRH200..SG..(4FC,6FC)..DX;GDH201,TRH214,219..SG..DX..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26B40 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｻｲﾄﾞｶﾞﾗｽ(右側)−固定式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 61614-26B60 |
TRH214,219..DX |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26120 |
GDH211,KDH211,TRH21# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-26050 |
TRH223,228..6FC..IV5;TRH21#,221,224,226,229..6FC..(DX,GC,SGL)..(CBU,IV6,IV7) |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26030 |
GDH223,KDH223,TRH214,219,223,228..CBU |
1 | ||
| 61636-26040 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26270 |
GDH211,KDH211,TRH21# |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26040 |
GDH211,KDH211,TRH21# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A50 |
TRH214,219..DX |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6 |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61078-26090 |
TRH200..09S..(4FC,6FC);GDH20#,KDH20#,TRH214,219..(09S,10S)..DX |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61802-26010 |
GDH223,KDH223,TRH214,219,223,228..CBU |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26140 |
GDH211,KDH211,TRH21# |
1 | ||
| 61814D - REINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 LH | ||||
| 61814-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020C0 |
GDH20#,22#,TRH200,214,219,221,223,226,228..4D..6FC..DX..(CBU,IV6,IV7) BLACK,TRIM1# |
1 | ||
| 68345-26020B0 |
GDH20#,22#,KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 下側 |
1 | ||
| 74624-26050 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 上側 |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 下側 |
1 | ||
| 74624-26050 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 上側 |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
TRH200..4D..(4FC,6FC);GDH201,223,TRH224..4D..CBU;GDH206,221,226,KDH20#,22#,TRH214,219,221,223,226,228,229..4D |
1 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
2 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 5851 | ||||
ILLUST NO. 1 OF 2(1712- )GDH20#,TRH200,214,219..4D
ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26141 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26110 |
KDH20#,211,TRH200,21# |
1 | ||
| 61312-26120 |
TRH214,219..DX *POSD(左側)&*ECS(左側) |
1 | ||
| 61302-26650 |
TRH214,219..DX *POSD(左側)&*ECS(左側) |
1 | ||
| 61302-26640 |
TRH214,219..4D;GDH206,TRH200..6FC;GDH201,211,TRH211,216..CBU |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-26270 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
ILLUST NO. 2 OF 2(1712- )TRH214,219..4D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53822C - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53822-26021 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53824F - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-26011 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
GDH201..DX..CBU;TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..03S,05S,06S,09S,14S;GDH206,221,226,KDH22#,TRH200,214,219,22#..(4FC,6FC)..(DX,GC,GL) LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26140 |
GDH211,KDH211,TRH21# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
KDH20#,TRH200..IV5;KDH20#..05S,06S,09S;GDH206,KDH223,TRH223,224,228;TRH200..(05S,06S,09S)..(4FC,6FC);GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26060 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26121 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26011 |
TRH214,219..DX;GDH22#,KDH223,TRH221,223,226,228..(02S,14S)..(CBU,IV6) 寒冷地仕様&*POSD(左側)&*ECS(左側) |
1 | ||
| 61144-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144-26011 |
TRH214,219..6FC..DX;GDH20#,22#,TRH200,221,223,226,228..(5F,6FC)..(DX,GL)..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26011 |
TRH214,219..DX;GDH22#,KDH223,TRH221,223,226,228..(02S,14S)..(CBU,IV6) 寒冷地仕様&*POSD(左側)&*ECS(左側) |
1 | ||
| 61144-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144-26011 |
TRH214,219..6FC..DX;GDH20#,22#,TRH200,221,223,226,228..(5F,6FC)..(DX,GL)..(CBU,IV5) 寒冷地仕様 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26370 |
TRH214,219..4D |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26030 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61249-26020 |
GDH211,KDH211,TRH21# |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26021 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26310 |
GDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL);GDH206,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S)..DX |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26060 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2 | ||||
| 61481-26070 |
GDH206,KDH20#,TRH200,214,219,221,226..(HRF,SMRF)..4D..(02S,03S,10S)..(CBU,IV5,IV7) |
1 | ||
| 61483 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.3 | ||||
| 61481-26060 |
GDH206,KDH20#,TRH200..IV5;GDH20#,211,KDH20#,211,TRH200,21#..05S,10S |
1 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26080 |
TRH214,219..4D |
4 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61526A - RETAINER, SEPARATOR BAR BRACKET, LH | ||||
| 61526-26050 |
TRH214,219,224,229..4D..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車) |
1 | ||
| 61526-26050 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ&ﾘﾔｻｲﾄﾞｶﾞﾗｽ(右側)−固定式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 61072-26140 |
KDH223,TRH223,224,228..02S,14S;GDH206,223,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S,14S) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61620-26090 |
TRH214,219..DX 幼児ﾊﾞｽ |
1 | ||
| 61620-26110 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&幼児ﾊﾞｽ&寒冷地仕様 |
1 | ||
| 61620-26040 |
TRH214,219..DX |
1 | ||
| 61620-26150 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61620-26110 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&幼児ﾊﾞｽ&寒冷地仕様 |
1 | ||
| 61620-26150 |
TRH214,219..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26520 |
TRH219..4D;GDH201..SG..CBU;TRH200..SG..(4FC,6FC);GDH206,211,KDH20#,211,TRH211,214,216..SG |
1 | ||
| 61612-26590 |
GDH206,KDH20#..SG..DX;TRH200..SG..(4FC,6FC)..DX;GDH201,TRH214,219..SG..DX..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61612-26590 |
GDH206,KDH20#..SG..DX;TRH200..SG..(4FC,6FC)..DX;GDH201,TRH214,219..SG..DX..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26B40 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｻｲﾄﾞｶﾞﾗｽ(右側)−固定式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 61614-26B60 |
TRH214,219..DX |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26120 |
GDH211,KDH211,TRH21# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-26050 |
TRH223,228..6FC..IV5;TRH21#,221,224,226,229..6FC..(DX,GC,SGL)..(CBU,IV6,IV7) |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26030 |
GDH223,KDH223,TRH214,219,223,228..CBU |
1 | ||
| 61636-26040 |
GDH223,KDH223,TRH214,219,223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26270 |
GDH211,KDH211,TRH21# |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26040 |
GDH211,KDH211,TRH21# |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A50 |
TRH214,219..DX |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6 |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61078-26090 |
TRH200..09S..(4FC,6FC);GDH20#,KDH20#,TRH214,219..(09S,10S)..DX |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61802-26010 |
GDH223,KDH223,TRH214,219,223,228..CBU |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26140 |
GDH211,KDH211,TRH21# |
1 | ||
| 61814D - REINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 LH | ||||
| 61814-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020C0 |
GDH20#,22#,TRH200,214,219,221,223,226,228..4D..6FC..DX..(CBU,IV6,IV7) BLACK,TRIM1# |
1 | ||
| 68345-26020B0 |
GDH20#,22#,KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 下側 |
1 | ||
| 74624-26050 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 上側 |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 下側 |
1 | ||
| 74624-26050 |
KDH223,TRH223,224,228;GDH223,TRH214,219,229..4D..CBU 上側 |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
TRH200..4D..(4FC,6FC);GDH201,223,TRH224..4D..CBU;GDH206,221,226,KDH20#,22#,TRH214,219,221,223,226,228,229..4D |
1 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
2 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B1 |
TRH214,219..DX 幼児ﾊﾞｽ&ﾘﾔｼｰﾄ−幼児ﾊﾞｽ(3列),DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
