TRH214W-JDPNK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )2TRFE..TRH211,216,22# ; (1312- )2TRFE..TRH214,219..4D ; (1712- )2T

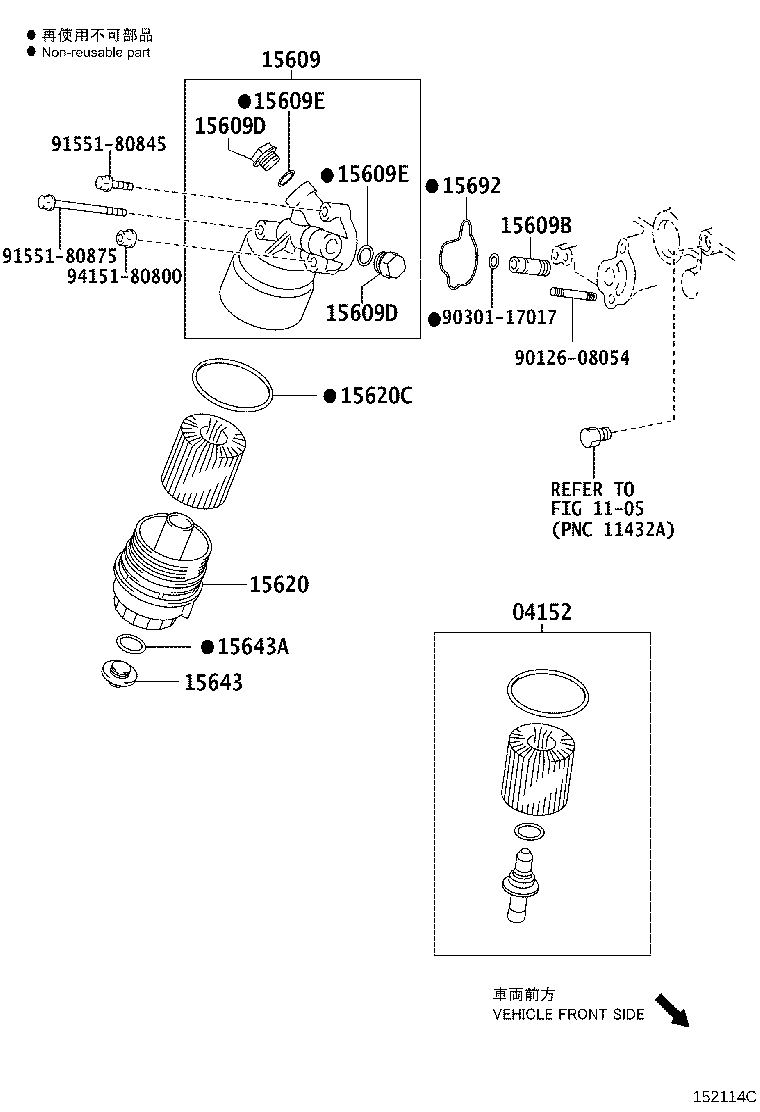

Click highlighted areas on diagram

diagram 04152 1105 15609 15609B 15609D 15609D 15609E 15609E 15620 15620C 15643 15643A 15692 9012608054 9030117017 9155180845 9155180875 9415180800
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-38010

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-75100

2TRFE..TRH21#,22#

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90404-19017

2TRFE..TRH21#,22#

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TRH21#,22#

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TRH21#,22#

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TRH21#,22#

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TRH21#,22#

 2
15620 - CAP ASSY, OIL FILTER
15620-31050

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15643 - PLUG, OIL FILTER DRAIN
15643-31050

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15643A - RING, O(FOR OIL FILTER DRAIN PLUG)
96723-35028

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
15692 - GASKET, OIL FILTER BRACKET
15692-75011

2TRFE..TRH21#,22#

 1
Common parts
90126-08054
90301-17017
91551-80845
91551-80875
94151-80800
Linked diagrams
1105
