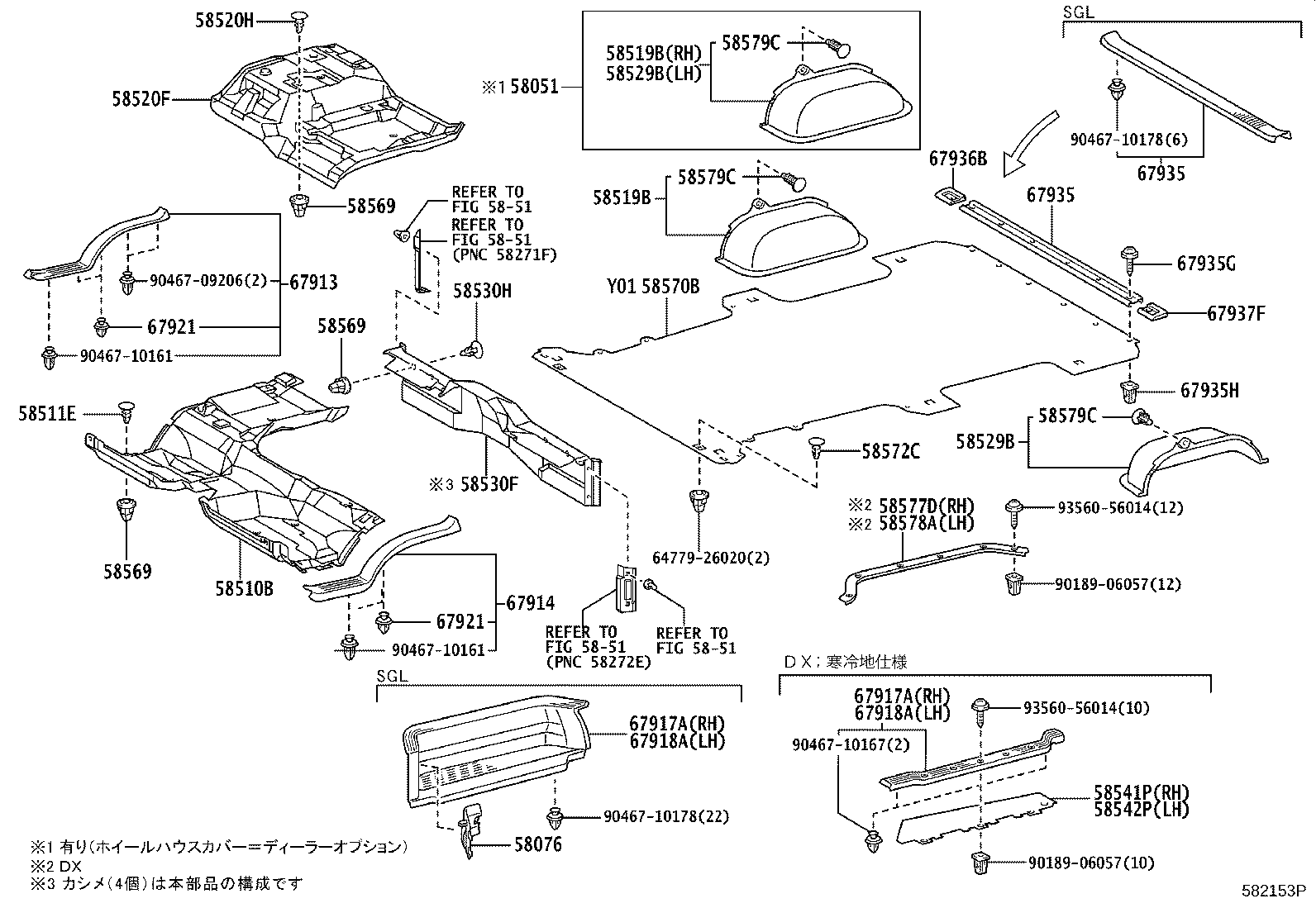

TRH200V-SRPDK (2004)
Toyota Hiace/Regiusace
(0408-0709)V1..5D ; (0709- )TRH200,211,216..V1..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58051 - MAT SET, FLOOR | ||||
| 58051-26260B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ***,ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58051-26260B2 |
KDH20#,221,TRH200,221,226..V1..(03S,06S,09S)..CBU ***,ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26A20B0 |
KDH20#..5F;TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A31B0 |
KDH20#..5F;TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A30B0 |
KDH20#..5F;TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A31B2 |
KDH20#..5F;TRH200..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58510-26A32B2 |
KDH20#..5F;TRH200..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
10 | ||
| 64726-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
10 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26450B2 |
KDH20#,TRH200..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58519-26450B0 |
KDH20#,TRH200..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B2 |
KDH20#,221,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58519-26410B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58519-26450B2 |
KDH20#,TRH200..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58519-26410B0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26450B0 |
KDH20#,TRH200..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26450B2 |
KDH20#,TRH200..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58519-26450B0 |
KDH20#,TRH200..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B2 |
KDH20#,221,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58519-26410B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58519-26450B2 |
KDH20#,TRH200..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58519-26410B0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26450B0 |
KDH20#,TRH200..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26310B0 |
KDH20#,TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26311B0 |
KDH20#,TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26311B2 |
KDH20#,TRH200..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
2 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26800B0 |
TRH200..V1..5D..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26801B0 |
TRH200..V1..5D..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26801B2 |
TRH200..V1..5D..DX DK.GRAY,TRIM1# |
1 | ||
| 58530-26811B2 |
TRH200..5D..03S;TRH200..V1..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ,DK.GRAY,TRIM1# |
1 | ||
| 58530-26811B2 |
TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
1 | ||
| 58530-26811B2 |
TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
9 | ||
| 64726-26010B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
9 | ||
| 58541P - MAT, STEP, RH | ||||
| 58541-26030B2 |
TRH200..5D..DX;KDH20#..5D..03S 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 58541-26030B0 |
TRH200..V1..5D..DX 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58541-26030B0 |
KDH20#,TRH200..V1..5D..DX 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58542P - MAT, STEP, LH | ||||
| 58542-26050B2 |
TRH200..V1..SP;KDH20#..V1..03S;TRH200,221,226..SG..(03S,06S,09S)..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 58542-26050B0 |
KDH200,205,220,225,TRH200,221,226..V1..(03S,06S,09S)..CBU 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26730B0 |
TRH200..V1..5D..06S MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26730B0 |
TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26730B0 |
TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D60B0 |
TRH200..V1..5D..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26730B0 |
TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUMGRAY,TRIM1# |
1 | ||
| 58517-26730B0 |
TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26730B2 |
TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
1 | ||
| 58517-26730B2 |
TRH200..V1..5D..06S DK.GRAY,TRIM1# |
1 | ||
| 58517-26730B2 |
TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
1 | ||
| 58517-26730B2 |
TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58517-26730B2 |
TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58517-26D60B2 |
TRH200..V1..5D..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
TRH224,229;KDH20#,211,22#,TRH200,21#,221,223,226,228..SG..(03S,05S,06S,09S,10S,15S)..CBU MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH201,206,211,TRH200,211,216..V1..(SMRF,SRF)..5D..(05S,06S)..4FC ﾓﾃﾞﾘｽﾀ TYPE1,MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
TRH229;KDH20#,211,22#,TRH200,21#,221,223,224,226,228..SG..(03S,05S,06S,09S,10S,15S)..CBU DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH20#,TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1,MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH20#,211,TRH200,211,216..V1..(SMRF,SRF)..5D..(05S,06S)..4FC ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH20#,TRH200..V1..SRF..5D..06S..4FC ﾘﾌﾄ付ﾊﾞﾝ&ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH20#,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MD.GRAY,TRIM1# |
2 | ||
| 58577D - PLATE, REAR FLOOR MAT SUPPORT SIDE, RH | ||||
| 58577-26040B0 |
KDH20#,TRH200..V1..5D..DX MD.GRAY,TRIM1# |
1 | ||
| 58577-26040B1 |
KDH20#,TRH200..V1..5D..DX DK.GRAY,TRIM1# |
1 | ||
| 58578A - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26040B0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU MD.GRAY,TRIM1# |
1 | ||
| 58578-26040B1 |
KDH20#,221,TRH200,221,226..V1..(03S,06S,09S)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,220,221,225,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,220,221,225,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH20#,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU ﾎｲｰﾙﾊｳｽｶﾊﾞｰ−有り(ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ),BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,221,TRH200,221,226..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,BLACK |
2 | ||
| 90467-10034C0 |
KDH20#,220,221,225,TRH200,221,226..V1..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),BLACK |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
KDH20#,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67913-26082B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26062B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
KDH20#,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67914-26061B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26070B1 |
KDH20#,TRH200..5D..DX 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67917-26070B0 |
KDH201..5D..DX;KDH200,205,206,TRH200..V1..5D..DX 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26070B1 |
KDH20#,TRH200..5D..DX 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67917-26070B0 |
KDH201..5D..DX;KDH200,205,206,TRH200..V1..5D..DX 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH201..V1..SP;KDH201..SG..DX..CBU;KDH200,205,206,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,221,TRH200,221,226..SG..(03S,06S,09S)..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH201..V1..SP;KDH201..SG..DX..CBU;KDH200,205,206,220,221,225,TRH200,221,226..V1..(03S,06S,09S)..CBU 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,221,TRH200,221,226..SG..(03S,06S,09S)..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26120 |
TRH200..V1..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
1 | ||
| 67935-26120 |
KDH20#,TRH200..V1..DX..CBU |
1 | ||
| 67935-26190 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
1 | ||
| 67935-26190 |
KDH20#,TRH200..V1..DX..CBU |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26120 |
TRH200..V1..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
1 | ||
| 67935-26120 |
KDH20#,TRH200..V1..DX..CBU |
1 | ||
| 67935-26190 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
1 | ||
| 67935-26190 |
KDH20#,TRH200..V1..DX..CBU |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH20#,TRH200..V1..DX..CBU |
6 | ||
| 93560-56012 |
KDH20#,TRH200..V1..DX..CBU |
6 | ||
| 93560-56012 |
KDH20#,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
6 | ||
| 93560-56014 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
6 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1 |
6 | ||
| 90189-06057 |
KDH205,206..DX..CBU;KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SG..DX..CBU |
6 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26040B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(COM,V1,WG)..DX..CBU MD.GRAY,TRIM1# |
1 | ||
| 67936-26020B1 |
KDH20#,22#,TRH200,21#,221,223,226,228..(COM,V1,WG)..DX..CBU MD.GRAY,TRIM1# |
1 | ||
| 67936-26020B1 |
TRH200..V1..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,MD.GRAY,TRIM1# |
1 | ||
| 67936-26040B1 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(COM,V1,WG)..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 67936-26040B0 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,MD.GRAY,TRIM1# |
1 | ||
| 67936-26040B1 |
KDH20#,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH20#,22#,TRH200,21#,221,223,226,228..(COM,V1,WG)..DX..CBU MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(COM,V1,WG)..DX..CBU MD.GRAY,TRIM1# |
1 | ||
| 67937-26020B1 |
TRH200..V1..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B0 |
KDH201,206,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B1 |
KDH20#,TRH200..V1..SRF..5D..06S..4FC ﾓﾃﾞﾘｽﾀ TYPE1,DK.GRAY,TRIM1# |
1 | ||
| 67937-26040B1 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(COM,V1,WG)..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10178 | ||||
| 93560-56014 | ||||
| Linked diagrams | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
