TRH200V-SMPDK (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Dec 2013
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

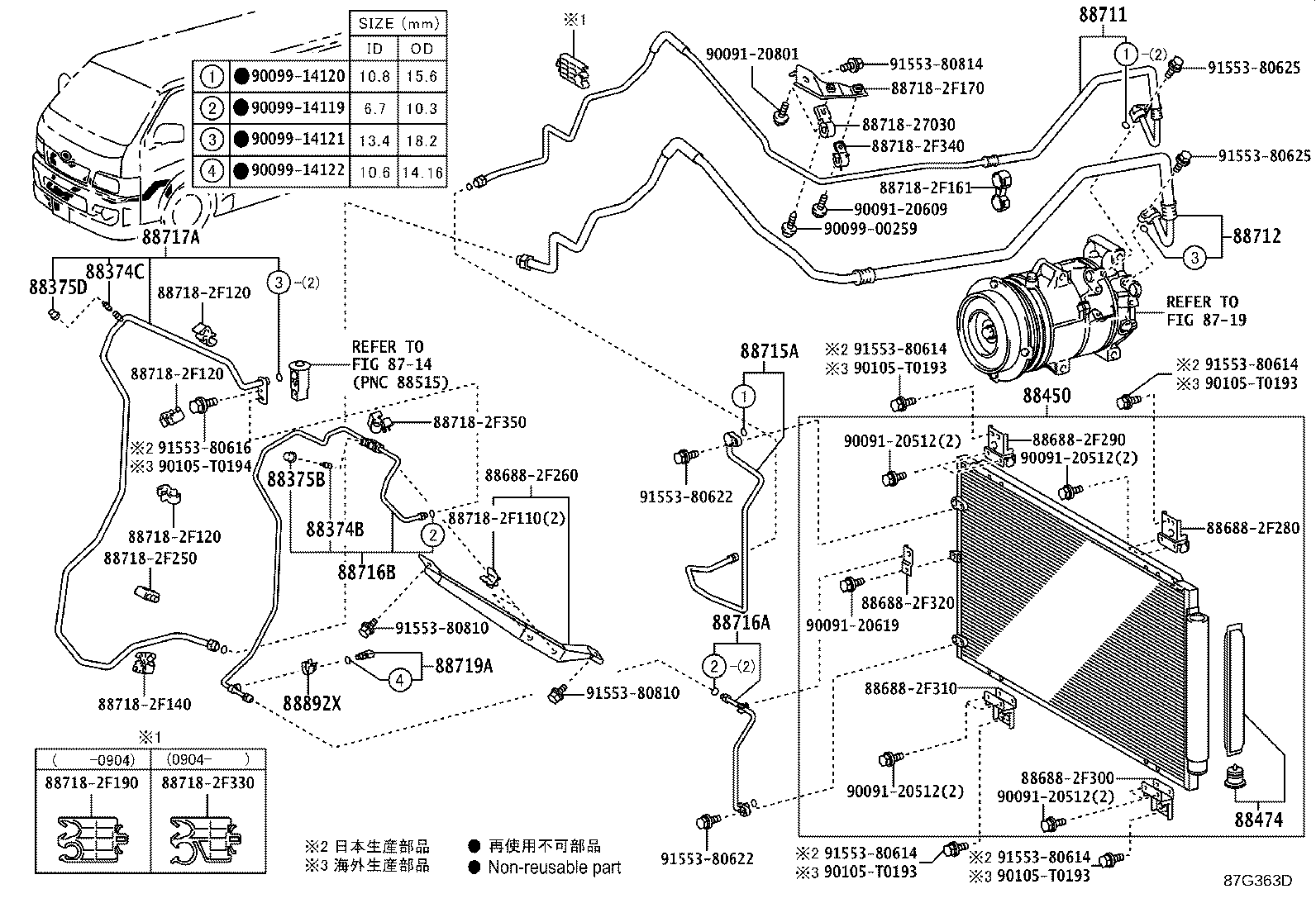

ILLUST NO. 1 OF 2(0408- )TRH200..SRF..DX ; (0408- )TRH200..V2..HRF ; (0408- )TRH200..HRF..4

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F260 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 8871827030 887182F110 887182F120 887182F120 887182F120 887182F140 887182F161 887182F170 887182F190 887182F250 887182F330 887182F340 887182F350 88719A 88892X 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009120801 9009900259 9009914119 9009914120 9009914121 9009914122 90105T0193 90105T0193 90105T0193 90105T0193 90105T0194 9155380614 9155380614 9155380614 9155380614 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380810 9155380814
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KDH20#,211,22#,TRH200,21#,22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

KDH20#,211,22#,TRH200,21#,22#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

KDH20#,211,22#,TRH200,21#,22#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

KDH20#,211,22#,TRH200,21#,22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120

KDH20#,211,22#,TRH200,21#,22#

 1
88474 - DRYER, COOLER
88474-17010

KDH20#,211,22#,TRH200,21#,22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F130

TRH200

 1
88711-2F131

TRH200

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F150

TRH200

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26390

KDH20#,TRH200

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F630

KDH20#,TRH200..SG..DX..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
88710-2F620

KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU

 1
88710-2F631

KDH20#,TRH200..SG..DX..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2N120

KDH20#,TRH200

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2F680

KDH20#,TRH200..DX..CBU

 1
88717-2F650

KDH20#,TRH200..SG..DX..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

TRH200,21#,22#

 1
88719-33020

KDH20#,211,22#,TRH200,21#,22#

 1
88892X - COVER, COOLER, NO.2
88892-50120

KDH20#,22#,TRH200,21#,22#

 1
Common parts
88688-2F260
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-27030
88718-2F110
88718-2F120
88718-2F140
88718-2F161
88718-2F170
88718-2F190
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20512
90091-20609
90091-20619
90091-20801
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
90105-T0194
91553-80614
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0408- )TRH200..SRF..SG ; (0408- )TRH200..V2..HRF ; (0408- )TRH200..HRF..4

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F260 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 8871827030 887182F120 887182F120 887182F120 887182F140 887182F161 887182F170 887182F190 887182F250 887182F330 887182F340 887182F350 88719A 88892X 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009120801 9009900259 9009914119 9009914120 9009914121 9009914122 90105T0193 90105T0193 90105T0193 90105T0193 90105T0194 9155380614 9155380614 9155380614 9155380614 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380810 9155380814
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KDH20#,211,22#,TRH200,21#,22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

KDH20#,211,22#,TRH200,21#,22#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

KDH20#,211,22#,TRH200,21#,22#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

KDH20#,211,22#,TRH200,21#,22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120

KDH20#,211,22#,TRH200,21#,22#

 1
88474 - DRYER, COOLER
88474-17010

KDH20#,211,22#,TRH200,21#,22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F130

TRH200

 1
88711-2F131

TRH200

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F150

TRH200

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26390

KDH20#,TRH200

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F630

KDH20#,TRH200..SG..DX..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
88710-2F620

KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU

 1
88710-2F631

KDH20#,TRH200..SG..DX..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2N120

KDH20#,TRH200

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2F680

KDH20#,TRH200..DX..CBU

 1
88717-2F650

KDH20#,TRH200..SG..DX..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

TRH200,21#,22#

 1
88719-33020

KDH20#,211,22#,TRH200,21#,22#

 1
88892X - COVER, COOLER, NO.2
88892-50120

KDH20#,22#,TRH200,21#,22#

 1
Common parts
88688-2F260
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-27030
88718-2F120
88718-2F140
88718-2F161
88718-2F170
88718-2F190
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20512
90091-20609
90091-20619
90091-20801
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
90105-T0194
91553-80614
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
Linked diagrams
8714
8719

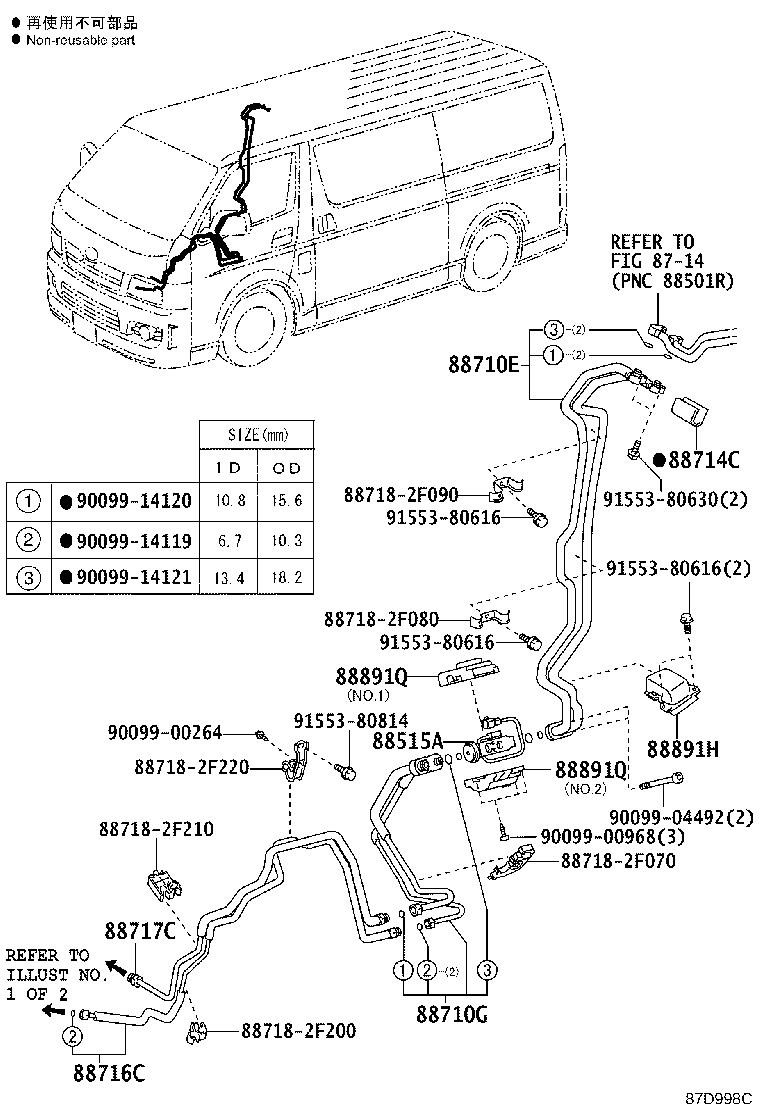

(1312- )TRH200..SRF..SG..4FC,5F ; (1501- )TRH200..SRF..SG..6FC

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 88515A 88710E 88710G 88714C 88716C 88717C 887182F070 887182F080 887182F090 887182F200 887182F210 887182F220 88891H 88891Q 88891Q 9009900264 9009900968 9009904492 9009914119 9009914120 9009914121 9155380616 9155380616 9155380616 9155380630 9155380814
Part # Description Qty Price
Common parts
88718-2F070
88718-2F080
88718-2F090
88718-2F200
88718-2F210
88718-2F220
90099-00264
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
91553-80616
91553-80630
91553-80814
Linked diagrams
8714

(1312-2005)TRH200..4FC,5F..DX..CBU ; (1501-2005)TRH200..6FC..DX..CBU

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F260 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 8871827030 887182F110 887182F120 887182F120 887182F120 887182F140 887182F161 887182F170 887182F250 887182F330 887182F340 887182F350 88719A 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009120801 9009900259 9009914119 9009914120 9009914121 9009914122 90105T0193 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380810 9155380814 9167380618
Part # Description Qty Price
Common parts
88688-2F260
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-27030
88718-2F110
88718-2F120
88718-2F140
88718-2F161
88718-2F170
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20512
90091-20609
90091-20619
90091-20801
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
91673-80618
Linked diagrams
8714
8719

(1312-2005)TRH200..SG..4FC,5F ; (1501-2005)TRH200..SG..6FC

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F260 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 8871827030 887182F120 887182F120 887182F120 887182F140 887182F161 887182F170 887182F250 887182F330 887182F340 887182F350 88719A 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009120801 9009900259 9009914119 9009914120 9009914121 9009914122 90105T0193 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380810 9155380814 9167380618
Part # Description Qty Price
Common parts
88688-2F260
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-27030
88718-2F120
88718-2F140
88718-2F161
88718-2F170
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20512
90091-20609
90091-20619
90091-20801
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
91673-80618
Linked diagrams
8714
8719
