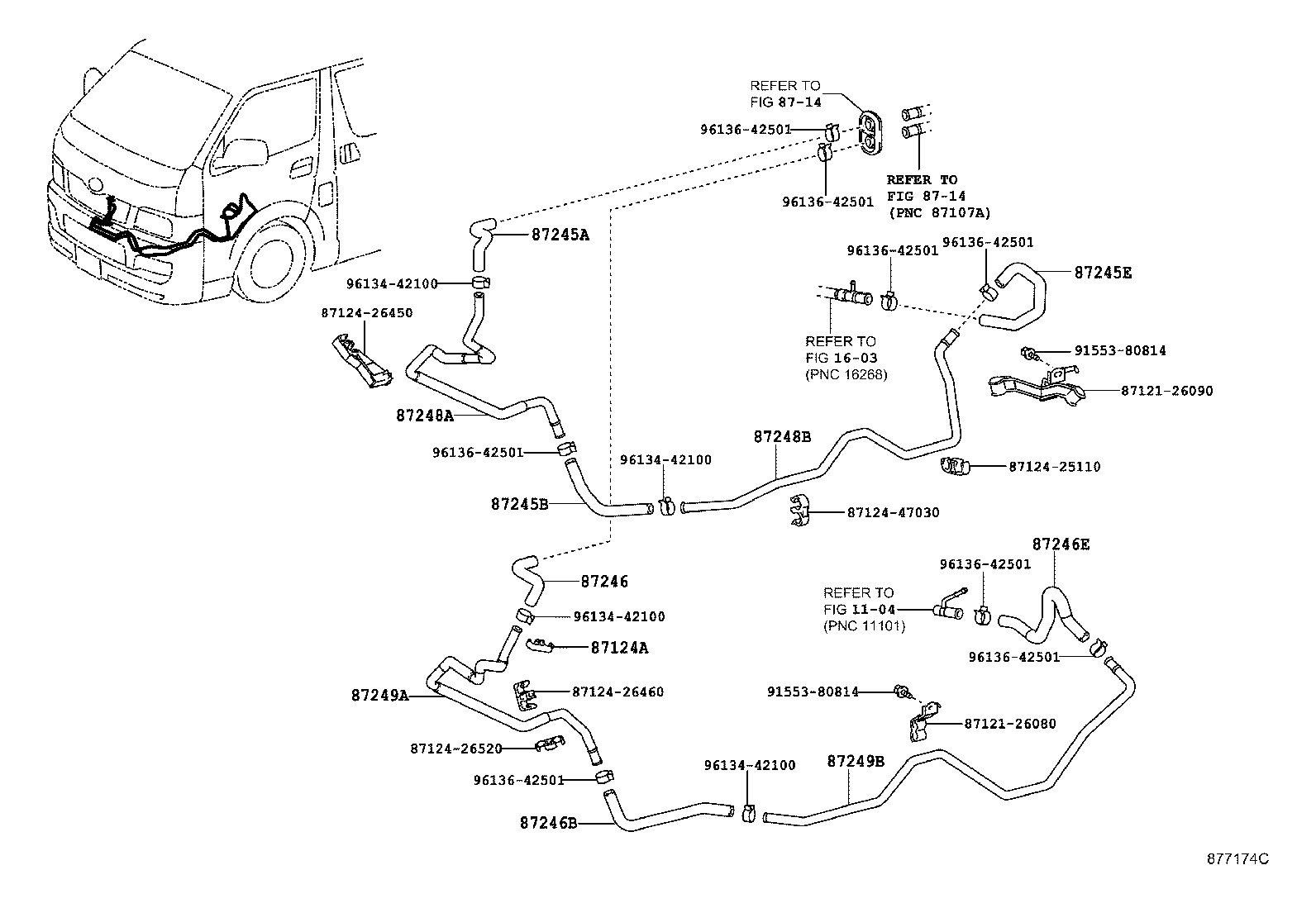

Toyota Hiace/regiusace TRH200 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87124A - CLAMP, HEATER
87124-25110	KDH20#,TRH200	08/2004 - 12/2013	1
87245A - HOSE, HEATER WATER, INLET A
87245-26A90	KDH20#,TRH200	08/2004 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH200	08/2004 - 12/2013	1
87245-26B40	TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87245-26B60	TRH200,21#,22#	08/2004 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D60	KDH20#,TRH200	08/2004 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH200	08/2004 - 12/2013	1
87245-26B50	TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26B70	TRH200,221,226..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26400	KDH20#,TRH200	08/2004 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26460	TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87248-26480	TRH200..DX..CBU	08/2004 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26410	KDH20#,TRH200	08/2004 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26470	TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	08/2004 - 12/2013	1
87248-26490	TRH200..DX..CBU	08/2004 - 12/2013	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

TRH200V-SMPDK (2004)

ILLUST NO. 1 OF 2(0408- )TRH200..SRF..DX ; (0408- )TRH200..V2..HRF ; (0408- )TRH200..HRF..4

(1312-1612)TRH200..4FC,5F..DX..CBU ; (1501-1612)TRH200..6FC..DX..CBU

(1312-1612)TRH200..SG..4FC,5F ; (1312-1612)TRH200..V1..SP..4FC,5F ; (1501-1612)V1..
