TRH200V-SMPDK (2004)
Toyota Hiace/Regiusace
(0408- )V2..06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26A20B0 |
KDH20#..5F;TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A31B0 |
KDH20#..5F;TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A30B0 |
KDH20#..5F;TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A31B2 |
KDH20#..5F;TRH200..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58510-26A32B2 |
KDH20#..5F;TRH200..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
10 | ||
| 64726-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
10 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26310B0 |
KDH20#,TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26311B0 |
KDH20#,TRH200..DX..CBU MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26311B2 |
KDH20#,TRH200..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
2 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26850B0 |
KDH200,TRH200..V2..06S MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26851B0 |
KDH200,TRH200..V2..06S MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26F90B0 |
KDH201,TRH200..V2..06S MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26F90B2 |
KDH201,TRH200..V2..06S DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
9 | ||
| 64726-26010B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
9 | ||
| 58541P - MAT, STEP, RH | ||||
| 58541-26030B0 |
TRH200..V2..06S 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58541-26030B2 |
TRH200..5D..DX;KDH20#..5D..03S 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 58541-26030B0 |
KDH200,TRH200..V2..06S 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58542P - MAT, STEP, LH | ||||
| 58542-26050B0 |
TRH200..V2..06S 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58542-26050B0 |
KDH200,TRH200..V2..06S 寒冷地仕様,MEDIUM GRAY,TRIM1# |
1 | ||
| 58542-26050B2 |
TRH200..V1..SP;KDH20#..V1..03S;TRH200,221,226..SG..(03S,06S,09S)..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用 |
1 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26010 |
KDH20#,211,22#,TRH200,21#,22# ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用 |
6 | ||
| 64779-26020 |
KDH20#,211,22#,TRH200,21#,22# ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用 |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26880B0 |
KDH200,201,TRH200..V2..06S MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D70B0 |
KDH200,201,TRH200..V2..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26880B2 |
KDH201,TRH200..V2..06S DK.GRAY,TRIM1# |
1 | ||
| 58517-26D70B2 |
KDH201,TRH200..V2..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵),DK.GRAY,TRIM1# |
1 | ||
| 58517-26L70B0 |
KDH201,TRH200..V2..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ,DK.GRAY,TRIM1# |
1 | ||
| 58517-26L60B0 |
KDH201,TRH200..V2..06S ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ,DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
TRH224,229;KDH20#,211,22#,TRH200,21#,221,223,226,228..SG..(03S,05S,06S,09S,10S,15S)..CBU MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
TRH229;KDH20#,211,22#,TRH200,21#,221,223,224,226,228..SG..(03S,05S,06S,09S,10S,15S)..CBU DK.GRAY,TRIM1# |
2 | ||
| 58577D - PLATE, REAR FLOOR MAT SUPPORT SIDE, RH | ||||
| 58577-26050 |
KDH200,201,TRH200..V2..06S |
1 | ||
| 58578A - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26060 |
KDH200,201,TRH200..V2..06S |
1 | ||
| 58578E - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26050 |
KDH201,TRH200..V2..06S |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
KDH20#,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67913-26082B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26062B1 |
KDH20#,211,22#,TRH200,21#,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
KDH20#,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67914-26061B0 |
KDH20#,211,22#,TRH200,21#,22# MD.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26070B0 |
KDH200,TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67917-26070B1 |
KDH20#,TRH200..5D..DX 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67917-26070B0 |
TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26070B0 |
KDH200,TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67917-26070B1 |
KDH20#,TRH200..5D..DX 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67917-26070B0 |
TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH200,TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B0 |
TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,221,TRH200,221,226..SG..(03S,06S,09S)..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH200,TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B0 |
TRH200..V2..06S 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,221,TRH200,221,226..SG..(03S,06S,09S)..CBU 寒冷地仕様,DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26140 |
KDH200,201,TRH200..V2..06S |
1 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH205,206..DX..CBU;KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SG..DX..CBU |
6 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93220-A6016 | ||||
| 93560-56014 | ||||
| Linked diagrams | ||||

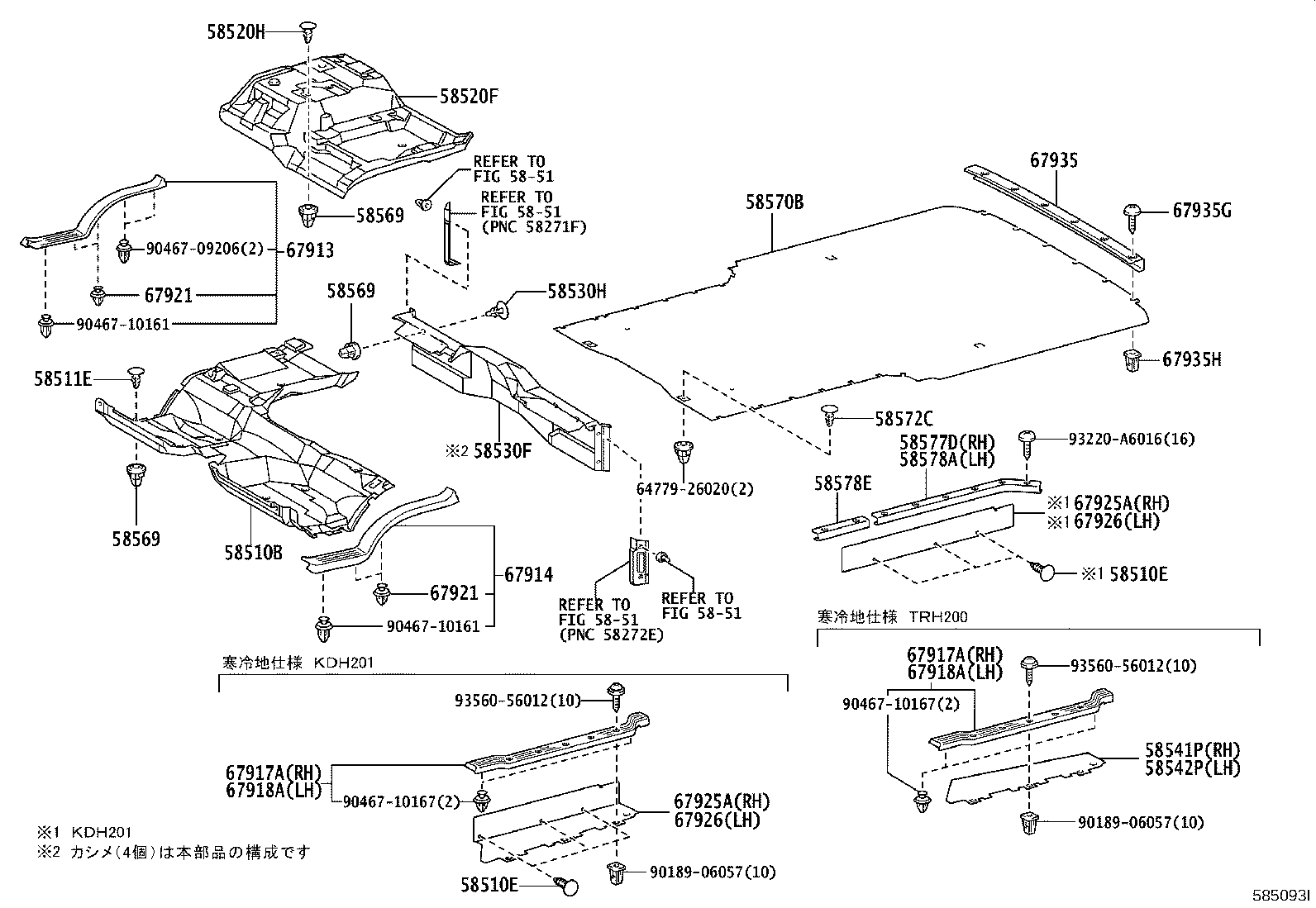

| 5851 | ||||
(1312- )V2..06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93220-A6016 | ||||
| 93560-56012 | ||||
| Linked diagrams | ||||

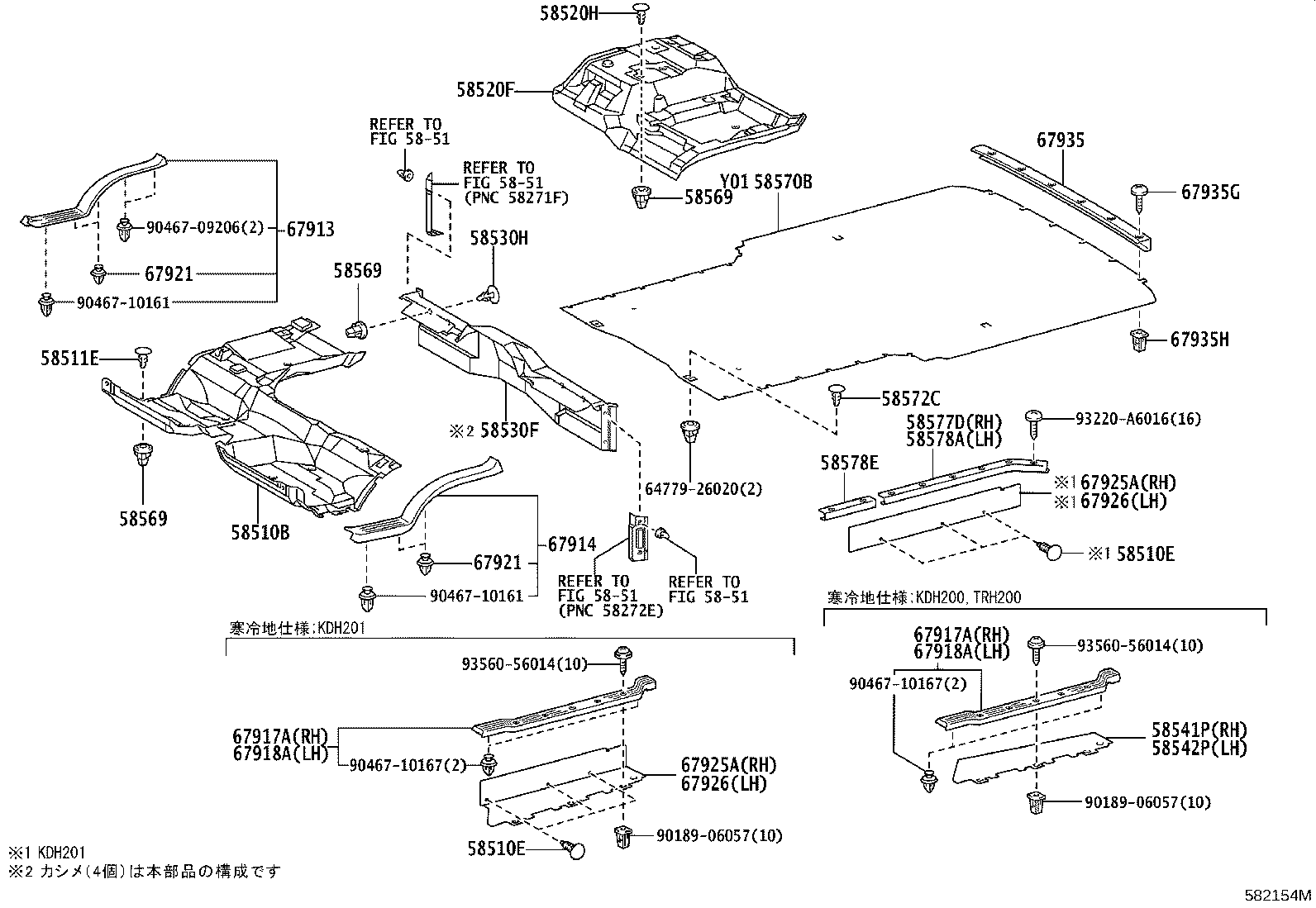

| 5851 | ||||
