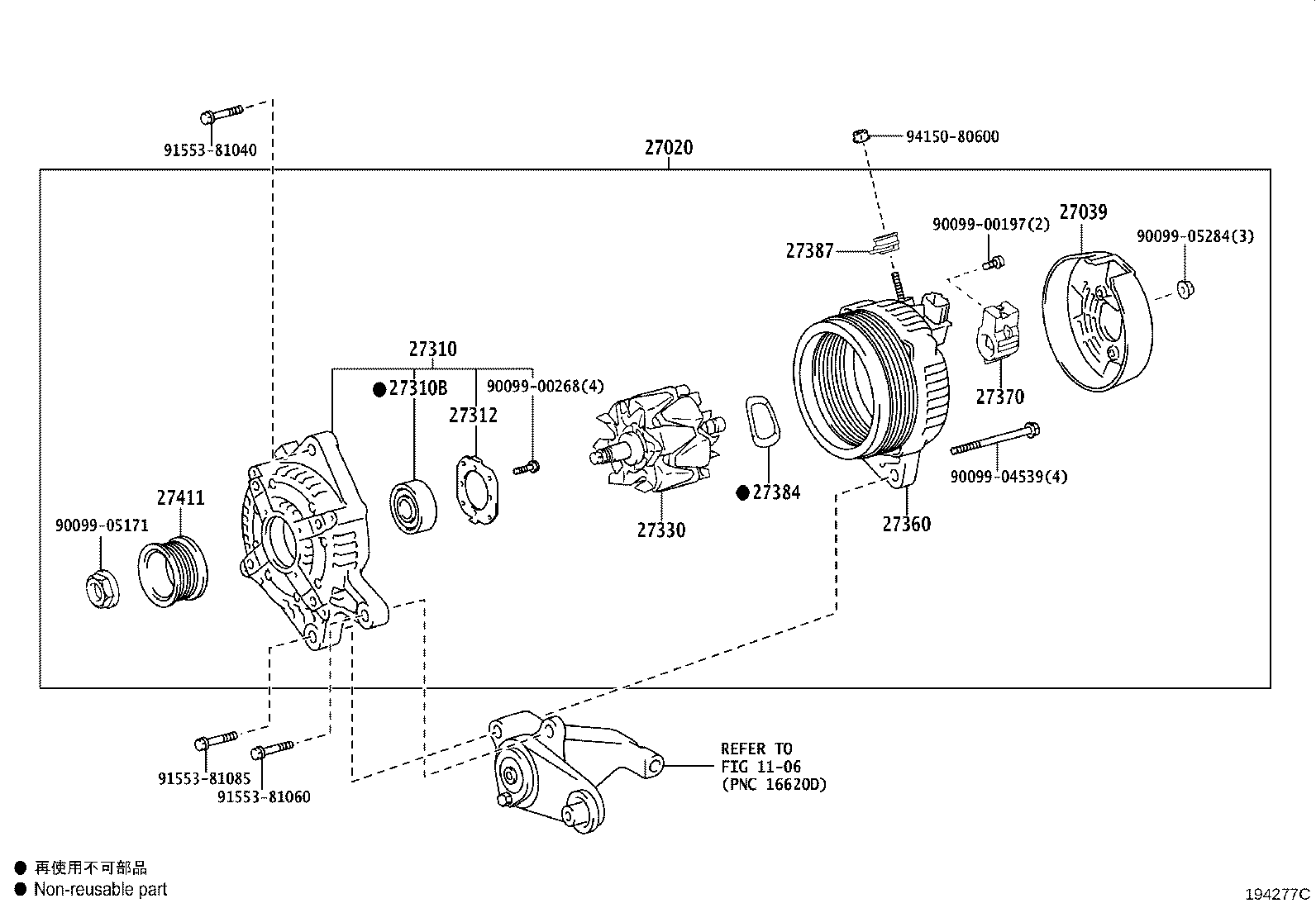

Toyota Hiace/regiusace TRH200 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75330	1TRFE..TRH200..5F 12V 130A	08/2004 - 12/2013	1
27039 - COVER, ALTERNATOR REAR END
27039-27060	1TRFE..TRH200..5F	08/2004 - 06/2009	1
27039-31390	1TRFE,2TRFE..TRH200,21#,22#..(HRF,SMRF,SRF)..CBU	06/2009 - 12/2013	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-75270	1TRFE,2TRFE..TRH200,21#,22#	08/2004 - 12/2013	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223	1TRFE..TRH200..5F;2TRFE..TRH214,219..GL;2TRFE..TRH221,226..SHRF;1TRFE..TRH200..V1..HRF..5D..4FC;1TRFE,2TRFE..TRH200,223,224,228,229..IV5;1KDFTV,2TRFE..KDH201,206,211,221,223,TRH211,216	08/2004 - 12/2013	1
27312 - PLATE, RETAINER
27312-72100	1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
27330 - ROTOR ASSY, ALTERNATOR
27330-33090	1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#	08/2004 - 12/2013	1
27360 - COIL ASSY, ALTERNATOR
27360-75280	1TRFE,2TRFE..TRH200,21#,22#..CBU	08/2004 - 12/2013	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460	1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
27384 - WASHER
27384-50030	1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
27387 - INSULATOR, TERMINAL
27387-20130	1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
27411 - PULLEY, ALTERNATOR
27411-31210	1TRFE..TRH200..5F	08/2004 - 12/2013	1
Common parts
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
91553-81040
91553-81060
91553-81085
94150-80600
Linked diagrams
1106

TRH200V-SFMDK (2004)

(0408- )1TRFE..5F

(1312-1501)1TRFE..5F
