TRH200V-RRMDK (2013)
Toyota Hiace/Regiusace
(1312- )TRH200..SRF..SG..4FC,5F ; (1501- )TRH200..SRF..SG..6FC
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
TRH200..SRF..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88710-26D40 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.1 |
1 | ||
| 88891-26280 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.2 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.1 |
1 | ||
| 88891-26280 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.2 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F090 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80616 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||
(1312- )TRH211,216..4FC ; (1404- )TRH214..4FC..GL ; (1501- )TRH211,216 ; (
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26090 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-2F780 |
TRH200..SRF..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-2F840 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88710-26D40 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-26050 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2N170 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88715-26451 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-26250 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.1 |
1 | ||
| 88891-26280 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.2 |
1 | ||
| 88891Q - COVER, COOLER, NO.2 | ||||
| 88891-26270 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.1 |
1 | ||
| 88891-26280 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,NO.2 |
1 | ||
| Common parts | ||||
| 88718-2F070 | ||||
| 88718-2F080 | ||||
| 88718-2F100 | ||||
| 88718-2F200 | ||||
| 88718-2F210 | ||||
| 88718-2F220 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91553-80616 | ||||
| 91553-80630 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 8714 | ||||

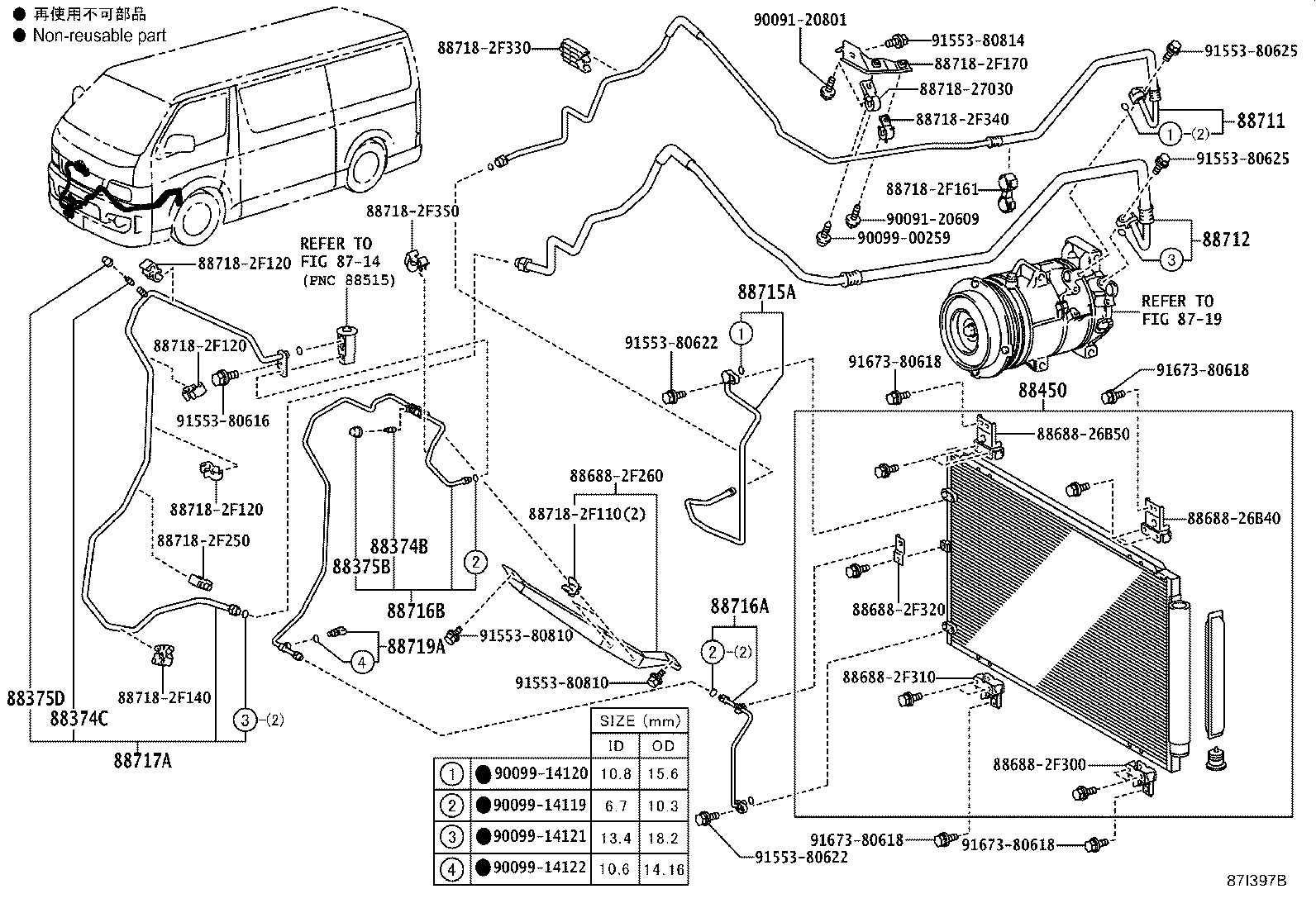

(1312-2005)TRH200..4FC,5F..DX..CBU ; (1501-2005)TRH200..6FC..DX..CBU
ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26150 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450-26120 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F131 |
TRH200..5F |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F150 |
TRH200..5F |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH200..5F |
1 | ||
| 88710-2F631 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N121 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716-2N120 |
KDH20#,TRH200 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F650 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88717-2F680 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 88717-2F681 |
TRH200..5F |
1 | ||
| 88717-2F651 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-27030 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(1312-2005)TRH200..SG..4FC,5F ; (1501-2005)TRH200..SG..6FC
ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26150 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450-26120 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F131 |
TRH200..5F |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F150 |
TRH200..5F |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH200..5F |
1 | ||
| 88710-2F631 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N121 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716-2N120 |
KDH20#,TRH200 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F650 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88717-2F680 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 88717-2F681 |
TRH200..5F |
1 | ||
| 88717-2F651 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| Common parts | ||||
| 88688-2F260 | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-27030 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

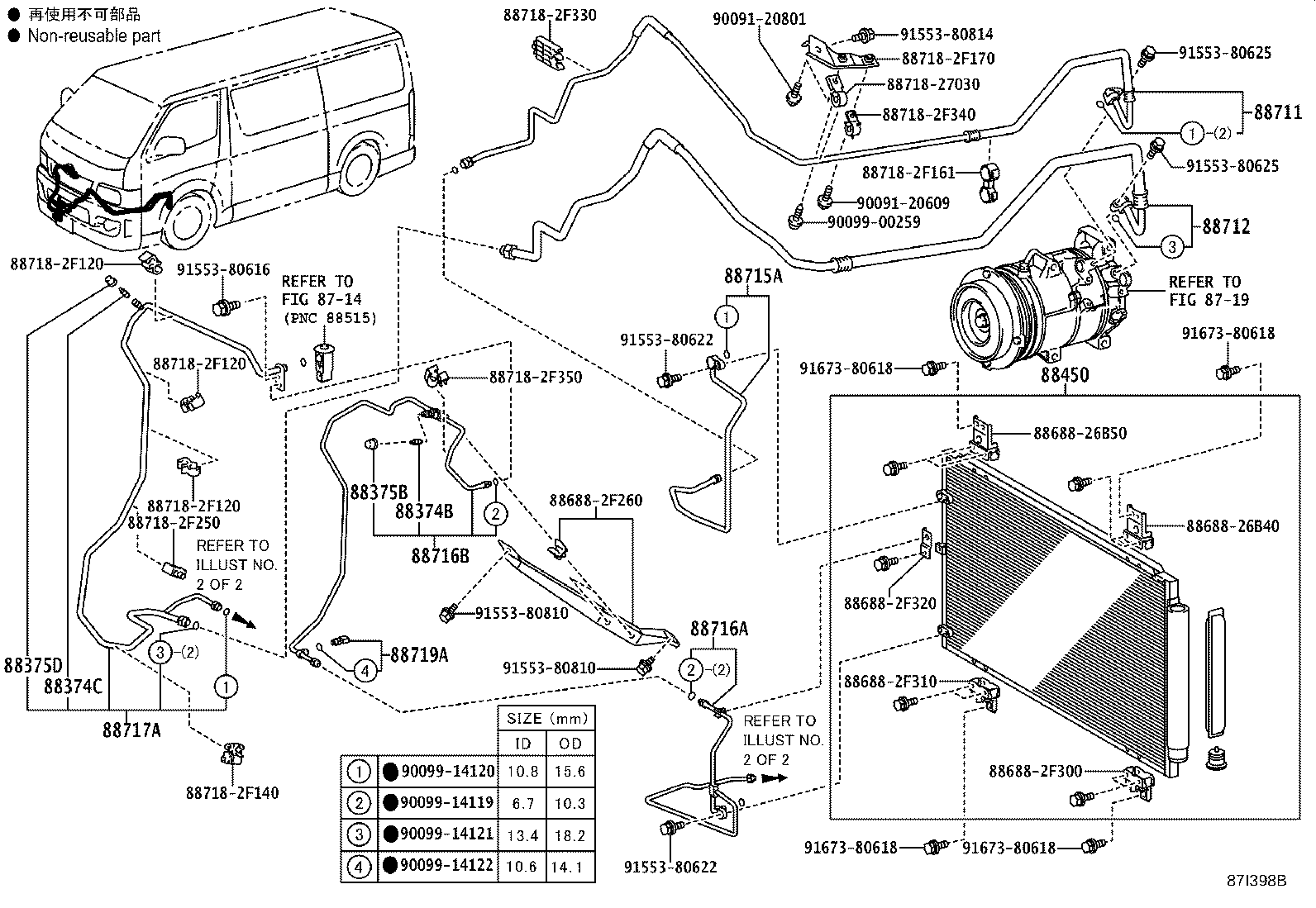

(2005- )TRH200..DX..CBU
ﾌﾛﾝﾄ:ｼﾝｸﾞﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26150 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450-26120 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F131 |
TRH200..5F |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F150 |
TRH200..5F |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH200..5F |
1 | ||
| 88710-2F631 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N121 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716-2N120 |
KDH20#,TRH200 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F650 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88717-2F680 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 88717-2F681 |
TRH200..5F |
1 | ||
| 88717-2F651 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| Common parts | ||||
| 88688-26B40 | ||||
| 88688-26B50 | ||||
| 88688-2F260 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-27030 | ||||
| 88718-2F110 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20609 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(2005- )TRH200..SG
ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26150 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 88450-26120 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F131 |
TRH200..5F |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F150 |
TRH200..5F |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26390 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH200..5F |
1 | ||
| 88710-2F631 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N121 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 88716-2N120 |
KDH20#,TRH200 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F650 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88717-2F680 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 88717-2F681 |
TRH200..5F |
1 | ||
| 88717-2F651 |
TRH200..SG..5F ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| Common parts | ||||
| 88688-26B40 | ||||
| 88688-26B50 | ||||
| 88688-2F260 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-27030 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F161 | ||||
| 88718-2F170 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F340 | ||||
| 88718-2F350 | ||||
| 90091-20609 | ||||
| 90091-20801 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80810 | ||||
| 91553-80814 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
