Toyota Hiace/regiusace TRH200 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
TRH200V-RRMDK (2013)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

TRH200V-RRMDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Sep 9999

Engine 1TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312-1712)TRH224..4FC ; (1312-1712)KDH223,TRH214,219,223,228,229..4FC..CBU ; (1501

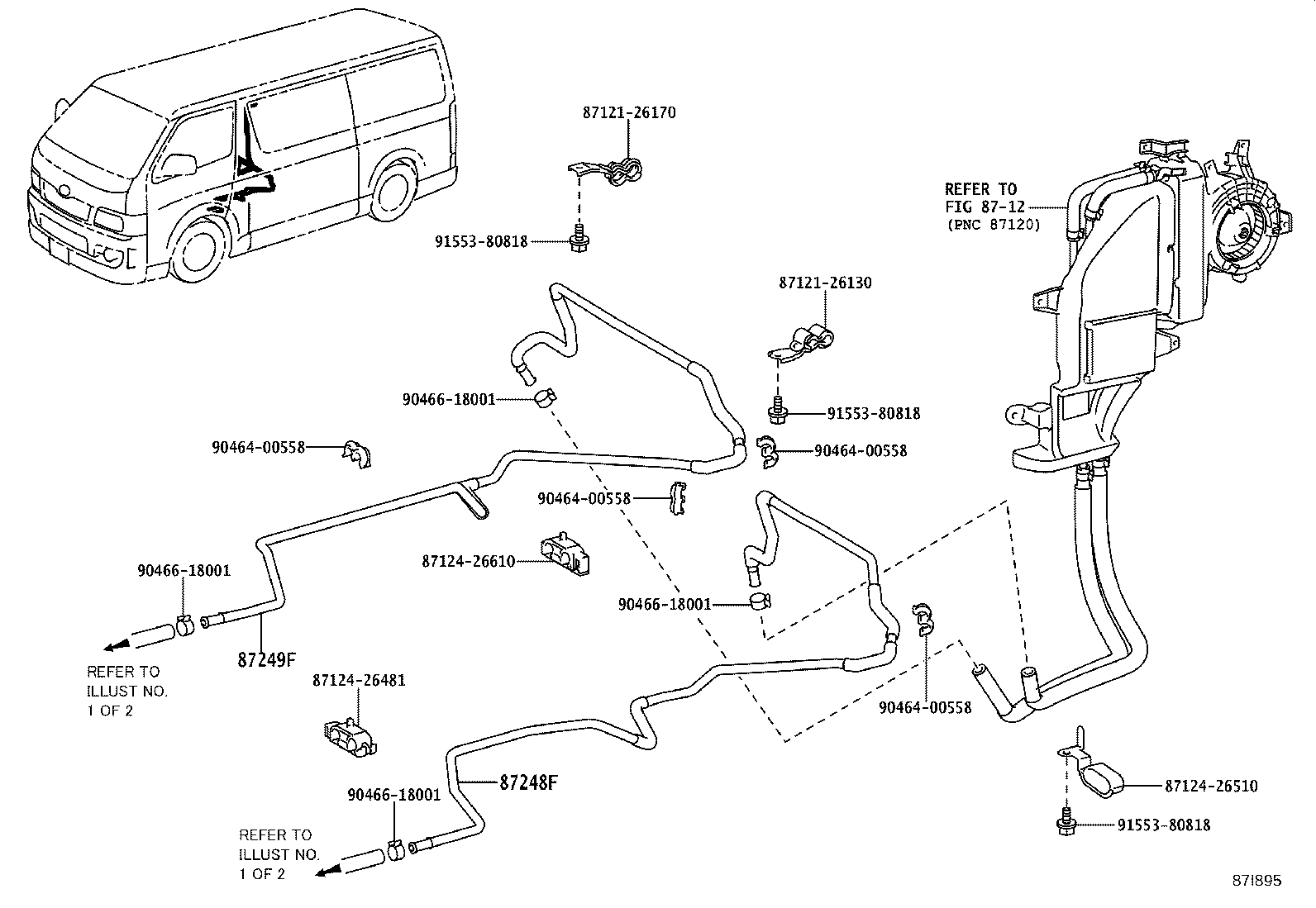

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26890	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26C31	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26C30	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
87248-26C30	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26G50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26A00	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26B90	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26B91	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26A40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87248-26B90	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

(1312-1712)KDH211,221,TRH211,216,221,226..4FC ;(1501-1712)TRH211,216,221,226 ; (15

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26890	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26C31	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26C30	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
87248-26C30	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26G50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26A00	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26B90	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26B91	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26A40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87248-26B90	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
Common parts
87121-26130
87121-26140
87124-26481
87124-26510
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

(1312-1612)TRH200..4FC,5F..DX..CBU ; (1501-1612)TRH200..6FC..DX..CBU

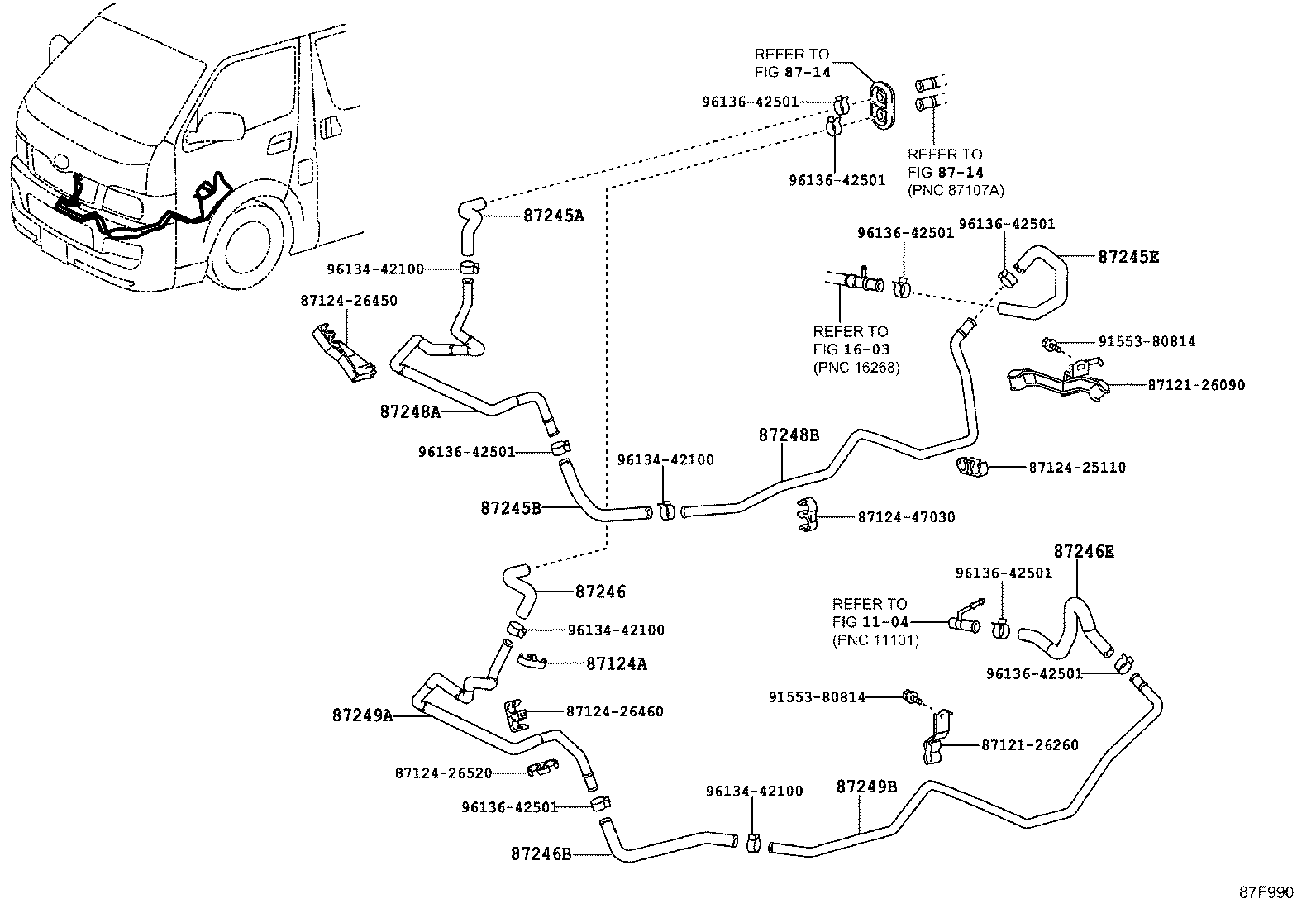

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87124A - CLAMP, HEATER
87124-25110	TRH200..5F;GDH201..IV5	12/2013 - 07/2021	1
87245A - HOSE, HEATER WATER, INLET A
87245-26A90	TRH200..5F	12/2013 - 07/2021	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH200..5F	12/2013 - 07/2021	1
87245-26B40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200..5F	12/2013 - 07/2021	1
87245-26B60	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D60	TRH200..5F	12/2013 - 07/2021	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH200..5F	12/2013 - 07/2021	1
87245-26B50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245-26B70	TRH200..5F	12/2013 - 07/2021	1
87248A - PIPE, HEATER WATER INLET, A
87248-26400	TRH200..5F	12/2013 - 07/2021	1
87248B - PIPE, HEATER WATER INLET, B
87248-26480	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26460	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A80	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B00	TRH200..5F	01/2017 - 07/2021	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26410	TRH200..5F	12/2013 - 07/2021	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26470	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A90	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B10	TRH200..5F	01/2017 - 07/2021	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1312-1612)TRH200..SG..4FC,5F ; (1312-1612)TRH200..V1..SP..4FC,5F ; (1501-1612)V1..

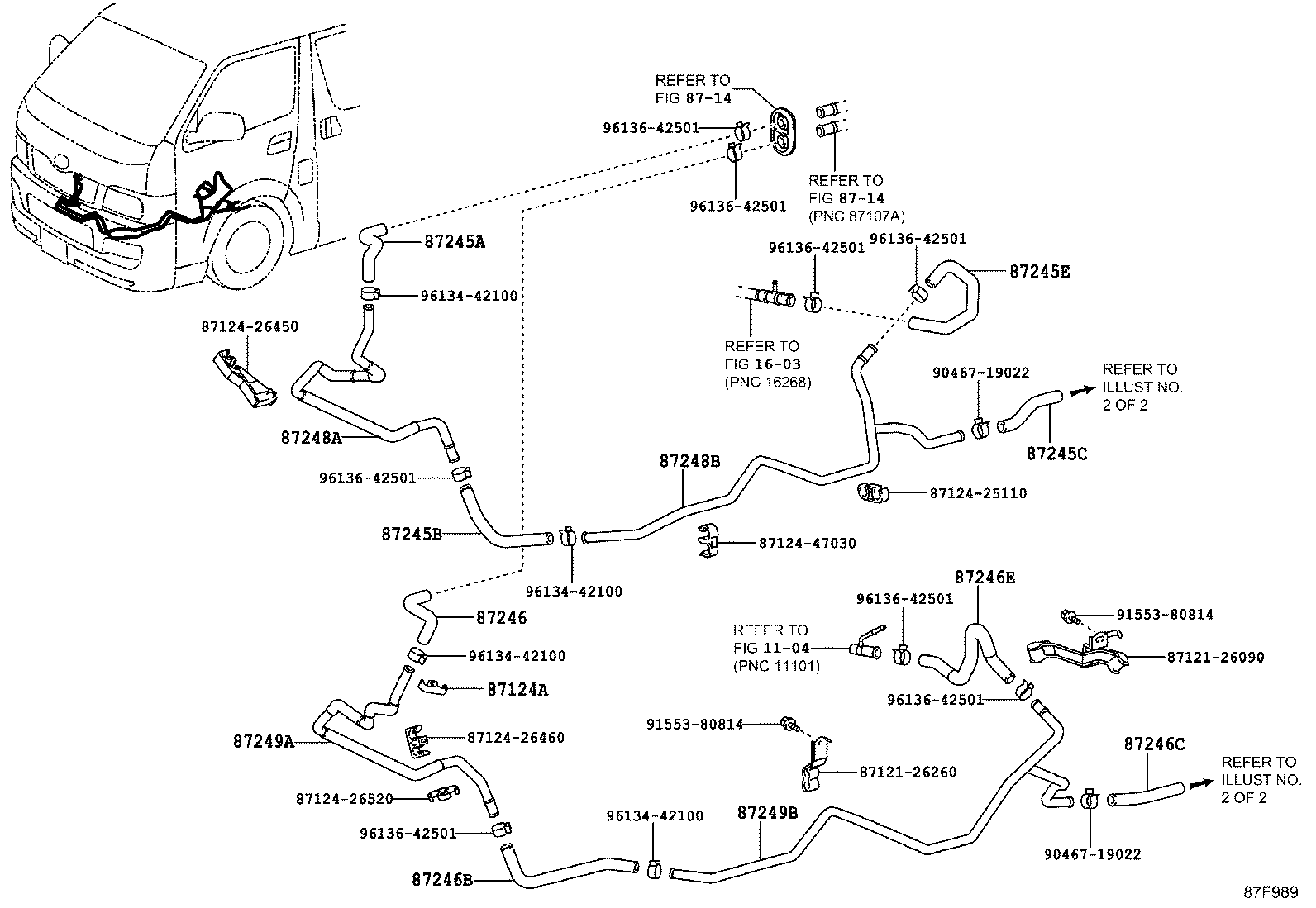

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty
87124A - CLAMP, HEATER
87124-25110	TRH200..5F;GDH201..IV5	12/2013 - 07/2021	1
87245A - HOSE, HEATER WATER, INLET A
87245-26A90	TRH200..5F	12/2013 - 07/2021	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH200..5F	12/2013 - 07/2021	1
87245-26B40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180	TRH200..(06S,09S)..5F *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200..5F	12/2013 - 07/2021	1
87245-26B60	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D60	TRH200..5F	12/2013 - 07/2021	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH200..5F	12/2013 - 07/2021	1
87245-26B50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220	TRH200..(06S,09S)..5F *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245-26B70	TRH200..5F	12/2013 - 07/2021	1
87248A - PIPE, HEATER WATER INLET, A
87248-26400	TRH200..5F	12/2013 - 07/2021	1
87248B - PIPE, HEATER WATER INLET, B
87248-26480	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26460	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A80	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B00	TRH200..5F	01/2017 - 07/2021	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26410	TRH200..5F	12/2013 - 07/2021	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26470	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A90	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B10	TRH200..5F	01/2017 - 07/2021	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1612- )TRH200..SG ; (1612- )TRH200..V1..SP

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty
87124A - CLAMP, HEATER
87124-25110	TRH200..5F;GDH201..IV5	12/2013 - 07/2021	1
87245A - HOSE, HEATER WATER, INLET A
87245-26A90	TRH200..5F	12/2013 - 07/2021	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH200..5F	12/2013 - 07/2021	1
87245-26B40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180	TRH200..(06S,09S)..5F *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200..5F	12/2013 - 07/2021	1
87245-26B60	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D60	TRH200..5F	12/2013 - 07/2021	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH200..5F	12/2013 - 07/2021	1
87245-26B50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220	TRH200..(06S,09S)..5F *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245-26B70	TRH200..5F	12/2013 - 07/2021	1
87248A - PIPE, HEATER WATER INLET, A
87248-26400	TRH200..5F	12/2013 - 07/2021	1
87248B - PIPE, HEATER WATER INLET, B
87248-26480	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26460	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A80	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B00	TRH200..5F	01/2017 - 07/2021	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26410	TRH200..5F	12/2013 - 07/2021	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26470	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A90	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B10	TRH200..5F	01/2017 - 07/2021	1
Common parts
87121-26090
87121-26260
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1612- )TRH200..DX..CBU

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87124A - CLAMP, HEATER
87124-25110	TRH200..5F;GDH201..IV5	12/2013 - 07/2021	1
87245A - HOSE, HEATER WATER, INLET A
87245-26A90	TRH200..5F	12/2013 - 07/2021	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH200..5F	12/2013 - 07/2021	1
87245-26B40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200..5F	12/2013 - 07/2021	1
87245-26B60	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D60	TRH200..5F	12/2013 - 07/2021	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH200..5F	12/2013 - 07/2021	1
87245-26B50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 07/2021	1
87245-26B70	TRH200..5F	12/2013 - 07/2021	1
87248A - PIPE, HEATER WATER INLET, A
87248-26400	TRH200..5F	12/2013 - 07/2021	1
87248B - PIPE, HEATER WATER INLET, B
87248-26480	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26460	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A80	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B00	TRH200..5F	01/2017 - 07/2021	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26410	TRH200..5F	12/2013 - 07/2021	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH200..DX..CBU	12/2013 - 01/2017	1
87248-26470	TRH200..06S,09S;TRH200..V1..03S..4FC..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 01/2017	1
87248-26A90	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	01/2017 - 07/2021	1
87248-26B10	TRH200..5F	01/2017 - 07/2021	1
Common parts
87121-26090
87121-26260
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1404- )TRH214..4FC..GL ; (1609- )TRH224,229 ; (1712-2005)GDH206..CBU ; (1712

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26890	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26C31	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26C30	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
87248-26C30	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26G50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26A00	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26B90	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26B91	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26A40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87248-26B90	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
Common parts
87121-26130
87121-26170
87121-26290
87124-26481
87124-26510
87124-26610
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

(2005- )GDH206..CBU ; (2005- )GDH201,TRH200..V1..SP ; (2005- )GDH201,TRH20

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26890	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26C31	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26C30	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
87248-26C30	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26G50	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26A00	KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2013 - 12/2017	1
87248-26B90	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	12/2017 - 09/2018	1
87248-26B91	GDH206..DX..CBU;GDH201,TRH200..V1..SP;GDH201,TRH200..SG..DX..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	09/2018 - 10/2018	1
87248-26A40	TRH200..(06S,09S)..5F ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	05/2020 - 07/2021	1
87248-26B90	GDH20#,TRH200..06S,09S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)	10/2018 - 05/2020	1
Common parts
87121-26130
87121-26170
87124-26481
87124-26510
87124-26610
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

TRH200V-RRMDK (2013)

(1312-1712)TRH224..4FC ; (1312-1712)KDH223,TRH214,219,223,228,229..4FC..CBU ; (1501

(1312-1712)KDH211,221,TRH211,216,221,226..4FC ;(1501-1712)TRH211,216,221,226 ; (15

(1312-1612)TRH200..4FC,5F..DX..CBU ; (1501-1612)TRH200..6FC..DX..CBU

(1312-1612)TRH200..SG..4FC,5F ; (1312-1612)TRH200..V1..SP..4FC,5F ; (1501-1612)V1..

(1612- )TRH200..SG ; (1612- )TRH200..V1..SP

(1612- )TRH200..DX..CBU

(1404- )TRH214..4FC..GL ; (1609- )TRH224,229 ; (1712-2005)GDH206..CBU ; (1712

(2005- )GDH206..CBU ; (2005- )GDH201,TRH200..V1..SP ; (2005- )GDH201,TRH20

Part Price Details
