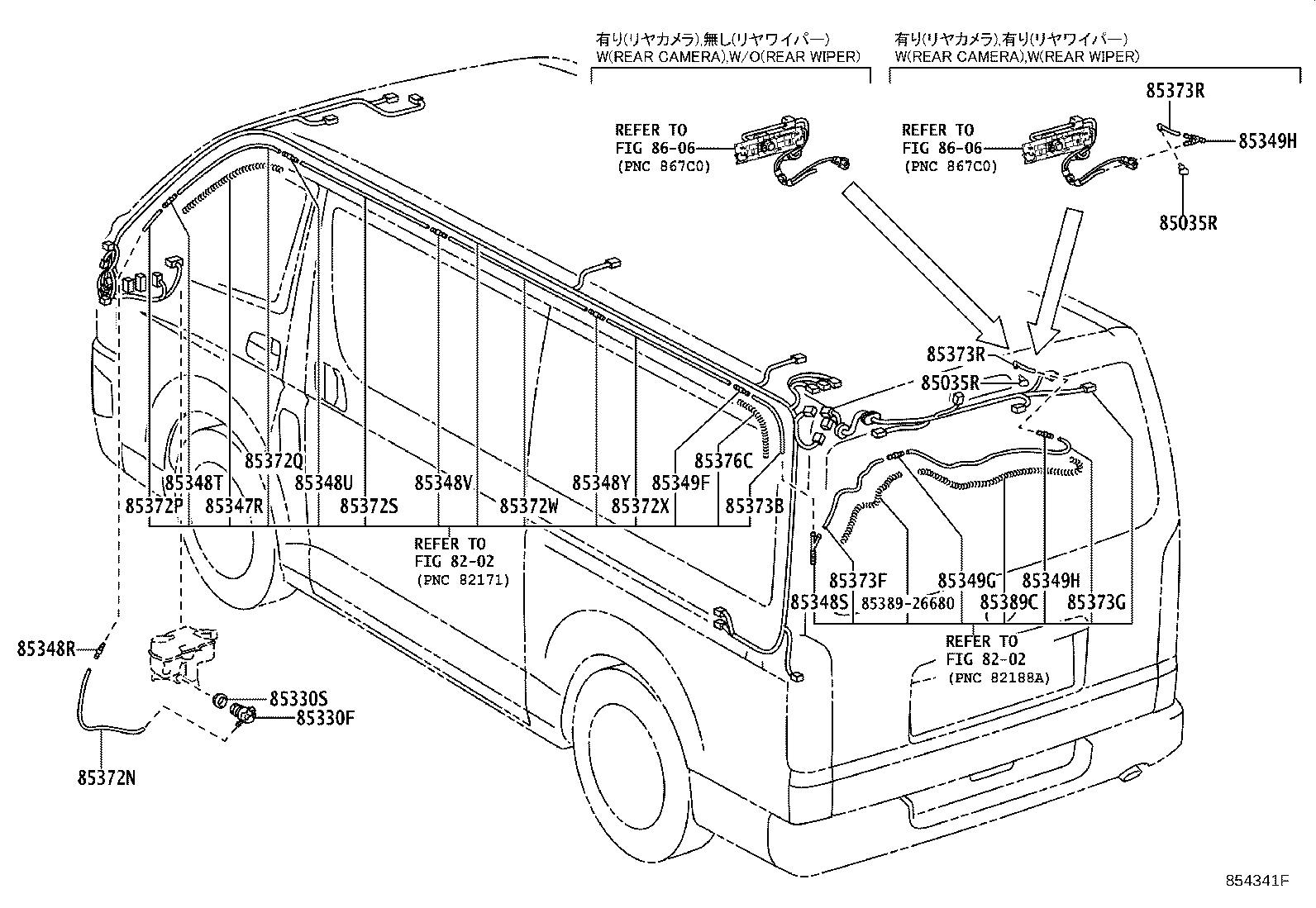

TRH200V-RRMDK (2013)
Toyota Hiace/Regiusace
(1312-2005)HRF,SMRF..4FC,5F..CBU,IV5,IV6 ; (1501-2005)TRH214,219..4D ; (1501-2005)T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85391-26050 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85330-60160 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85330-26030 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85330-26030 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85336-60300 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85349-32150 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85349-32150 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-26280 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85377-26280 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85349J - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
GDH20#,TRH200,224..HRF..(03S,10S)..6FC;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..(02S,05S,06S,09S,10S,14S)..(5F,6FC)..(CBU,IV5,IV6) |
1 | ||
| 85349-89122 |
GDH20#,TRH200,224..HRF..(03S,10S)..6FC;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..(02S,05S,06S,09S,10S,14S)..(5F,6FC)..(CBU,IV5,IV6) |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85349-89122 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62086 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S 長さ=260 |
1 | ||
| 90099-62086 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S 長さ=260 |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=300,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=300,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=300,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=300,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=260 |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=260 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62105 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) 長さ=90 |
1 | ||
| 90099-62105 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) 長さ=90 |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=90 |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=90 |
1 | ||
| 90099-33080 |
GDH201..IV5;TRH200..(06S,09S)..5F *H,L=90,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
GDH201..IV5;TRH200..(06S,09S)..5F *H,L=90,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
GDH201..IV5;TRH200..(06S,09S)..5F *H,L=90,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
GDH201..IV5;TRH200..(06S,09S)..5F *H,L=90,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020 |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040 |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040 |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020 |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020 |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62092 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) 長さ=400 |
1 | ||
| 90099-62092 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) 長さ=400 |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400 |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400 |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430 |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430 |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85373G - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9 | ||||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800 |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800 |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85373H - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10 | ||||
| 90099-33080 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=430 |
1 | ||
| 90099-33080 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=430 |
1 | ||
| 85373J - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11 | ||||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=630 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=630 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=90 |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=90 |
1 | ||
(2005- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26050 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85330-26030 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 85336-60300 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85347R - SPRING | ||||
| 85389-26270 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-26280 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GDH201,223..IV5;TRH200..(06S,09S)..5F |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85378-33410 |
GDH201,223..IV5;TRH200..(06S,09S)..5F ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62086 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S 長さ=260 |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=300,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=300,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=260 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62105 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) 長さ=90 |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=90 |
1 | ||
| 90099-33080 |
GDH201..IV5;TRH200..(06S,09S)..5F *H,L=90,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33080 |
GDH201..IV5;TRH200..(06S,09S)..5F *H,L=90,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040 |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 90099-62104 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1040,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020 |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62232 |
GDH201,223..IV5;TRH200..(06S,09S)..5F 長さ=1020,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90446-07001 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) *H,L=1020 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62092 |
GDH20#,KDH20#,TRH200..SRF..(05S,06S,09S) 長さ=400 |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-33299 |
TRH200..SRF..(06S,09S)..5F *H,L=400 |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430 |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 90099-33080 |
TRH200..SRF..(06S,09S)..5F *H,L=430,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 85373G - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9 | ||||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800 |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 90099-62228 |
TRH200..SRF..(06S,09S)..5F 長さ=800,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ) |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=90 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDH201,223..IV5;TRH200..(06S,09S)..5F *H,L=90 |
1 | ||
| 85376C - SPRING, WASHER HOSE | ||||
| 85389-26300 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-26630 |
TRH200..SRF..(06S,09S)..5F |
1 | ||
| Common parts | ||||
| 85389-26680 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
