TRH200V-RRMDK (2013)
Toyota Hiace/Regiusace
(1312-2005)GDH20#,KDH20#,TRH200

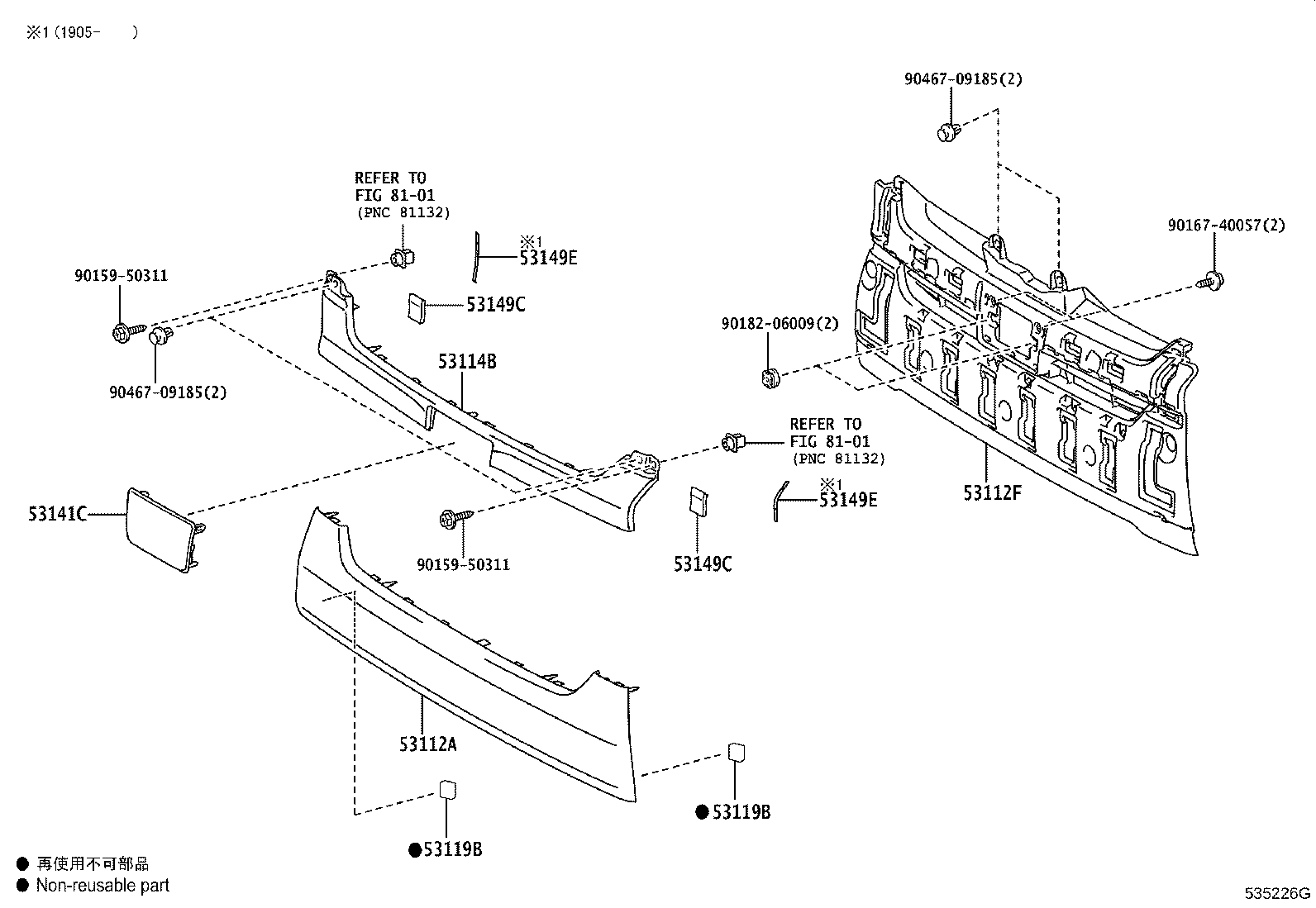

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53111-26530 |
GDH20#,KDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26510 |
GDH20#,KDH20#,TRH200..DX |
1 | ||
| 53111-26530 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26790 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26790 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26770 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-26090 |
TRH200..SG..(5F,6FC);TRH200..V1..SP..(5F,6FC) |
1 | ||
| 53112-26110 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
1 | ||
| 53112-26090 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26150 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53112-26090 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53111-26500 |
TRH200..SG..(5F,6FC)..DX;TRH200..V1..SP..(5F,6FC) |
1 | ||
| 53111-26520 |
KDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26520 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26500 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26760 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53111-26610 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26780 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26600 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP |
1 | ||
| 53111-26780 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90467-09185 | ||||
| Linked diagrams | ||||
| 8101 | ||||
(1712-2005)GDH206 ; (1712-2005)GDH201,TRH200..SG; (1712-2005)GDH201,TRH200..V1..SP
ｱﾘ(ﾖﾎﾞｳｱﾝｾﾞﾝﾊﾟｯｹｰｼﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53111-26530 |
GDH20#,KDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26510 |
GDH20#,KDH20#,TRH200..DX |
1 | ||
| 53111-26530 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26790 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26790 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26770 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-26090 |
TRH200..SG..(5F,6FC);TRH200..V1..SP..(5F,6FC) |
1 | ||
| 53112-26110 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
1 | ||
| 53112-26090 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26150 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53112-26090 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53111-26500 |
TRH200..SG..(5F,6FC)..DX;TRH200..V1..SP..(5F,6FC) |
1 | ||
| 53111-26520 |
KDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26520 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26500 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26760 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53111-26610 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26780 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26600 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP |
1 | ||
| 53111-26780 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-26080 |
TRH200..5F;GDH201..IV5 |
2 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-26080 |
TRH200..5F;GDH201..IV5 |
2 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-26050 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP |
1 | ||
| 53141-26110 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 53142-26030 |
TRH200..5F;GDH201..IV5 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53142-26030 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53141-26060 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53149C - PROTECTOR, RADIATOR GRILLE, NO.2 | ||||
| 53149-26010 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
2 | ||
| 53149C - PROTECTOR, RADIATOR GRILLE, NO.2 | ||||
| 53149-26010 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
2 | ||
| 53149E - PROTECTOR, RADIATOR GRILLE | ||||
| 53149-26020 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
2 | ||
| 53149E - PROTECTOR, RADIATOR GRILLE | ||||
| 53149-26020 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90182-06009 | ||||
| 90467-09185 | ||||
| Linked diagrams | ||||
| 8101 | ||||

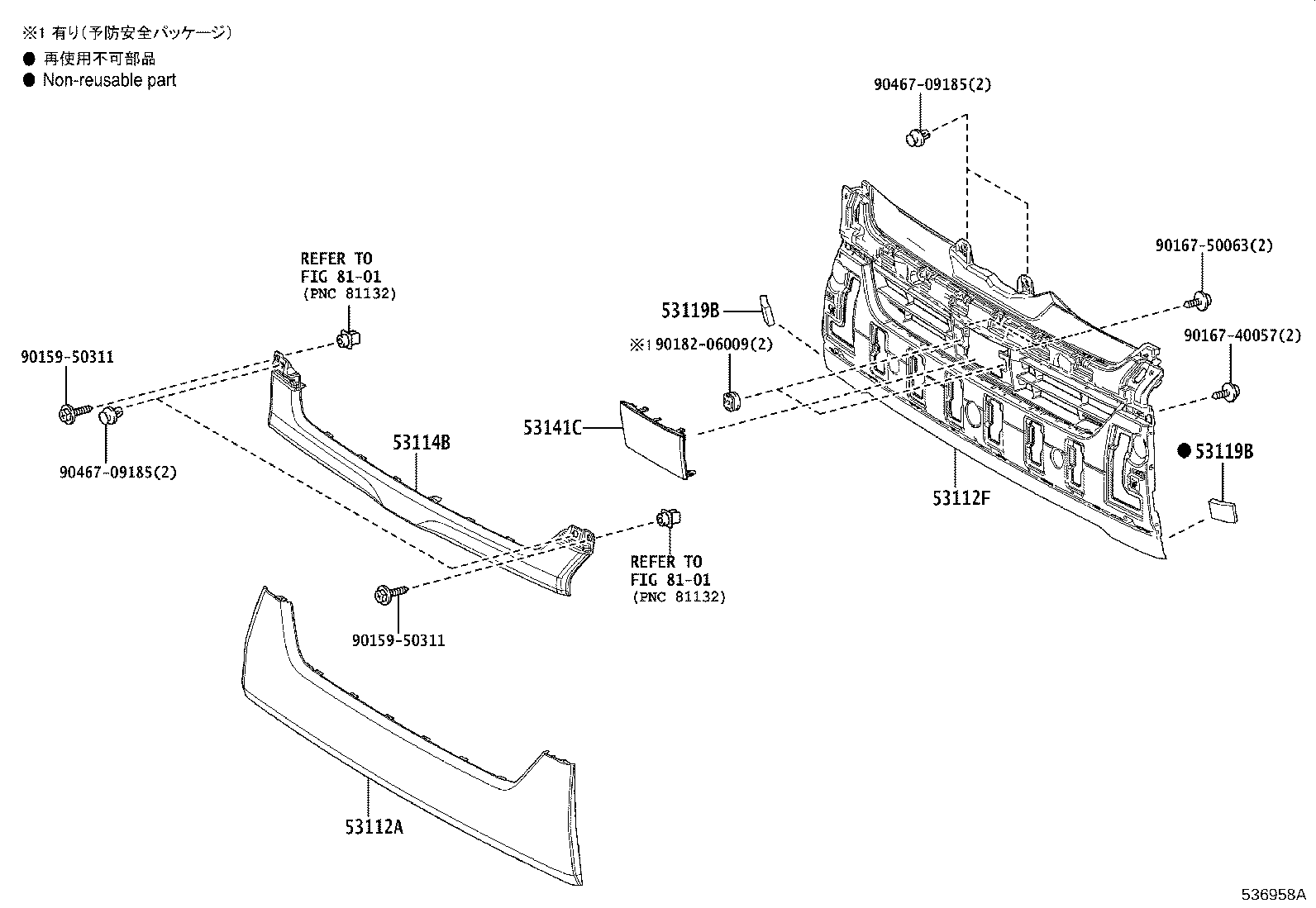

(2005- )GDH20#,TRH200
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53111-26530 |
GDH20#,KDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26510 |
GDH20#,KDH20#,TRH200..DX |
1 | ||
| 53111-26530 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26790 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26790 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26770 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53112F - GRILLE, RADIATOR, INSIDE | ||||
| 53112-26090 |
TRH200..SG..(5F,6FC);TRH200..V1..SP..(5F,6FC) |
1 | ||
| 53112-26110 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP |
1 | ||
| 53112-26090 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53112-26150 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53112-26090 |
GDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53111-26500 |
TRH200..SG..(5F,6FC)..DX;TRH200..V1..SP..(5F,6FC) |
1 | ||
| 53111-26520 |
KDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26520 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26500 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26760 |
TRH200..5F;GDH201..IV5 |
1 | ||
| 53111-26610 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53111-26780 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53111-26600 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP |
1 | ||
| 53111-26780 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-26080 |
TRH200..5F;GDH201..IV5 |
2 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-26080 |
TRH200..5F;GDH201..IV5 |
2 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-26050 |
GDH206..DX;GDH201,TRH200..SG..DX;GDH201,TRH200..V1..SP |
1 | ||
| 53141-26110 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 53142-26030 |
TRH200..5F;GDH201..IV5 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53142-26030 |
TRH200..(06S,09S)..5F GLﾊﾟｯｹｰｼﾞ&予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 53141-26060 |
GDH20#,TRH200..06S,09S GLﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90182-06009 | ||||
| 90467-09185 | ||||
| Linked diagrams | ||||
| 8101 | ||||
