TRH200V-RRMDK (2013)
Toyota Hiace/Regiusace
(1312- )TRH200..5F
G55

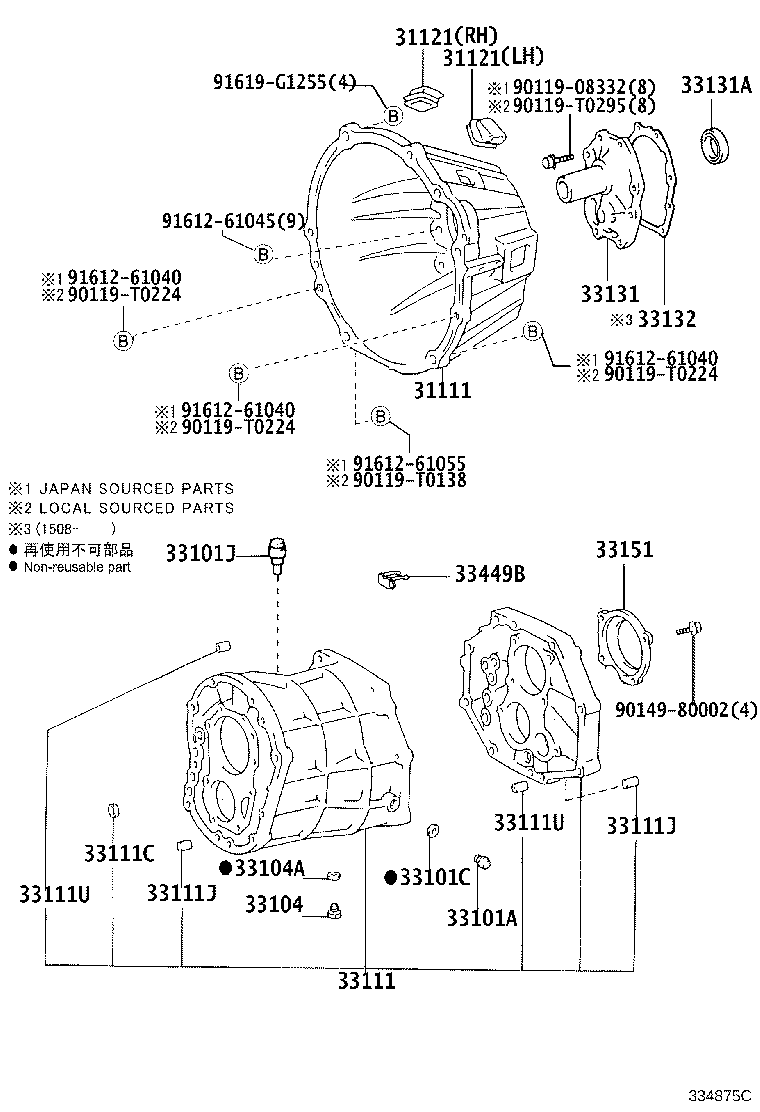

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K030 |
TRH200..5F |
1 | ||
| 31111-26032 |
TRH200..5F |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-0K030 |
TRH200..5F 左側 |
1 | ||
| 31121-26020 |
TRH200..5F 左側 |
1 | ||
| 31121-35020 |
TRH200..5F 右側 |
1 | ||
| 31121-0K040 |
TRH200..5F 右側 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-0K030 |
TRH200..5F 左側 |
1 | ||
| 31121-26020 |
TRH200..5F 左側 |
1 | ||
| 31121-35020 |
TRH200..5F 右側 |
1 | ||
| 31121-0K040 |
TRH200..5F 右側 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TRH200..5F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
TRH200..5F |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
KDH20#,TRH200..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18032 |
TRH200..5F |
1 | ||
| 90341-18057 |
TRH200..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
TRH200..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0L010 |
TRH200..5F TYPE D:FIG33−01参照 |
1 | ||
| 33101-26060 |
TRH200..5F TYPE A:FIG33−01参照 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TRH200..5F 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
TRH200..5F 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
TRH200..5F 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KDH20#,TRH200..5F 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
TRH200..5F 長さ=14,外径=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KDH20#,TRH200..5F 長さ=11,外径=11 |
2 | ||
| 90253-15001 |
TRH200..5F 長さ=14,外径=15 |
2 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-0K030 |
TRH200..5F TYPE D:FIG33−01参照 |
1 | ||
| 33131-26020 |
TRH200..5F TYPE A:FIG33−01参照 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0021 |
TRH200..5F TYPE D:FIG33−01参照 |
1 | ||
| 90311-30014 |
TRH200..5F TYPE A:FIG33−01参照 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
TRH200..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
TRH200..5F TYPE A:FIG33−01参照 |
1 | ||
| 33151-0K020 |
TRH200..5F TYPE D:FIG33−01参照 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
TRH200..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0224 | ||||
| 90119-T0295 | ||||
| 90149-80002 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91612-61055 | ||||
| 91619-G1255 | ||||
