TRH200V-RKPDK (2004)
Toyota Hiace/Regiusace

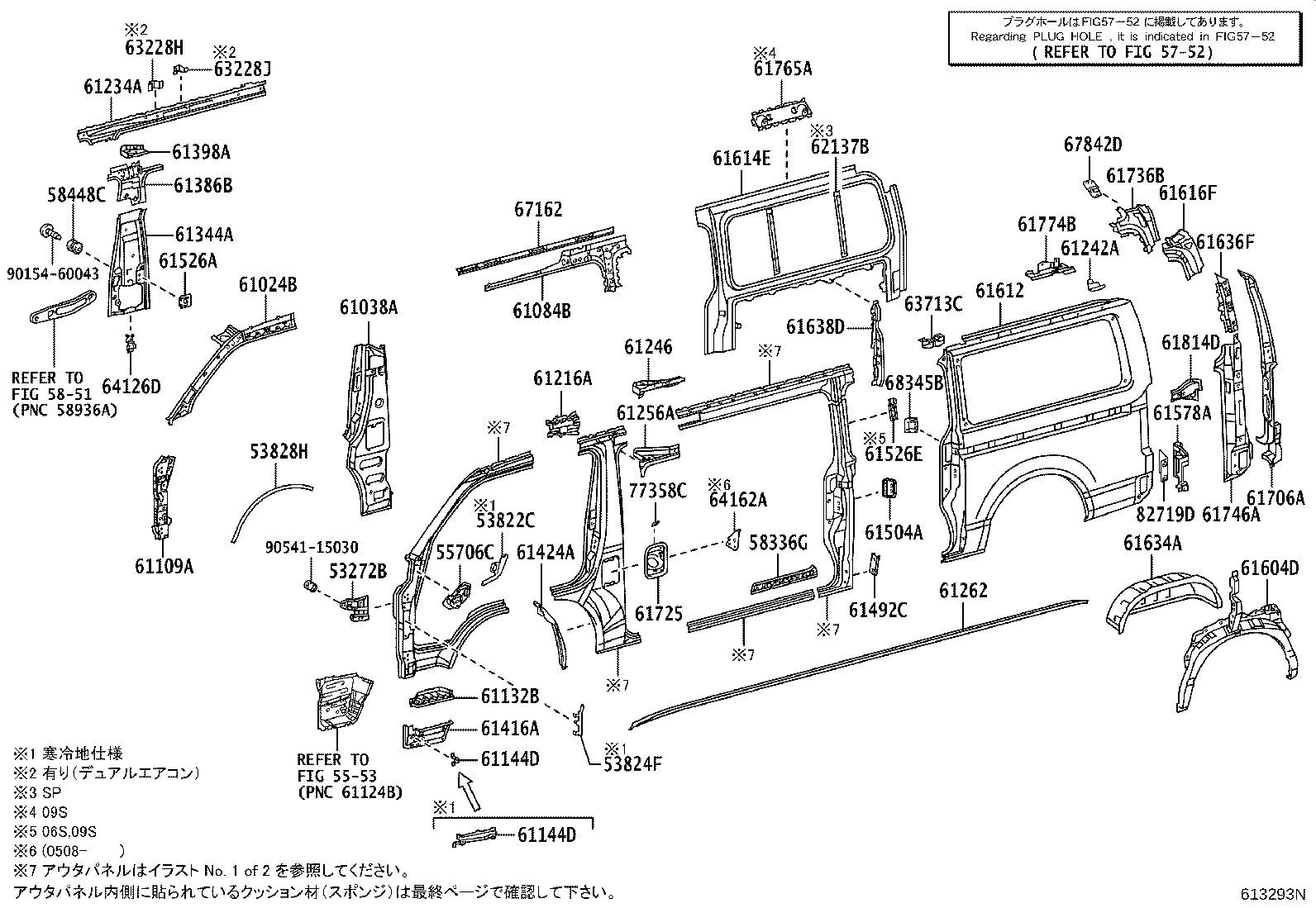

ILLUST NO. 2 OF 2(0408- )SRF..4D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53822C - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53822-26020 |
KDH20#,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53822-26021 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53824F - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-26011 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53824-26010 |
KDH20#,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
KDH20#,211,22#,TRH200,21#,22# LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26150 |
KDH20#,TRH200 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
KDH20#,TRH200..03S |
1 | ||
| 61038-26060 |
KDH20#,TRH200..03S |
1 | ||
| 61038-26010 |
KDH20#,TRH200..03S 寒冷地仕様 |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26060 |
KDH20#,211,TRH200,21# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26120 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 61132-26121 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61144-26011 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61144-26011 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26020 |
KDH20#,211,TRH200,21# |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26270 |
KDH20#,TRH200..(03S,06S)..CBU |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26030 |
KDH20#,211,TRH200,21# |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-26020 |
KDH20#,211,TRH200,21# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26020 |
KDH20#,TRH200,21# |
1 | ||
| 61262-26021 |
KDH20#,211,TRH200,21# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26320 |
KDH20#,TRH200..SRF..DX |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26060 |
KDH20#,211,TRH200,21# |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26021 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61416-26020 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229..CBU |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61606-26440 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61606-26270 |
KDH20#,TRH200..(03S,06S)..CBU |
1 | ||
| 61606-26440 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61606-26450 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61606-26390 |
KDH20#,TRH200..(03S,06S)..CBU |
1 | ||
| 61606-26450 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61606-26451 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61606-26391 |
KDH20#,TRH200..(03S,06S)..CBU |
1 | ||
| 61606-26451 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61606-26B10 |
KDH20#,TRH200..(03S,06S)..CBU |
1 | ||
| 61606-26B50 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61606-26B50 |
KDH20#,TRH200..(03S,06S)..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26510 |
KDH20#,TRH200..SP |
1 | ||
| 61612-26580 |
KDH20#,TRH200..SP ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61612-26580 |
KDH20#,TRH200..SP ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26A70 |
KDH20#,TRH200..SP |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26050 |
KDH20#,TRH200..SRF |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-26030 |
KDH200,201,TRH200..V2 |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26040 |
KDH223,TRH223,228..IV5;KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229 |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26230 |
KDH20#,TRH200..SRF |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61725-26040 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A10 |
KDH20#,TRH200..SRF..DX |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
KDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26160 |
KDH20#,TRH200..SRF |
1 | ||
| 61814D - REINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 LH | ||||
| 61814-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 62137B - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26050 |
KDH20#,TRH200..SP |
2 | ||
| 63713C - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63717-26010 |
KDH20#,TRH200..SRF |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 67842D - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-26010B0 |
KDH20#,TRH200..SRF..DX LT.GRAY,TRIM1# |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 68345-26020 |
KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX..CBU |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B0 |
KDH20#,22#,TRH200,221,223,226,228..DX..CBU GRAY,TRIM1# |
1 | ||
| 82719-26040B1 |
KDH20#,221,TRH200,221,226..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 5851 | ||||

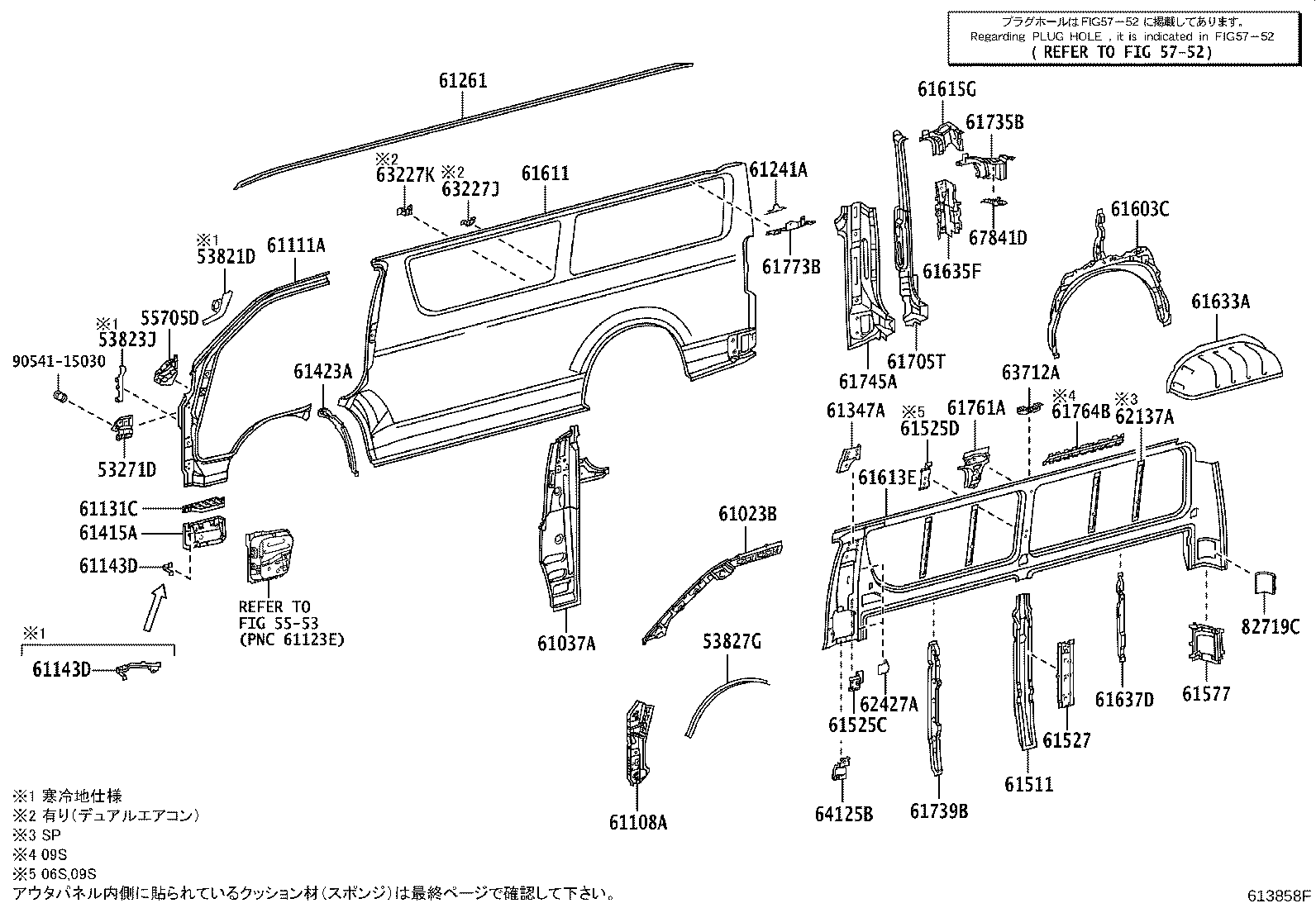

ILLUST NO. 2 OF 2(0408- )SRF..4D
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271D - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26021 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53821D - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-26031 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53821-26030 |
KDH20#,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53823J - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-26011 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53823-26010 |
KDH20#,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26190 |
KDH20#,TRH200..DX |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-26040 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-26300 |
KDH20#,TRH200,214,219..4D |
1 | ||
| 61111-26301 |
KDH20#,TRH200,214,219..4D |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-26081 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61131-26080 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26011 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 61143-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26011 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 61143-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-26051 |
KDH20#,211,TRH200,21# |
1 | ||
| 61261-26050 |
KDH20#,TRH200,21# |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-26040 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-26020 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 61415-26021 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26060 |
KDH20#,TRH200,214,219..4D |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
KDH20#,TRH200,214,219..4D |
1 | ||
| 61577 - PLATE, CAB REAR PILLAR, LOWER RH | ||||
| 61577-26020 |
KDH223,TRH223,228..IV5;KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61605-26210 |
KDH20#,220,225,TRH200,221,226..(02S,03S,06S)..CBU |
1 | ||
| 61605-26330 |
KDH20#,220,225,TRH200,221,226..(02S,03S,06S)..CBU |
1 | ||
| 61605-26331 |
KDH20#,220,221,225,TRH200,221,226..(02S,03S,06S)..CBU |
1 | ||
| 61605-26870 |
KDH20#,221,TRH200,221,226..(02S,03S,06S)..CBU |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26450 |
KDH20#,TRH200..SP |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26A00 |
KDH20#,TRH200..SP |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-26130 |
KDH20#,TRH200..SRF |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-26040 |
KDH200,201,TRH200..V2 |
1 | ||
| 61635F - REINFORCEMENT, QUARTER PANEL, UPR RH | ||||
| 61635-26050 |
KDH223,TRH223,228..IV5;KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229..HRF,SMRF,SRF |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26240 |
KDH20#,TRH200..SRF |
1 | ||
| 61735B - EXTENSION, QUARTER PANEL, INNER RH | ||||
| 61735-26A10 |
KDH20#,TRH200..SRF..DX |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26030 |
KDH20#,220,221,225,TRH200,221,226..4D..CBU |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26080 |
KDH20#,TRH200,214,219..4D |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-26160 |
KDH20#,TRH200..SRF |
1 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26050 |
KDH20#,TRH200..SP |
4 | ||
| 62427A - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62427-26050 |
KDH20#,220,221,225,TRH200,221,226..4D..(03S,06S,09S)..CBU |
1 | ||
| 63712A - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63717-26010 |
KDH20#,TRH200..SRF |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67841D - COVER, QUARTER SERVICE HOLE, RH | ||||
| 67841-26010B0 |
KDH20#,TRH200..SRF..DX LT.GRAY,TRIM1# |
1 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26030B1 |
KDH20#,221,TRH200,221,226..DX..CBU DK.GRAY,TRIM1# |
1 | ||
| 82719-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..DX..CBU GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(0408- )KDH20#,TRH200,214,219..4D
ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26141 |
KDH20#,211,TRH200,21# |
1 | ||
| 61132-26140 |
KDH20#,211,TRH200,21# |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26110 |
KDH20#,211,TRH200,21# |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-26020 |
KDH20#,211,TRH200,21# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-26270 |
KDH20#,211,TRH200,21# |
1 | ||
(0408- )
ｸｯｼｮﾝｻﾞｲ(ｽﾎﾟﾝｼﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26310 | ||||
| 61667-26320 | ||||
| 61667-26330 | ||||
| 61667-26340 | ||||
| 61667-26350 | ||||
| 61667-26360 | ||||
| 61667-26390 | ||||
| 61667-26400 | ||||
| 61667-26420 | ||||
ILLUST NO. 1 OF 2(1312-1712)KDH20#,TRH200,214,219..4D
ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(1312-1712)SRF..4D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90154-60043 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
