TRH200V-RKPDK (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Dec 2013
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDH200,TRH200..V2..03S

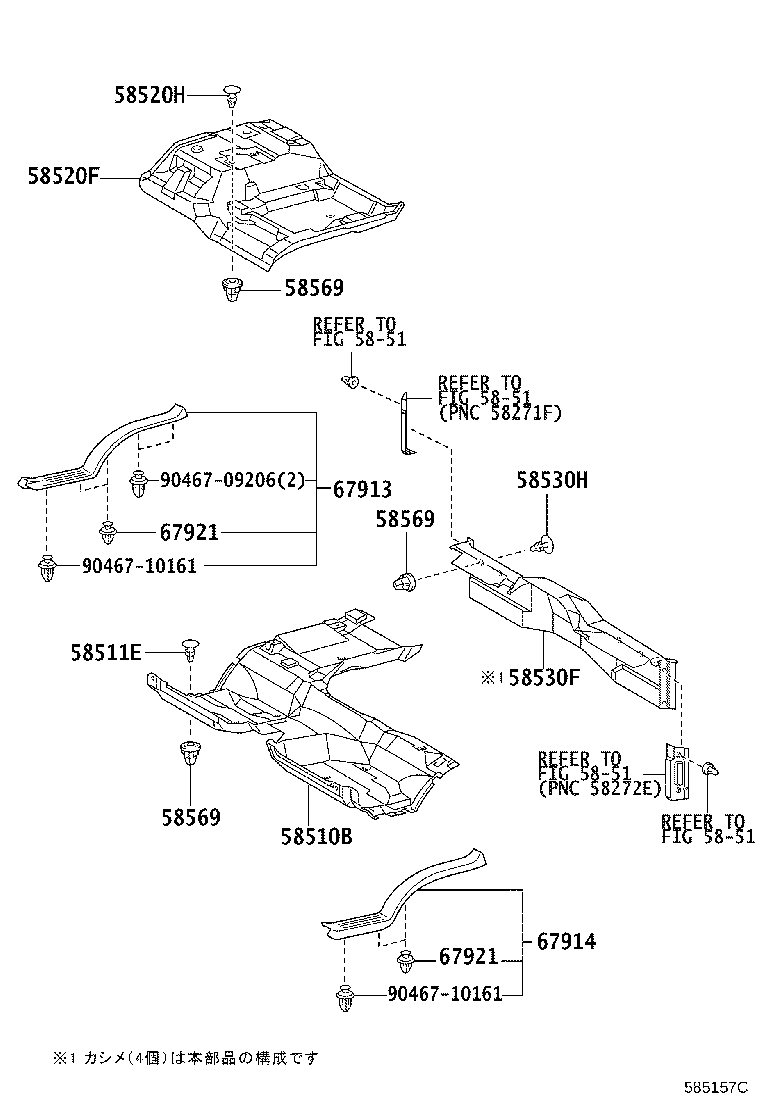

Click highlighted areas on diagram

diagram 5851 5851 5851 5851 58510B 58511E 58520F 58520H 58530F 58530H 58569 58569 58569 67913 67914 67921 67921 9046709206 9046710161 9046710161
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-26A20B0

KDH20#..5F;TRH200..DX..CBU

MEDIUM GRAY,TRIM1#

 1
58510-26A31B0

KDH20#..5F;TRH200..DX..CBU

MEDIUM GRAY,TRIM1#

 1
58510-26A30B0

KDH20#..5F;TRH200..DX..CBU

MEDIUM GRAY,TRIM1#

 1
58510-26A31B2

KDH20#..5F;TRH200..DX..CBU

DK.GRAY,TRIM1#

 1
58510-26A32B2

KDH20#..5F;TRH200..DX..CBU

DK.GRAY,TRIM1#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
64726-26010B0

KDH20#,211,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 10
64726-26010B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 10
58520F - MAT ASSY, ENGINE COVER
58520-26310B0

KDH20#,TRH200..DX..CBU

MEDIUM GRAY,TRIM1#

 1
58520-26311B0

KDH20#,TRH200..DX..CBU

MEDIUM GRAY,TRIM1#

 1
58520-26311B2

KDH20#,TRH200..DX..CBU

DK.GRAY,TRIM1#

 1
58520H - CLIP(FOR ENGINE COVER MAT)
64726-26010B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 2
64726-26010B0

KDH20#,211,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 2
58530F - MAT ASSY, HEADER
58530-26840B0

KDH200,TRH200..V2..03S

MEDIUM GRAY,TRIM1#

 1
58530-26841B0

KDH200,TRH200..V2..03S

MEDIUM GRAY,TRIM1#

 1
58530-26F80B0

KDH201,TRH200..V2..03S

MEDIUM GRAY,TRIM1#

 1
58530-26F80B2

KDH201,TRH200..V2..03S

DK.GRAY,TRIM1#

 1
58530H - CLIP(FOR HEADER MAT & HEADER CARPET)
64726-26010B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 9
64726-26010B0

KDH20#,211,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 9
58569 - STOPPER, REAR FLOOR MAT
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用

 1
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用

 1
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用

 10
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用

 6
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用

 6
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用

 10
58569 - STOPPER, REAR FLOOR MAT
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用

 1
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用

 1
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用

 10
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用

 6
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用

 6
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用

 10
58569 - STOPPER, REAR FLOOR MAT
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用

 1
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ｴﾝｼﾞﾝｶﾊﾞｰ ﾏｯﾄ用

 1
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用

 10
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用

 6
64779-26010

KDH20#,211,22#,TRH200,21#,22#

ﾍｯﾀﾞﾊﾟﾈﾙ ﾏｯﾄ用

 6
64779-26020

KDH20#,211,22#,TRH200,21#,22#

ﾌﾛﾝﾄ ﾌﾛｱﾏｯﾄ用

 10
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-26080B0

KDH20#,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 1
67913-26081B0

KDH20#,211,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 1
67913-26081B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
67913-26082B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-26061B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
67914-26062B1

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
67914-26060B0

KDH20#,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 1
67914-26061B0

KDH20#,211,22#,TRH200,21#,22#

MD.GRAY,TRIM1#

 1
67921 - RETAINER, FRONT DOOR SCUFF PLATE
67771-26240

KDH20#,211,22#,TRH200,21#,22#

 4
67921 - RETAINER, FRONT DOOR SCUFF PLATE
67771-26240

KDH20#,211,22#,TRH200,21#,22#

 4
Common parts
90467-09206
90467-10161
Linked diagrams
5851
